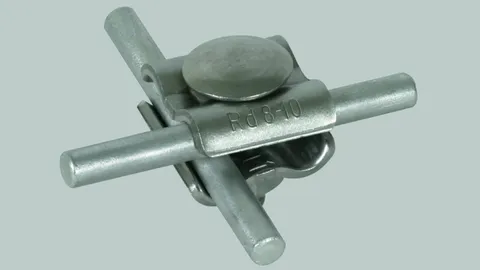

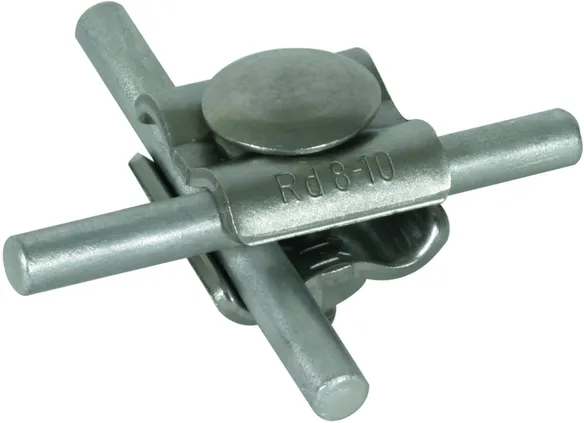

Universal Connector

For connecting round conductors in cross, T, and parallel arrangements and for twin conductor connection.

1 产品

货号 315119 UV 8.10 KTP V2A

全球贸易项目代码 4013364134072, 海关HS编码: 85359000, 总重: 91.60 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

Universal connector, StSt
Universal connector
For cross connections, T connections and parallel
connections
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Screw: M10 x 35 mm
Standard: EN 62561-1

Brand: DEHN
Type: UV 8.10 KTP V2A
Part No.: 315119
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.
