DEHNcube PV

Prewired multipole surge arrester with IP 65 degree of protection for use in photovoltaic systems
No space required in a distribution board enclosure
Pre-assembled connecting cable available for simple connection of the surge arrester directly upstream of the inverter to be protected
Combined disconnection and short-circuiting device with safe electrical isolation in every protective circuit (patented SCI principle)
Spring-loaded terminals for easy and quick connection without tools
Tested to EN 61643-31
For use in all PV systems according to IEC 60364-7-712

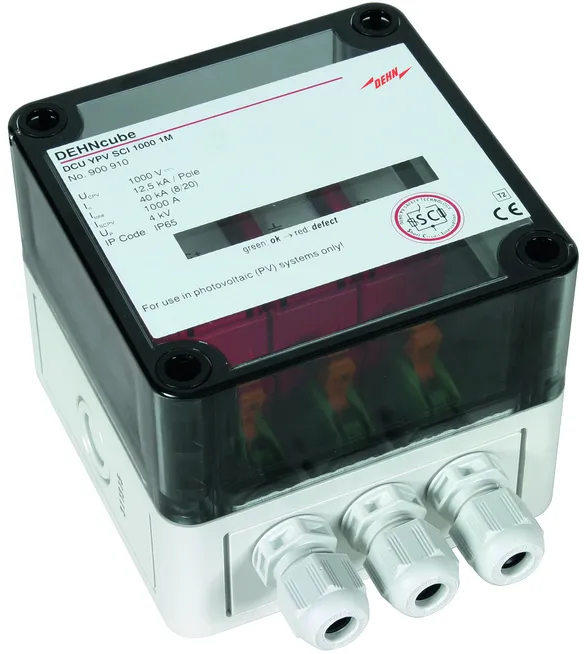

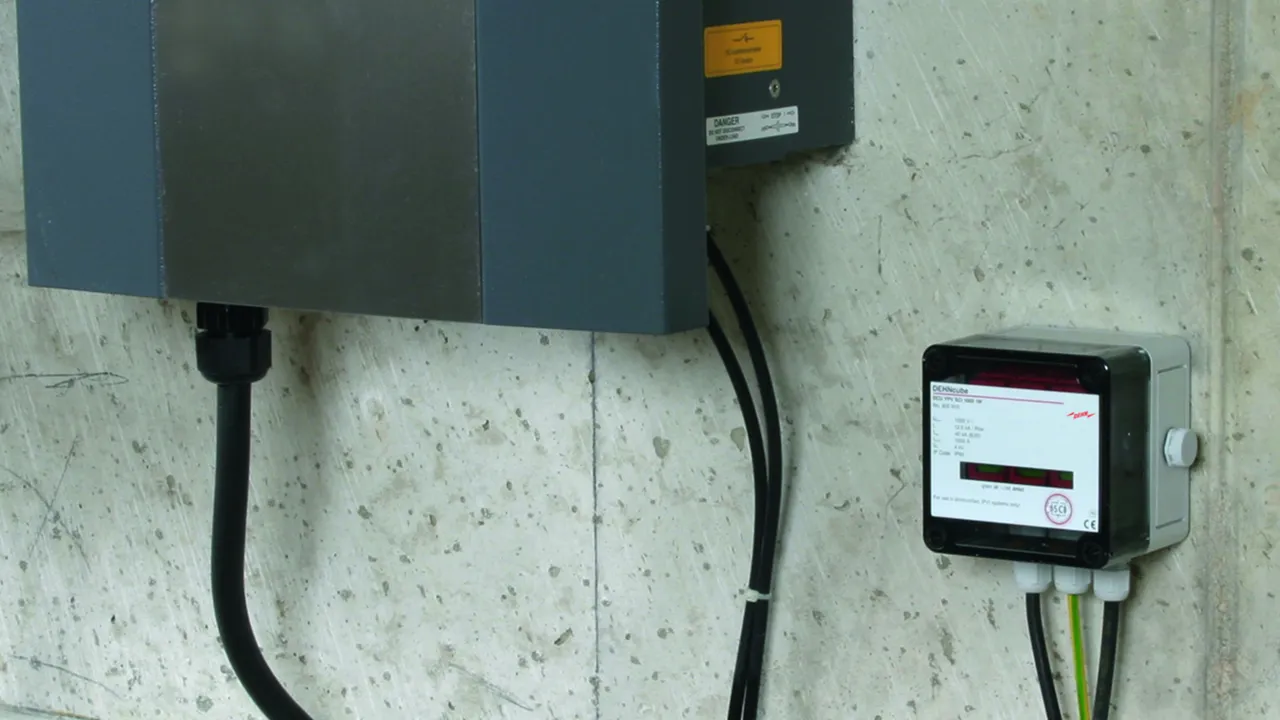

DEHNcube YPV SCI 1000 1M

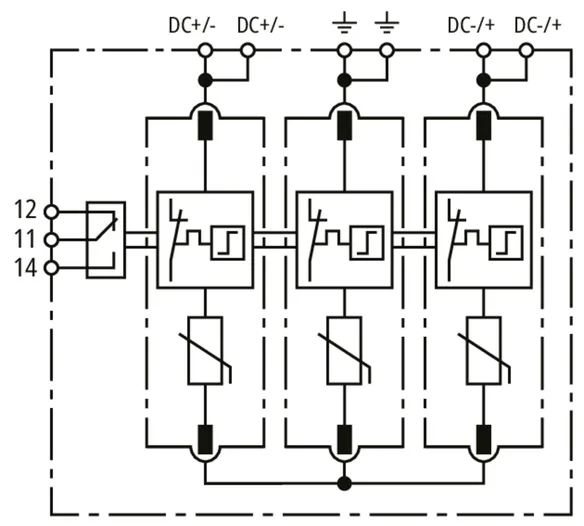

Two-pole surge arrester with IP 65 degree of protection and three-step d.c. switching device for PV inverters for protecting one MPP input.

1 产品

货号 900910 DCU YPV SCI 1000 1M

全球贸易项目代码 4013364155046, 海关HS编码: 85363030, 总重: 426.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

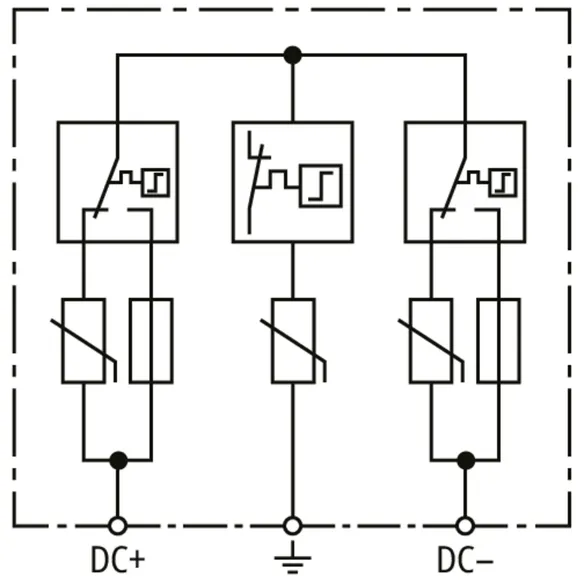

DEHNcube YPV SCI 1000 1M surge arrester
Multipole arrester for use
in photovoltaic systems up to 1000 V d.c.
For protecting 1 MPP input with IP65 degree of protection
Fault indication
Type 2 SPD according to EN 61643-31
with three-step d.c. switching device
For use in accordance with IEC 60364-7-712
Max. PV voltage: <= 1000 V d.c.
Nominal discharge current (8/20) 12.5 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit current rating Iscpv: 1000 A

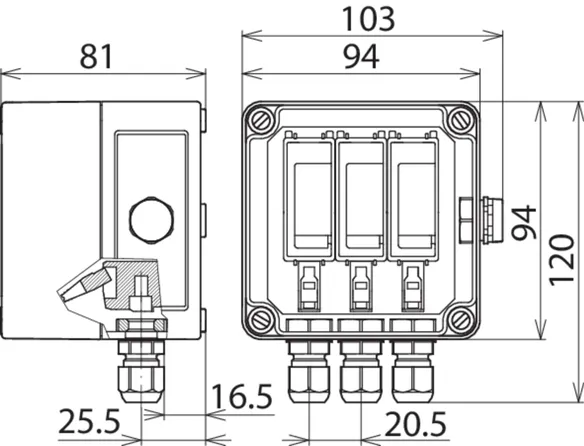

Dimensions 94 x 94 x 81 mm
Cable entry: 3x Ø3-7 mm

Brand: DEHN
Type: DCU YPV SCI 1000 1M
Part No.: 900910
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
SPD according to EN 50539-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Voltage protection level at 5 kA (U_P )	≤ 3.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	2.5 mm²solid / flexible
Cross-sectional area (max.)	6 mm²solid / flexible
Place of installation	outdoor
Degree of protection	IP 65
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	3x Ø3-7 mm
Enclosure dimensions (W x H x D)	94 x 94 x 81 mm
Approvals	KEMA

.产品已加入收藏夹。

进入收藏夹

商品900910加入购物车。

进入网上商店

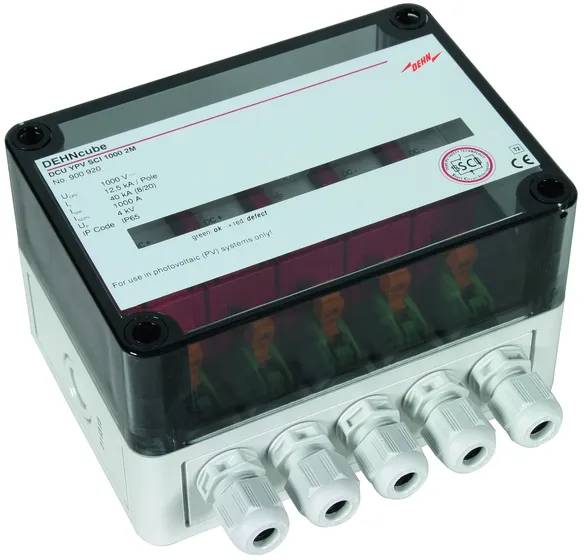

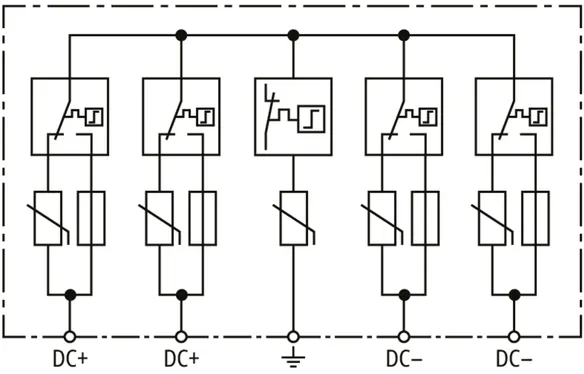

DEHNcube YPV SCI 1000 2M

Four-pole surge arrester with IP 65 degree of protection and three-step d.c. switching device for PV inverters for protecting two MPP inputs.

1 产品

货号 900920 DCU YPV SCI 1000 2M

全球贸易项目代码 4013364155053, 海关HS编码: 85363030, 总重: 731.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

DEHNcube YPV SCI 1000 2M surge arrester
Multipole arrester for use in photovoltaic systems up to 1,000 V DC
for the protection of 2 MPP inputs with IP65 degree of protection
Fault indication
Type 2 arrester as per EN 61643-31 with three-step DC switching device
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,000 V DC
Nominal discharge current: (8/20) 12.5 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 1000 A

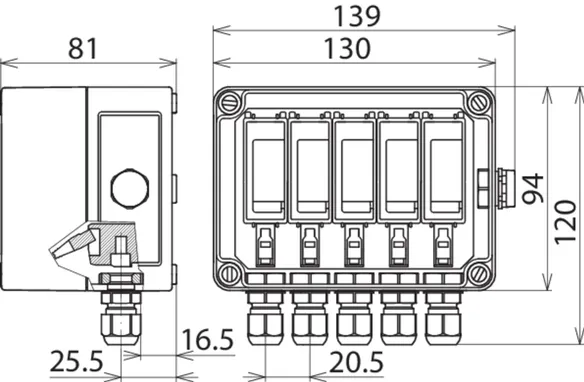

Dimensions: 130 x 94 x 81 mm
Cable entry: 5x Ø3-7 mm

Brand: DEHN
Type: DCU YPV SCI 1000 2M
Part No.: 900920
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
SPD according to EN 50539-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Voltage protection level at 5 kA (U_P )	≤ 3.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	2.5 mm²solid / flexible
Cross-sectional area (max.)	6 mm²solid / flexible
Place of installation	outdoor
Degree of protection	IP 65
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	5x Ø3-7 mm
Enclosure dimensions (W x H x D)	130 x 94 x 81 mm
Approvals	KEMA

.产品已加入收藏夹。

进入收藏夹

商品900920加入购物车。

进入网上商店

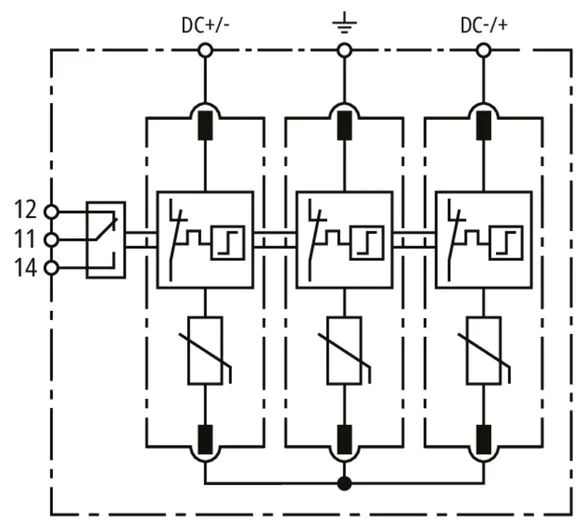

DEHNcube 2 YPV 1100 1M 2S

Generator junction box for PV systems of up to 1100 V DC for protecting one MPP input and two strings.
With surge protection and push-in terminals for the input and output.

1 产品

货号 900913 DCU 2 YPV 1100 1M 2S

全球贸易项目代码 4013364492455, 海关HS编码: 85372091, 总重: 1.59 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

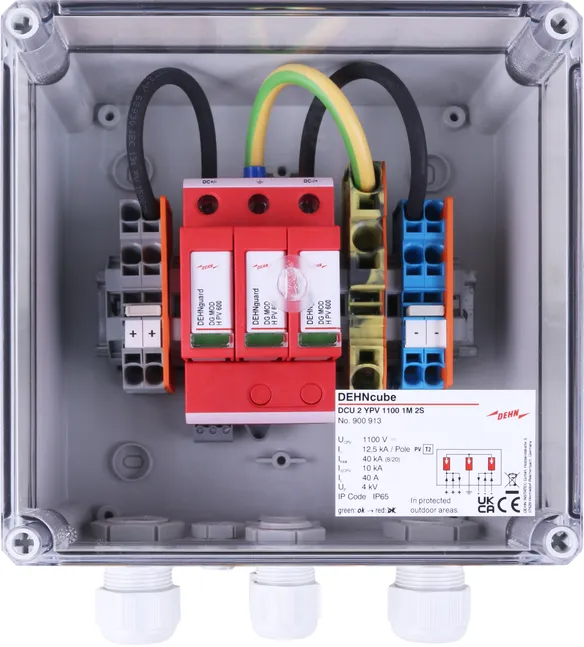

Generator junction box DCU 2 YPV 1100 1M 2S
Generator junction box up to 1100 V DC
for protecting 1 MPP input and
2 strings with IP65 degree of protection
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

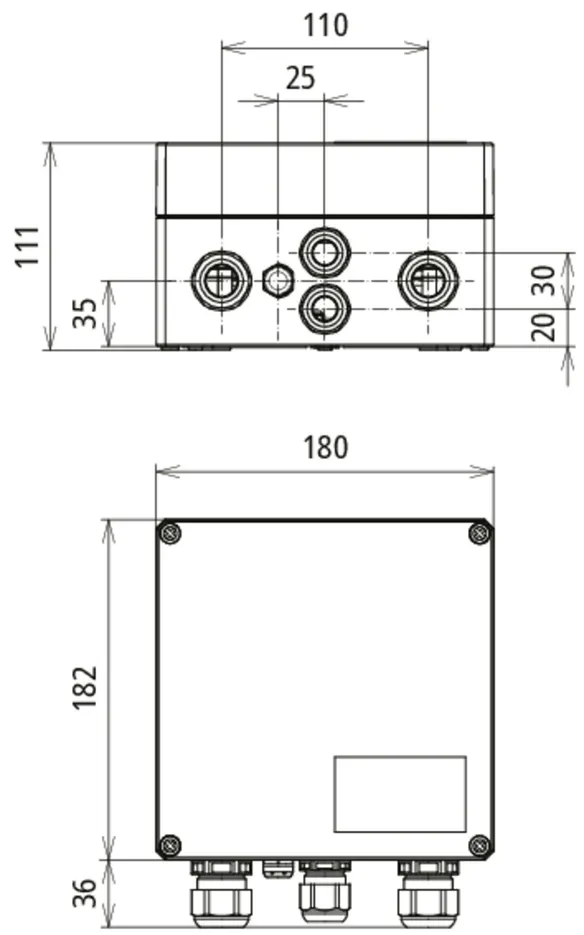

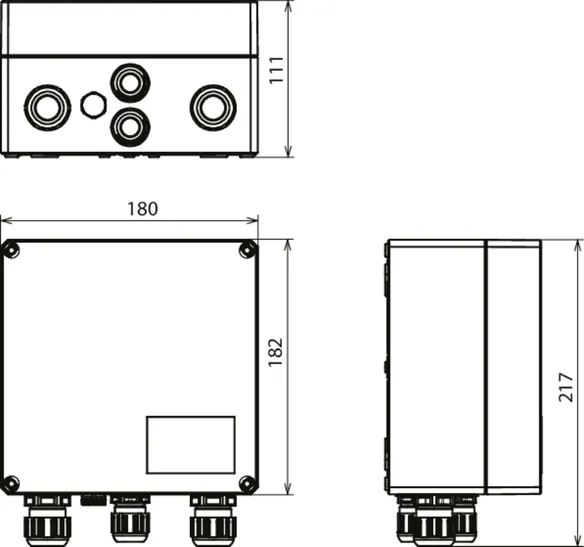

Dimensions: 180 x 182 x 111 mm
Cable entry: 2x 3-way screw connection (2.5 mm² – 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1100 1M 2S
Part No.: 900913
or equivalent.

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm² fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x 3-fold screw connection
Number of cable entries	2x M20

.产品已加入收藏夹。

进入收藏夹

商品900913加入购物车。

进入网上商店

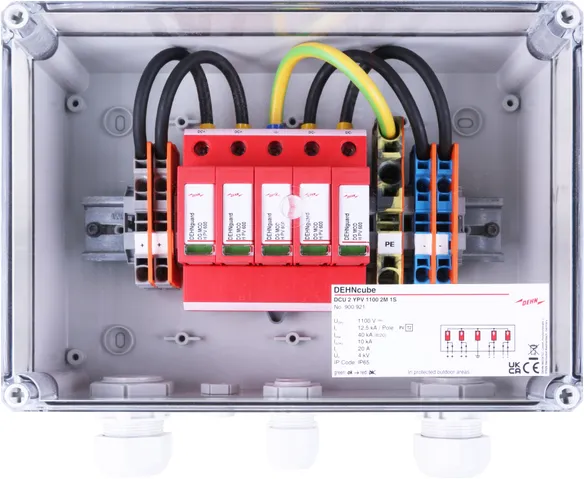

DEHNcube 2 YPV 1100 2M 1S

Generator junction box for PV systems of up to 1,100 V DC for protecting two MPP inputs and one string each.
With surge protection and push-in terminals for the input and output.

1 产品

货号 900921 DCU 2 YPV 1100 2M 1S

全球贸易项目代码 4013364492462, 海关HS编码: 85372091, 总重: 2.14 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Generator junction box DCU 2 YPV 1100 2M 1S
Generator junction box up to 1100 V DC
for the protection of two MPP inputs
and 1 string each with IP65 degree of protection
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

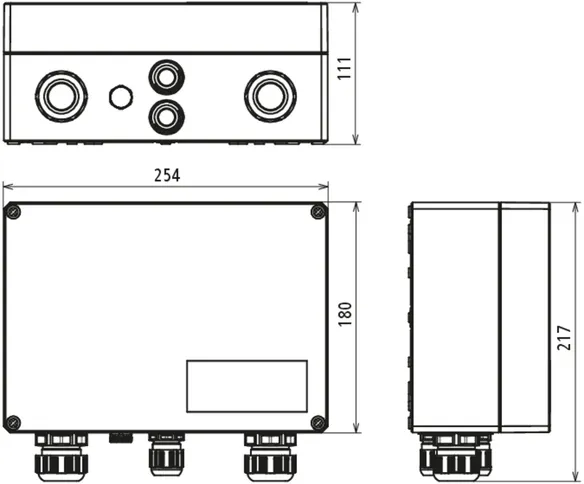

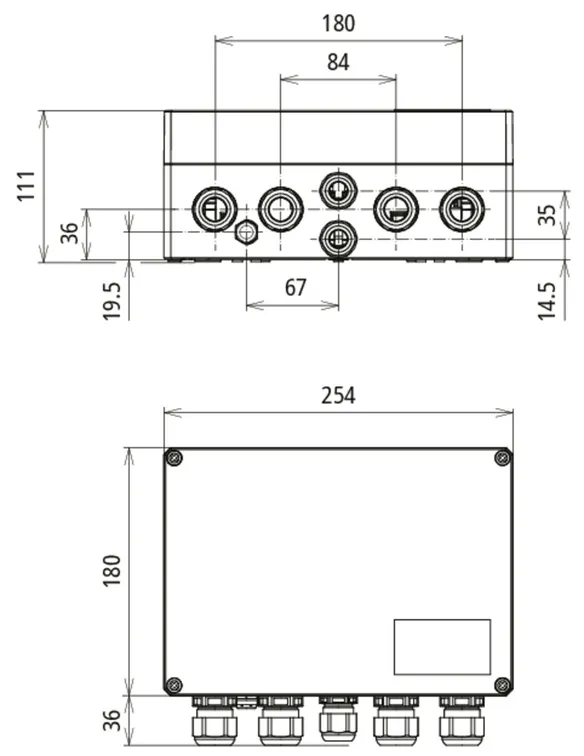

Dimensions: 254 x 180 x 111 mm
Cable entry: 2x 4-fold cable gland
(2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1100 2M 1S
Part No.: 900921
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm² fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x 4-fold screw connection
Number of cable entries	2x M20

.产品已加入收藏夹。

进入收藏夹

商品900921加入购物车。

进入网上商店

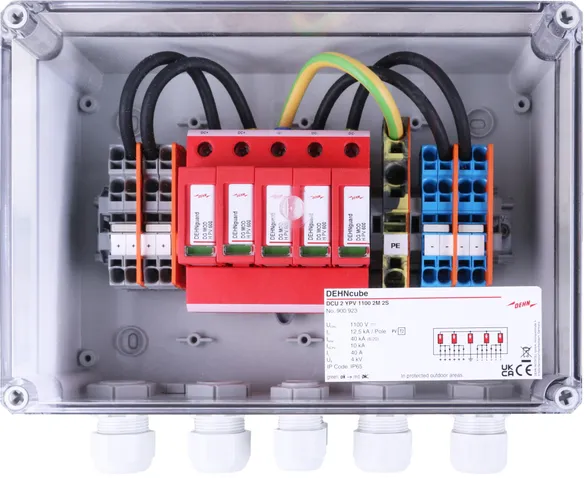

DEHNcube 2 YPV 1100 2M 2S

Generator junction box for PV systems of up to 1100 V DC for protecting two MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.

1 产品

货号 900923 DCU 2 YPV 1100 2M 2S

全球贸易项目代码 4013364492400, 海关HS编码: 85372091, 总重: 2.21 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Generator junction box DCU 2 YPV 1100 2M 2S
Generator junction box up to 1100 V DC
for the protection of two MPP inputs
and two strings each in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

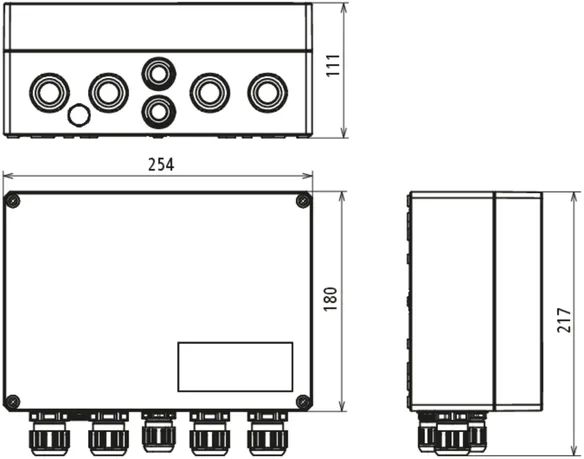

Dimensions: 254 x 180 x 111 mm
Cable entry: 4x 3-fold cable gland
(2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1100 2M 2S
Part No.: 900923
or equivalent.

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm² fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	4x 3-fold screw connection
Number of cable entries	2x M20

.产品已加入收藏夹。

进入收藏夹

商品900923加入购物车。

进入网上商店

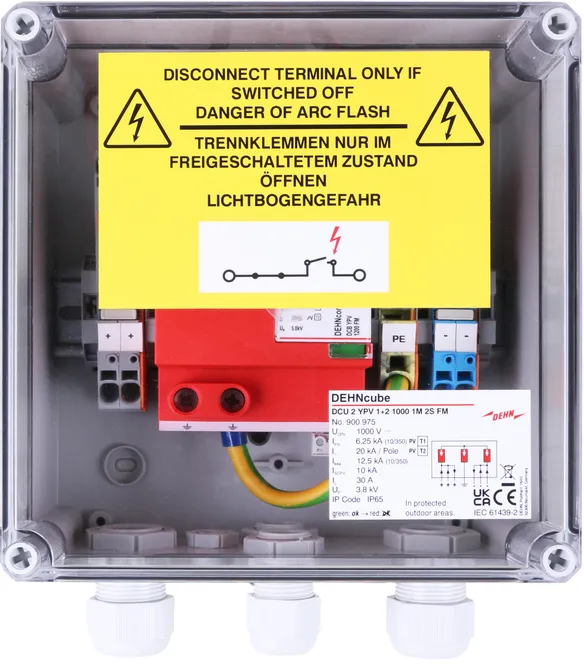

DEHNcube 2 YPV 1+2 1000 1M 2S FM

Generator junction box for PV systems of up to 1,000 V DC with disconnecting clamps for protecting one MPP input and two strings.
With surge protection and push-in terminals for the input and output.

1 产品

货号 900975 DCU 2 YPV 1+2 1000 1M 2S FM

全球贸易项目代码 4013364520318, 海关HS编码: 85371098, 总重: 1.85 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Generator junction box DCU 2 YPV 1+2 1000 1M 2S FM
Generator junction box up to 1000 V DC
for protecting 1 MPP input and
2 strings with IP65 degree of protection
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 182 x 180 x 111 mm
Cable entry: 2x 3-way screw connection
(2.5 mm² – 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1+2 1000 1M 2S FM
Part No.: 900975
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	≤ 3.8 kV
Nominal load current (I_L )	30 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm² fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1000 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x 3-fold screw connection
Number of cable entries	2x M20
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / fine-stranded

.产品已加入收藏夹。

进入收藏夹

商品900975加入购物车。

进入网上商店

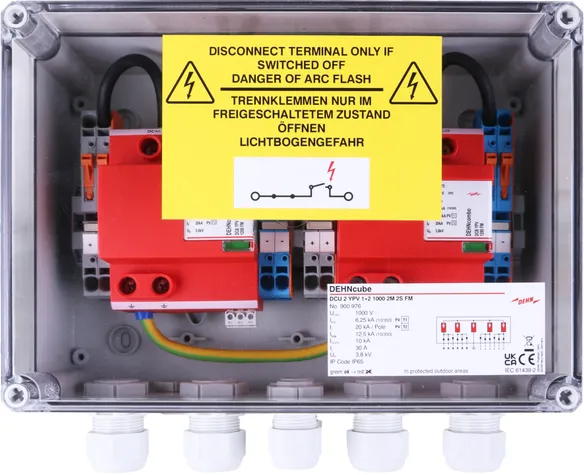

DEHNcube 2 YPV 1+2 1000 2M 2S FM

Generator junction box for PV systems of up to 1000 V DC with disconnecting clamps for protecting two MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.

1 产品

货号 900976 DCU 2 YPV 1+2 1000 2M 2S FM

全球贸易项目代码 4013364520295, 海关HS编码: 85371098, 总重: 2.69 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Generator junction box DCU 2 YPV 1+2 1000 2M 2S FM
Generator junction box up to 1,000 V DC
for the protection of two MPP inputs
and two strings each in degree of protection IP65
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 254 x 180 x 111 mm
Cable entry: 4x 3-fold cable gland
(2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1+2 1000 2M 2S FM
Part No.: 900976
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	≤ 3.8 kV
Nominal load current (I_L )	30 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm²fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1000 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	4x 3-fold cable gland
Number of cable entries	2x M20
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / fine-stranded

.产品已加入收藏夹。

进入收藏夹

商品900976加入购物车。

进入网上商店

DEHNcube 2 YPV 1+2 1000 3M 2S FM

Generator junction box for PV systems of up to 1000 V DC with disconnecting clamps for protecting three MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.

1 产品

货号 900978 DCU 2 YPV 1+2 1000 3M 2S FM

全球贸易项目代码 4013364534766, 海关HS编码: 85372091, 总重: 4.19 kg, 包装单位: 1.00 pc(s)


附加信息

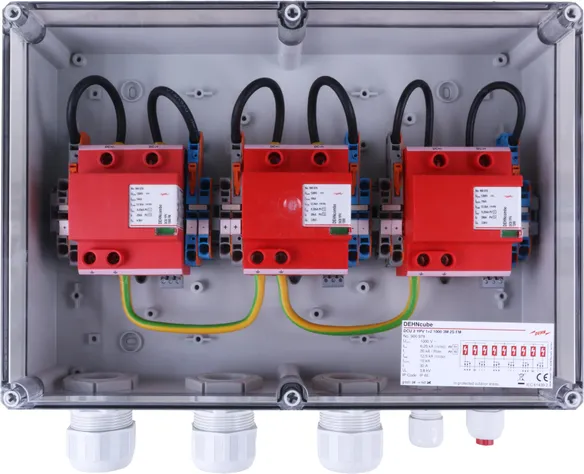

GAK DCU 2 YPV 1+2 1000 3M 2S FM
Generator junction box up to 1,000 V DC
for protecting three MPP inputs
each with two strings with IP65 degree of protection
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1000 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA

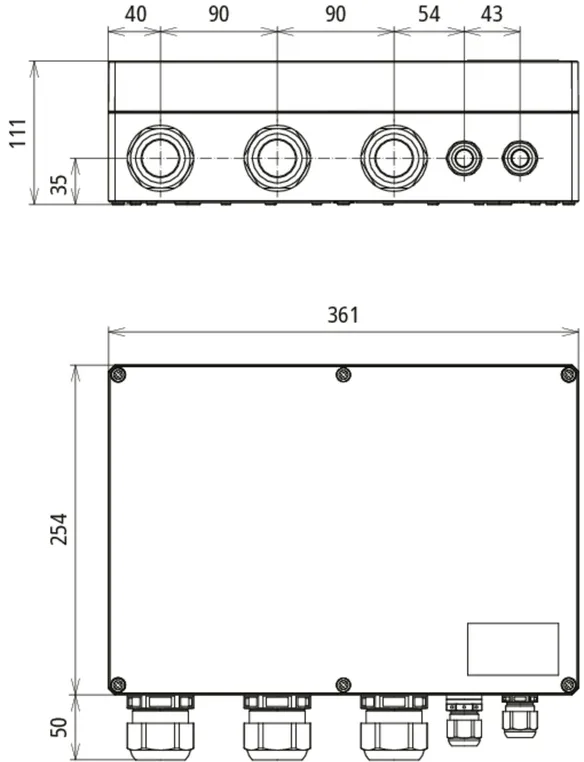

Dimensions: 361 x 254 x 111 mm
Cable entry: 3x 6-fold cable gland
(2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1+2 1000 3M 2S FM
Part No.: 900978
or equivalent.

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	≤ 3.8 kV
Nominal load current (I_L )	30 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm²fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1000 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	3x 6-fold cable gland
Number of cable entries	2x M20
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / fine-stranded

.产品已加入收藏夹。

进入收藏夹

商品900978加入购物车。

进入网上商店

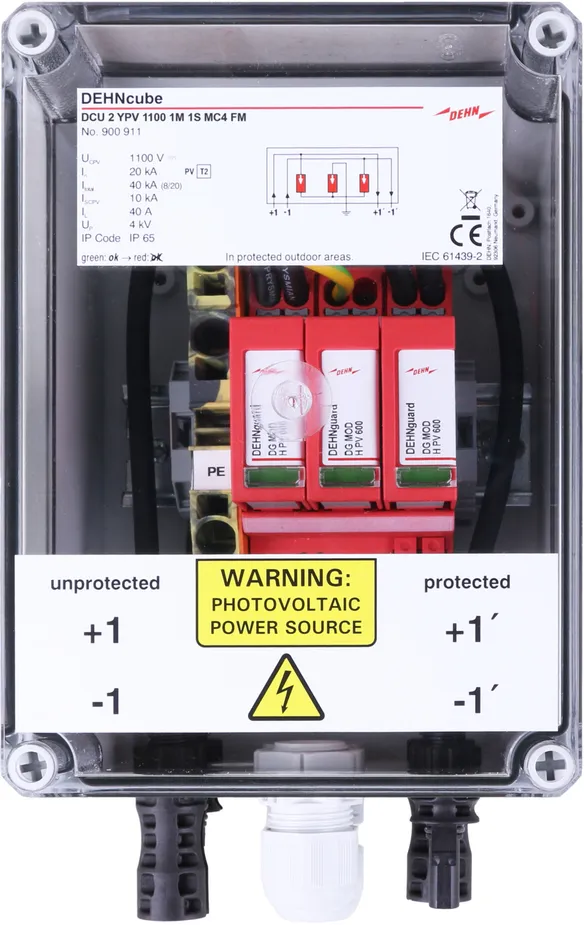

DEHNcube 2 YPV 1100 1M 1S MC4 FM

Generator junction box for PV systems of up to 1,100 V DC for protecting one MPP input and one string.

1 产品

货号 900911 DCU 2 YPV 1100 1M 1S MC4 FM

全球贸易项目代码 4013364529182, 海关HS编码: 85372091, 总重: 1027.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

GAK DCU 2 YPV 1100 1M 1S MC4 FM
Generator junction box up to 1100 V DC
for protecting one MPP input
and one string in degree of protection IP65
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 180 x 130 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1100 1M 1S MC4 FM
Part No.: 900911
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm² solid / 25 mm² fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm² fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x original MC4 plug (PV-ADS4-EVO 2A), 2x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / fine-stranded

.产品已加入收藏夹。

进入收藏夹

商品900911加入购物车。

进入网上商店

DEHNcube 2 YPV 1100 2M 1S MC4

Generator junction box for PV systems of up to 1,100 V DC for protecting two MPP inputs and one string each.

1 产品

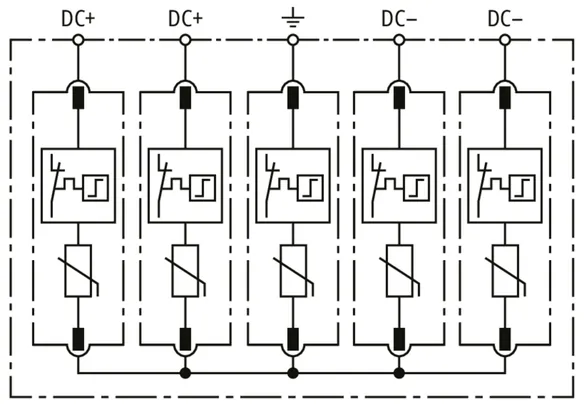

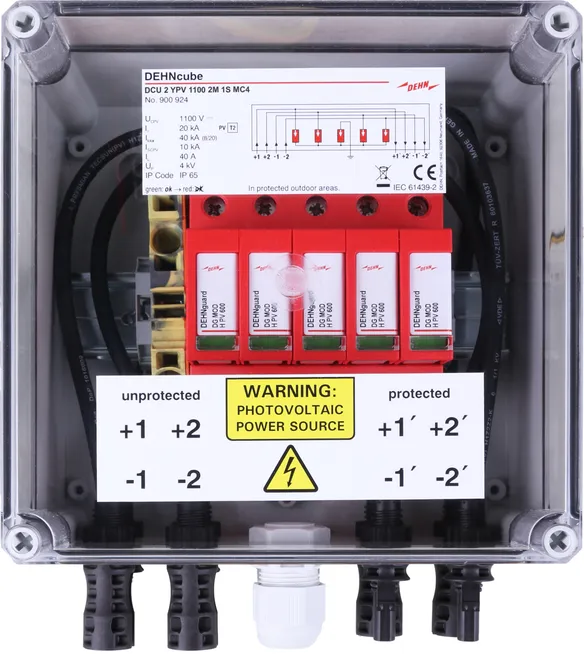

货号 900924 DCU 2 YPV 1100 2M 1S MC4

全球贸易项目代码 4013364529205, 海关HS编码: 85372091, 总重: 1963.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

GAK DCU 2 YPV 1100 2M 1S MC4
Generator junction box up to 1100 V DC
for the protection of two MPP inputs
and one string each in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

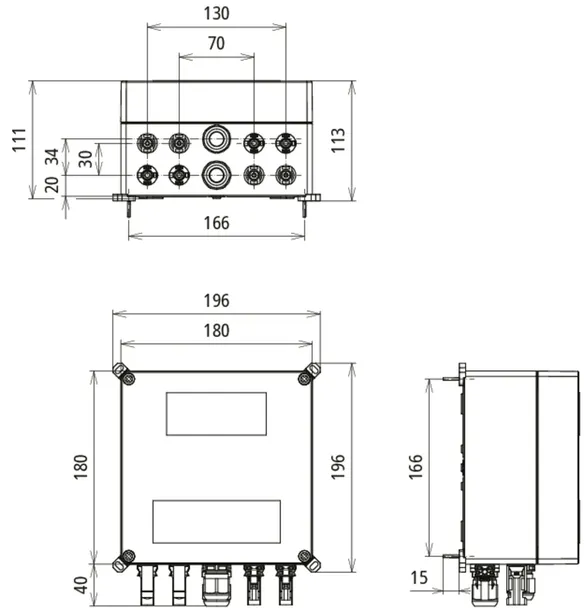

Dimensions: 180 x 180 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1100 2M 1S MC4
Part No.: 900924
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +50°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x original MC4 plug (PV-ADS4-EVO 2A), 2x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

.产品已加入收藏夹。

进入收藏夹

商品900924加入购物车。

进入网上商店

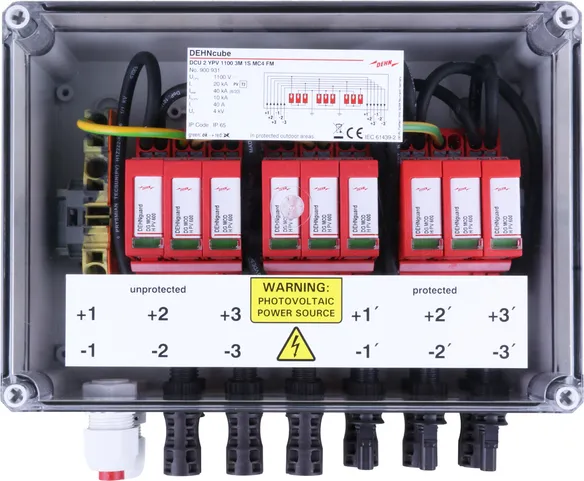

DEHNcube 2 YPV 1100 3M 1S MC4 FM

Generator junction box for PV systems of up to 1100 V DC for protecting three MPP inputs and one string each.

1 产品

货号 900931 DCU 2 YPV 1100 3M 1S MC4 FM

全球贸易项目代码 4013364534742, 海关HS编码: 85372091, 总重: 2.63 kg, 包装单位: 1.00 pc(s)


附加信息

GAK DCU 2 YPV 1100 3M 1S MC4 FM
Generator junction box up to 1,100 V DC
for protecting three MPP inputs
each with one string with IP65 degree of protection
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
In: (8/20) 20 kA / pole
Itotal: (8/20) 40 kA
Up: <= 4 kV
Short-circuit strength Iscpv: 10 kA

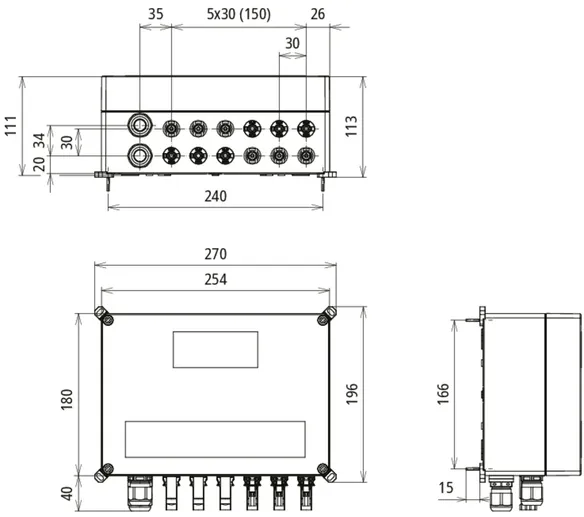

Dimensions: 254 x 180 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1100 3M 1S MC4 FM
Part No.: 900931
or equivalent.

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +50°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	6x original MC4 plug (PV-ADS4-EVO 2A), 6x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

.产品已加入收藏夹。

进入收藏夹

商品900931加入购物车。

进入网上商店

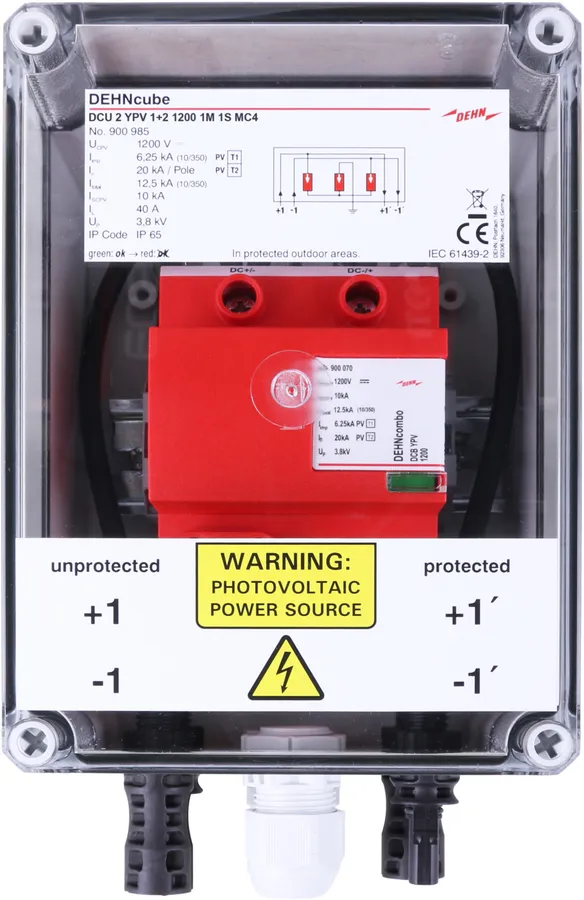

DEHNcube 2 YPV 1+2 1200 1M 1S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting one MPP input and one string.

1 产品

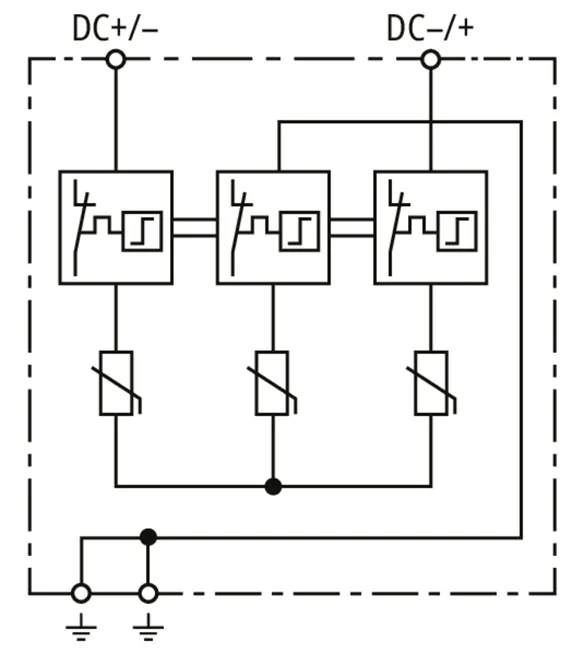

货号 900985 DCU 2 YPV 1+2 1200 1M 1S MC4

全球贸易项目代码 4013364529199, 海关HS编码: 85372091, 总重: 1169.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

GAK DCU 2 YPV 1+2 1200 1M 1S MC4
Generator junction box up to 1200 V DC
for protecting one MPP input
and one string in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 180 x 130 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1+2 1200 1M 1S MC4
Part No.: 900985
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Short-circuit current rating (I_SCPV )	10 kA
Voltage protection level (U_P )	< 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	< 3.8 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm²stranded / 25 mm² fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm² fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x original MC4 plug (PV-ADS4-EVO 2A), 2x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

.产品已加入收藏夹。

进入收藏夹

商品900985加入购物车。

进入网上商店

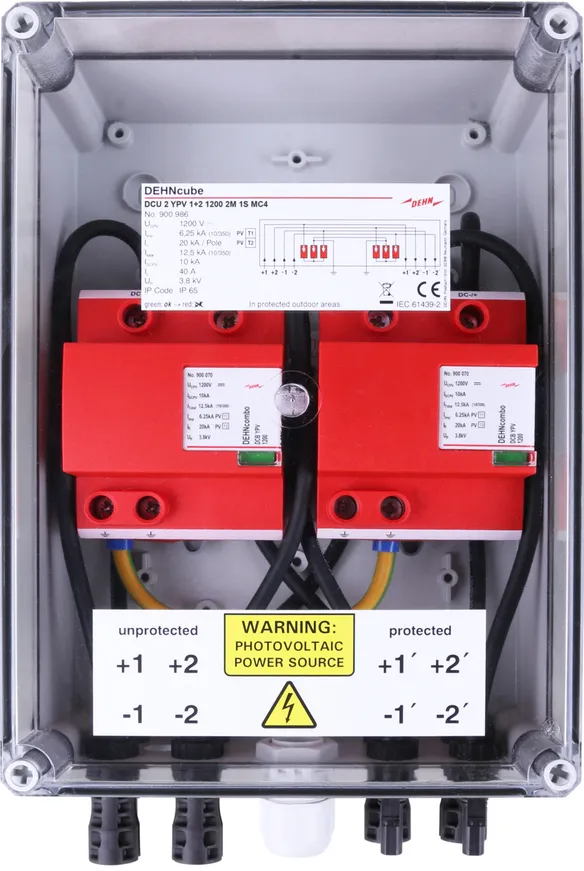

DEHNcube 2 YPV 1+2 1200 2M 1S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting two MPP inputs and one string each.

1 产品

货号 900986 DCU 2 YPV 1+2 1200 2M 1S MC4

全球贸易项目代码 4013364529212, 海关HS编码: 85372091, 总重: 2.76 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

GAK DCU 2 YPV 1+2 1200 2M 1S MC4
Generator junction box up to 1200 V DC
for the protection of two MPP inputs
and one string each in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 254 x 180 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1+2 1200 2M 1S MC4
Part No.: 900986
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Short-circuit current rating (I_SCPV )	10 kA
Voltage protection level (U_P )	< 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	< 3.8 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	4x original MC4 plug (PV-ADS4-EVO 2A), 4x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

.产品已加入收藏夹。

进入收藏夹

商品900986加入购物车。

进入网上商店

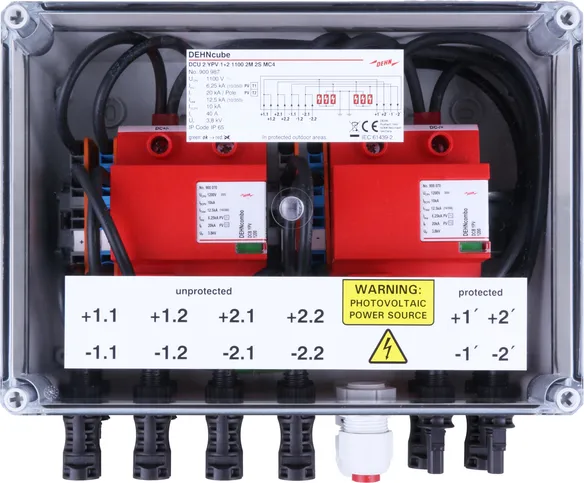

DEHNcube 2 YPV 1+2 1200 2M 2S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting two MPP inputs and two strings each.

1 产品

货号 900987 DCU 2 YPV 1+2 1200 2M 2S MC4

全球贸易项目代码 4013364534735, 海关HS编码: 85372091, 总重: 2.74 kg, 包装单位: 1.00 pc(s)


附加信息

GAK DCU 2 YPV 1+2 1200 2M 2S MC4
Generator junction box up to 1200 V DC
for the protection of two MPP inputs
and two strings each in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 254 x 180 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1+2 1200 2M 2S MC4
Part No.: 900987
or equivalent.

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Short-circuit current rating (I_SCPV )	10 kA
Voltage protection level (U_P )	< 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	< 3.8 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	6x original MC4 plug (PV-ADS4-EVO 2A), 6x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

.产品已加入收藏夹。

进入收藏夹

商品900987加入购物车。

进入网上商店

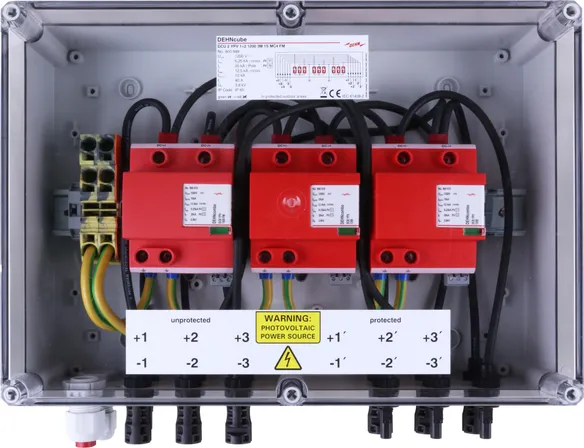

DEHNcube 2 YPV 1+2 1200 3M 1S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting three MPP inputs and one string each.

1 产品

货号 900988 DCU 2 YPV 1+2 1200 3M 1S MC4 FM

全球贸易项目代码 4013364534759, 海关HS编码: 85372091, 总重: 3.70 kg, 包装单位: 1.00 pc(s)


附加信息

GAK DCU 2 YPV 1200 3M 1S MC4 FM
Generator junction box up to 1200 V DC
for protecting three MPP inputs
each with one string with IP65 degree of protection
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 361 x 254 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1+2 1200 3M 1S MC4 FM
Part No.: 900988
or equivalent.

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Short-circuit current rating (I_SCPV )	10 kA
Voltage protection level (U_P )	< 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	< 3.8 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	6x original MC4 plug (PV-ADS4-EVO 2A), 6x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

.产品已加入收藏夹。

进入收藏夹

商品900988加入购物车。

进入网上商店

DEHNcube PV

DEHNcube YPV SCI 1000 1M

货号 900910 DCU YPV SCI 1000 1M

900910.stp 您没有下载权限900910.stp

900910.igs 您没有下载权限900910.igs

900910.jt 您没有下载权限900910.jt

900910.dwg 您没有下载权限900910.dwg

900910m_D.dxf 您没有下载权限900910m_D.dxf

DEHN.900910.wspak 您没有下载权限DEHN.900910.wspak

DEHN.900910.edz 您没有下载权限DEHN.900910.edz

.产品已加入收藏夹。

商品900910加入购物车。

DEHNcube YPV SCI 1000 2M

货号 900920 DCU YPV SCI 1000 2M

900920.stp 您没有下载权限900920.stp

900920.igs 您没有下载权限900920.igs

900920.jt 您没有下载权限900920.jt

900920.dwg 您没有下载权限900920.dwg

900920m_D.dxf 您没有下载权限900920m_D.dxf

DEHN.900920.wspak 您没有下载权限DEHN.900920.wspak

DEHN.900920.edz 您没有下载权限DEHN.900920.edz

.产品已加入收藏夹。

商品900920加入购物车。

DEHNcube 2 YPV 1100 1M 2S

货号 900913 DCU 2 YPV 1100 1M 2S

900913.stp 您没有下载权限900913.stp

900913.igs 您没有下载权限900913.igs

900913.jt 您没有下载权限900913.jt

900913.dwg 您没有下载权限900913.dwg

900913m_D.dxf 您没有下载权限900913m_D.dxf

.产品已加入收藏夹。

商品900913加入购物车。

DEHNcube 2 YPV 1100 2M 1S

货号 900921 DCU 2 YPV 1100 2M 1S

900921.stp 您没有下载权限900921.stp

900921.igs 您没有下载权限900921.igs

900921.jt 您没有下载权限900921.jt

900921.dwg 您没有下载权限900921.dwg

900921m_D.dxf 您没有下载权限900921m_D.dxf

.产品已加入收藏夹。

商品900921加入购物车。

DEHNcube 2 YPV 1100 2M 2S

货号 900923 DCU 2 YPV 1100 2M 2S

900923.stp 您没有下载权限900923.stp

900923.igs 您没有下载权限900923.igs

900923.jt 您没有下载权限900923.jt

900923.dwg 您没有下载权限900923.dwg

900923m_D.dxf 您没有下载权限900923m_D.dxf

.产品已加入收藏夹。

商品900923加入购物车。

DEHNcube 2 YPV 1+2 1000 1M 2S FM

货号 900975 DCU 2 YPV 1+2 1000 1M 2S FM

900975.stp 您没有下载权限900975.stp

900975.igs 您没有下载权限900975.igs

900975.jt 您没有下载权限900975.jt

900975.dwg 您没有下载权限900975.dwg

900975m_D.dxf 您没有下载权限900975m_D.dxf

.产品已加入收藏夹。

商品900975加入购物车。

DEHNcube 2 YPV 1+2 1000 2M 2S FM

货号 900976 DCU 2 YPV 1+2 1000 2M 2S FM

900976.stp 您没有下载权限900976.stp

900976.igs 您没有下载权限900976.igs

900976.jt 您没有下载权限900976.jt

900976.dwg 您没有下载权限900976.dwg

900976m_D.pdf 您没有下载权限900976m_D.pdf

.产品已加入收藏夹。

商品900976加入购物车。

DEHNcube 2 YPV 1+2 1000 3M 2S FM

货号 900978 DCU 2 YPV 1+2 1000 3M 2S FM

900978m_D.dxf 您没有下载权限900978m_D.dxf

.产品已加入收藏夹。

商品900978加入购物车。

DEHNcube 2 YPV 1100 1M 1S MC4 FM

货号 900911 DCU 2 YPV 1100 1M 1S MC4 FM

900911_900985.stp 您没有下载权限900911_900985.stp

900911_900985.igs 您没有下载权限900911_900985.igs

900911_900985.jt 您没有下载权限900911_900985.jt

900911_900985.dwg 您没有下载权限900911_900985.dwg

900911_900985m_D.dxf 您没有下载权限900911_900985m_D.dxf
