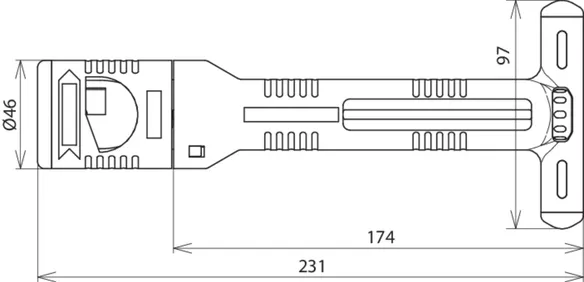

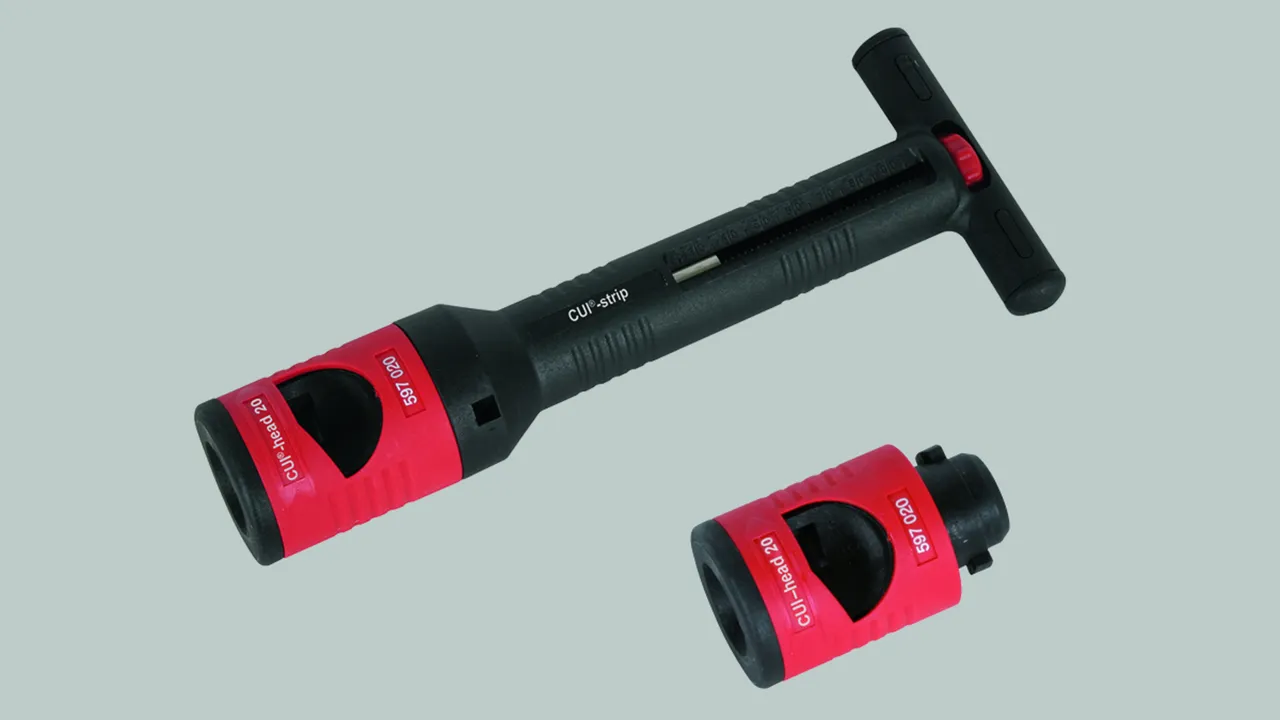

Stripping Tool for CUI Conductors

Tool for stripping the XLPE insulated CUI Conductor (outer diameter 20 mm).
  • Tool consists of a handle and an exchangeable cutting heads
  • Stripping length of the CUI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length set.
HandlingPosition the cutting head at the cut-off end of the conductor and turn clockwise applying light pressure to cut/strip it.

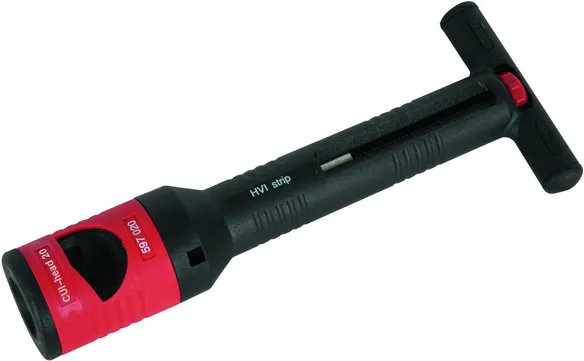

CUI-strip 20

1 产品

货号 597320 CUI STRIP 20

全球贸易项目代码 4013364154940, 海关HS编码: 82055980, 总重: 442.00 g, 包装单位: 1.00 pc(s)


附加信息



Brand: DEHN
Type: CUI STRIP 20
Part No.: 597320
or equivalent.



技术参数

Diameter Ø conductor 20 mm
Material of moulded part plastic
Material of blade StSt

.产品已加入收藏夹。

进入收藏夹

商品597320加入购物车。

进入网上商店

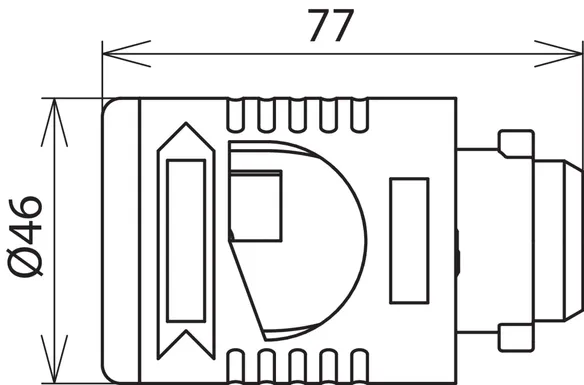

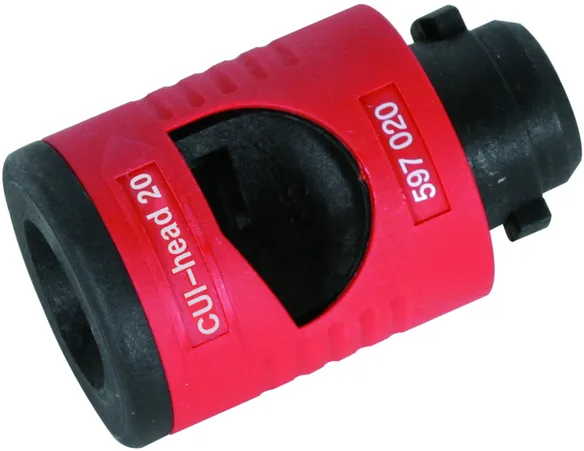

CUI-head 20

Toolless exchange of the cutting head via a bayonet coupling.

1 产品

货号 597020 CUI HEAD 20

全球贸易项目代码 4013364154957, 海关HS编码: 82055980, 总重: 155.00 g, 包装单位: 1.00 pc(s)


附加信息



Brand: DEHN
Type: CUI HEAD 20
Part No.: 597020
or equivalent.



技术参数

Diameter Ø conductor 20 mm
Material of moulded part plastic
Material of blade StSt

.产品已加入收藏夹。

进入收藏夹

商品597020加入购物车。

进入网上商店
