KS Connectors

Clamping screw connector (KlemmSchrauben-Verbinder) for lightning current carrying connection of round conductors, e.g. to flat profiles, downpipe clamps or other parts of the lightning protection system.

One-piece, St/tZn

With screw and nut M10.

2 产品

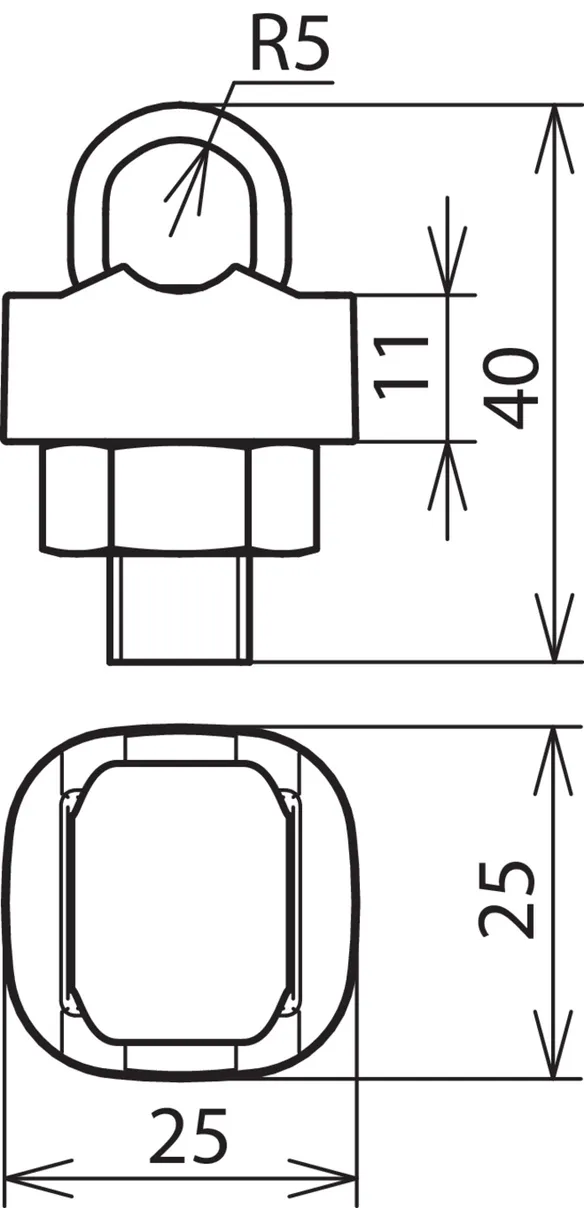

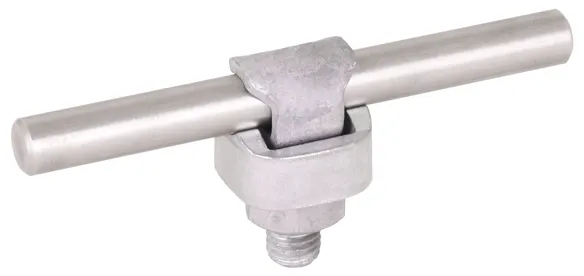

货号 301000 KSV 7.10 STTZN

全球贸易项目代码 4013364067035, 海关HS编码: 85359000, 总重: 62.00 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, St/tZn
KS connector for connection to flat profiles
Material of clamping screw: St/tZn
Material of clamp: ZDC
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 7.10 STTZN
Part No.: 301000
or equivalent.

认证



技术参数

Material of clamping screw St/tZn
Material of clamp ZDC
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301000加入购物车。

进入网上商店

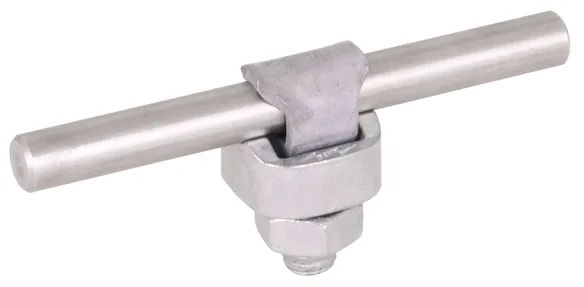

货号 301010 KSV 7.10 FER STTZN

全球贸易项目代码 4013364067028, 海关HS编码: 85359000, 总重: 62.00 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, St/tZn
KS connector for connection to flat profiles
Material of clamping screw: St/tZn
Material of clamp: ZDC
Clamping range Rd: 7-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSV 7.10 FER STTZN
Part No.: 301010
or equivalent.

认证



技术参数

Material of clamping screw St/tZn
Material of clamp ZDC
Clamping range Rd 7-10 mm
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301010加入购物车。

进入网上商店

One-piece, Cu

With screw and nut M10.

2 产品

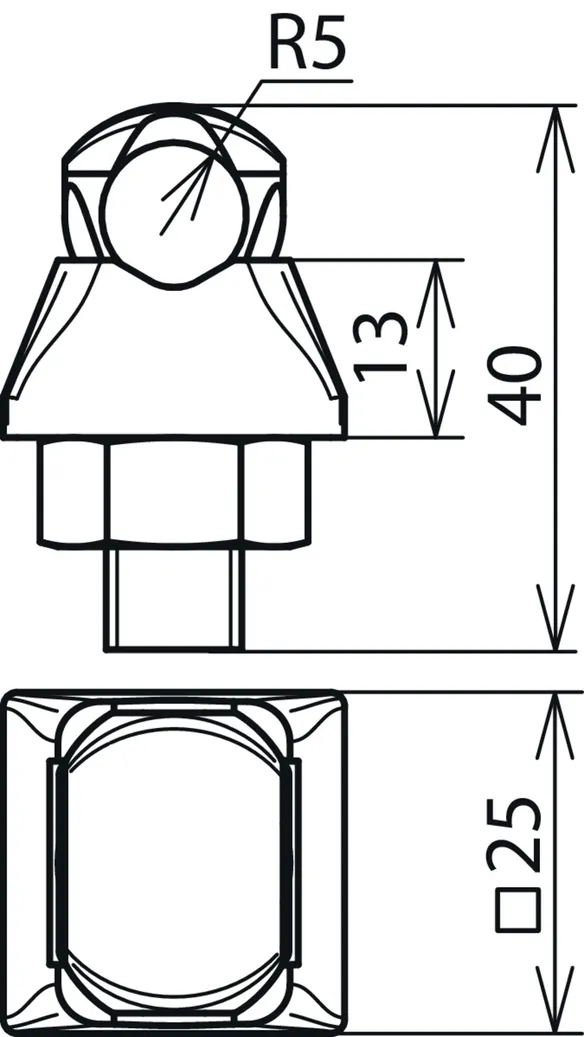

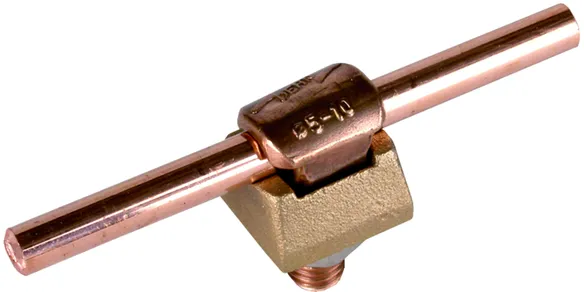

货号 301007 KSV 6.10 CU

全球贸易项目代码 4013364021358, 海关HS编码: 85359000, 总重: 76.00 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, Cu
KS connector for connection to flat profiles
Material of clamping screw: Cu
Material of clamp: high copper alloy
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 CU
Part No.: 301007
or equivalent.

认证



技术参数

Material of clamping screw Cu
Material of clamp high copper alloy
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 16-50 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301007加入购物车。

进入网上商店

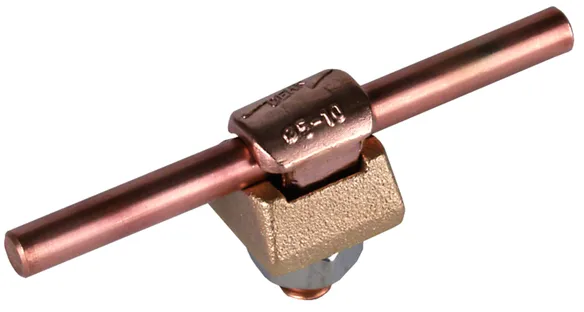

货号 301017 KSV 6.10 FER CU

全球贸易项目代码 4013364053502, 海关HS编码: 85359000, 总重: 79.60 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, Cu
KS connector for connection to flat profiles
Material of clamping screw: Cu
Material of clamp: high copper alloy
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 FER CU
Part No.: 301017
or equivalent.

认证



技术参数

Material of clamping screw Cu
Material of clamp high copper alloy
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301017加入购物车。

进入网上商店

One-piece, StSt

With screw and nut M10.

6 产品

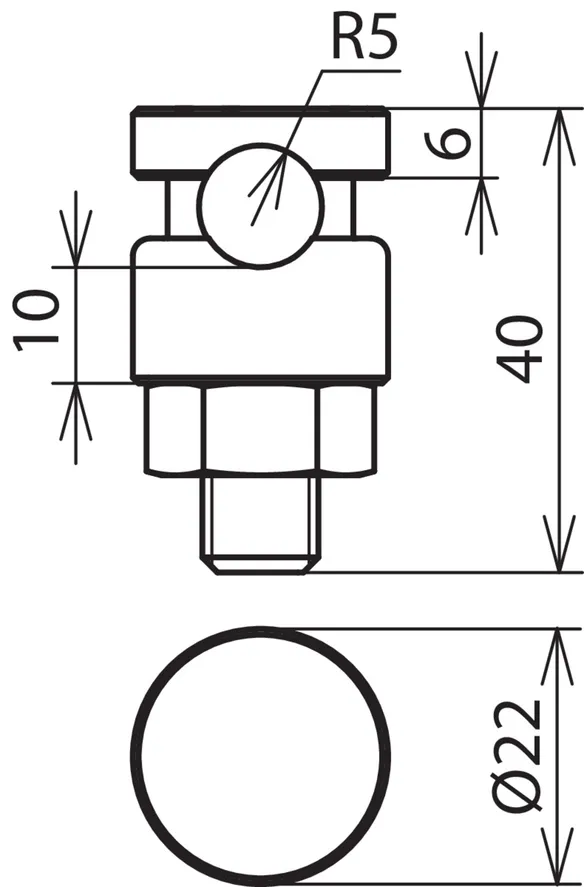

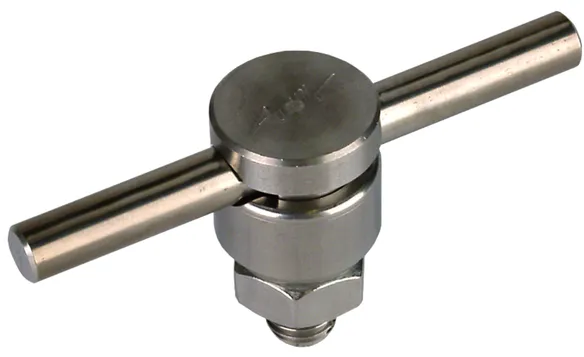

货号 301009 KSV 6.10 V2A

全球贸易项目代码 4013364081284, 海关HS编码: 85359000, 总重: 61.80 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, StSt
KS connector for connection to flat profiles
Material of clamping screw: StSt
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 V2A
Part No.: 301009
or equivalent.

认证



技术参数

Material of clamping screw StSt
Material of clamp StSt
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301009加入购物车。

进入网上商店

货号 301089 KSV 6.10 V4A

全球贸易项目代码 4013364304161, 海关HS编码: 85359000, 总重: 63.00 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, StSt (V4A)
KS connector for connection to flat profiles
Material of clamping screw: StSt (V4A)
Material of clamp: StSt (V4A)
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 V4A
Part No.: 301089
or equivalent.

认证



技术参数

Material of clamping screw StSt (V4A)
Material of clamp StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301089加入购物车。

进入网上商店

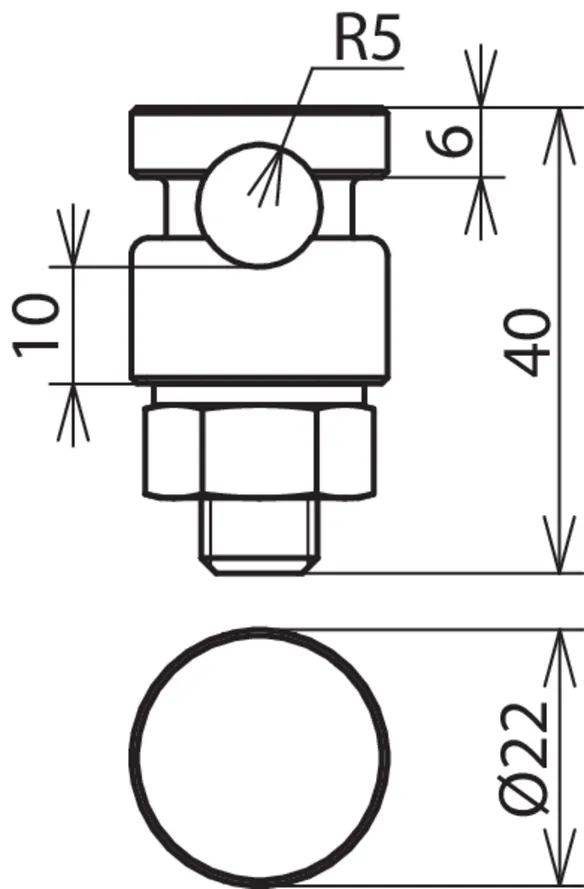

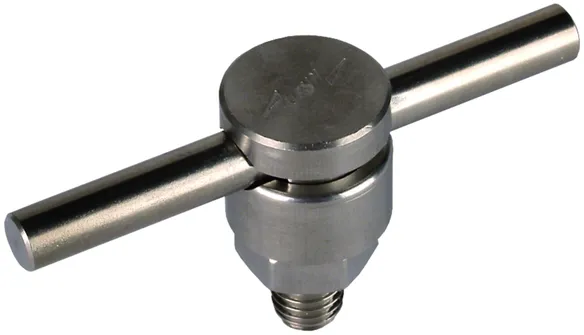

货号 301019 KSV 6.10 FER V2A

全球贸易项目代码 4013364081277, 海关HS编码: 85359000, 总重: 63.80 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, StSt
KS connector
For connection of round conductors, e.g. to flat profiles
or other parts of the lightning protection system
Material of clamping screw: StSt
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 FER V2A
Part No.: 301019
or equivalent.

认证



技术参数

Material of clamping screw StSt
Material of clamp StSt
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301019加入购物车。

进入网上商店

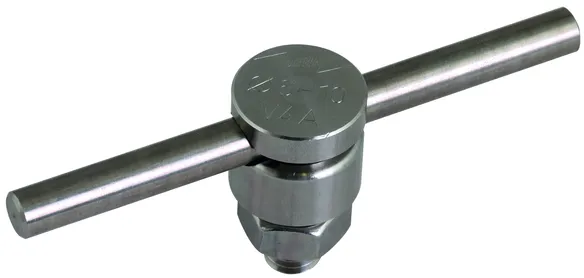

货号 301099 KSV 6.10 FER V4A

全球贸易项目代码 4013364304178, 海关HS编码: 85359000, 总重: 65.00 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, StSt (V4A)
KS connector for connection to flat profiles
Material of clamping screw: StSt (V4A)
Material of clamp: StSt (V4A)
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 FER V4A
Part No.: 301099
or equivalent.

认证



技术参数

Material of clamping screw StSt (V4A)
Material of clamp StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301099加入购物车。

进入网上商店

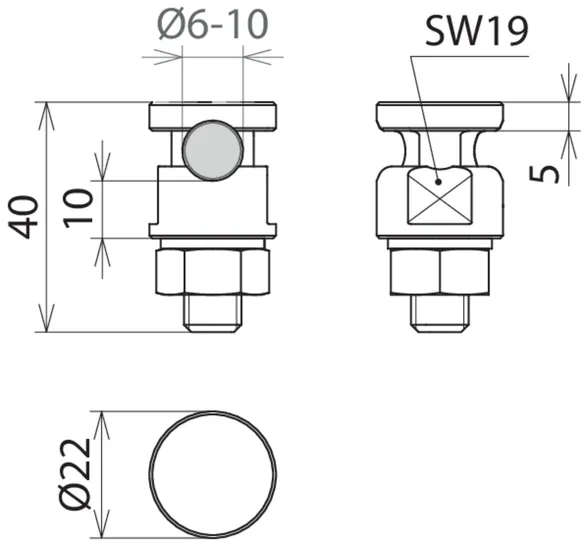

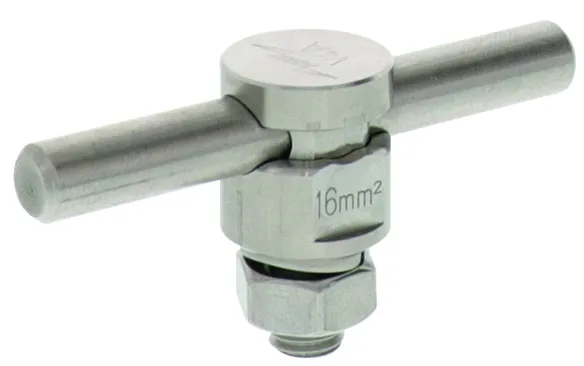

货号 540122 UKSV 6.10 AQ16 50 V4A

全球贸易项目代码 4013364379930, 海关HS编码: 85359000, 总重: 66.00 g, 包装单位: 25.00 pc(s)


附加信息

KS connector one-piece StSt (V4A)
KS connector for connection to flat profiles
with guide and flat
Material of clamping screw: StSt (V4A)
Material of clamp: StSt (V4A)
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: UKSV 6.10 AQ16 50 V4A
Part No.: 540122
or equivalent.

认证



技术参数

Material of clamping screw StSt (V4A)
Material of clamp StSt (V4A)
Material No. 1.4401
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 16-50 mm2
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品540122加入购物车。

进入网上商店

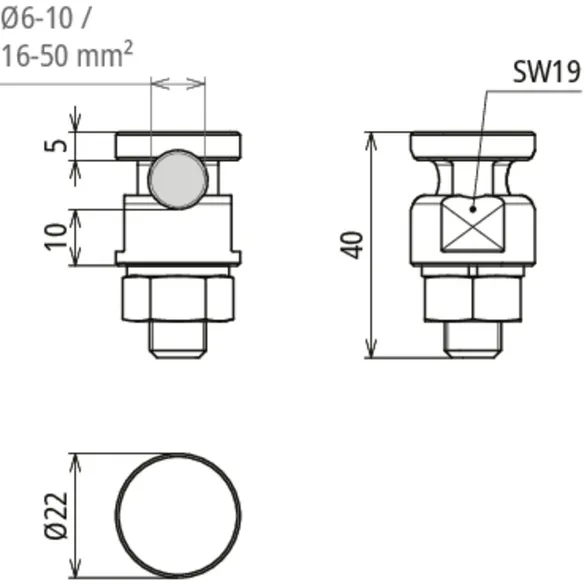

货号 540130 UKSV 6.10 AQ16 50 V4A

全球贸易项目代码 4013364449275, 海关HS编码: 85359000, 总重: 67.00 g, 包装单位: 1.00 pc(s)


附加信息

KS connector one-piece StSt (V4A)
KS connector for connection to flat profiles
with guide and flat
Material: StSt (V4A)
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1
Approval: As per VG96953
Military designation: VG96953T07ZD001

Brand: DEHN
Type: UKSV 6.10 AQ16 50 V4A
Part No.: 540130
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4401
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 16-50 mm2
Type + spring washer
Standard EN 62561-1
Approval As per VG96953
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品540130加入购物车。

进入网上商店

One-piece, long, StSt

With screw and nut M10, length 60 mm.

1 产品

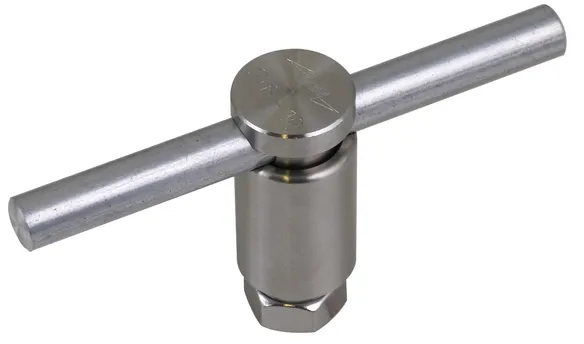

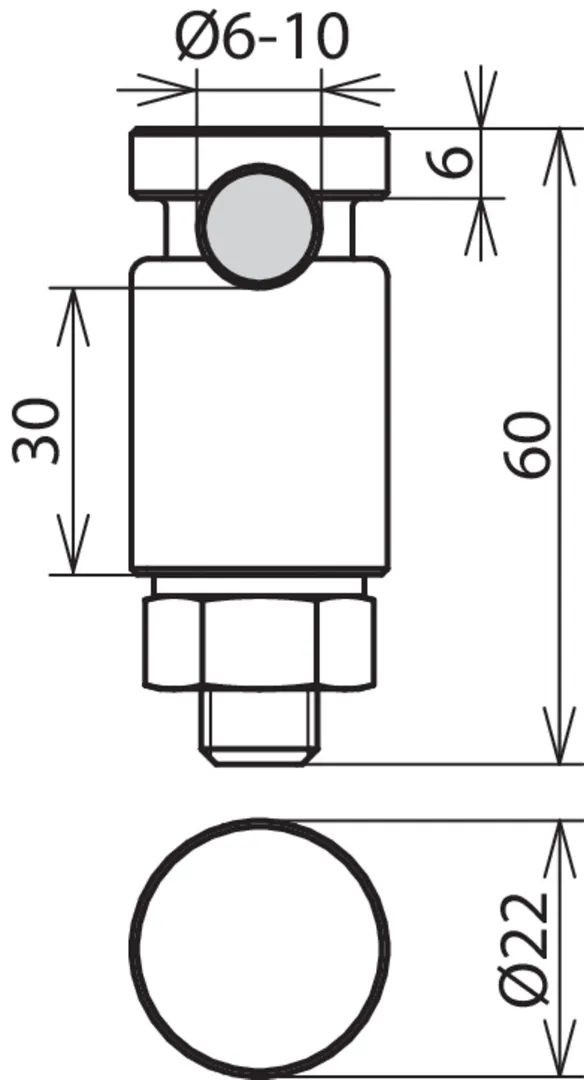

货号 301020 KSVL 6.10 FER V2A

全球贸易项目代码 4013364481541, 海关HS编码: 85359000, 总重: 120.00 g, 包装单位: 50.00 pc(s)


附加信息

KS connector, one-piece, StSt
KS connector
For connection of round conductors, e.g. to flat profiles
or other parts of the lightning protection system
Material of clamping screw: StSt
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSVL 6.10 FER V2A
Part No.: 301020
or equivalent.

认证



技术参数

Material of clamping screw StSt
Material of clamp StSt
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Type + spring washer
Standard EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品301020加入购物车。

进入网上商店

Heavy design

With screw and nut M12.

2 产品

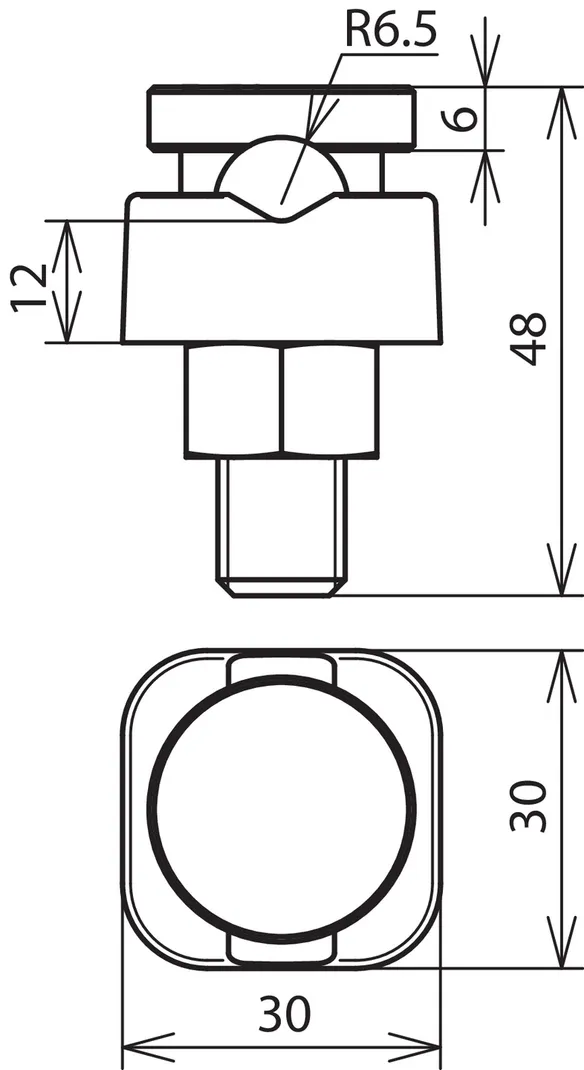

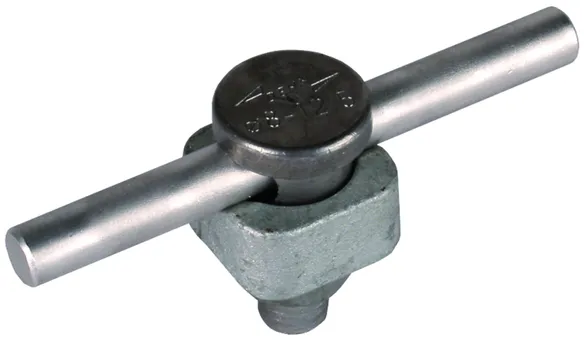

货号 300002 KSV 8.12.5 STTZN

全球贸易项目代码 4013364024052, 海关HS编码: 85359000, 总重: 118.20 g, 包装单位: 25.00 pc(s)


附加信息

KS connector, heavy, St/tZn / MCI
KS connector
For connection to flat profiles
also for cross sections of 50-95 mm2
Material of clamping screw: St/tZn
Material of clamp: MCI
Clamping range Rd: 8-12.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 8.12.5 STTZN
Part No.: 300002
or equivalent.

认证



技术参数

Material of clamping screw St/tZn
Material of clamp MCI
Clamping range Rd 8-12.5 mm
Connection (single-wire / multi-wire) 50-95 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品300002加入购物车。

进入网上商店

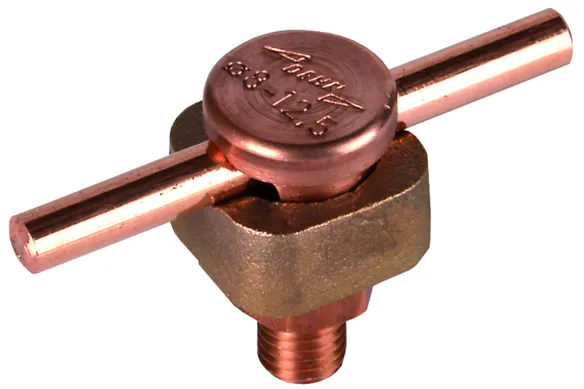

货号 300017 KSV 8.12.5 CU

全球贸易项目代码 4013364024069, 海关HS编码: 85359000, 总重: 157.20 g, 包装单位: 1.00 pc(s)


附加信息

KS connector, heavy, Cu/RCB
KS connector
For connection to flat profiles
also for cross sections of 50-95 mm2
Material of clamping screw: Cu
Material of clamp: high copper alloy
Clamping range Rd: 8-12.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 8.12.5 CU
Part No.: 300017
or equivalent.

认证



技术参数

Material of clamping screw Cu
Material of clamp high copper alloy
Clamping range Rd 8-12.5 mm
Connection (single-wire / multi-wire) 50-95 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品300017加入购物车。

进入网上商店

Two-piece, gap 30 mm

With screw and nut M10.

1 产品

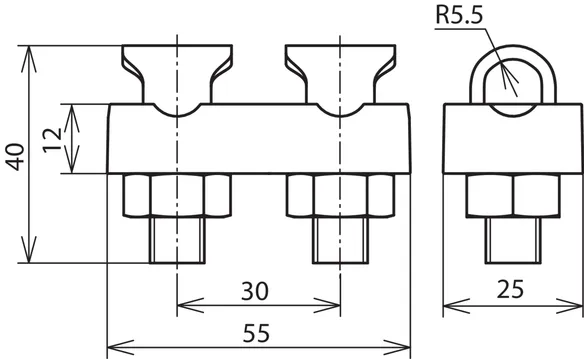

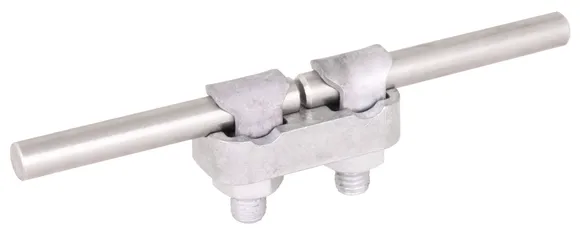

货号 302010 KSV 2X7.10 STTZN

全球贸易项目代码 4013364134904, 海关HS编码: 85359000, 总重: 138.80 g, 包装单位: 50.00 pc(s)


附加信息

KS connector, two-piece, distance: 30 mm, St/tZn / ZDC
KS connector for connection to flat profiles
Material of clamping screw: St/tZn
Material of clamp: ZDC
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 2X7.10 STTZN
Part No.: 302010
or equivalent.

认证



技术参数

Material of clamping screw St/tZn
Material of clamp ZDC
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品302010加入购物车。

进入网上商店

Two-piece, gap 40 mm

With screw and nut M10.

1 产品

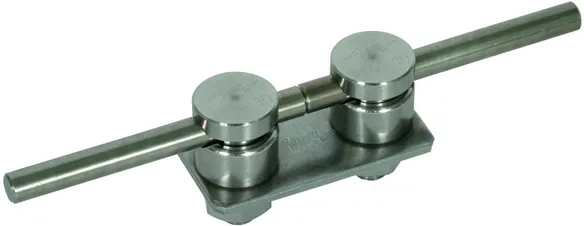

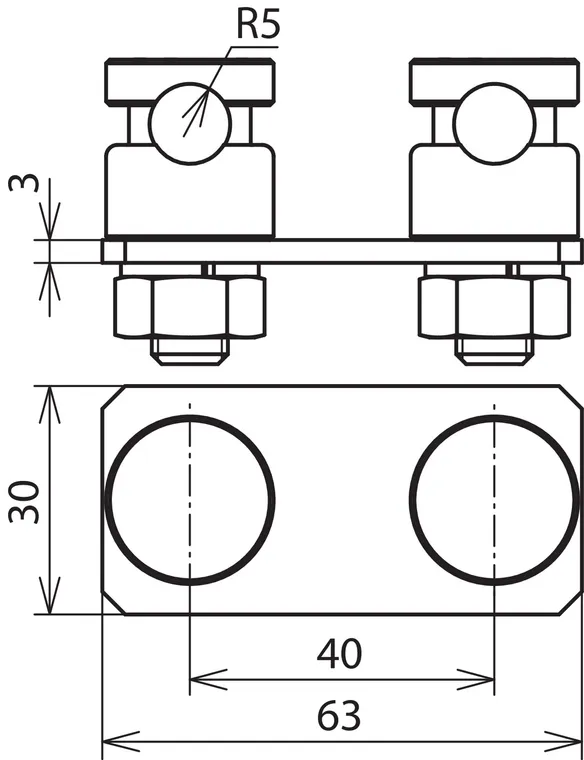

货号 301229 AP 2X6.10 V2A

全球贸易项目代码 4013364101562, 海关HS编码: 85389099, 总重: 167.00 g, 包装单位: 1.00 pc(s)


附加信息

KS connector, two-piece, distance: 40 mm, StSt
Connecting plate
For connecting the HVI Conductor to the air-termination tip
With two KS connectors including spring washer
Material of clamping screw: StSt
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: AP 2X6.10 V2A
Part No.: 301229
or equivalent.

认证



技术参数

Material of clamping screw StSt
Material of clamp StSt
Clamping range Rd 6-10 mm
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301229加入购物车。

进入网上商店
