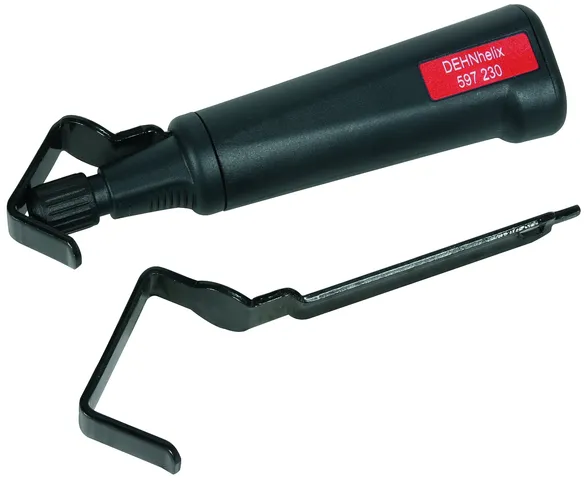

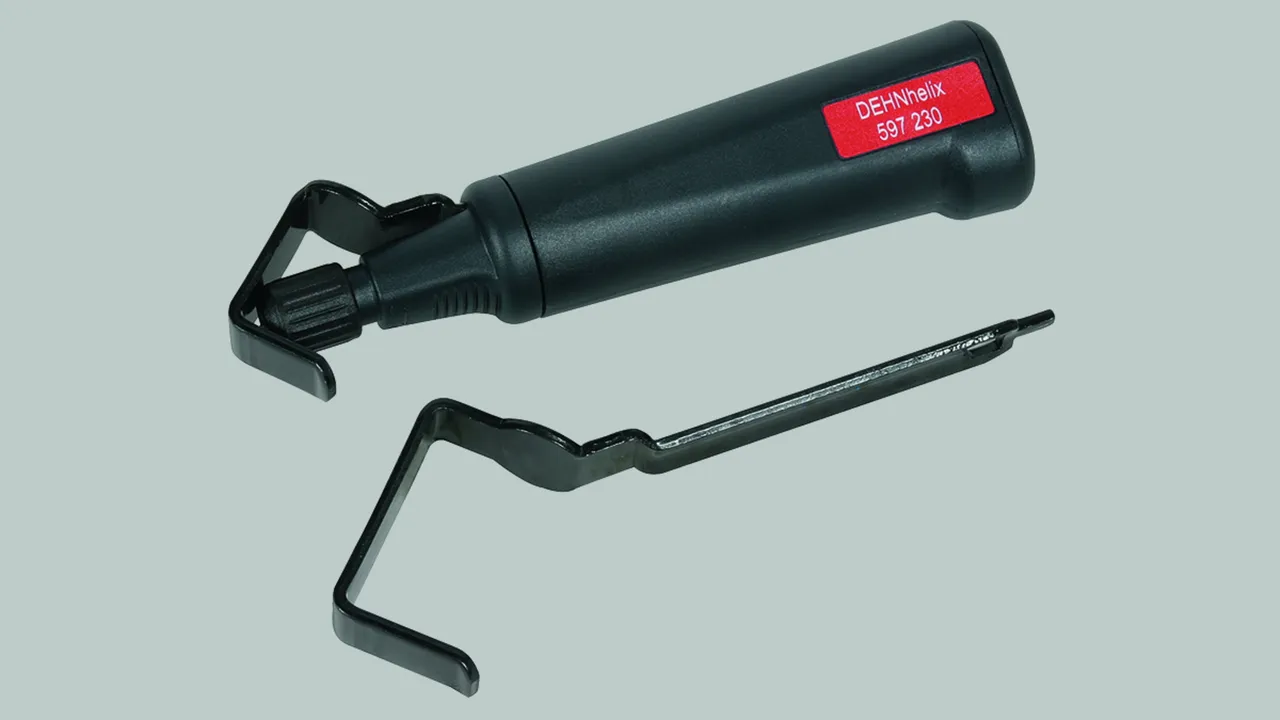

Stripping tool for the HVI light Conductor / HVI light plus Conductor / HVI Conductor

Tool for stripping the additional grey sheath of the HVI light Conductor and HVI Conductor. DEHNhelix consists of a handle and an exchangeable bracket (depending on the conductor diameter).


Application
– Position the tool on the conductor (EB connecting element)
– Open the bracket and attach the tool
– Cut clockwise through 360°
– Turn the cutting blade through 90° each
– Finally return the cutting blade through 90°

Stripping tool

2 产品

货号 597230 AW DEHNHELIX

全球贸易项目代码 4013364155015, 海关HS编码: 82055980, 总重: 201.60 g, 包装单位: 1.00 pc(s)


附加信息


Diameter Ø conductor: 23 mm
Material of moulded part: plastic
Material of blade: StSt
Colour: black ●

Brand: DEHN
Type: AW DEHNHELIX
Part No.: 597230
or equivalent.



技术参数

Diameter Ø conductor 23 mm
Material of moulded part plastic
Material of blade StSt
Colour black ●

.产品已加入收藏夹。

进入收藏夹

商品597230加入购物车。

进入网上商店

货号 597231 HVI TOOL CKS

全球贸易项目代码 4013364525207, 海关HS编码: 82119200, 总重: 204.81 g, 包装单位: 1.00 pc(s)


附加信息

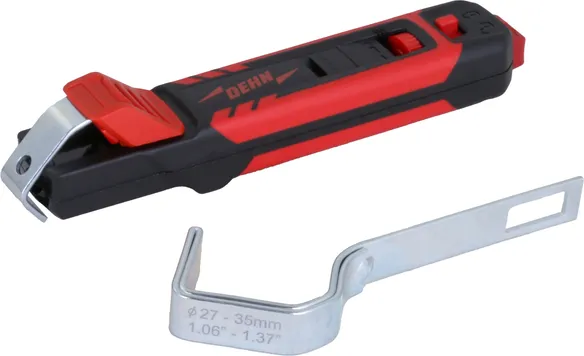

HVI tool CKS
cable knife system
for stripping all HVI Conductor types
Diameter Ø conductor: 8-35 mm
Material of moulded part: Plastic
Material of blade: StSt
Colour: black ● / red ●

Brand: DEHN
Type: HVI TOOL CKS
Part No.: 597231
or equivalent.



技术参数

Diameter Ø conductor 8-35 mm
Material of moulded part Plastic
Material of blade StSt
Colour black ● / red ●
