Clamping Piece Variants

For example as a connection with end piece for constructions or downpipe clamps.

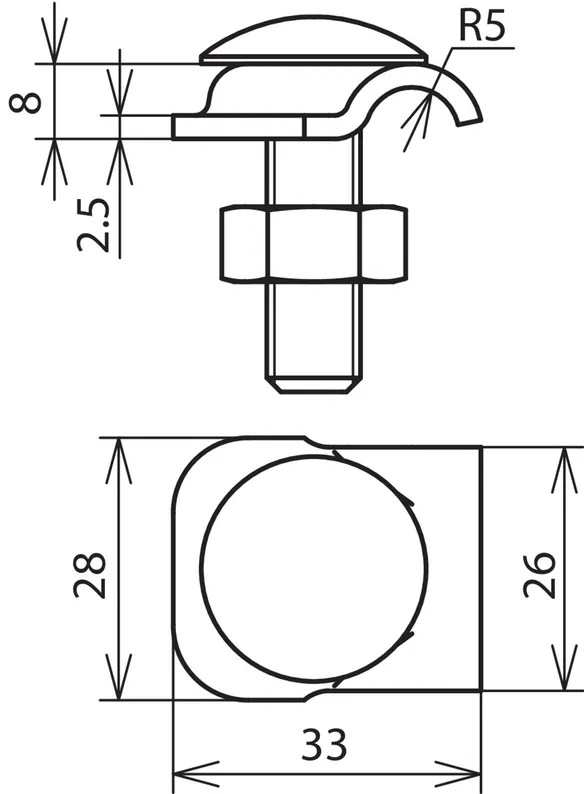

Clamping piece with square hole 11 mm and truss head screw.

3 产品

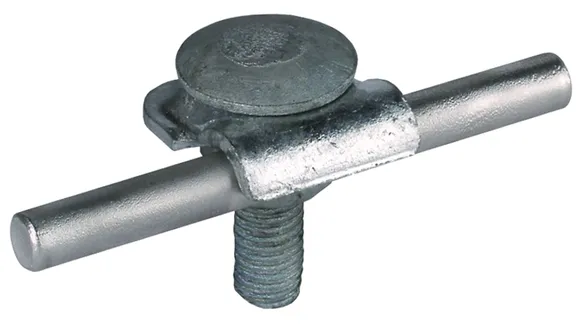

货号 390150 KB 6.10 FRM10X35 STTZN

全球贸易项目代码 4013364032187, 海关HS编码: 85359000, 总重: 53.90 g, 包装单位: 100.00 pc(s)


附加信息

Clamping piece versions, St/tZn
Clamping piece variants
For example as a connection with end piece for constructions,
clamping piece with square hole 11 mm and
truss head screw
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Material thickness: 2.5 mm
Screw: M10 x 35 mm
Material of screw / nut: St/tZn
Standard: EN 62561-1

Brand: DEHN
Type: KB 6.10 FRM10X35 STTZN
Part No.: 390150
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 6-10 mm
Screw e M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390150加入购物车。

进入网上商店

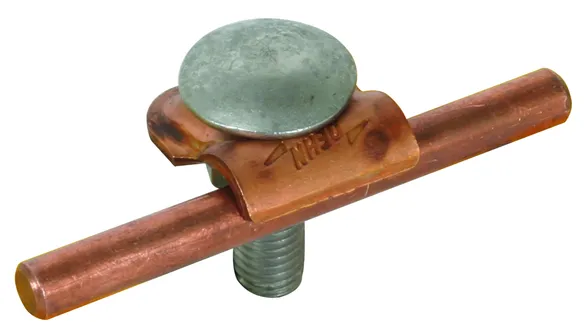

货号 390157 KB 6.10 FRM10X35 CU

全球贸易项目代码 4013364032194, 海关HS编码: 85359000, 总重: 54.20 g, 包装单位: 1.00 pc(s)


附加信息

ClamClamping piece versions, Cu
Clamping piece variants
For example as a connection with end piece for constructions,
clamping piece with square hole 11 mm and
truss head screw
Material of clamp: Cu
Clamping range Rd: 6-10 mm
Clamping range (stranded / cable): 35-120 mm2
Material thickness: 2.5 mm
Screw: M10 x 35 mm
Material of screw / nut: StSt
Standard: EN 62561-1

Brand: DEHN
Type: KB 6.10 FRM10X35 CU
Part No.: 390157
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd 6-10 mm
Clamping range (stranded / cable) 35-120 mm2
Screw e M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390157加入购物车。

进入网上商店

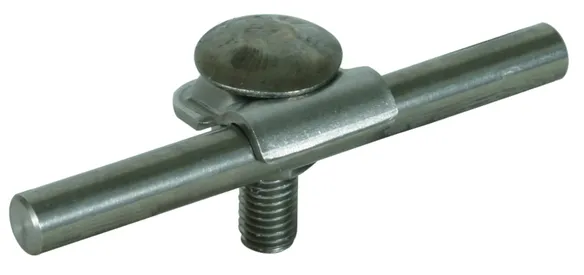

货号 390159 KB 6.10 FRM10X35 V2A

全球贸易项目代码 4013364032200, 海关HS编码: 85359000, 总重: 62.00 g, 包装单位: 100.00 pc(s)


附加信息

Clamping piece versions, StSt
Clamping piece variants
For example as a connection with end piece for constructions,
clamping piece with square hole 11 mm and
truss head screw
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Material thickness: 2.5 mm
Screw: M10 x 35 mm
Material of screw / nut: StSt
Standard: EN 62561-1

Brand: DEHN
Type: KB 6.10 FRM10X35 V2A
Part No.: 390159
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 6-10 mm
Screw e M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390159加入购物车。

进入网上商店
