DEHNguard YPV SCI ... – compact

Prewired complete unit for use in photovoltaic systems
Combined disconnection and short-circuiting device with safe electrical isolation (patented SCI principle)
Tried and tested fault-resistant Y circuit of DEHNguard YPV SCI ... prevents damage to the surge protective device in case of insulation faults in the generator circuit
Tested to EN 61643-31
Suitable for use in all PV systems according to IEC 60364-7-712

详情

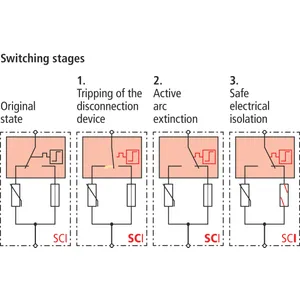

Three-step d.c. switching device (patented SCI principle)

lorem ipsum — Three-step d.c. switching device (patented SCI principle)

DEHNguard compact YPV SCI ...

Multipole surge arrester with three-step d.c. switching device for use in PV systems

2 产品

货号 950531 DG YPV SCI 600

全球贸易项目代码 4013364152953, 海关HS编码: 85363030, 总重: 296.00 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

EHNguard compact YPV SCI 600 surge arrester
Multipole arrester for use in photovoltaic systems up to 600 V d.c.
with three-step d.c. switching device, width: 3 modules
Fault indication
Type 2 SPD according to EN 61643-31
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 600 V d.c.
Total discharge current: 40 kA
Voltage protection level: <= 2.5 kV
Short-circuit current rating Iscpv: 200 A

Brand: DEHN
Type: DG YPV SCI 600
Part No.: 950531
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	600 V
Short-circuit current rating (I_SCPV )	1000 A
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Approvals	KEMA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	600 V
Short-circuit current rating (I_SCPV )	1000 A
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 5 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 mod(s)., DIN 43880
Approvals	KEMA, UL

.产品已加入收藏夹。

进入收藏夹

商品950531加入购物车。

进入网上商店

货号 950530 DG YPV SCI 1000

全球贸易项目代码 4013364152960, 海关HS编码: 85363030, 总重: 321.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

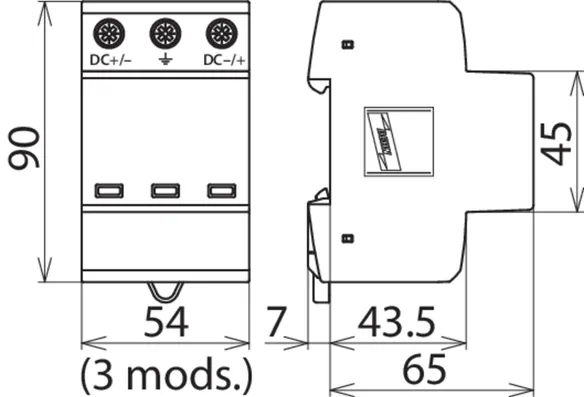

DEHNguard compact YPV SCI 1000 surge arrester
Multipole arrester for use in
photovoltaic systems up to 1000 V d.c.
with three-step d.c. switching device, width: 3 modules
Fault indication
Type 2 SPD according to EN 61643-31
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 1000 V d.c.
Total discharge current: 40 kA
Voltage protection level: <= 4 kV
Short-circuit current rating Iscpv: 200 A

Brand: DEHN
Type: DG YPV SCI 1000
Part No.: 950530
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1000 A
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Approvals	KEMA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1000 A
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Voltage protection level at 5 kA (U_P )	≤ 3.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 mod(s)., DIN 43880
Approvals	KEMA, UL

.产品已加入收藏夹。

进入收藏夹

商品950530加入购物车。

进入网上商店

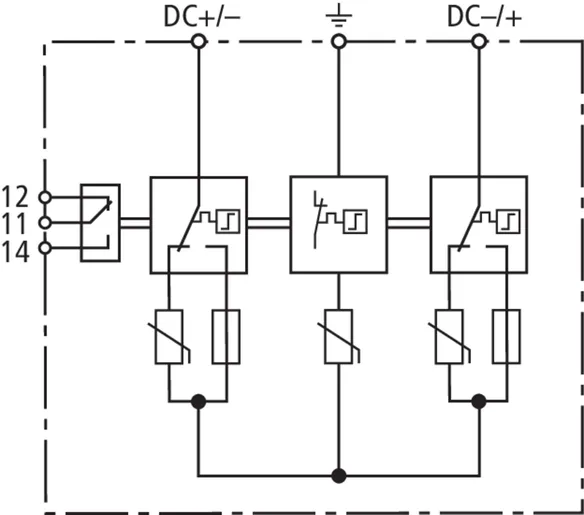

DEHNguard compact YPV SCI ... FM

Multipole surge arrester with three-step d.c. switching device for use in PV systems, with remote signalling contact for monitoring device (floating changeover contact).

2 产品

货号 950536 DG YPV SCI 600 FM

全球贸易项目代码 4013364154995, 海关HS编码: 85363030, 总重: 306.00 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

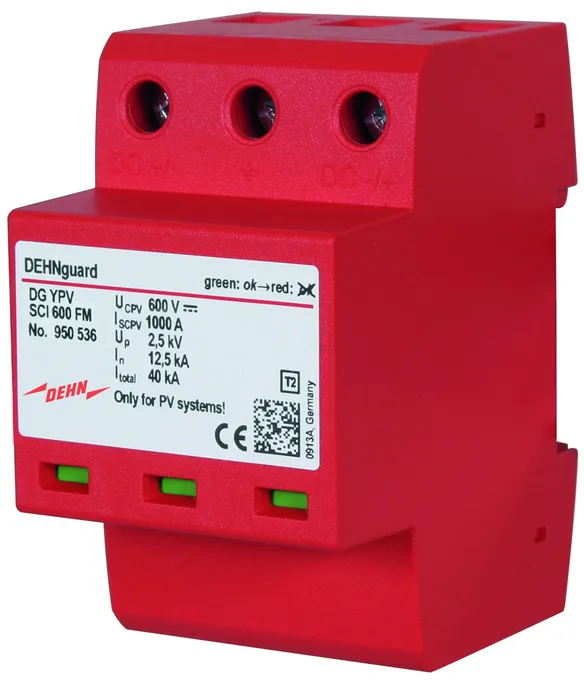

DEHNguard compact YPV SCI 600 FM surge arrester
Multipole arrester for use
in photovoltaic systems up to 600 V d.c.
with three-step d.c. switching device, width: 3 modules
with remote signalling contact
Fault indication
Type 2 SPD according to 61643-31
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 600 V d.c.
Total discharge current: 40 kA
Voltage protection level: <= 2.5 kV
Short-circuit current rating Iscpv: 1000 A

Brand: DEHN
Type: DG YPV SCI 600 FM
Part No.: 950536
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	600 V
Short-circuit current rating (I_SCPV )	1000 A
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	600 V
Short-circuit current rating (I_SCPV )	1000 A
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 5 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 mod(s)., DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A, 125 V / 0.2 A, 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品950536加入购物车。

进入网上商店

货号 950535 DG YPV SCI 1000 FM

全球贸易项目代码 4013364154988, 海关HS编码: 85363030, 总重: 331.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

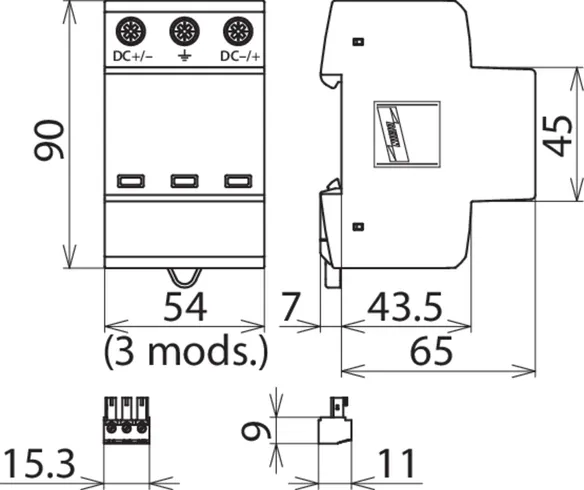

DEHNguard compact YPV SCI 1000 FM surge arrester
Multipole arrester for use in
photovoltaic systems up to 1000 V d.c.
with three-step d.c. switching device, width: 3 modules
Fault indication with remote signalling contact
Type 2 SPD according to EN 61643-31
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 1000 V d.c.
Total discharge current: 40 kA
Voltage protection level: <= 4 kV
Short-circuit current rating Iscpv: 1000 A

Brand: DEHN
Type: DG YPV SCI 1000 FM
Part No.: 950535
or equivalent.

认证

技术参数

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1000 A
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1000 A
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Voltage protection level at 5 kA (U_P )	≤ 3.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 mod(s)., DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A, 125 V / 0.2 A, 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品950535加入购物车。

进入网上商店
