Flat Strip Holders with Clamping Plate and Flange
:quality(98)/www.dehn.cn/store/f/57289154/HDVORSCHAU/275030a1_16-9.jpg)
:quality(98)/www.dehn.cn/store/f/57289154/HDVORSCHAU/275030a1_16-9.jpg)

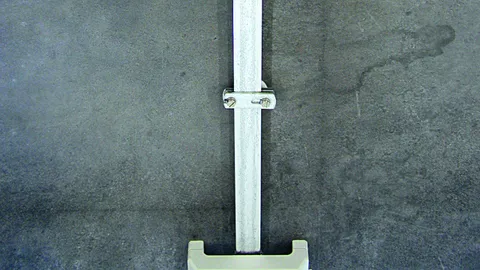

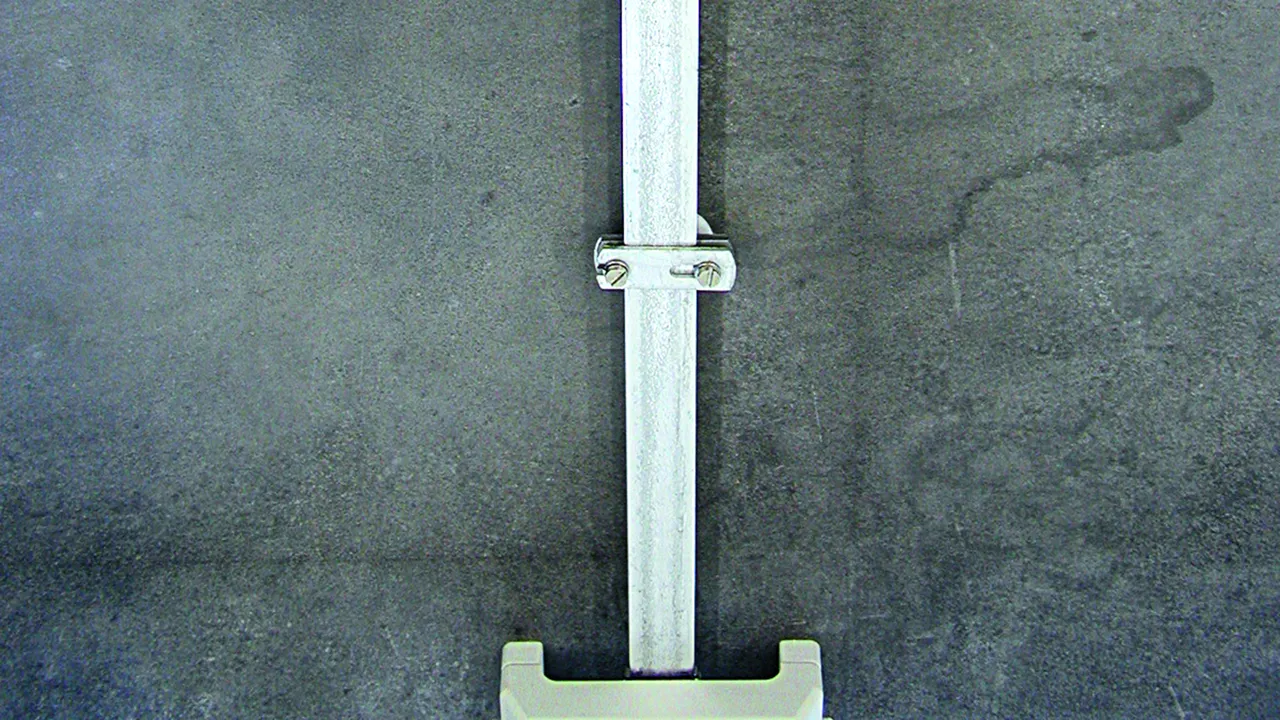

Complete unit with flange for installing flat strips.

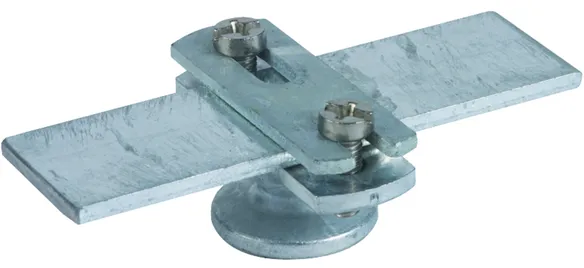

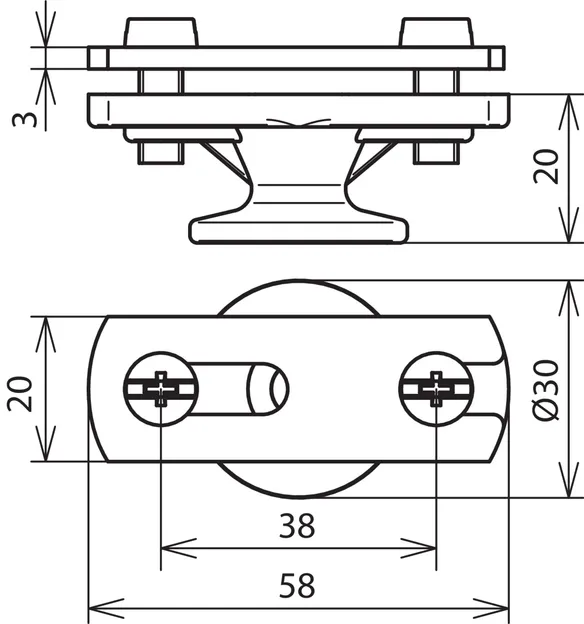

货号 275030 FBH ZS 30 IGM8 STTZN ZG
全球贸易项目代码 4013364095847, 海关HS编码: 85389099, 总重: 89.00 g, 包装单位: 50.00 pc(s)
:quality(98)/www.dehn.cn/store/f/57289166/HDVORSCHAU/275030.jpg)
:quality(98)/www.dehn.cn/store/f/57289166/HDVORSCHAU/275030.jpg)
:quality(98)/www.dehn.cn/store/f/57289167/HDVORSCHAU/275030m_D.jpg)
:quality(98)/www.dehn.cn/store/f/57289167/HDVORSCHAU/275030m_D.jpg)
技术参数
| Conductor support Fl | 30 x 3.5 mm |
| Thread of conductor holder | M8 |
| Height of conductor holder | 20 mm |
| Material of clamping plate | St/tZn |
| Material of base part | ZDC |
| Standard | EN 62561-4 |

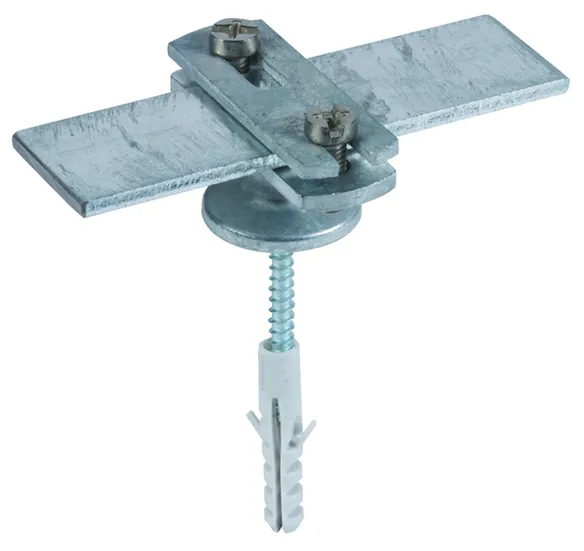

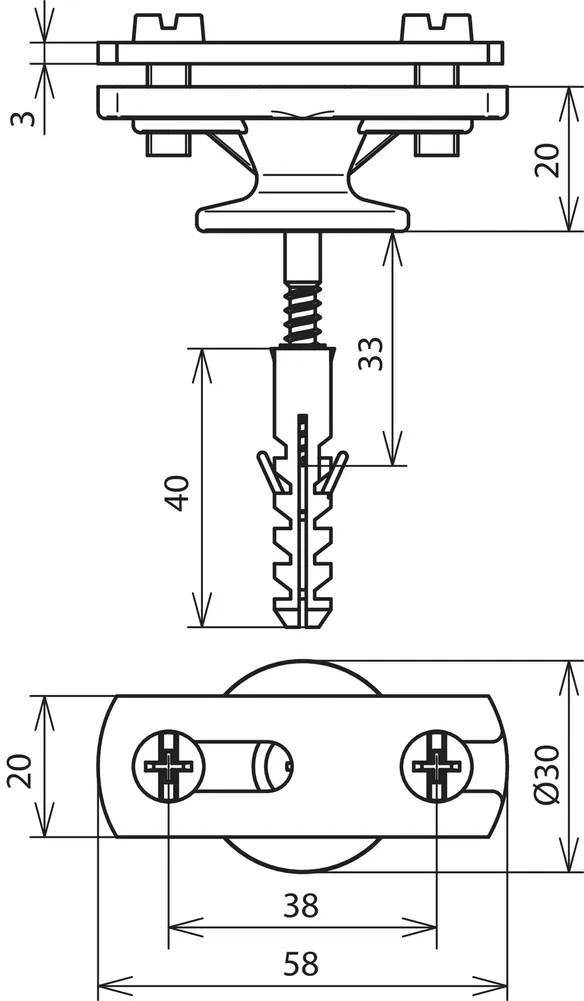

货号 275230 FBH ZS 30 IGM8 KD8X40STTZN ZG
全球贸易项目代码 4013364095854, 海关HS编码: 85389099, 总重: 95.60 g, 包装单位: 50.00 pc(s)
:quality(98)/www.dehn.cn/store/f/57289178/HDVORSCHAU/275230.jpg)
:quality(98)/www.dehn.cn/store/f/57289178/HDVORSCHAU/275230.jpg)
:quality(98)/www.dehn.cn/store/f/57289179/HDVORSCHAU/275230m_D.jpg)
:quality(98)/www.dehn.cn/store/f/57289179/HDVORSCHAU/275230m_D.jpg)
技术参数
| Conductor support Fl | 30 x 3.5 mm |
| Thread of conductor holder | M8 |
| Height of conductor holder | 20 mm |
| Material of clamping plate | St/tZn |
| Material of base part | ZDC |
| Screw | ak 5 x 50 mm |
| Plastic plug | Ø8 x 40 mm |
| Standard | EN 62561-4 |
