Flat Strip Holders with Clamping Plate – Flat Design

Two-screw clamp with M6 screws.

With slot (6.5 x 16 mm)

2 产品

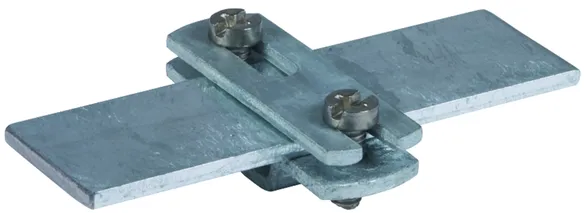

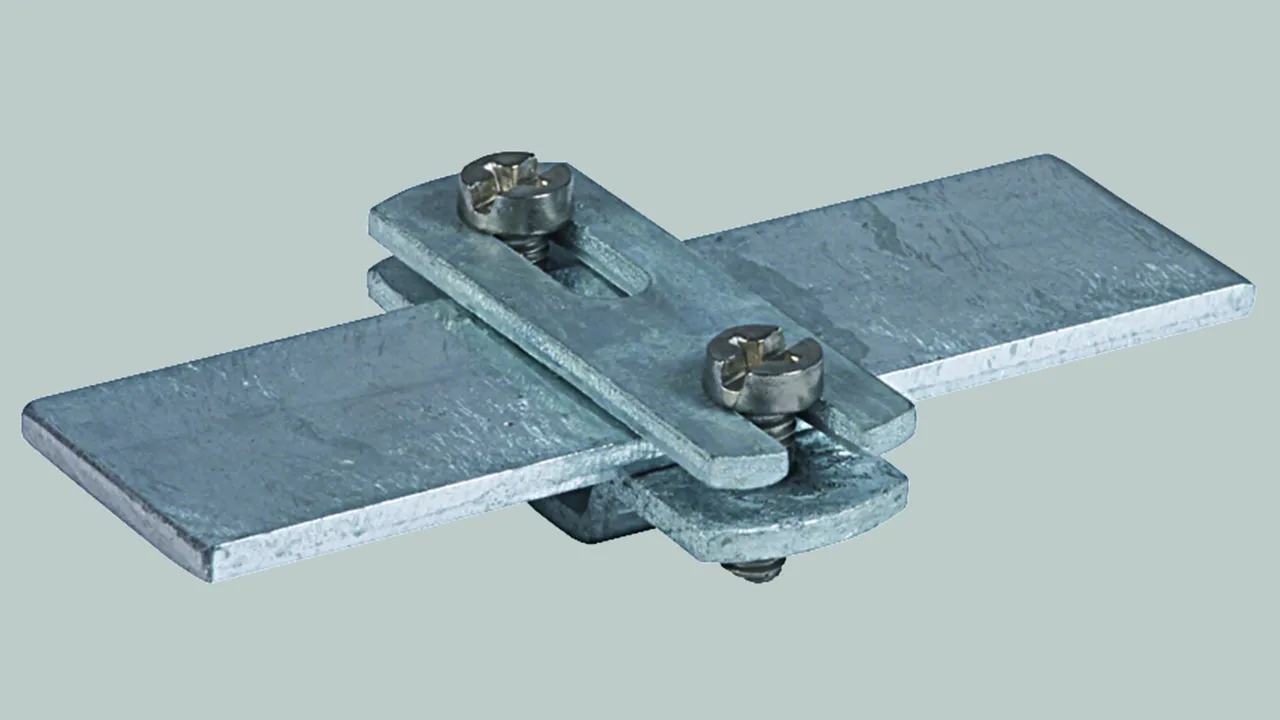

货号 284030 FBH ZS 30 B6.5X16 STTZN

全球贸易项目代码 4013364022485, 海关HS编码: 85389099, 总重: 55.20 g, 包装单位: 100.00 pc(s)


附加信息

Flat strip holder with clamping plate, flat design, with slot, St/tZn
Flat strip holder with clamping plate - flat design
Two-screw clamp with M6 screws
Height of conductor holder: 10 mm
Conductor support Fl: 30 x 3.5 mm
Material of conductor holder: St/tZn
Material of base part: St/tZn
Material thickness: 3 mm

Brand: DEHN
Type: FBH ZS 30 B6.5X16 STTZN
Part No.: 284030
or equivalent.

认证



技术参数

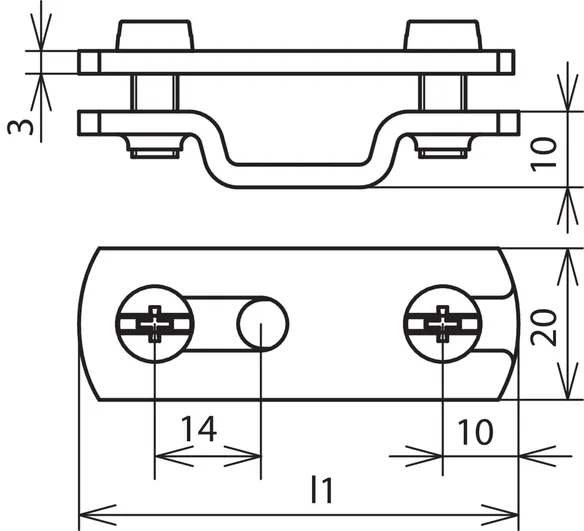

Height of conductor holder 10 mm
Conductor support Fl 30 x 3.5 mm
Material of conductor holder St/tZn
Material of base part St/tZn
Material thickness (t) 3 mm
Width of component (l1) 58 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品284030加入购物车。

进入网上商店

货号 284040 FBH ZS 40 B6.5X16 STTZN

全球贸易项目代码 4013364022492, 海关HS编码: 85389099, 总重: 66.20 g, 包装单位: 100.00 pc(s)

前代产品


附加信息

Flat strip holder with clamping plate, flat design, with slot, St/tZn
Flat strip holder with clamping plate - flat design
Two-screw clamp with M6 screws
Height of conductor holder: 10 mm
Conductor support Fl: 40 x 4-5 mm
Material of conductor holder: St/tZn
Material of base part: St/tZn
Material thickness: 3 mm

Brand: DEHN
Type: FBH ZS 40 B6.5X16 STTZN
Part No.: 284040
or equivalent.

认证



技术参数

Height of conductor holder 10 mm
Conductor support Fl 40 x 4-5 mm
Material of conductor holder St/tZn
Material of base part St/tZn
Material thickness (t) 3 mm
Width of component (l1) 70 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品284040加入购物车。

进入网上商店

With slot (6.5 x 16 mm) and pre-assembled wood screw

2 产品

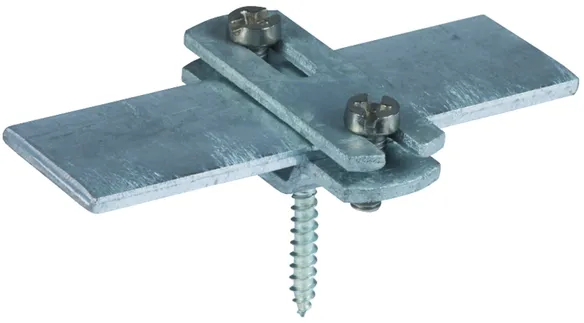

货号 286030 FBH ZS 30 B6.5X16 HS5X50 STTZN

全球贸易项目代码 4013364022508, 海关HS编码: 85389099, 总重: 61.90 g, 包装单位: 50.00 pc(s)


附加信息

Flat strip holder with clamping piece, flat design, with slot, St/tZn
Flat strip holder with clamping piece - flat design
Two-screw conductor clamp with M6 screws
with wood screw
Height of conductor holder: 10 mm
Conductor support Fl: 30 x 3.5 mm
Material of conductor holder: St/tZn
Material of base part: St/tZn
Material thickness: 3 mm
Screw: 5 x 50 mm

Brand: DEHN
Type: FBH ZS 30 B6.5X16 HS5X50 STTZN
Part No.: 286030
or equivalent.

认证



技术参数

Height of conductor holder 10 mm
Conductor support Fl 30 x 3.5 mm
Material of conductor holder St/tZn
Material of base part St/tZn
Material thickness (t) 3 mm
Screw ak 5 x 50 mm
Width of component (l1) 58 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品286030加入购物车。

进入网上商店

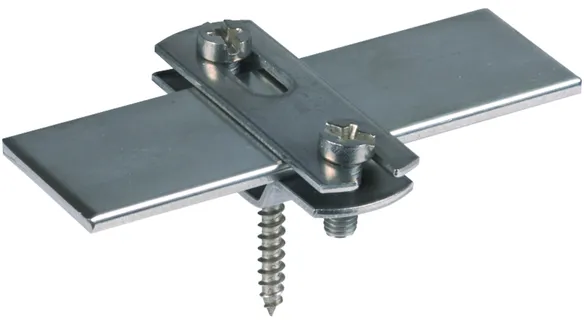

货号 286139 FBH ZS 30 B6.5X16 HS5X50 V2A

全球贸易项目代码 4013364035393, 海关HS编码: 85389099, 总重: 46.50 g, 包装单位: 50.00 pc(s)


附加信息

Flat strip holder with clamping piece, flat design, with slot, StSt
Flat strip holder with clamping piece - flat design
Two-screw conductor clamp with M6 screws
with wood screw
Height of conductor holder: 8.5 mm
Conductor support Fl: 30 x 3.5 mm
Material of conductor holder: StSt
Material of base part: StSt
Material thickness: 2 mm
Screw: 5 x 50 mm

Brand: DEHN
Type: FBH ZS 30 B6.5X16 HS5X50 V2A
Part No.: 286139
or equivalent.

认证



技术参数

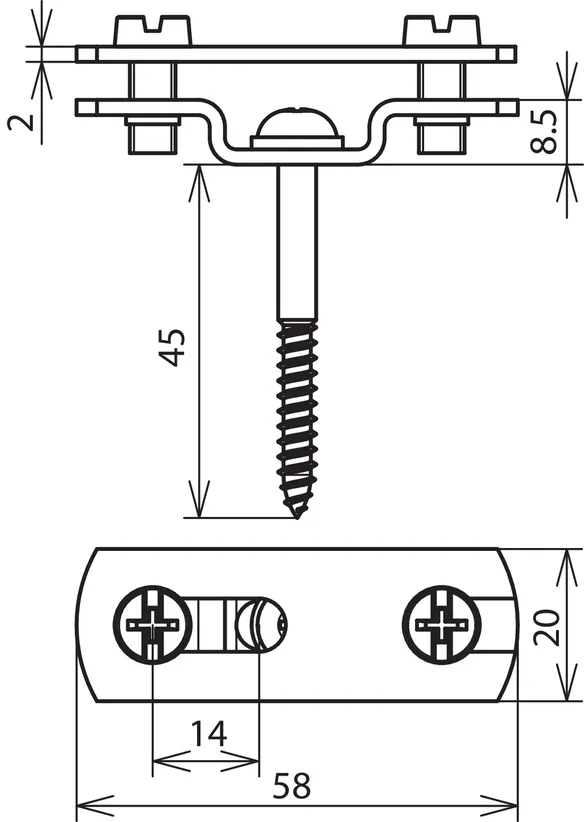

Height of conductor holder 8.5 mm
Conductor support Fl 30 x 3.5 mm
Material of conductor holder StSt
Material of base part StSt
Material thickness (t) 2 mm
Screw ak 5 x 50 mm
Width of component (l1) 58 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品286139加入购物车。

进入网上商店
