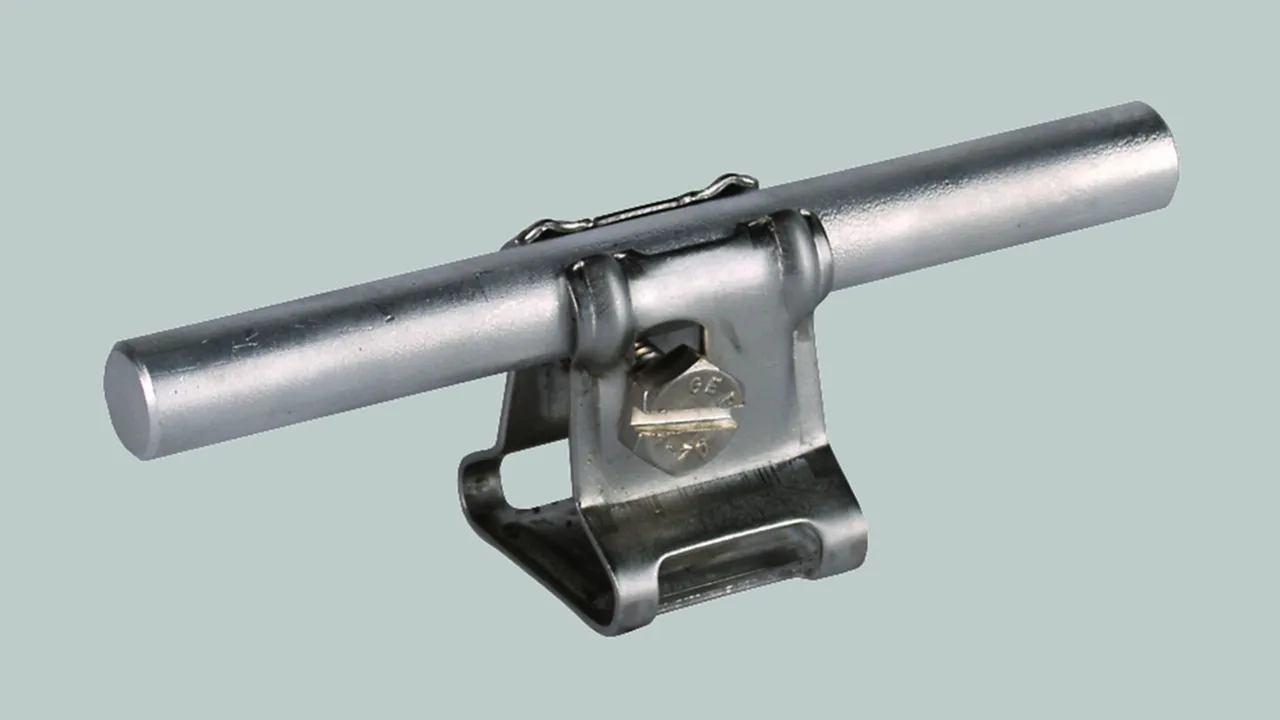

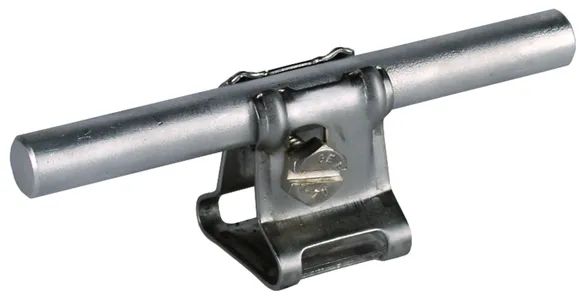

Conductor Holder with Claw

Conductor holder for wall mounting with M6 clamping screw.
Fixed conductor routing.

1 产品

货号 273019 LH KR 6.10 H22 B6.5 V2A

全球贸易项目代码 4013364031487, 海关HS编码: 85389099, 总重: 23.60 g, 包装单位: 50.00 pc(s)


Open PDF

附加信息

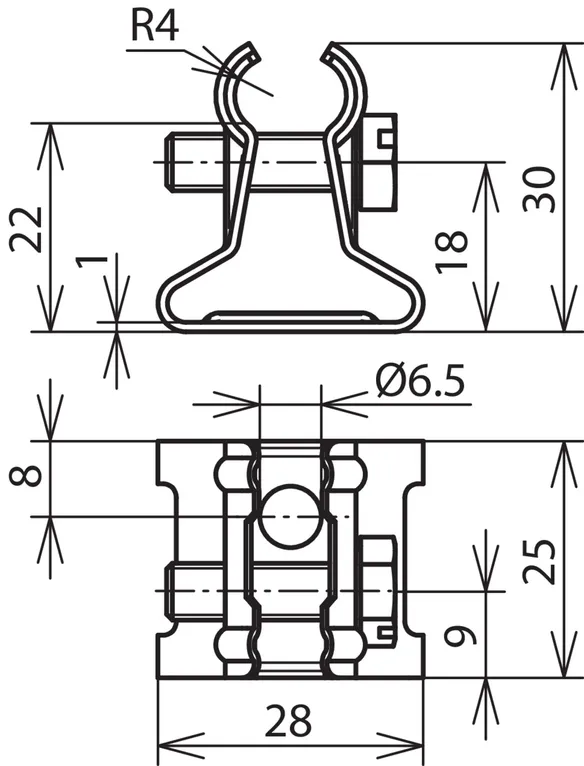

CAD文件

Conductor holder with claw, StSt
Conductor holder with claw for wall mounting with M6 clamping screw,
fixed conductor routing
Hole Ø: 6.5 mm
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Height of conductor holder: 22 mm

Brand: DEHN
Type: LH KR 6.10 H22 B6.5 V2A
Part No.: 273019
or equivalent.

技术参数

Hole Ø	6.5 mm
Material of conductor holder	StSt
Conductor support Rd	6-10 mm
Height of conductor holder	22 mm
Standard	EN 62561-4

Hole Ø	6.5 mm
Material of conductor holder	StSt
Conductor support Rd	6-10 mm
Height of conductor holder	22 mm
Total height of conductor holder	31 mm
Conductor routing	fixed
Screw	dj M6 x 20 mm
Material of screw	StSt
Standard	EN 62561-4
