Conductor Holders DEHNhold

Conductor holder with a slotted saddle clamp for fixing round conductors, fixed conductor routing.
For use with different materials, e.g. Al, StSt, St/tZn and Cu.

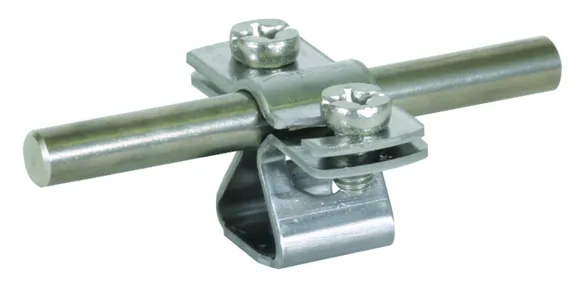

With female thread

2 产品

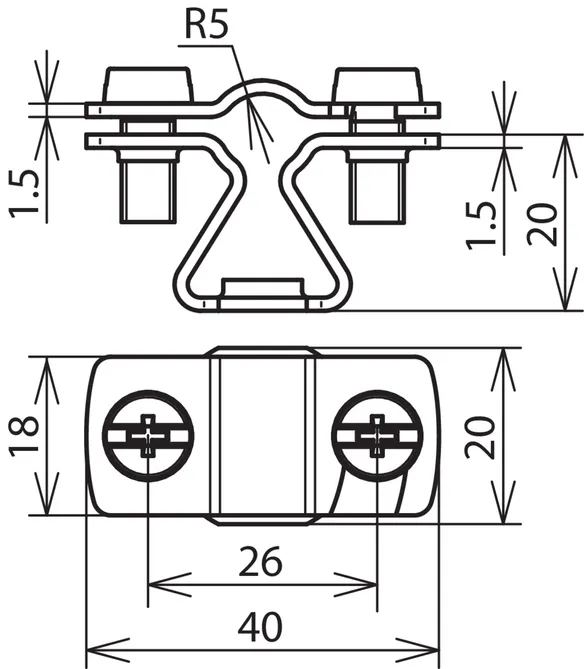

货号 274110 LH ZS 8.10 FL20 M8 V2A

全球贸易项目代码 4013364123434, 海关HS编码: 85389099, 总重: 31.50 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

DEHNhold conductor holder with female thread, StSt
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Material of conductor holder: StSt
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 8.10 FL20 M8 V2A
Part No.: 274110
or equivalent.

认证



技术参数

Material of conductor holder StSt
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品274110加入购物车。

进入网上商店

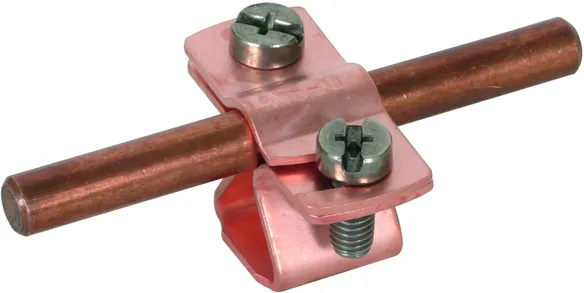

货号 274117 LH ZS 8.10 FL20 M8 CU

全球贸易项目代码 4013364128194, 海关HS编码: 85389099, 总重: 31.70 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

DEHNhold conductor holder with female thread, StSt/gal Cu
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Material of conductor holder: StSt / gal Cu
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 8.10 FL20 M8 CU
Part No.: 274117
or equivalent.

认证



技术参数

Material of conductor holder StSt / gal Cu
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品274117加入购物车。

进入网上商店

With female thread, pre-assembled with plastic base

1 产品

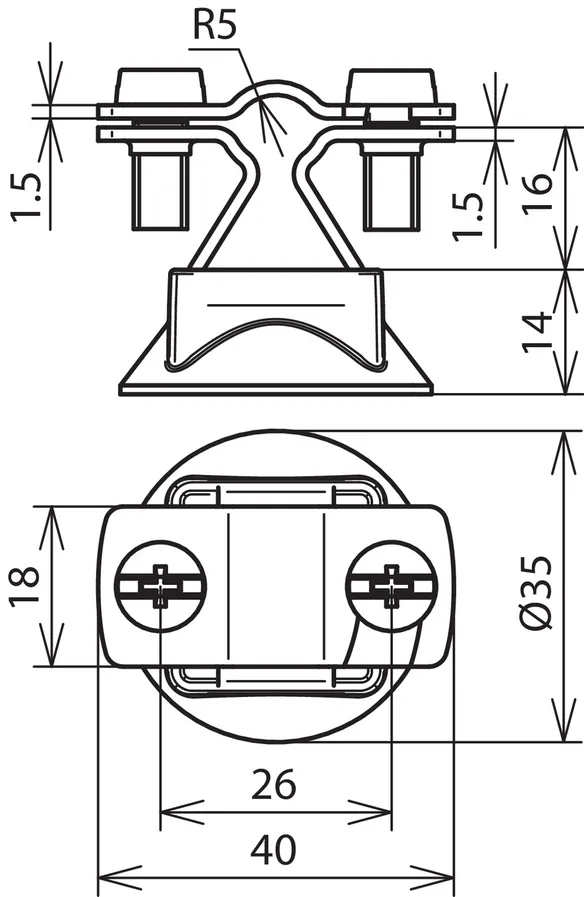

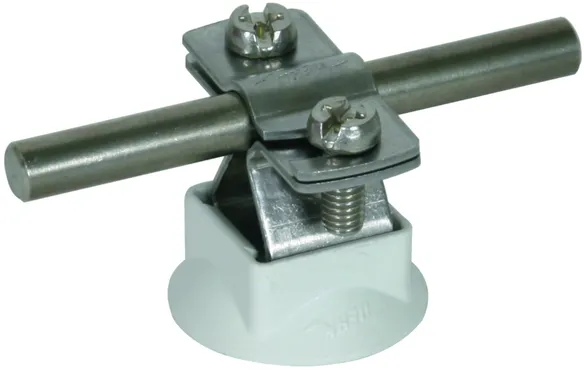

货号 274150 LH ZS 8.10 FL20 M8 KS V2A

全球贸易项目代码 4013364128187, 海关HS编码: 85389099, 总重: 35.00 g, 包装单位: 50.00 pc(s)


附加信息

DEHNhold conductor holder with female thread, StSt
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Pre-assembled with plastic base
Material of conductor holder: StSt
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 8.10 FL20 M8 KS V2A
Part No.: 274150
or equivalent.

认证



技术参数

Material of conductor holder StSt
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品274150加入购物车。

进入网上商店

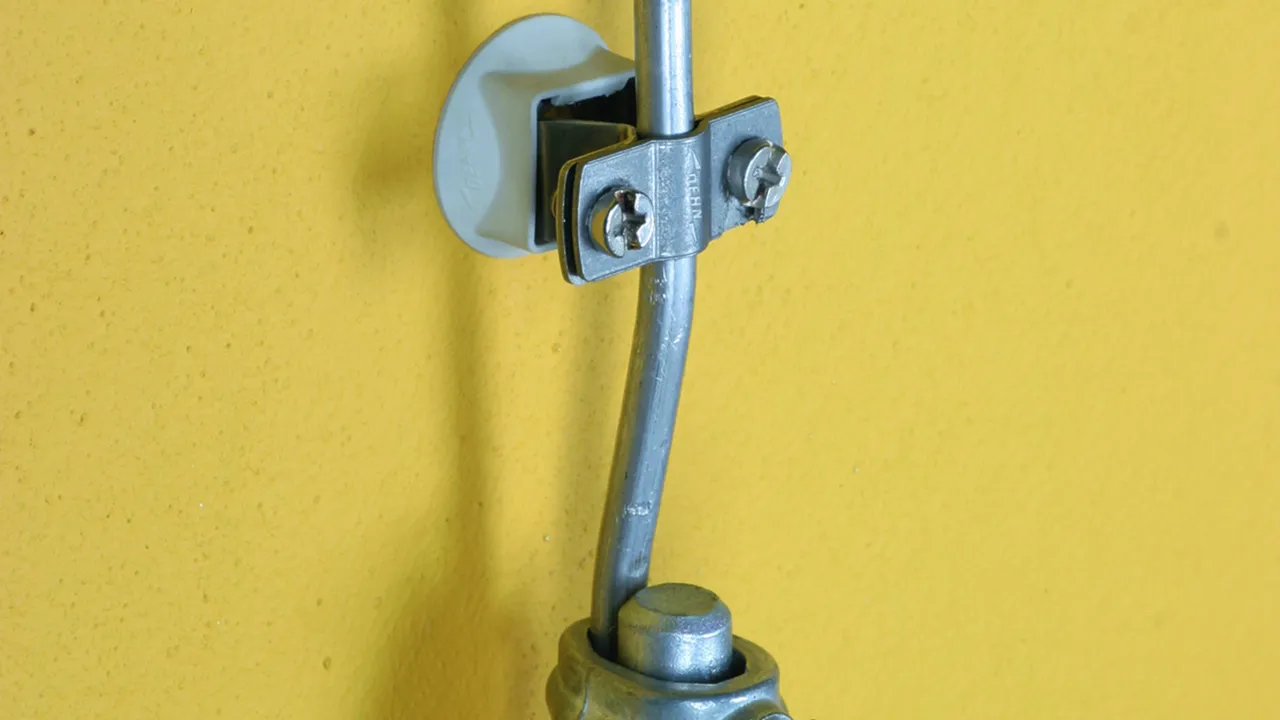

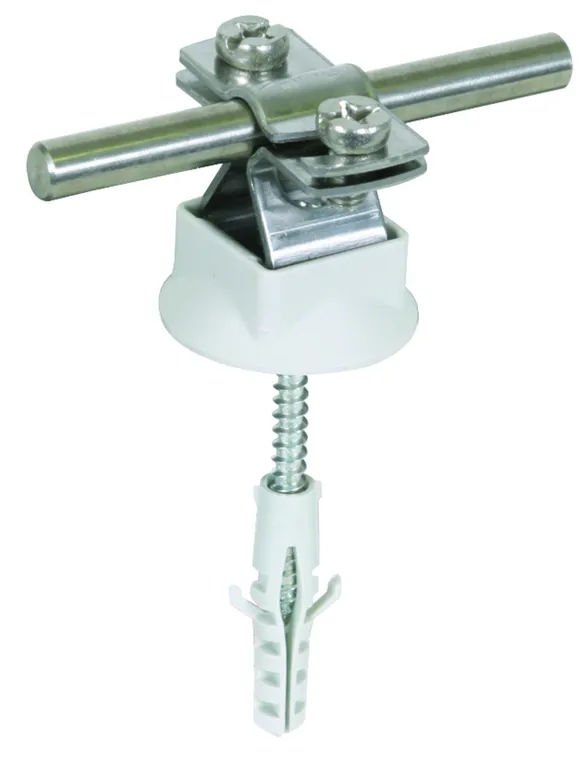

With female thread, pre-assembled with screw, plastic base and plug

2 产品

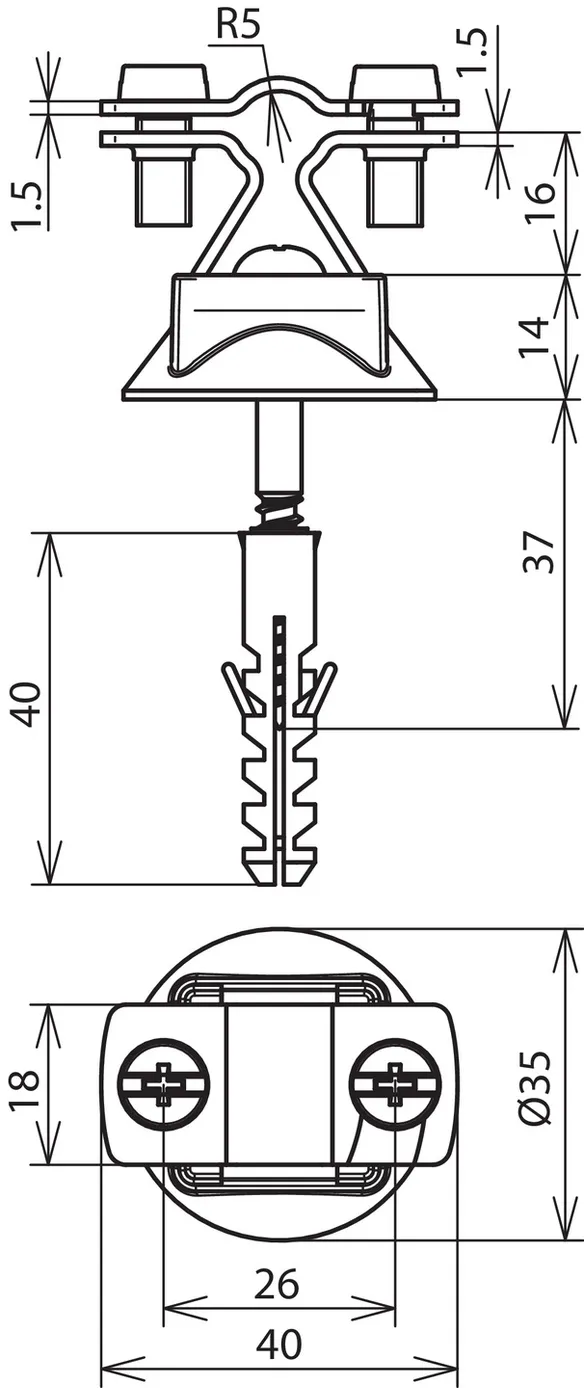

货号 274160 LH ZS 8.10 FL20 KS KD8X40 V2A

全球贸易项目代码 4013364123380, 海关HS编码: 85389099, 总重: 42.00 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

DEHNhold conductor holder with female thread, StSt
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Pre-assembled with screw, plastic base and plug
Material of conductor holder: StSt
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8
Screw: 5 x 50 mm
Plastic plug: Ø8 x 40 mm

Brand: DEHN
Type: LH ZS 8.10 FL20 KS KD8X40 V2A
Part No.: 274160
or equivalent.

认证



技术参数

Material of conductor holder StSt
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Plastic base grey ●
Screw ak 5 x 50 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品274160加入购物车。

进入网上商店

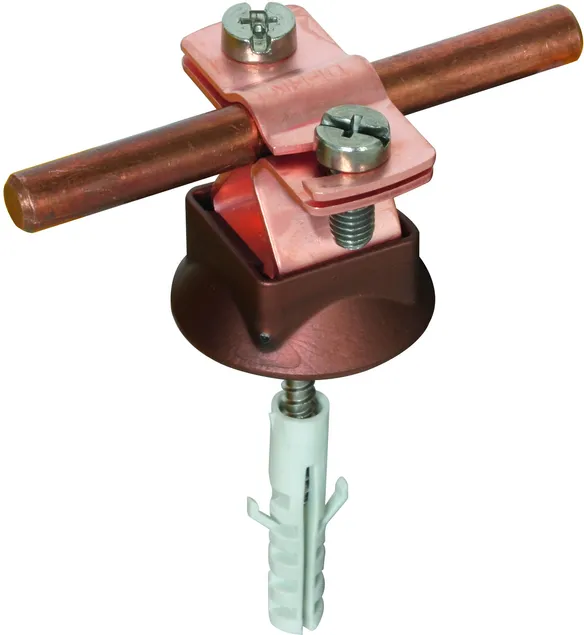

货号 274167 LH ZS 8.10 FL20 KS KD8X40 CU

全球贸易项目代码 4013364128200, 海关HS编码: 85389099, 总重: 42.70 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

DEHNhold conductor holder with female thread, StSt/gal Cu
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Pre-assembled with screw, plastic base and plug
Material of conductor holder: StSt / gal Cu
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8
Screw: 5 x 50 mm
Plastic plug: Ø8 x 40 mm

Brand: DEHN
Type: LH ZS 8.10 FL20 KS KD8X40 CU
Part No.: 274167
or equivalent.

认证



技术参数

Material of conductor holder StSt / gal Cu
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Plastic base brown ●
Screw ak 5 x 50 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品274167加入购物车。

进入网上商店

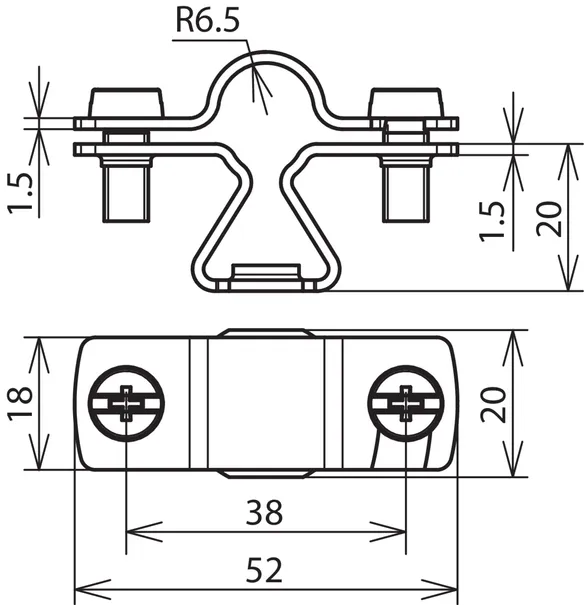

With female thread, e.g. for round wire with plastic sheath

1 产品

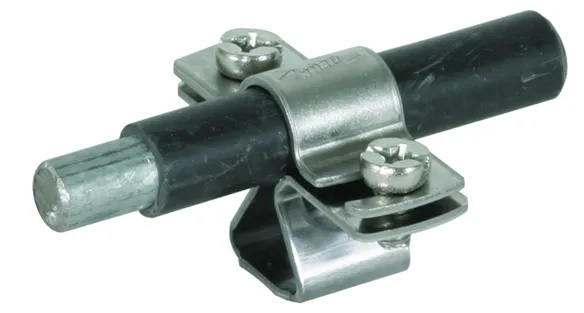

货号 274113 LH ZS 13 M8 V2A

全球贸易项目代码 4013364123403, 海关HS编码: 85389099, 总重: 37.60 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

DEHNhold conductor holder with female thread, StSt
DEHNhold conductor holder for fixing round conductors
with plastic sheath
with a slotted saddle clamp,
fixed conductor routing.

Material of conductor holder: StSt
Conductor support Rd: 13 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 13 M8 V2A
Part No.: 274113
or equivalent.

认证



技术参数

Material of conductor holder StSt
Conductor support Rd 13 mm
Height of conductor holder 20 mm
Thread of conductor holder M8

.产品已加入收藏夹。

进入收藏夹

商品274113加入购物车。

进入网上商店
