Conductor Holders with Saddle Clamp and Flange

Complete unit with flange for installing conductors, fixed conductor routing.

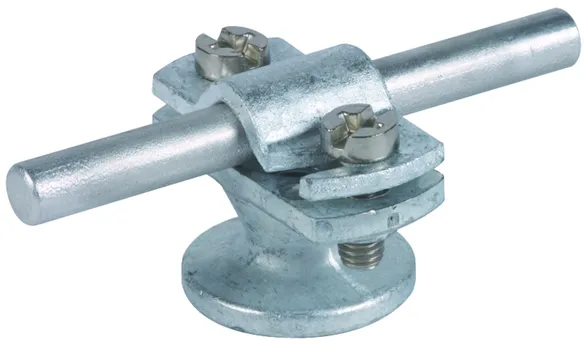

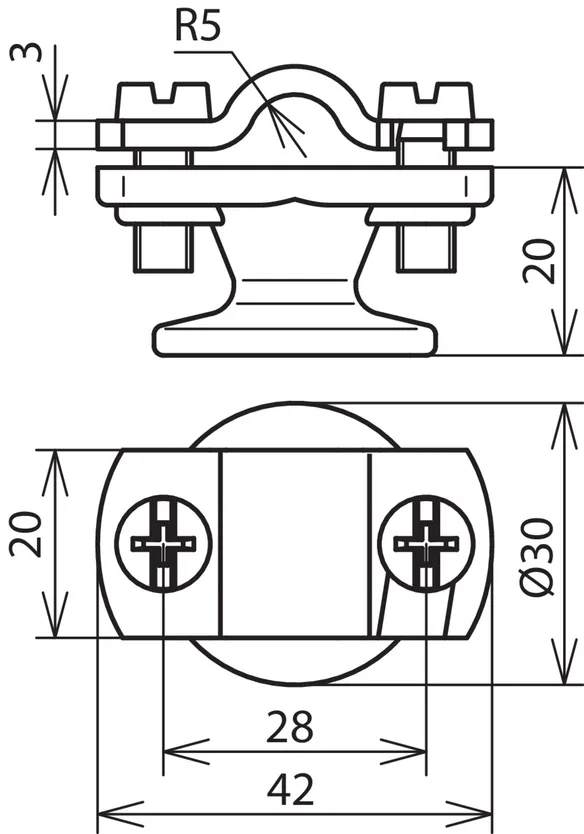

With M8 female thread

1 产品

货号 275110 LH ZS 7.10 IGM8 STTZN ZG

全球贸易项目代码 4013364095793, 海关HS编码: 85389099, 总重: 66.60 g, 包装单位: 50.00 pc(s)


附加信息

Conductor holder with saddle clamp and flange (M8 female thread)
Conductor holder with saddle clamp and flange
Complete unit with flange for installing
conductors, fixed conductor routing
Conductor support Rd: 7-10 mm
Material of clamp: St/tZn
Material of base part: ZDC

Brand: DEHN
Type: LH ZS 7.10 IGM8 STTZN ZG
Part No.: 275110
or equivalent.

认证



技术参数

Conductor support Rd 7-10 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of clamp St/tZn
Material of base part ZDC
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品275110加入购物车。

进入网上商店

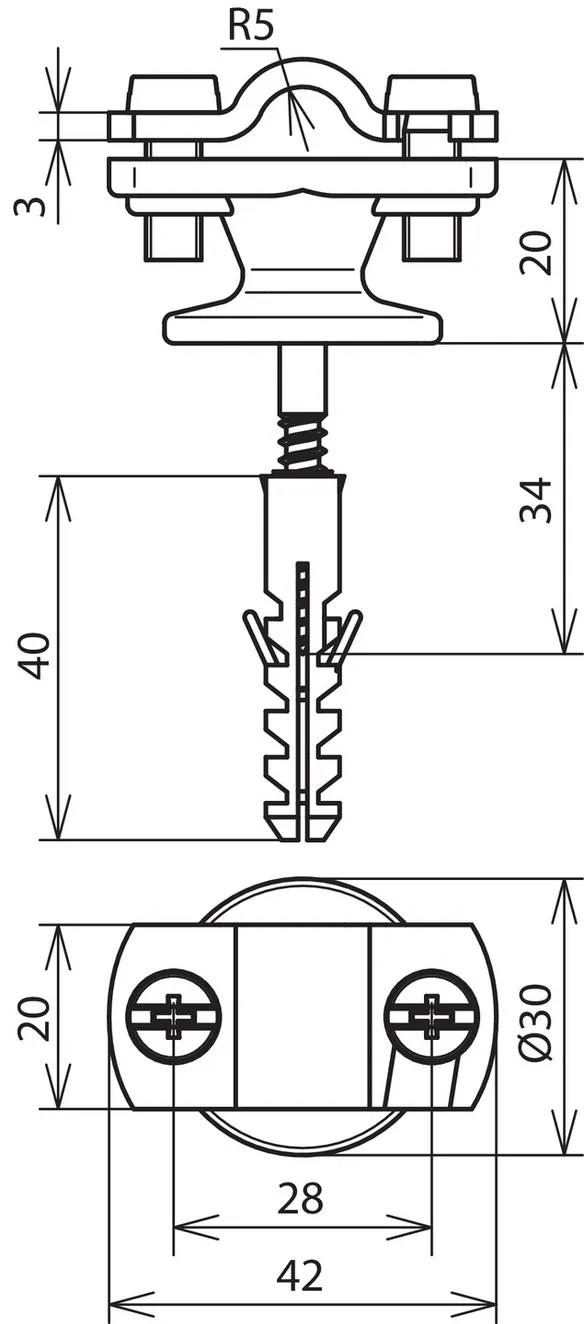

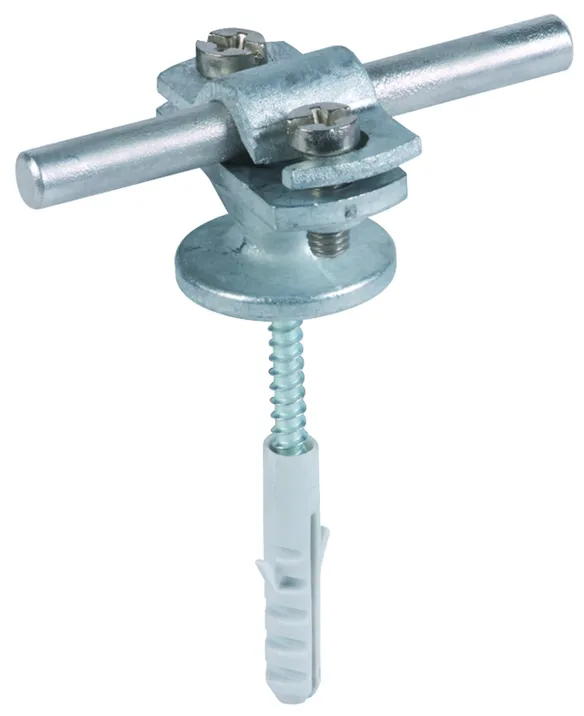

With female thread, pre-assembled with screw and plug

1 产品

货号 275160 LH ZS 7.10 KD8X40 STTZN ZG

全球贸易项目代码 4013364095809, 海关HS编码: 85389099, 总重: 78.00 g, 包装单位: 50.00 pc(s)


附加信息

Conductor holder with saddle clamp and flange (M8 female thread)
Conductor holder with saddle clamp and
Flange complete unit with
flange for installing
conductors, fixed conductor routing
Preassembled with screw and plug
Conductor support Rd: 7-10 mm
Material of clamp: St/tZn
Material of base part: ZDC
Screw: 5 x 50 mm

Brand: DEHN
Type: LH ZS 7.10 KD8X40 STTZN ZG
Part No.: 275160
or equivalent.

认证



技术参数

Conductor support Rd 7-10 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of clamp St/tZn
Material of base part ZDC
Screw ak 5 x 50 mm
Plastic plug Ø8 x 40 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品275160加入购物车。

进入网上商店

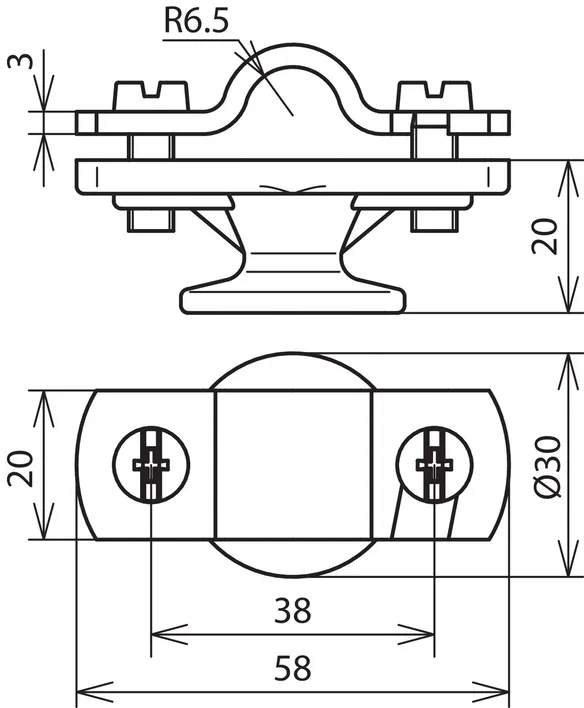

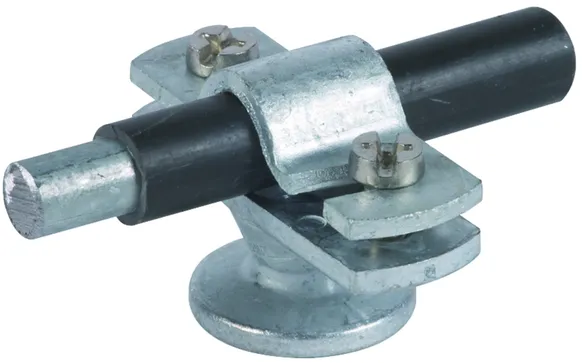

With female thread, e.g. for round wire with plastic sheath

1 产品

货号 275113 LH ZS 13 IGM8 STTZN ZG

全球贸易项目代码 4013364095816, 海关HS编码: 85389099, 总重: 84.00 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

Conductor holder with saddle clamp and flange
Conductor holder with saddle clamp and flange
Complete unit with flange for installing round wires with plastic sheath
Fixed conductor routing

Conductor support Rd: 11-13 mm
Material of clamp: St/tZn
Material of base part: ZDC

Brand: DEHN
Type: LH ZS 13 IGM8 STTZN ZG
Part No.: 275113
or equivalent.

认证



技术参数

Conductor support Rd 11-13 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of clamp St/tZn
Material of base part ZDC

.产品已加入收藏夹。

进入收藏夹

商品275113加入购物车。

进入网上商店
