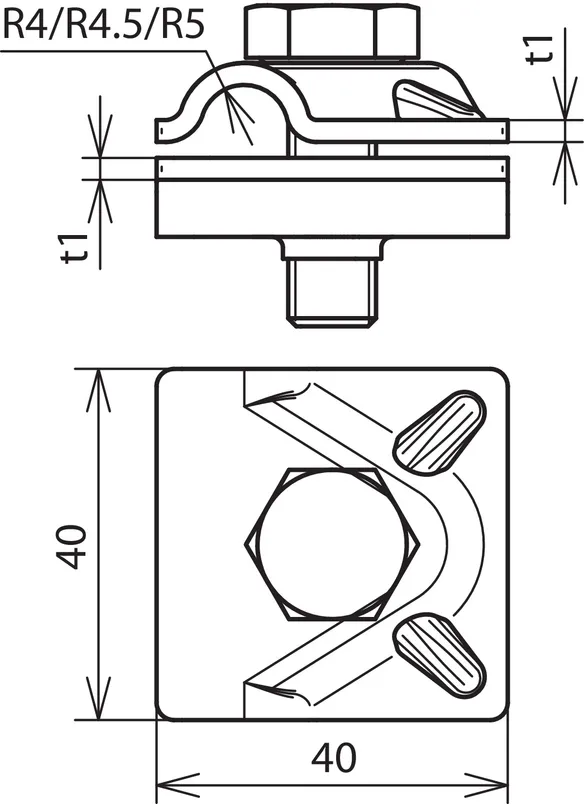

MV Clamps

Multipurpose connecting clamp (MehrzweckVerbindungs-Klemme) for universal use as a cross clamp, T clamp and parallel clamp; two-piece.

With hexagon screw

Thread in the base part.

8 产品

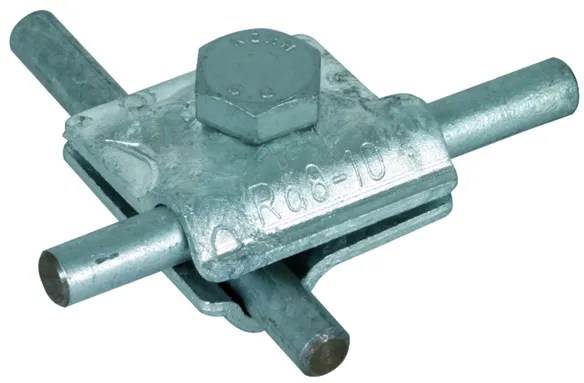

货号 390050 MVK 8.10 SKM10X30 STTZN

全球贸易项目代码 4013364095991, 海关HS编码: 85359000, 总重: 101.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 STTZN
Part No.: 390050
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut St/tZn
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.3 kA
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390050加入购物车。

进入网上商店

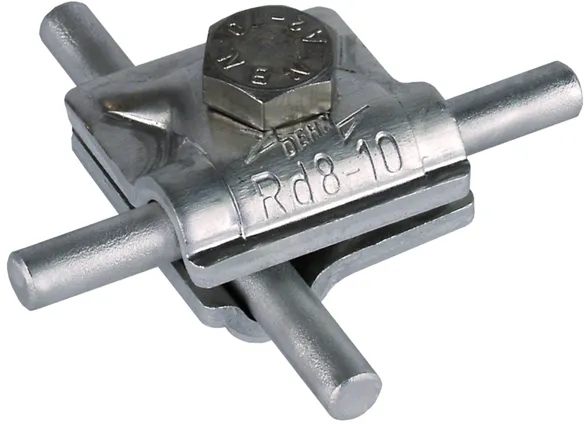

货号 390051 MVK 8.10 SKM10X30 AL

全球贸易项目代码 4013364096219, 海关HS编码: 85359000, 总重: 57.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, Al
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: Al
Clamping range Rd: 8-10 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 AL
Part No.: 390051
or equivalent.

认证



技术参数

Material of clamp Al
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390051加入购物车。

进入网上商店

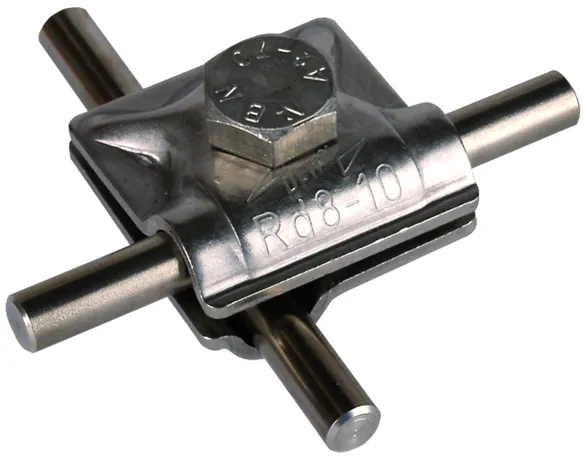

货号 390059 MVK 8.10 SKM10X30 V2A

全球贸易项目代码 4013364096004, 海关HS编码: 85359000, 总重: 94.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 V2A
Part No.: 390059
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390059加入购物车。

进入网上商店

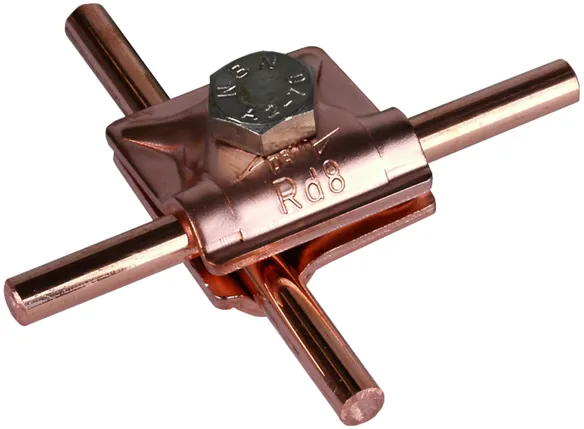

货号 390057 MVK 8 SKM10X30 CU

全球贸易项目代码 4013364096073, 海关HS编码: 85359000, 总重: 120.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, Cu
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: Cu
Clamping range Rd: 8 mm
Clamping range (stranded / cable): 25-70 mm2
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8 SKM10X30 CU
Part No.: 390057
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd 8 mm
Clamping range (stranded / cable) 25-70 mm2
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390057加入购物车。

进入网上商店

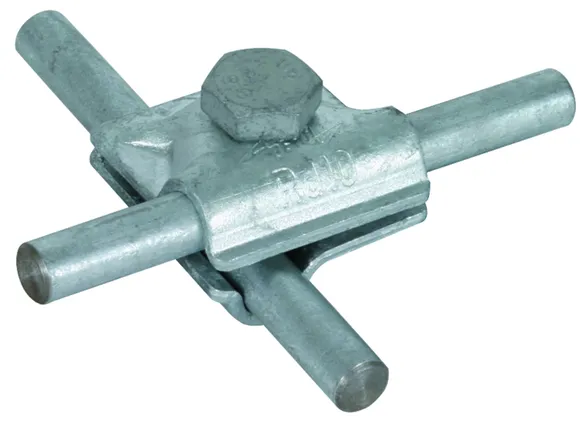

货号 391050 MVK 10 SKM10X35 STTZN

全球贸易项目代码 4013364087064, 海关HS编码: 85359000, 总重: 103.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 STTZN
Part No.: 391050
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391050加入购物车。

进入网上商店

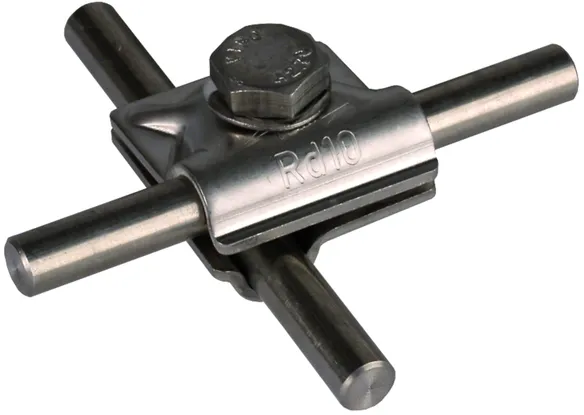

货号 391059 MVK 10 SKM10X35 V2A

全球贸易项目代码 4013364087071, 海关HS编码: 85359000, 总重: 99.50 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: StSt
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 V2A
Part No.: 391059
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391059加入购物车。

进入网上商店

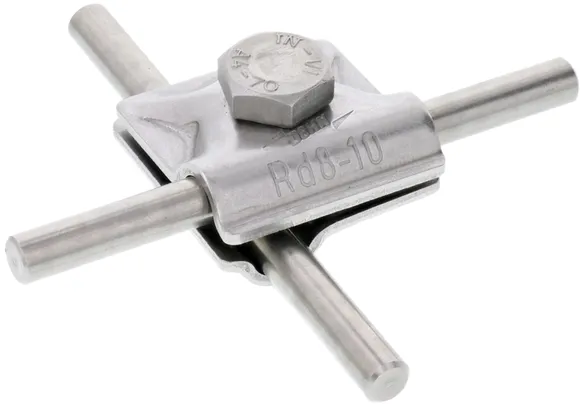

货号 390079 MVK 8.10 SKM10X35 V4A

全球贸易项目代码 4013364128996, 海关HS编码: 85359000, 总重: 98.40 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, StSt (V4A)
MV clamp
Multipurpose connecting clamp
for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: StSt (V4A)
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 35-70 mm2
Material thickness: 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X35 V4A
Part No.: 390079
or equivalent.

认证



技术参数

Material of clamp StSt (V4A)
Clamping range Rd 8-10 mm
Connection (solid / stranded) 35-70 mm2
Screw di M10 x 35 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 4.7 kA
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390079加入购物车。

进入网上商店

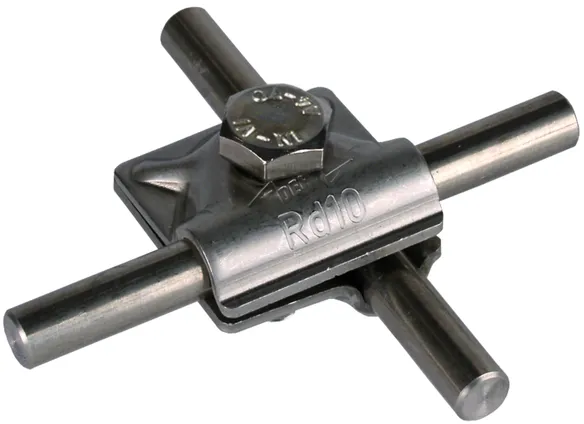

货号 391058 MVK 10 SKM10X35 V4A

全球贸易项目代码 4013364293236, 海关HS编码: 85359000, 总重: 99.50 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, StSt (V4A)
MV clamp
Multipurpose connecting clamp
for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: StSt (V4A)
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 V4A
Part No.: 391058
or equivalent.

认证



技术参数

Material of clamp StSt (V4A)
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391058加入购物车。

进入网上商店

With hexagon screw and spring washer

Thread in the base part.

7 产品

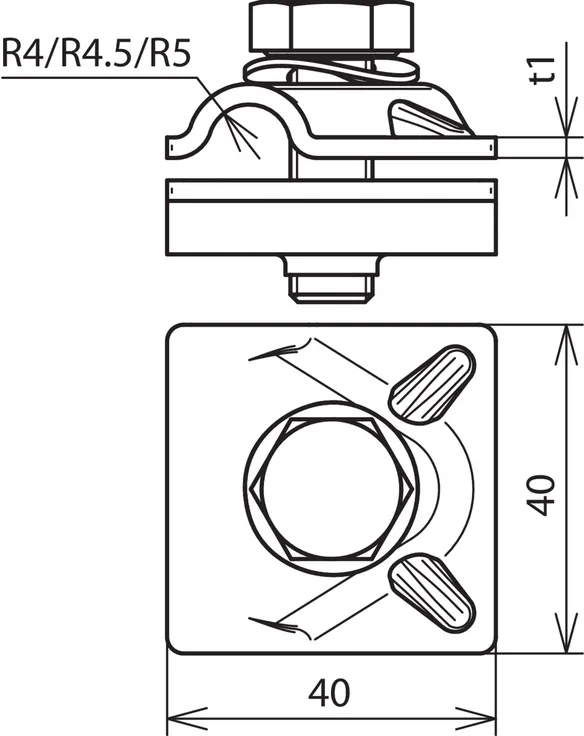

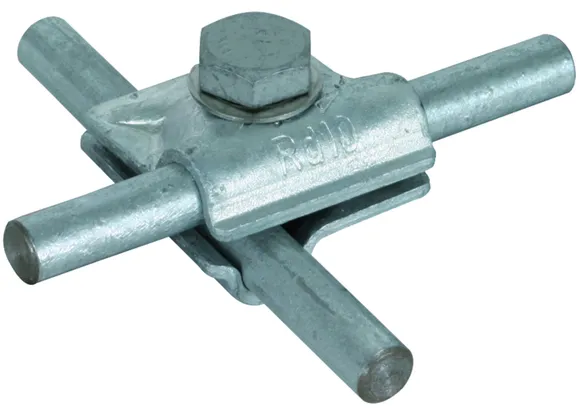

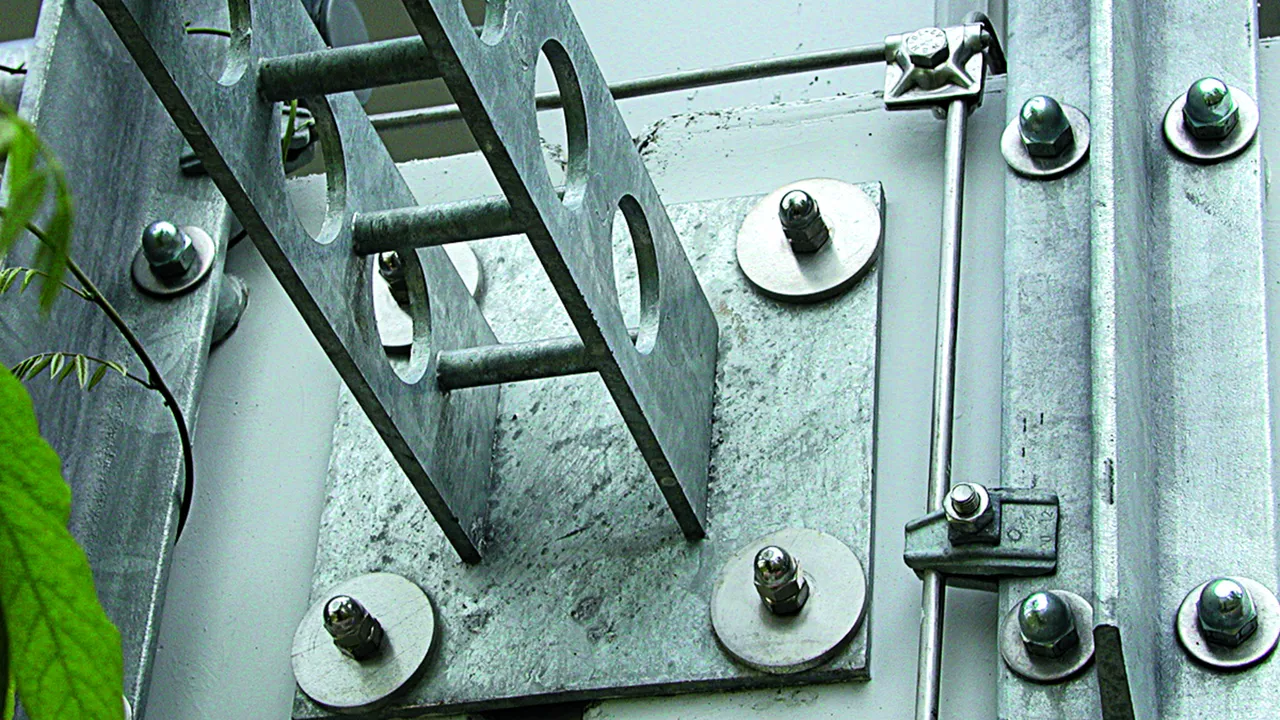

货号 390550 MVK 8.10 SKM10X30 FSC STTZN

全球贸易项目代码 4013364096042, 海关HS编码: 85359000, 总重: 92.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw and spring washer, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer and threaded
base part
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 FSC STTZN
Part No.: 390550
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390550加入购物车。

进入网上商店

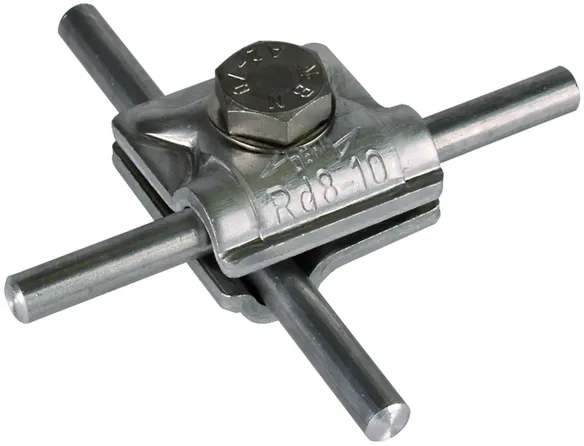

货号 390551 MVK 8.10 SKM10X30 FSC AL

全球贸易项目代码 4013364096202, 海关HS编码: 85359000, 总重: 60.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw and spring washer, Al
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer and threaded
base part
Material of clamp: Al
Clamping range Rd: 8-10 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 FSC AL
Part No.: 390551
or equivalent.

认证



技术参数

Material of clamp Al
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390551加入购物车。

进入网上商店

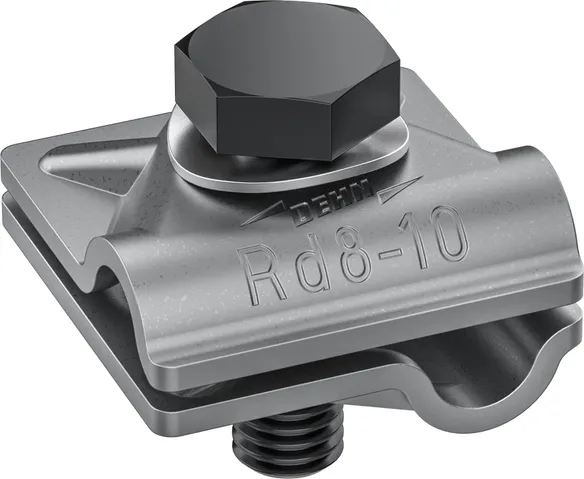

货号 390553 MVK 8.10 SKM10X35 FSC STBL

全球贸易项目代码 4013364522787, 海关HS编码: 85359000, 总重: 98.34 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw and spring washer, steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer
and thread in the
base part
Material of clamp: St/bare
Clamping range Rd: 8-10 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X35 FSC STBL
Part No.: 390553
or equivalent.

认证



技术参数

Material of clamp St/bare
Clamping range Rd 8-10 mm
Screw di M10 x 35 mm
Material of screw / nut St/bare
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390553加入购物车。

进入网上商店

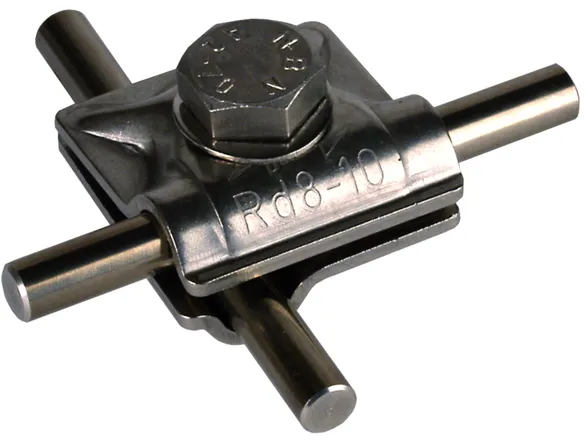

货号 390559 MVK 8.10 SKM10X30 FSC V2A

全球贸易项目代码 4013364096035, 海关HS编码: 85359000, 总重: 100.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw and spring washer, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer and threaded
base part
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 FSC V2A
Part No.: 390559
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390559加入购物车。

进入网上商店

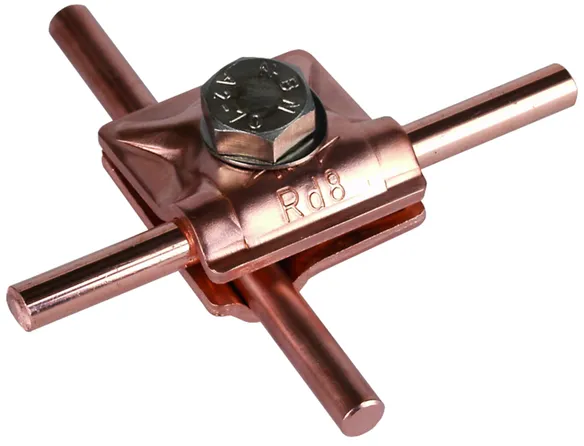

货号 390557 MVK 8 SKM10X30 FSC CU

全球贸易项目代码 4013364096097, 海关HS编码: 85359000, 总重: 120.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw and spring washer, Cu/StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer and threaded
base part
Material of clamp: Cu
Clamping range Rd: 8 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8 SKM10X30 FSC CU
Part No.: 390557
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd 8 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390557加入购物车。

进入网上商店

货号 391550 MVK 10 SKM10X35 FSC STTZN

全球贸易项目代码 4013364088016, 海关HS编码: 85359000, 总重: 107.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw and spring washer, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer
and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 FSC STTZN
Part No.: 391550
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391550加入购物车。

进入网上商店

货号 391559 MVK 10 SKM10X35 FSC V2A

全球贸易项目代码 4013364087088, 海关HS编码: 85359000, 总重: 102.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw and spring washer, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer
and threaded base part
Material of clamp: StSt
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 FSC V2A
Part No.: 391559
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391559加入购物车。

进入网上商店

With truss head screw

and anti-rotation protection (square hole in the upper part).

8 产品

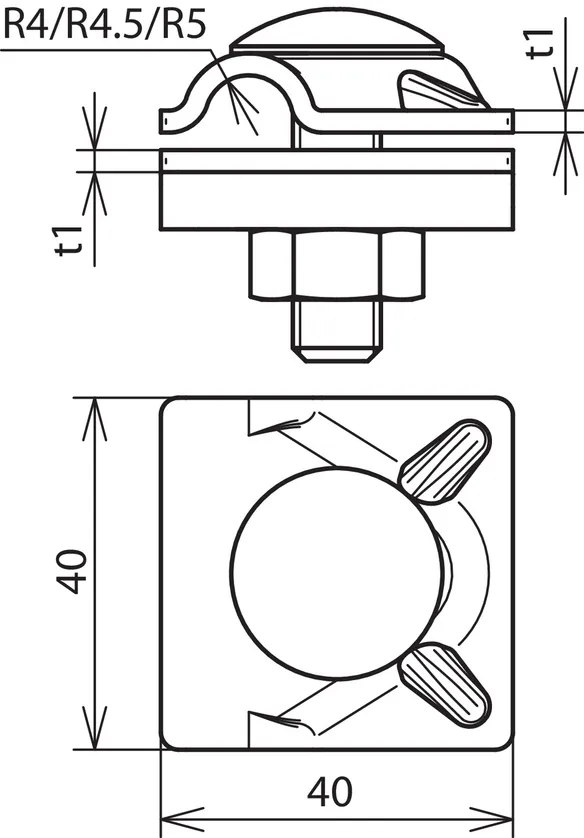

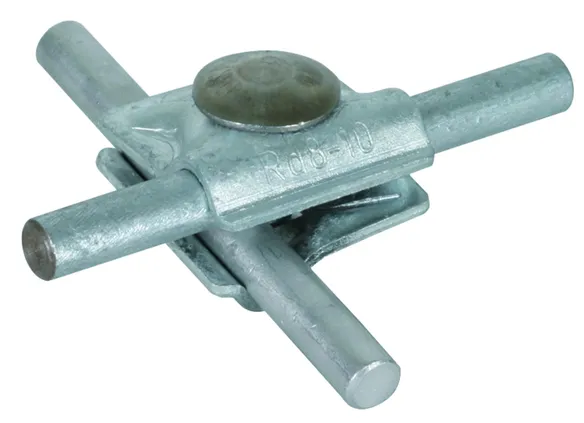

货号 390060 MVK 8.10 FRM10X35 STTZN

全球贸易项目代码 4013364096011, 海关HS编码: 85359000, 总重: 110.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with truss head screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 FRM10X35 STTZN
Part No.: 390060
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 8-10 mm
Screw e M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390060加入购物车。

进入网上商店

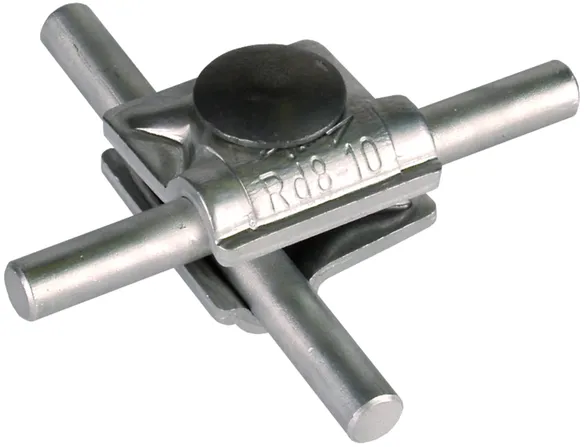

货号 390061 MVK 8.10 FRM10X35 AL

全球贸易项目代码 4013364096196, 海关HS编码: 85359000, 总重: 68.80 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with truss head screw, Al
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: Al
Clamping range Rd: 8-10 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 FRM10X35 AL
Part No.: 390061
or equivalent.

认证



技术参数

Material of clamp Al
Clamping range Rd 8-10 mm
Screw e M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390061加入购物车。

进入网上商店

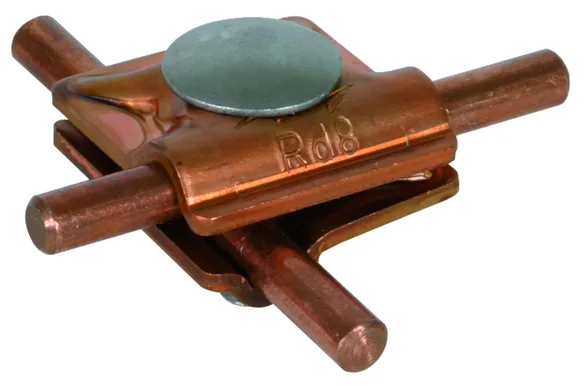

货号 390067 MVK 8 FRM10X35 CU

全球贸易项目代码 4013364096080, 海关HS编码: 85359000, 总重: 124.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with truss head screw, Cu
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: Cu
Clamping range Rd: 8 mm
Clamping range (stranded / cable): 25-70 mm2
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8 FRM10X35 CU
Part No.: 390067
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd 8 mm
Clamping range (stranded / cable) 25-70 mm2
Screw e M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390067加入购物车。

进入网上商店

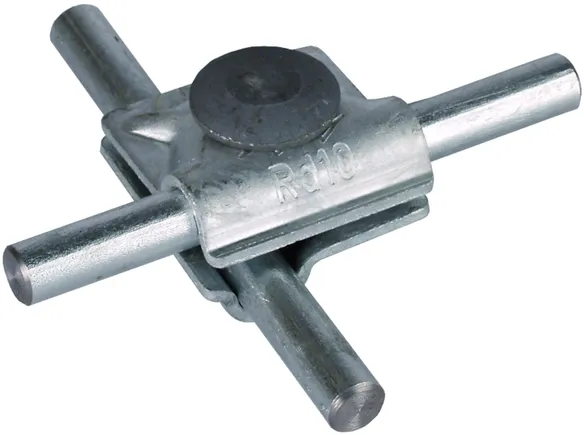

货号 391060 MVK 10 FRM10X35 STTZN

全球贸易项目代码 4013364088009, 海关HS编码: 85359000, 总重: 115.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with truss head screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 FRM10X35 STTZN
Part No.: 391060
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 10 mm
Screw e M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391060加入购物车。

进入网上商店

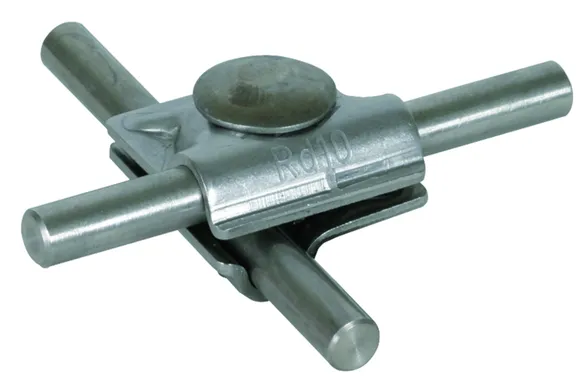

货号 391069 MVK 10 FRM10X35 V2A

全球贸易项目代码 4013364087095, 海关HS编码: 85359000, 总重: 108.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with truss head screw, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: StSt
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 FRM10X35 V2A
Part No.: 391069
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 10 mm
Screw e M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391069加入购物车。

进入网上商店

货号 390063 MVK 8.10 FRM10X35V2A STTZN

全球贸易项目代码 4013364159396, 海关HS编码: 85359000, 总重: 105.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with truss head screw, St/tZn
MV clamp
Multipurpose connecting clamp
for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Material thickness: 2,5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 FRM10X35V2A STTZN
Part No.: 390063
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 8-10 mm
Screw e M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390063加入购物车。

进入网上商店

货号 391068 MVK 10 FRM10X45 V4A

全球贸易项目代码 4013364385320, 海关HS编码: 85359000, 总重: 116.20 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with truss head screw, StSt (V4A)
MV clamps multipurpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: StSt (V4A)
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 FRM10X45 V4A
Part No.: 391068
or equivalent.

认证



技术参数

Material of clamp StSt (V4A)
Clamping range Rd 10 mm
Screw e M10 x 45 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391068加入购物车。

进入网上商店

货号 391066 MVK 10 FRM10X35 V4A

全球贸易项目代码 4013364288577, 海关HS编码: 85359000, 总重: 113.08 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with truss head screw, StSt (V4A)
MV clamp
Multipurpose connecting clamp
for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: StSt (V4A)
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 FRM10X35 V4A
Part No.: 391066
or equivalent.

认证



技术参数

Material of clamp StSt (V4A)
Clamping range Rd 10 mm
Screw e M10 x 35 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391066加入购物车。

进入网上商店

With hexagon screw and spring washer for air-termination rods

Thread in the base part

2 产品

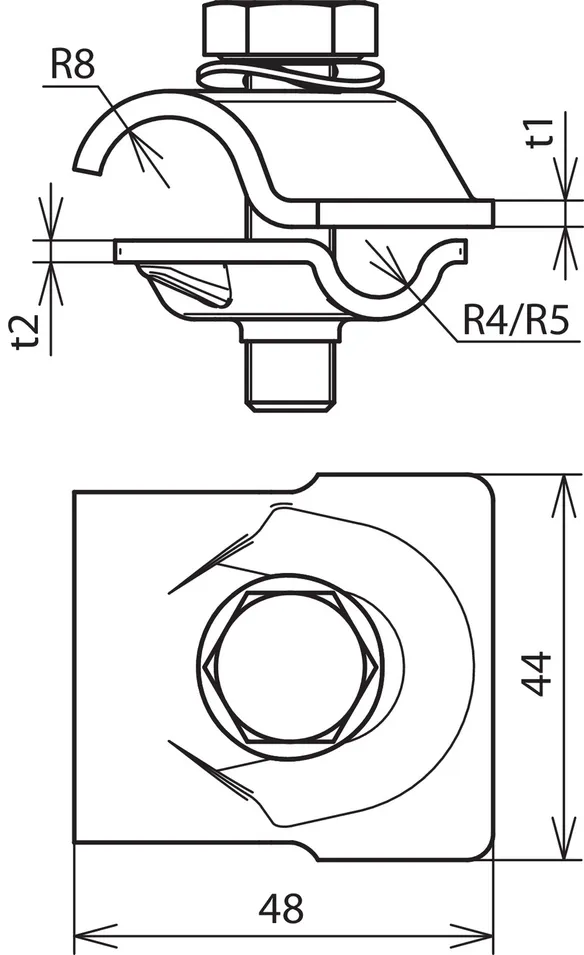

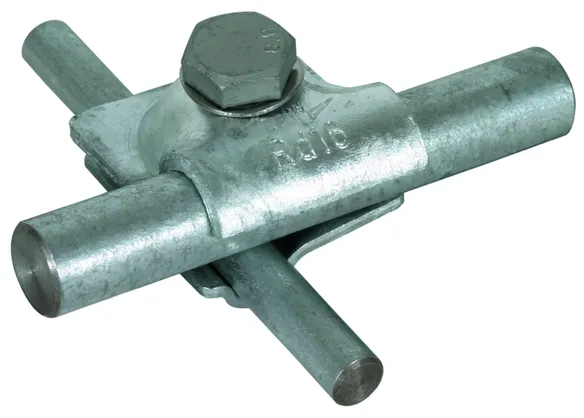

货号 392050 MVK 8.10 16 SKM10X40 FSC STTZN

全球贸易项目代码 4013364096066, 海关HS编码: 85359000, 总重: 123.30 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp for air-termination rods, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
specially for air-termination rods and round conductors
with hexagon screw, spring washer
and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3.0 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC STTZN
Part No.: 392050
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 8-10 / 16 mm
Screw di M10 x 40 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392050加入购物车。

进入网上商店

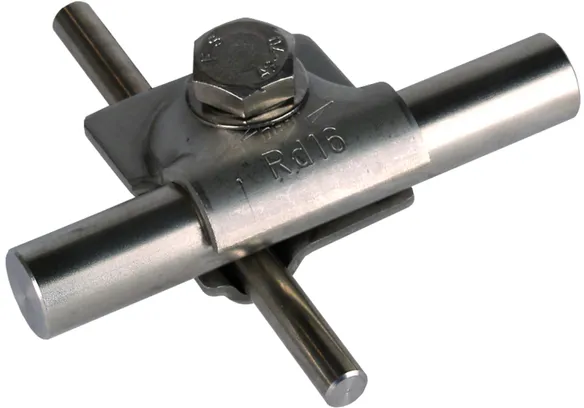

货号 392059 MVK 8.10 16 SKM10X40 FSC V2A

全球贸易项目代码 4013364096059, 海关HS编码: 85359000, 总重: 121.40 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

MV clamp for air-termination rods, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
specially for air-termination rods and round conductors
with hexagon screw, spring washer and threaded
base part
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3.0 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC V2A
Part No.: 392059
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 8-10 / 16 mm
Screw di M10 x 40 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392059加入购物车。

进入网上商店

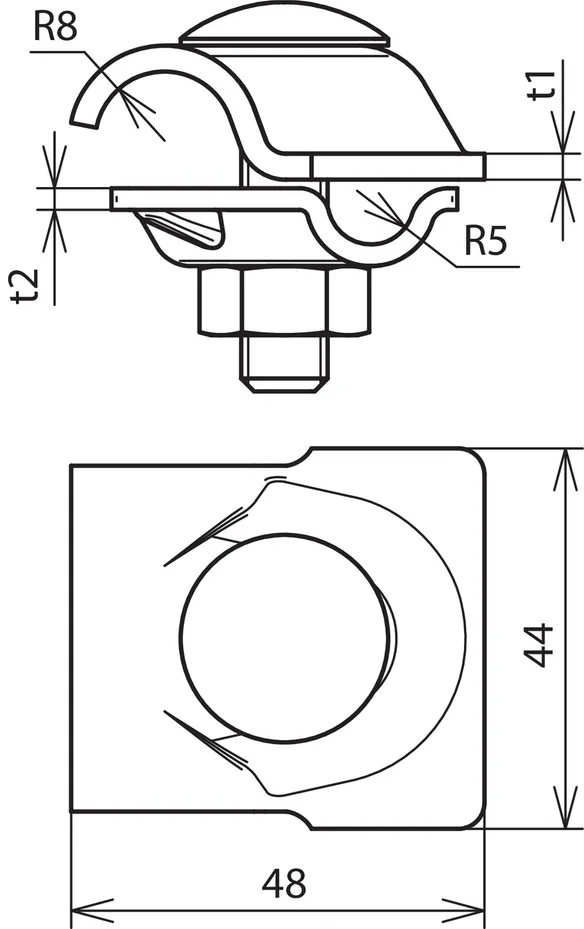

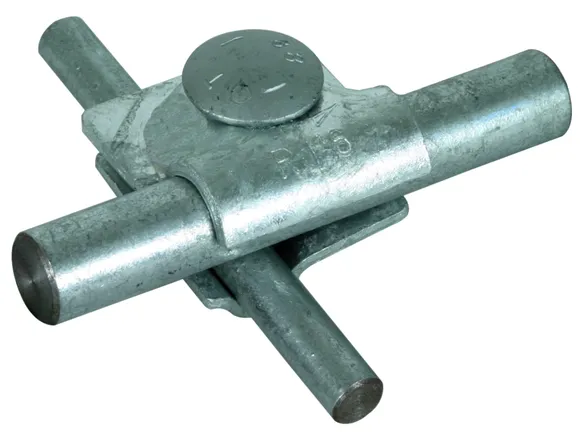

With truss head screw for air-termination rods

and anti-rotation protection (square hole in the upper part).

2 产品

货号 392060 MVK 8.10 16 FRM10X40 STTZN

全球贸易项目代码 4013364096141, 海关HS编码: 85359000, 总重: 132.40 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp for air-termination rods with truss head screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
specially for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3.0 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 STTZN
Part No.: 392060
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 8-10 / 16 mm
Screw e M10 x 40 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392060加入购物车。

进入网上商店

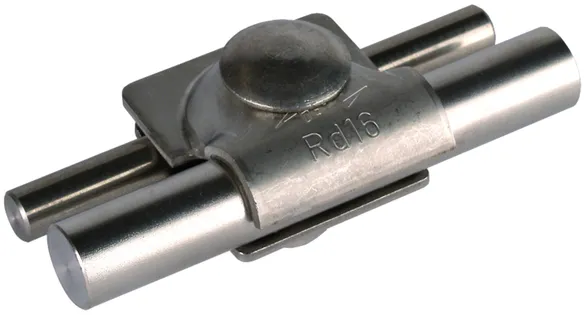

货号 392069 MVK 8.10 16 FRM10X40 V2A

全球贸易项目代码 4013364096158, 海关HS编码: 85359000, 总重: 128.40 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp for air-termination rods with truss head screw, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
specially for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3.0 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 V2A
Part No.: 392069
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 8-10 / 16 mm
Screw e M10 x 40 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392069加入购物车。

进入网上商店

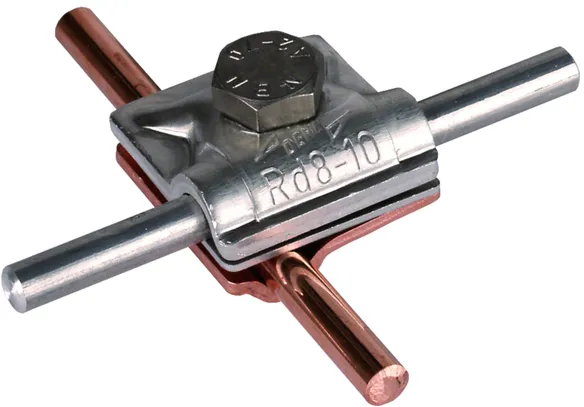

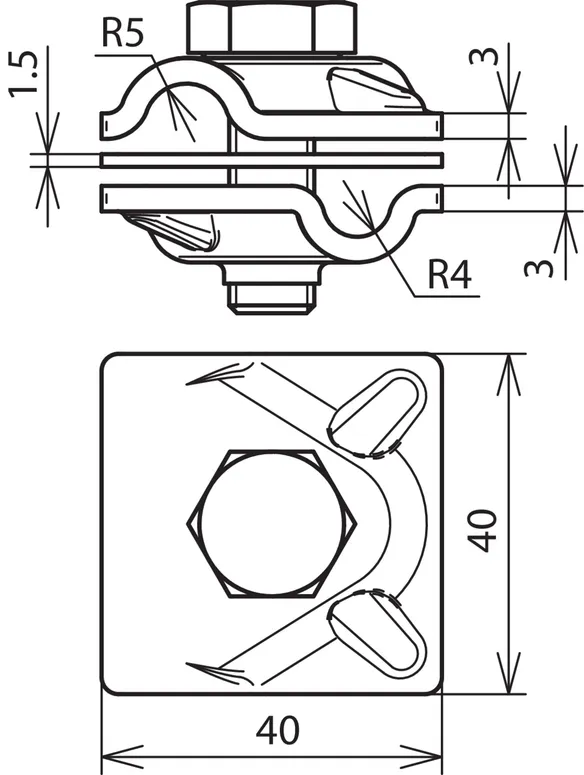

Bimetallic MV clamp

For connecting conductors made of different materials, with intermediate plate (Cupal) and thread in the base part.

1 产品

货号 390657 ZMMVK 8 8.10 SKM10X30 CU AL

全球贸易项目代码 4013364096165, 海关HS编码: 85359000, 总重: 102.00 g, 包装单位: 50.00 pc(s)


附加信息

Bimetallic MV clamp
Bimetallic MV clamp
for connecting conductors
made of different materials
as a cross clamp, T clamp and parallel clamp
with intermediate plate (copper-plated aluminium) and
threaded base part
Material of clamp: Cu / Al
Clamping range Rd Cu: 8 mm
Clamping range Rd Al: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMMVK 8 8.10 SKM10X30 CU AL
Part No.: 390657
or equivalent.

认证



技术参数

Material of clamp Cu / Al
Clamping range Rd Cu 8 mm
Clamping range Rd Al 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390657加入购物车。

进入网上商店
返回顶部
