DEHNguard S ... VA

Multi-purpose surge arrester consisting of a base part and a plug-in protection module
Leakage-current-free series connection of a varistor and a spark gap in the pluggable protection module
High reliability due to "Thermo Dynamic Control" SPD monitoring device
Energy coordination with other arresters of the Red/Line product family
Easy replacement of protection modules without tools due to module locking system with module release button
Narrow (modular) design according to DIN 43880
Multifunctional terminal for connecting conductors and busbars
Vibration and shock-tested according to EN 60068-2

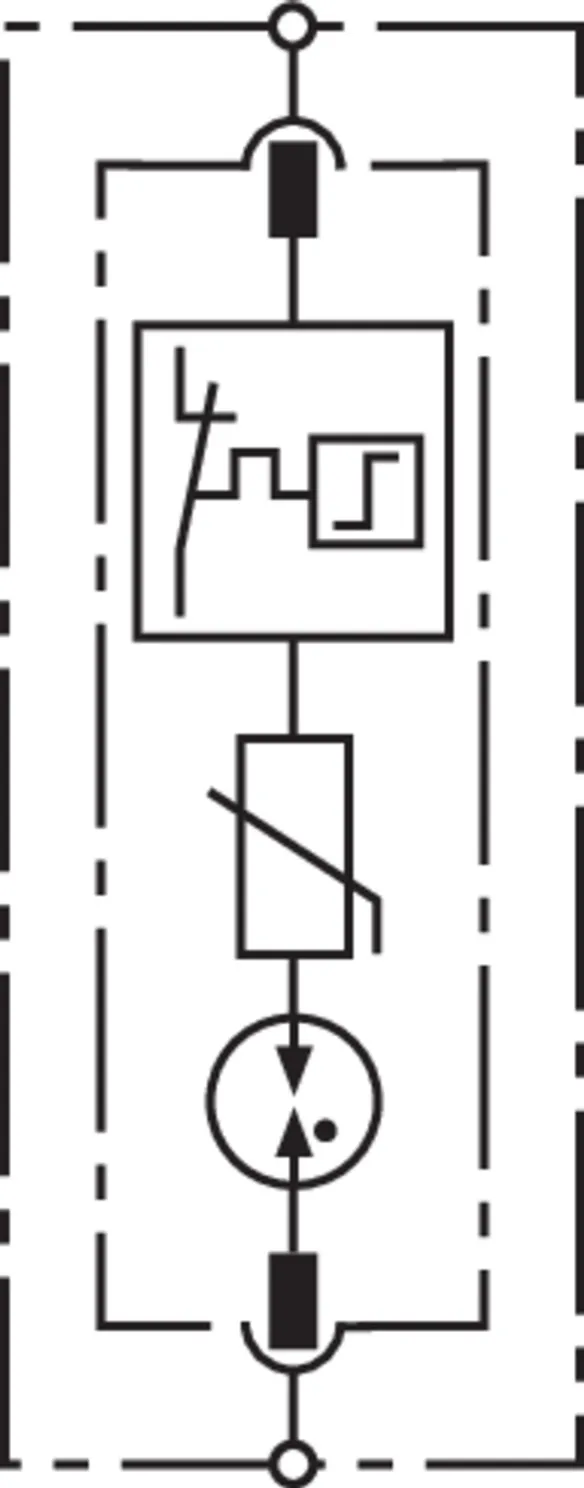

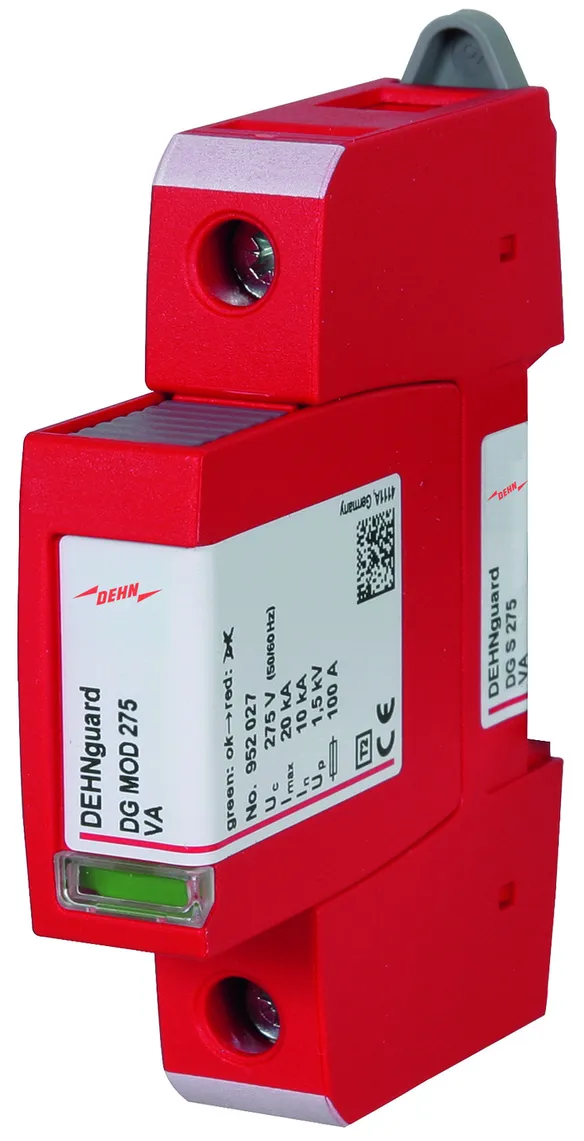

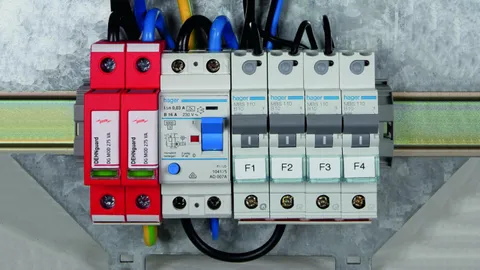

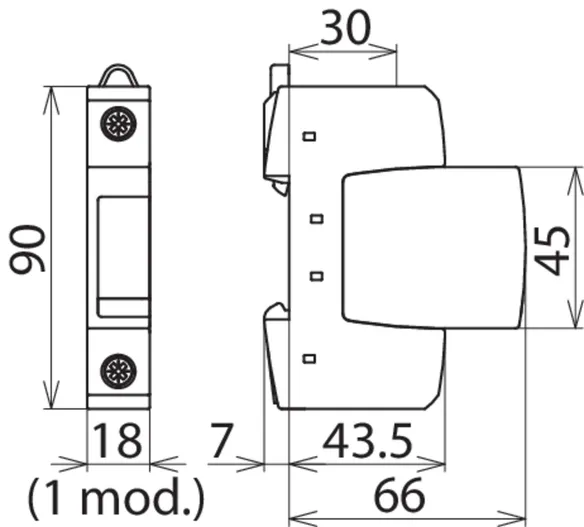

DEHNguard S VA

Modular single-pole surge arrester with a varistor connected in series with a spark gap in the pluggable protection module.

3 产品

货号 952080 DG S 75 VA

全球贸易项目代码 4013364127296, 海关HS编码: 85363030, 总重: 118.00 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

DEHNguard S 75 VA surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 1.1 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75 VA
Part No.: 952080
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

.产品已加入收藏夹。

进入收藏夹

商品952080加入购物车。

进入网上商店

货号 952082 DG S 275 VA

全球贸易项目代码 4013364127319, 海关HS编码: 85363030, 总重: 123.40 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

DEHNguard S 275 VA surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275 VA
Part No.: 952082
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	100 A gG


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

.产品已加入收藏夹。

进入收藏夹

商品952082加入购物车。

进入网上商店

货号 952084 DG S 385 VA

全球贸易项目代码 4013364127333, 海关HS编码: 85363030, 总重: 127.70 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

DEHNguard S 385 VA surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385 VA
Part No.: 952084
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² stranded / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

.产品已加入收藏夹。

进入收藏夹

商品952084加入购物车。

进入网上商店

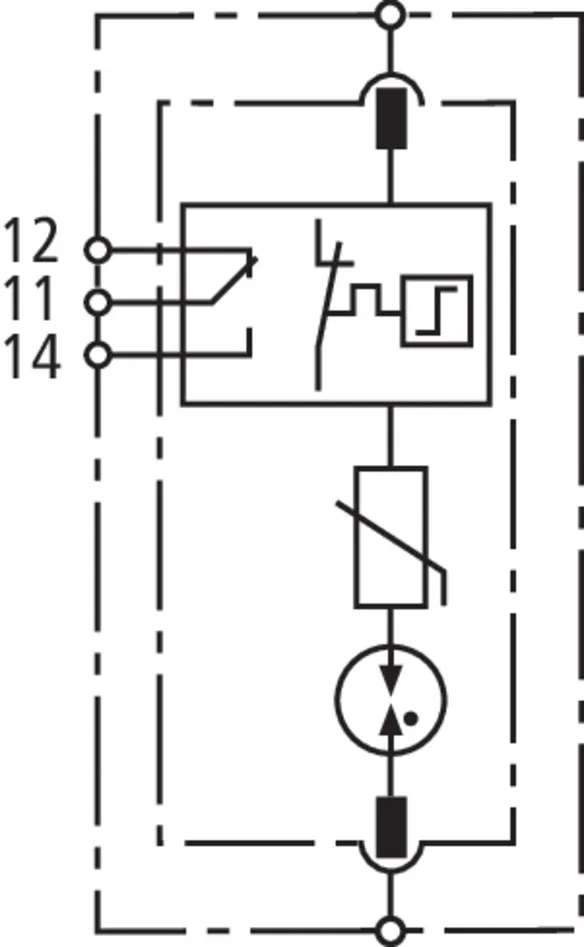

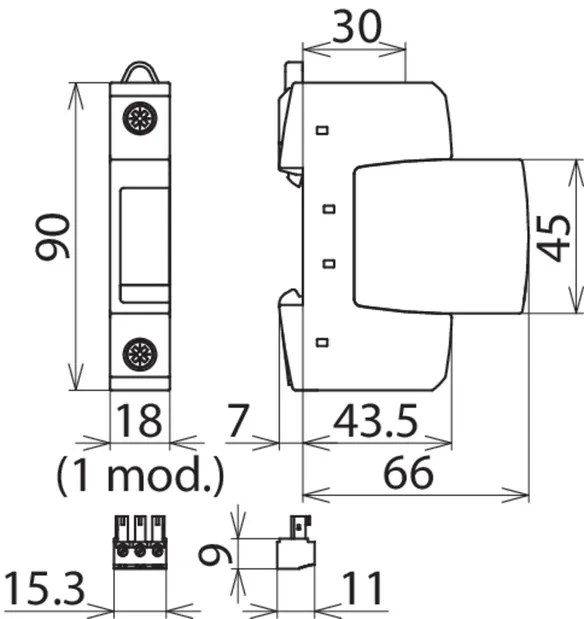

DEHNguard S VA FM

Modular single-pole surge arrester with a varistor connected in series with a spark gap in the pluggable protection module; with floating remote signalling contact.

3 产品

货号 952085 DG S 75 VA FM

全球贸易项目代码 4013364127302, 海关HS编码: 85363030, 总重: 122.10 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

DEHNguard S 75 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 1.1 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75 VA FM
Part No.: 952085
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品952085加入购物车。

进入网上商店

货号 952087 DG S 275 VA FM

全球贸易项目代码 4013364127326, 海关HS编码: 85363030, 总重: 126.70 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

DEHNguard S275 VA FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275 VA FM
Part No.: 952087
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	100 A gG


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

.产品已加入收藏夹。

进入收藏夹

商品952087加入购物车。

进入网上商店

货号 952089 DG S 385 VA FM

全球贸易项目代码 4013364127340, 海关HS编码: 85363030, 总重: 131.70 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

DEHNguard S 385 VA FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385 VA FM
Part No.: 952089
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品952089加入购物车。

进入网上商店

Results for products (0)

Results for content (0)

DEHNguard S ... VA

DEHNguard S VA

货号 952080 DG S 75 VA

.产品已加入收藏夹。

商品952080加入购物车。

货号 952082 DG S 275 VA

.产品已加入收藏夹。

商品952082加入购物车。

货号 952084 DG S 385 VA

.产品已加入收藏夹。

商品952084加入购物车。

DEHNguard S VA FM

货号 952085 DG S 75 VA FM

.产品已加入收藏夹。

商品952085加入购物车。

货号 952087 DG S 275 VA FM

.产品已加入收藏夹。

商品952087加入购物车。

货号 952089 DG S 385 VA FM

.产品已加入收藏夹。

商品952089加入购物车。

DEHNguard S ... VA

DEHNguard S VA

货号 952080 DG S 75 VA

952070.stp 您没有下载权限952070.stp

952070.igs 您没有下载权限952070.igs

952070.jt 您没有下载权限952070.jt

952070.dwg 您没有下载权限952070.dwg

952070m_E.dxf 您没有下载权限952070m_E.dxf

DEHN.952080.wspak 您没有下载权限DEHN.952080.wspak

DEHN.952080.edz 您没有下载权限DEHN.952080.edz

.产品已加入收藏夹。

商品952080加入购物车。

货号 952082 DG S 275 VA

952070.stp 您没有下载权限952070.stp

952070.igs 您没有下载权限952070.igs

952070.jt 您没有下载权限952070.jt

952070.dwg 您没有下载权限952070.dwg

952070m_E.dxf 您没有下载权限952070m_E.dxf

DEHN.952082.wspak 您没有下载权限DEHN.952082.wspak

DEHN.952082.edz 您没有下载权限DEHN.952082.edz

.产品已加入收藏夹。

商品952082加入购物车。

货号 952084 DG S 385 VA

952070.stp 您没有下载权限952070.stp

952070.igs 您没有下载权限952070.igs

952070.jt 您没有下载权限952070.jt

952070.dwg 您没有下载权限952070.dwg

952070m_E.dxf 您没有下载权限952070m_E.dxf

DEHN.952084.wspak 您没有下载权限DEHN.952084.wspak

DEHN.952084.edz 您没有下载权限DEHN.952084.edz

.产品已加入收藏夹。

商品952084加入购物车。

DEHNguard S VA FM

货号 952085 DG S 75 VA FM

952090.stp 您没有下载权限952090.stp

952090.igs 您没有下载权限952090.igs

952090.jt 您没有下载权限952090.jt

952090.dwg 您没有下载权限952090.dwg

952090m_E.dxf 您没有下载权限952090m_E.dxf

DEHN.952085.wspak 您没有下载权限DEHN.952085.wspak

DEHN.952085.edz 您没有下载权限DEHN.952085.edz

.产品已加入收藏夹。

商品952085加入购物车。

货号 952087 DG S 275 VA FM

952090.stp 您没有下载权限952090.stp

952090.igs 您没有下载权限952090.igs

952090.jt 您没有下载权限952090.jt

952090.dwg 您没有下载权限952090.dwg

952090m_E.dxf 您没有下载权限952090m_E.dxf

DEHN.952087.wspak 您没有下载权限DEHN.952087.wspak

DEHN.952087.edz 您没有下载权限DEHN.952087.edz

.产品已加入收藏夹。

商品952087加入购物车。

货号 952089 DG S 385 VA FM

952090.stp 您没有下载权限952090.stp

952090.igs 您没有下载权限952090.igs

952090.jt 您没有下载权限952090.jt

952090.dwg 您没有下载权限952090.dwg

952090m_E.dxf 您没有下载权限952090m_E.dxf

DEHN.952089.wspak 您没有下载权限DEHN.952089.wspak

DEHN.952089.edz 您没有下载权限DEHN.952089.edz

.产品已加入收藏夹。

商品952089加入购物车。
