STC module

Two-pole surge arrester with monitoring device and disconnector
Enhanced safety due to fault-proof Y protective circuit
Acoustic fault indication

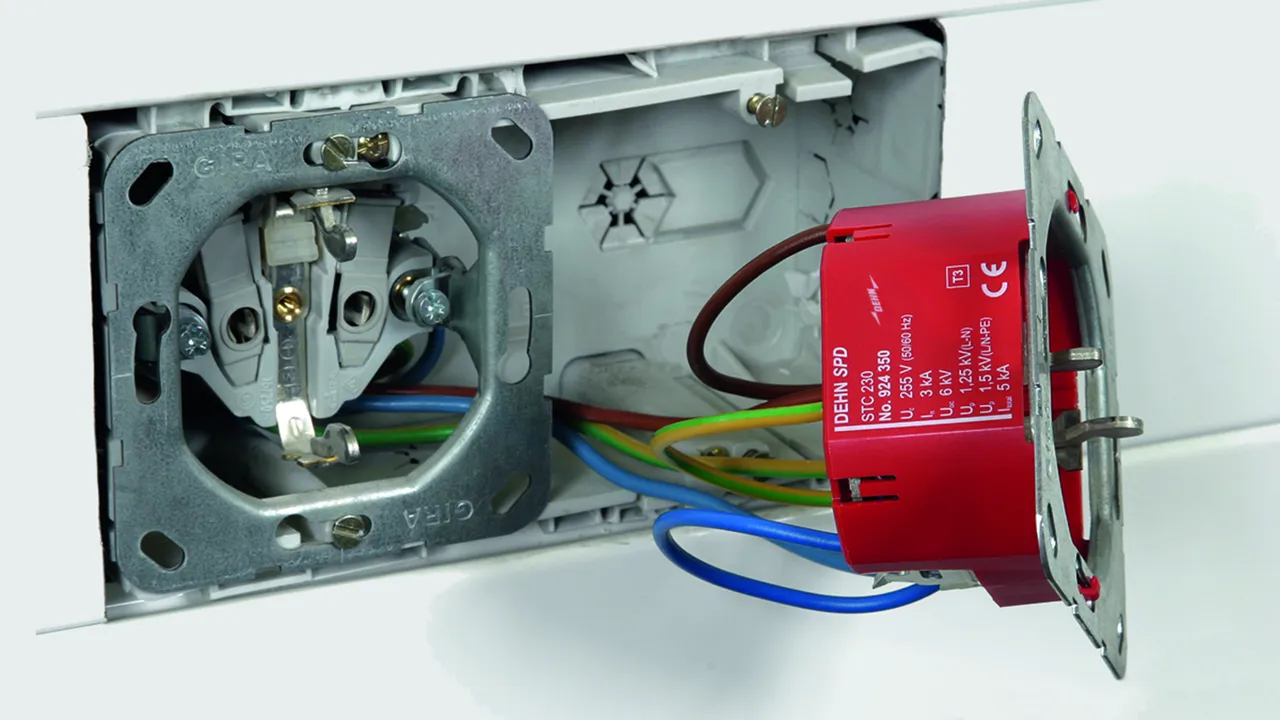

For installation in standard earthed socket outlets
Independent of the socket outlet design

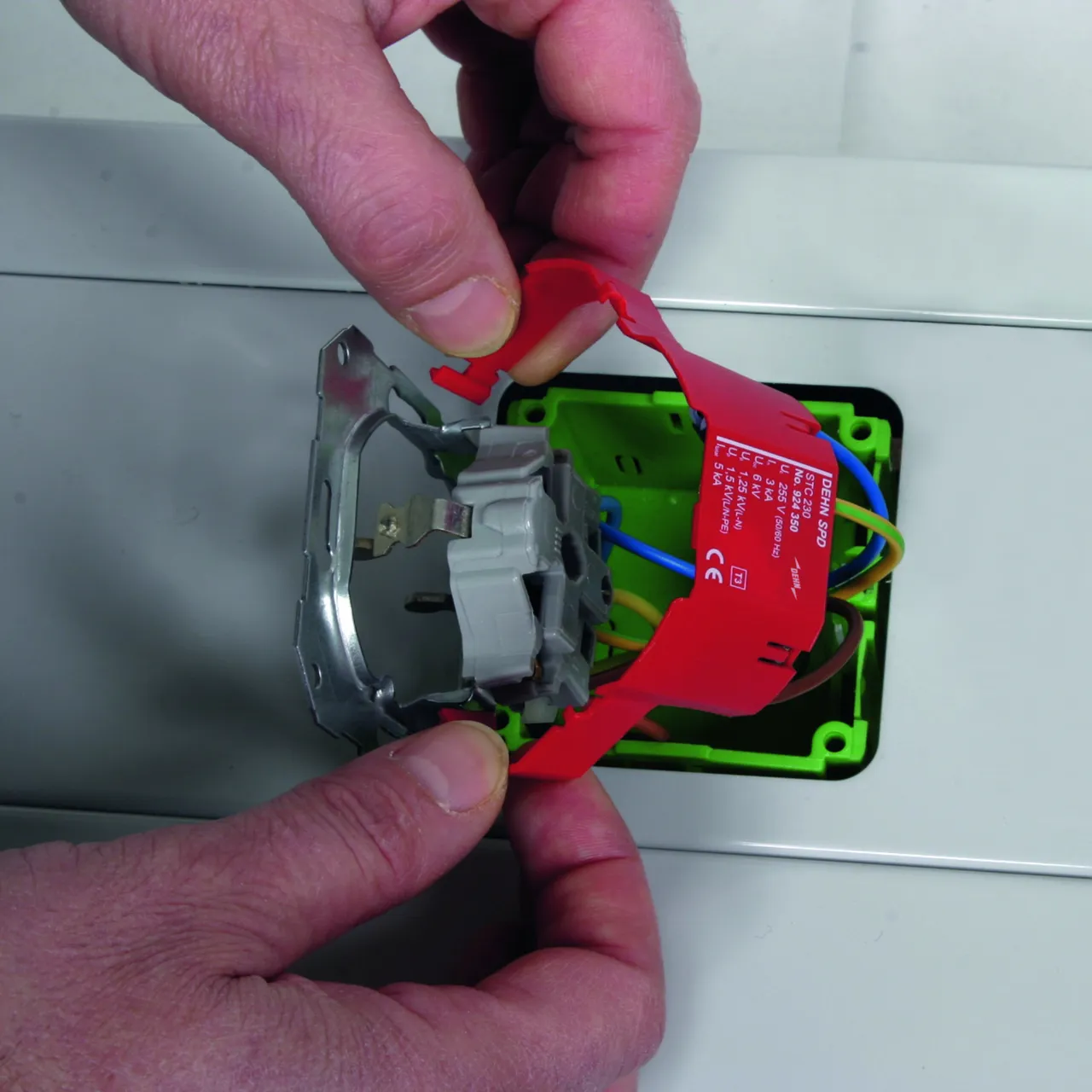

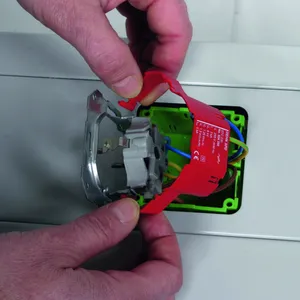

Plastic snap-on retaining ring for easy installation in already mounted socket outlets

详情

STC 230

Two-pole surge arrester for single-phase 230 V TT and TN systems is snapped on earthed socket outlets.

1 产品

货号 924350 STC 230

全球贸易项目代码 4013364076709, 海关HS编码: 85363010, 总重: 51.00 g, 包装单位: 1.00 pc(s)


附加信息

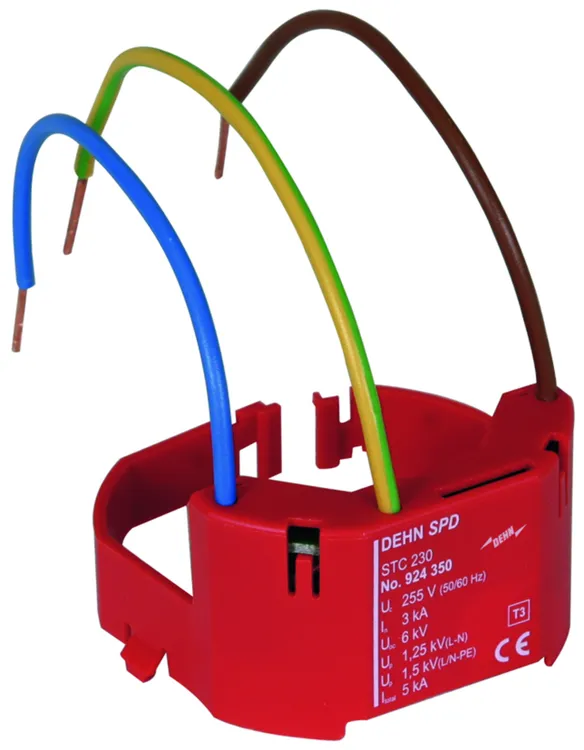

STC 230 surge arrester module
Two-pole surge arrester for
standard Schuko socket outlets
Can be snapped onto existing socket outlets
Type 3 SPD according to EN 61643-11
No interruption of the supply circuit in case of fault
Acoustic fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Total discharge current: 5 kA
Max. mains-side overcurrent protection: 16 A gG or B 16 A
Energy-coordinated according to IEC 62305-4 with arresters
of the Red/Line series

Brand: DEHN
Type: STC 230
Part No.: 924350
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection	B 16 A
Fault indication	acoustic signal on

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combination wave (U_OC )	6 kV
Combination wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	1 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating temperature range (T_U )	-25 °C ... +40 °C
Fault indication	acoustic signal on
Number of ports	1
Terminal wires	1 mm², 120 mm long
For mounting on	standard earthed socket outlets
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Dimensions	54 x 54 x 32 mm
