Protection module for DEHNguard M, ... S and DEHNgap C S

  • High discharge capacity due to heavy-duty zinc oxide varistors / spark gaps
  • High device reliability due to "Thermo Dynamic Control" monitoring
  • Energy coordination with other arresters of the Red/Line product family
  • Operating state/fault indication with green-red marking in the inspection window
  • Easy replacement of protection modules without tools due to module locking system with module release button
  • Vibration and shock-tested according to EN 60068-2

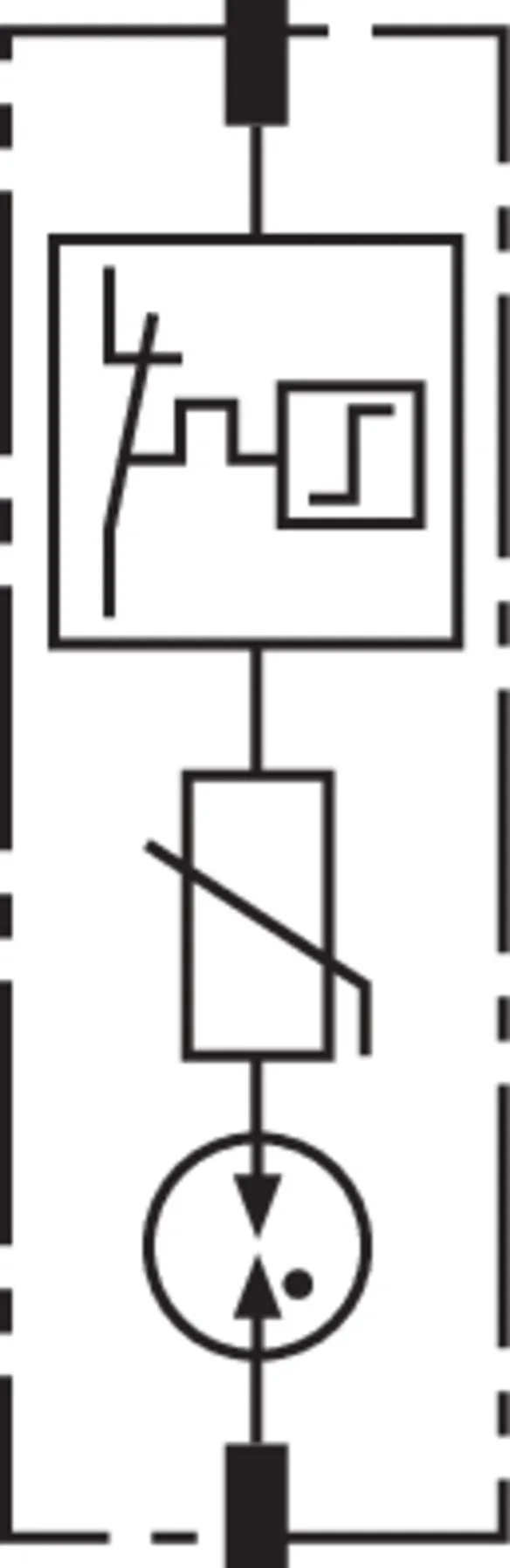

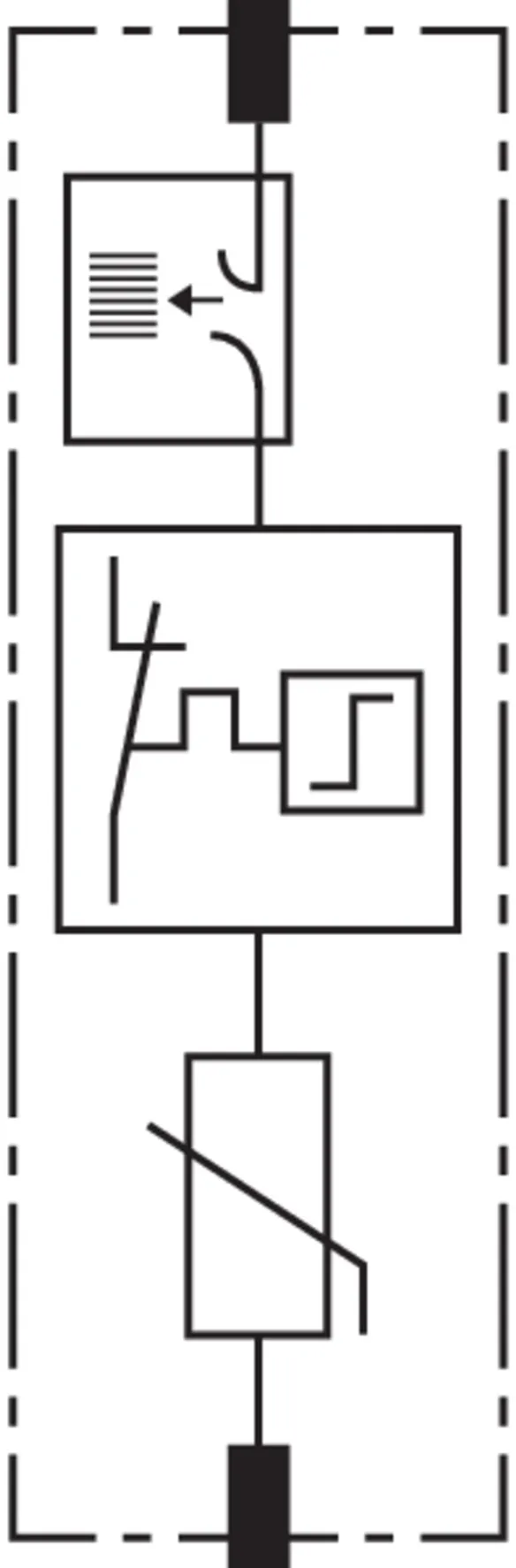

Switch-Spark Gap Protection Module for DEHNguard M ACI

2 产品

货号 952024 DG MOD ACI 275

全球贸易项目代码 4013364377356, 海关HS编码: 85363030, 总重: 55.00 g, 包装单位: 1.00 pc(s)


附加信息

Combined switch / spark gap protection module DG MOD A 275
Pluggable protection module for DEHNguard M ACI ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD ACI 275
Part No.: 952024
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. continuous operating voltage (a.c.) (UC ) 275 V

.产品已加入收藏夹。

进入收藏夹

商品952024加入购物车。

进入网上商店

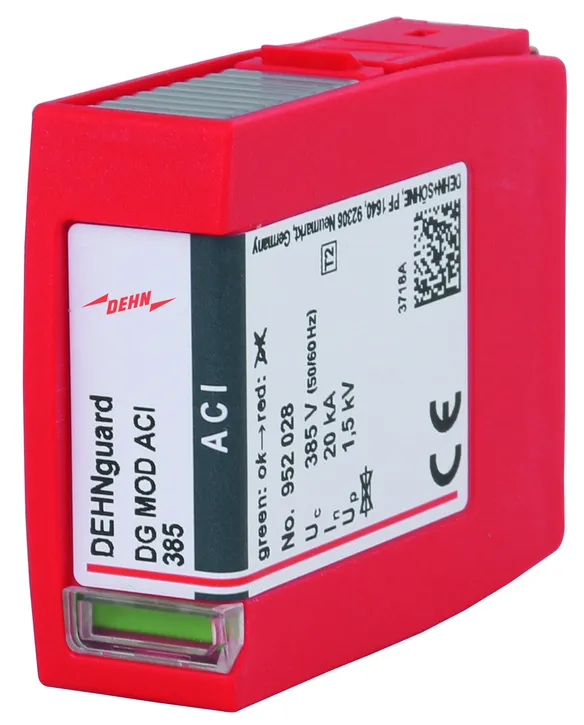

货号 952028 DG MOD ACI 385

全球贸易项目代码 4013364387843, 海关HS编码: 85363030, 总重: 66.00 g, 包装单位: 1.00 pc(s)


附加信息

Combined switch / spark gap protection module DG MOD A 275
Pluggable protection module for DEHNguard M ACI ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD ACI 385
Part No.: 952028
or equivalent.



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. continuous operating voltage (a.c.) (UC ) 385 V

.产品已加入收藏夹。

进入收藏夹

商品952028加入购物车。

进入网上商店

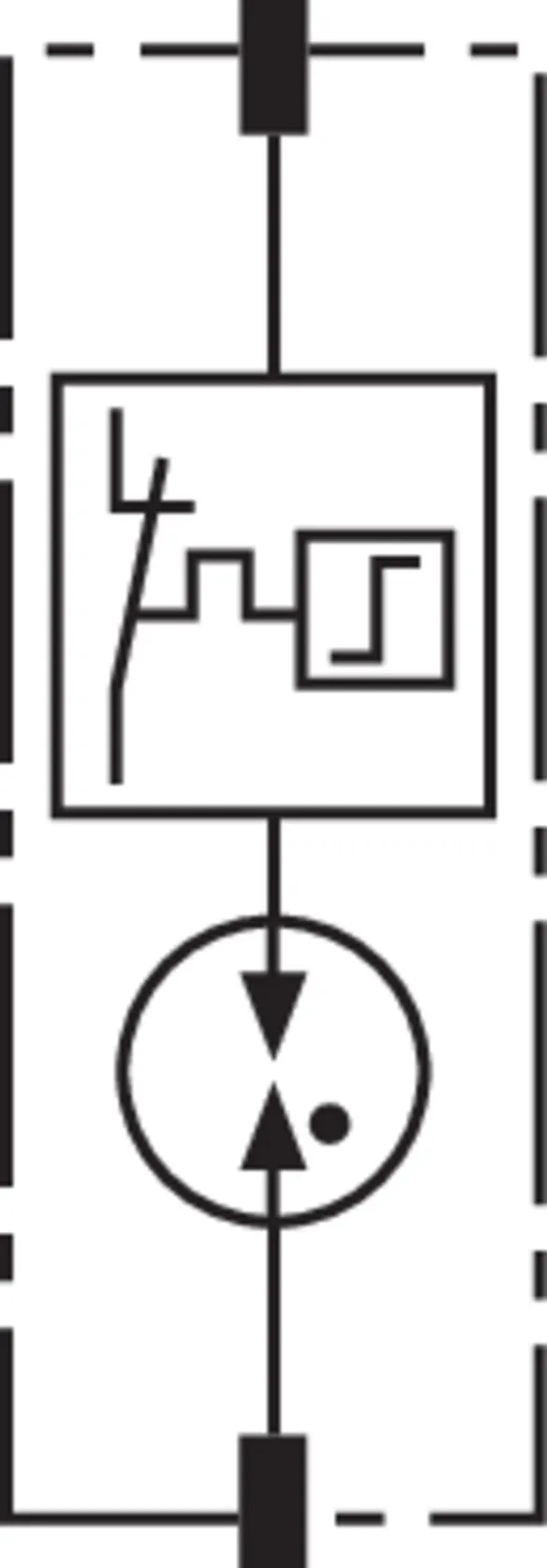

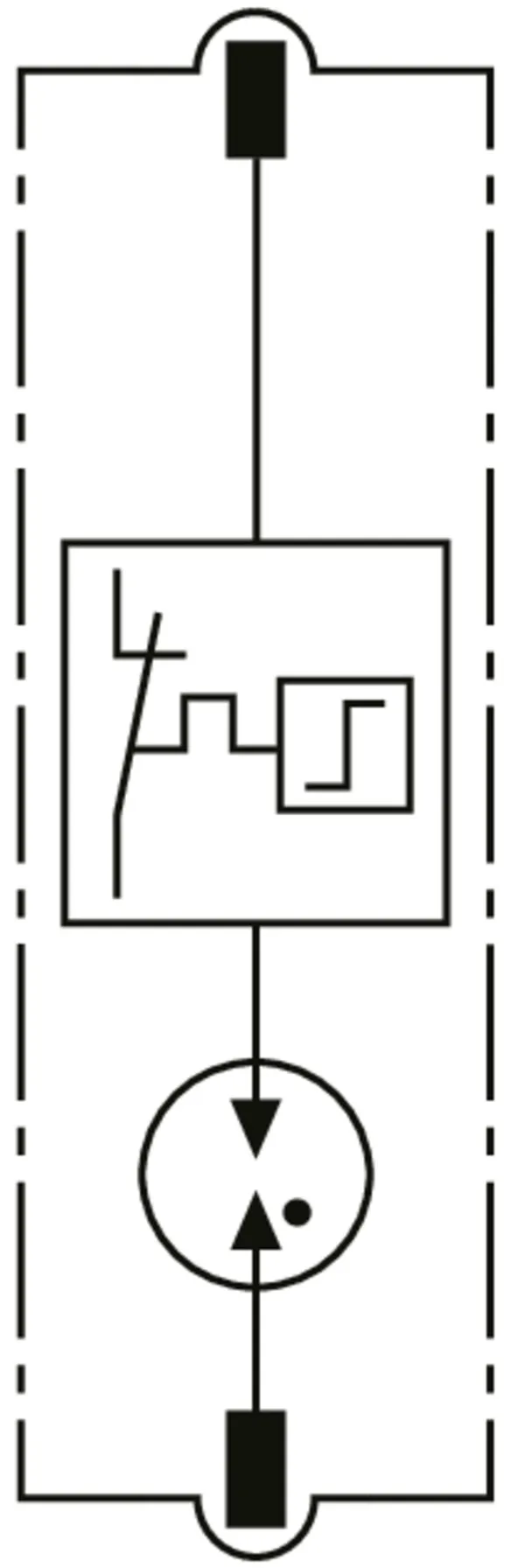

Spark-Gap-Based Protection Module for DEHNguard M ACI

1 产品

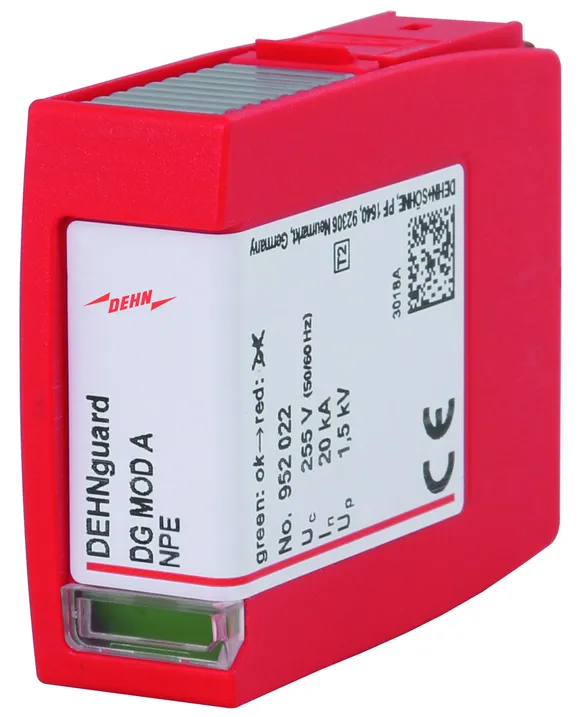

货号 952022 DG MOD A NPE

全球贸易项目代码 4013364376533, 海关HS编码: 85363030, 总重: 46.00 g, 包装单位: 1.00 pc(s)


附加信息

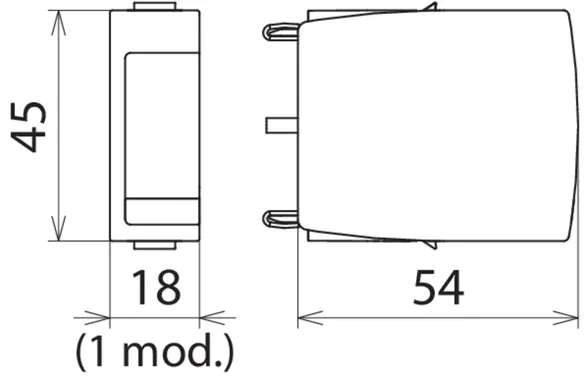

Spark-gap-based protection module DG MOD A NPE
Pluggable protection module for DEHNguard M ACI ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD A NPE
Part No.: 952022
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 255 V

.产品已加入收藏夹。

进入收藏夹

商品952022加入购物车。

进入网上商店

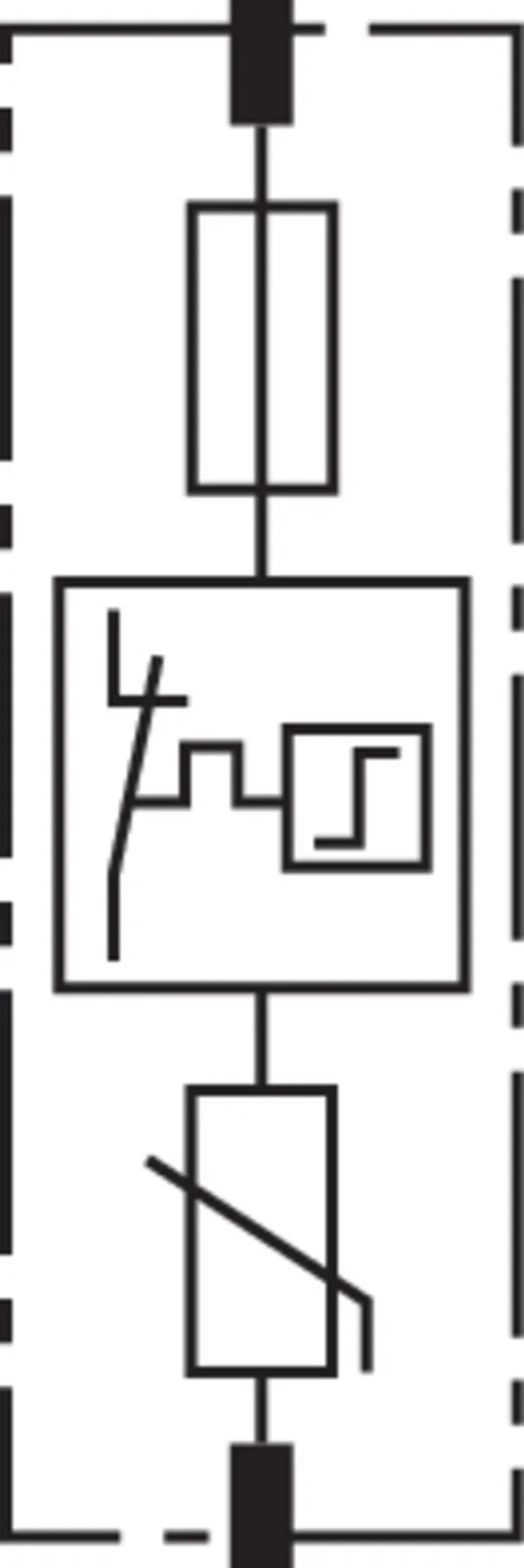

Varistor-Based Protection Module for DEHNguard M CI

1 产品

货号 952020 DG MOD CI 275

全球贸易项目代码 4013364127784, 海关HS编码: 85363030, 总重: 59.30 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD CI 275 varistor-based protection module
Pluggable protection module for DEHNguard M CI
Type 2 SPD of the Red/Line series according to EN 61643-11
Max. continuous operating voltage: 275 V a.c.
Nominal discharge current: 12.5 kA
Fault indication

Brand: DEHN
Type: DG MOD CI 275
Part No.: 952020
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. discharge current (8/20 µs) (Imax ) 25 kA
Max. continuous operating voltage (a.c.) (UC ) 275 V

.产品已加入收藏夹。

进入收藏夹

商品952020加入购物车。

进入网上商店

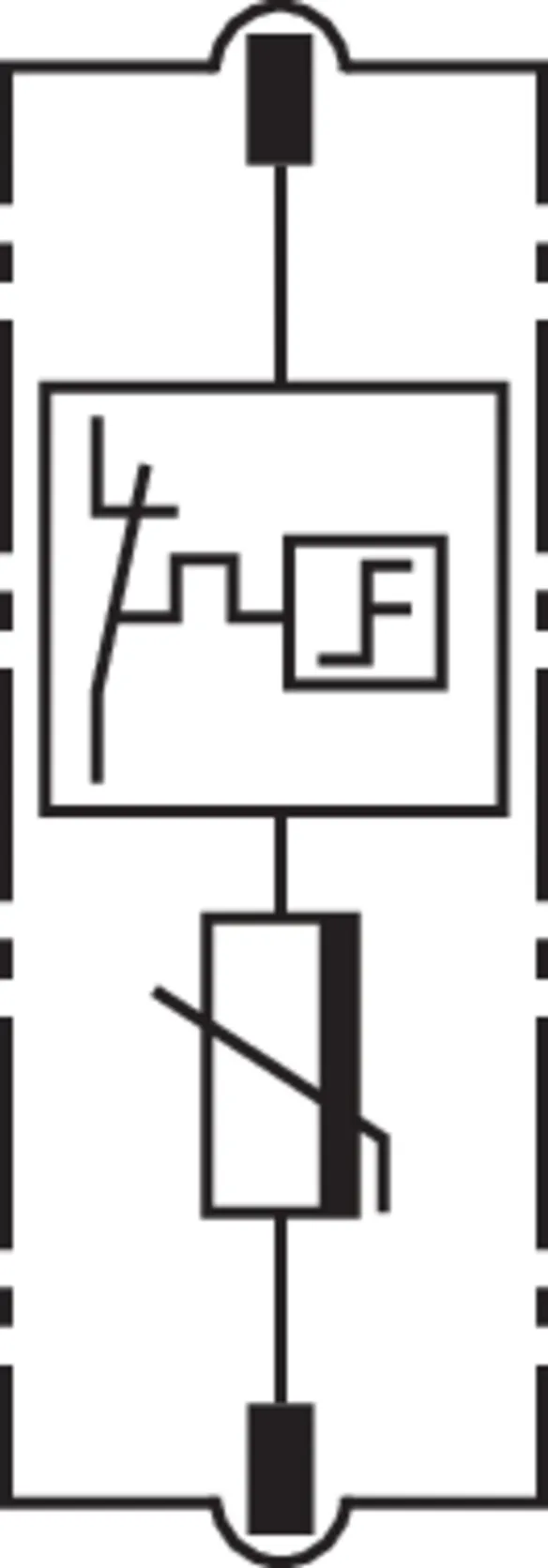

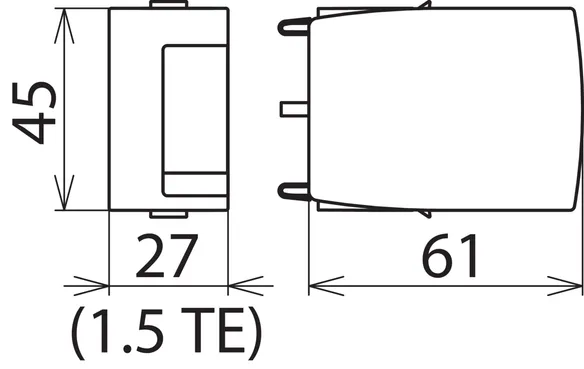

Varistor-based Protection Module for DEHNguard SE CI ...

2 产品

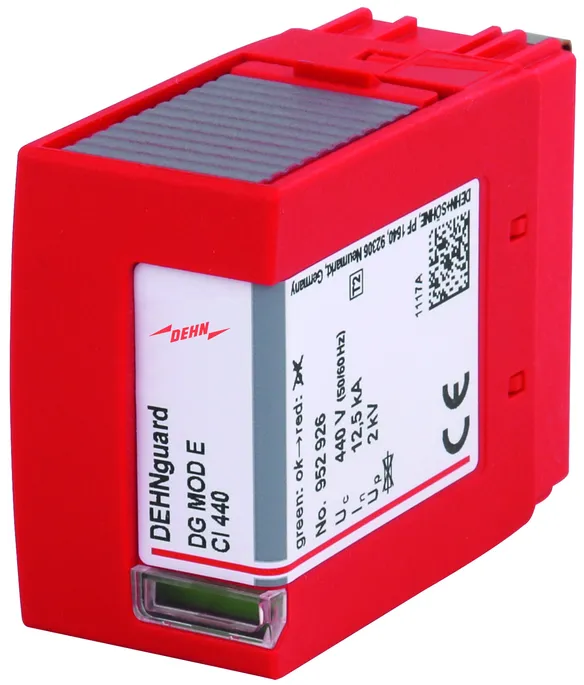

货号 952926 DG MOD E CI 440

全球贸易项目代码 4013364322646, 海关HS编码: 85363030, 总重: 83.00 g, 包装单位: 1.00 pc(s)


附加信息

Varistor-based protection module DG MOD E CI 440
Pluggable protection module for DEHNguard SE CI
Type 2 arrester of the Red/Line product series
according to EN 61643-11
Max. continuous operating voltage: 440 V d.c.
Nominal discharge current: 12.5 kA
Fault indication

Brand: DEHN
Type: DG MOD E CI 440
Part No.: 952926
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. continuous operating voltage (a.c.) (UC ) 440 V
Rated varistor voltage (Umov ) 440 V

.产品已加入收藏夹。

进入收藏夹

商品952926加入购物车。

进入网上商店

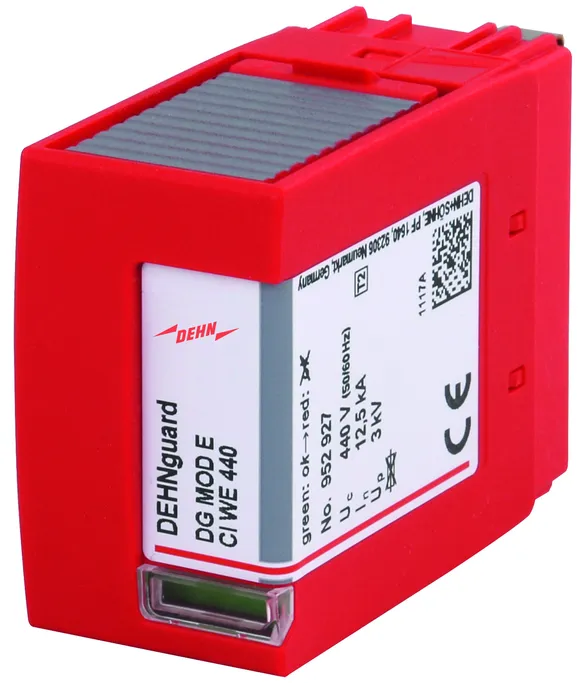

货号 952927 DG MOD E CI WE 440

全球贸易项目代码 4013364322653, 海关HS编码: 85363030, 总重: 82.00 g, 包装单位: 1.00 pc(s)


附加信息

Varistor-based protection module DG MOD E CI WE 440
Pluggable protection module for DEHNguard SE CI
Type 2 arrester of the Red/Line product series
according to EN 61643-11
Max. continuous operating voltage: 440 V d.c.
Rated varistor voltage: 750 V a.c.
Nominal discharge current: 12.5 kA
Fault indication

Brand: DEHN
Type: DG MOD E CI WE 440
Part No.: 952927
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. continuous operating voltage (a.c.) (UC ) 440 V
Rated varistor voltage (Umov ) 750 V

.产品已加入收藏夹。

进入收藏夹

商品952927加入购物车。

进入网上商店

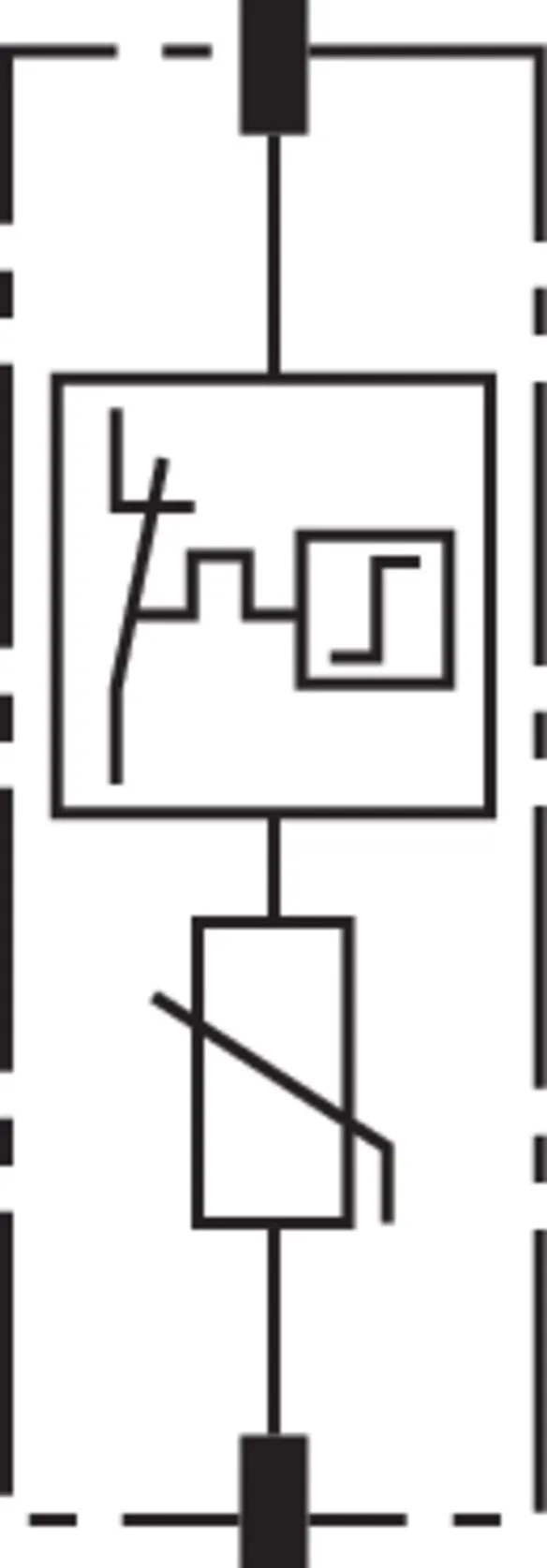

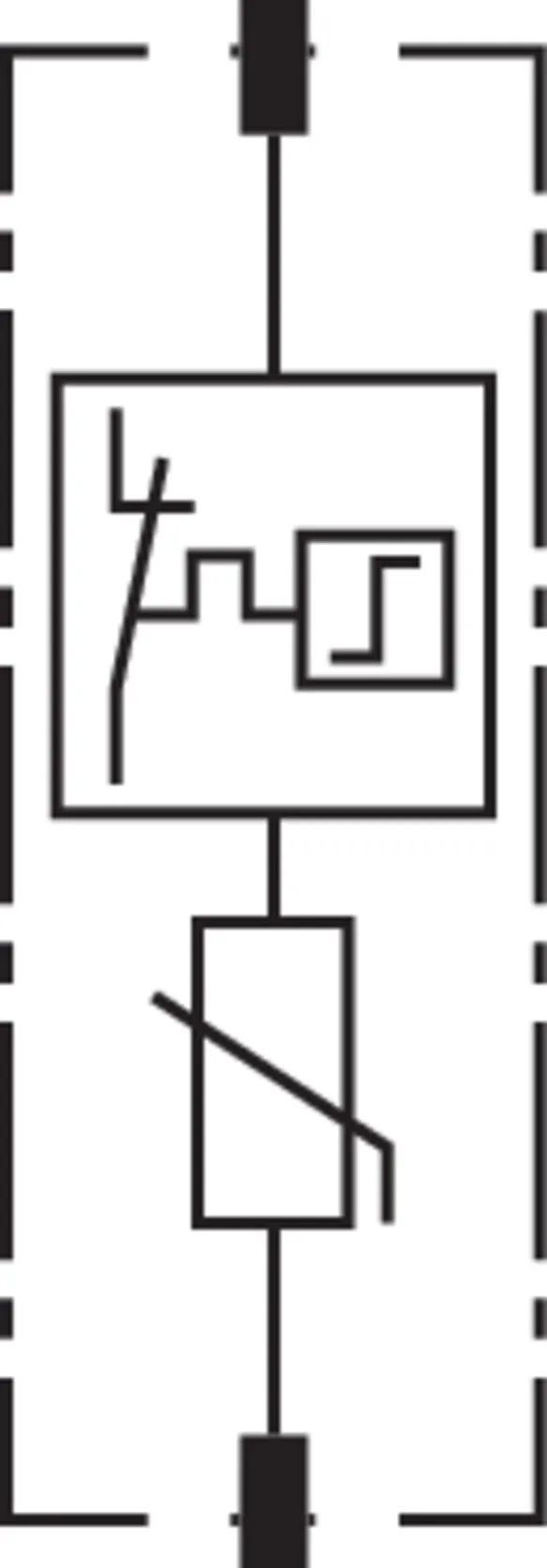

Varistor-based Protection Module for DEHNguard M and DEHNguard S

8 产品

货号 952018 DG MOD 48

全球贸易项目代码 4013364119482, 海关HS编码: 85363030, 总重: 43.50 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 48 varistor-based protection module
Pluggable protection module for DEHNguard S ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 48 V a.c./60 V d.c.
Nominal discharge current: 7.5 kA
Fault indication

Brand: DEHN
Type: DG MOD 48
Part No.: 952018
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 7.5 kA
Max. discharge current (8/20 µs) (Imax ) 25 kA
Max. continuous operating voltage (a.c.) (UC ) 48 V

.产品已加入收藏夹。

进入收藏夹

商品952018加入购物车。

进入网上商店

货号 952011 DG MOD 75

全球贸易项目代码 4013364109773, 海关HS编码: 85363030, 总重: 39.30 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 75 varistor-based protection module
Pluggable protection module for DEHNguard S ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Nominal discharge current: 10 kA
Fault indication

Brand: DEHN
Type: DG MOD 75
Part No.: 952011
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 10 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 75 V

.产品已加入收藏夹。

进入收藏夹

商品952011加入购物车。

进入网上商店

货号 952012 DG MOD 150

全球贸易项目代码 4013364109780, 海关HS编码: 85363030, 总重: 42.23 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 150 varistor-based protection module
Pluggable protection module for DEHNguard S ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 150 V a.c./200 V d.c.
Nominal discharge current: 15 kA
Fault indication

Brand: DEHN
Type: DG MOD 150
Part No.: 952012
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 15 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 150 V

.产品已加入收藏夹。

进入收藏夹

商品952012加入购物车。

进入网上商店

货号 952010 DG MOD 275

全球贸易项目代码 4013364108356, 海关HS编码: 85363030, 总重: 49.80 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 275 varistor-based protection module
Pluggable protection module for DEHNguard M ...
and DEHNguard S ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD 275
Part No.: 952010
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 275 V

.产品已加入收藏夹。

进入收藏夹

商品952010加入购物车。

进入网上商店

货号 952013 DG MOD 320

全球贸易项目代码 4013364109797, 海关HS编码: 85363030, 总重: 52.50 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 320 varistor-based protection module
Pluggable protection module for DEHNguard M ... and
DEHNguard S ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 320 V a.c./420 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD 320
Part No.: 952013
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 320 V

.产品已加入收藏夹。

进入收藏夹

商品952013加入购物车。

进入网上商店

货号 952014 DG MOD 385

全球贸易项目代码 4013364108363, 海关HS编码: 85363030, 总重: 56.80 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 385 varistor-based protection module
Pluggable protection module for DEHNguard M ... and
DEHNguard S ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD 385
Part No.: 952014
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 385 V

.产品已加入收藏夹。

进入收藏夹

商品952014加入购物车。

进入网上商店

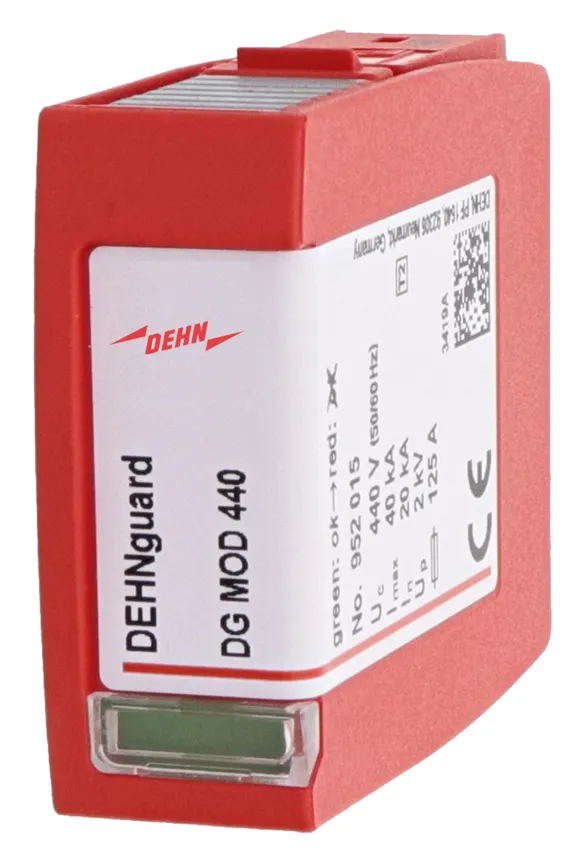

货号 952015 DG MOD 440

全球贸易项目代码 4013364109803, 海关HS编码: 85363030, 总重: 60.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 440 varistor-based protection module
Pluggable protection module for DEHNguard M ... and
DEHNguard S ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 440 V a.c./585 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD 440
Part No.: 952015
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 440 V

.产品已加入收藏夹。

进入收藏夹

商品952015加入购物车。

进入网上商店

货号 952016 DG MOD 600

全球贸易项目代码 4013364109810, 海关HS编码: 85363030, 总重: 70.60 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 600 varistor-based protection module
Pluggable protection module for DEHNguard S ...
Type 2 SPD of the Red/Line series according to
EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Nominal discharge current: 15 kA
Fault indication

Brand: DEHN
Type: DG MOD 600
Part No.: 952016
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 15 kA
Max. discharge current (8/20 µs) (Imax ) 30 kA
Max. continuous operating voltage (a.c.) (UC ) 600 V

.产品已加入收藏夹。

进入收藏夹

商品952016加入购物车。

进入网上商店

Varistor-Based Protection Module for DEHNguard M (S) WE

1 产品

货号 952017 DG MOD 750

全球贸易项目代码 4013364113329, 海关HS编码: 85363030, 总重: 69.70 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 750 varistor-based protection module
Pluggable protection module for DEHNguard S WE 600 (FM)
and DG M WE 600 (FM)
Type 2 SPD of the Red/Line series
according to EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Rated varistor voltage: 750 V a.c.
Nominal discharge current: 15 kA
Fault indication

Brand: DEHN
Type: DG MOD 750
Part No.: 952017
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 15 kA
Max. discharge current (8/20 µs) (Imax ) 25 kA
Max. continuous operating voltage (a.c.) (UC ) 600 V
Rated varistor voltage (Umov ) 750 V

.产品已加入收藏夹。

进入收藏夹

商品952017加入购物车。

进入网上商店

N-PE Spark-Gap-Based Protection Module for DEHNguard M ACI

N-PE spark-gap-based protection module for two-pole and four-pole DEHNguard DG M TT (2P) ACI ... .

1 产品

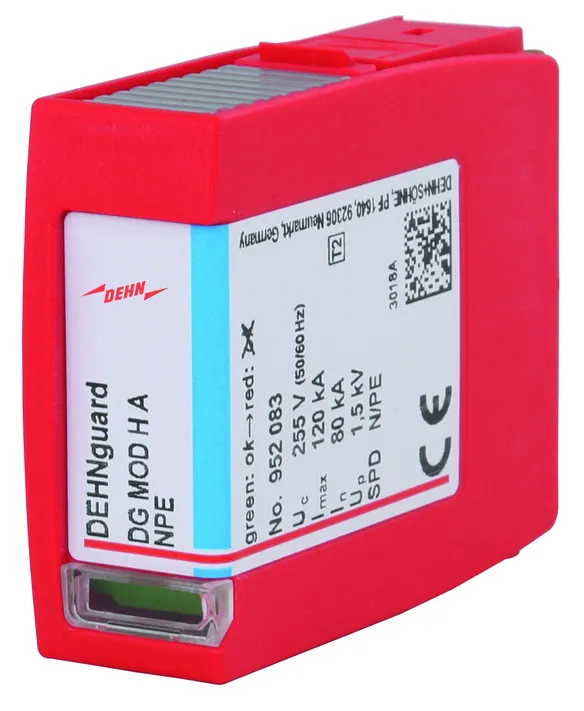

货号 952083 DG MOD H A NPE

全球贸易项目代码 4013364376540, 海关HS编码: 85363030, 总重: 55.00 g, 包装单位: 1.00 pc(s)


附加信息

N-PE spark-gap-based protection module DG MOD H A NPE
Pluggable N-PE spark-gap-based protection module
for DEHNguard DG M TT (2P) ACI ...
For Type 2 N-PE surge arresters
of the Red/Line family according to EN 61643-11
Max. continuous voltage: 255 V a.c.
Nominal discharge current: 80 kA
Max. discharge current: 120 kA
Operating state and fault indication

Brand: DEHN
Type: DG MOD H A NPE
Part No.: 952083
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 80 kA
Max. discharge current (8/20 µs) (Imax ) 120 kA
Max. continuous operating voltage (a.c.) (UC ) 275 V

.产品已加入收藏夹。

进入收藏夹

商品952083加入购物车。

进入网上商店

N-PE Spark-Gap-Based Protection Module for DEHNguard M H TT ...

1 产品

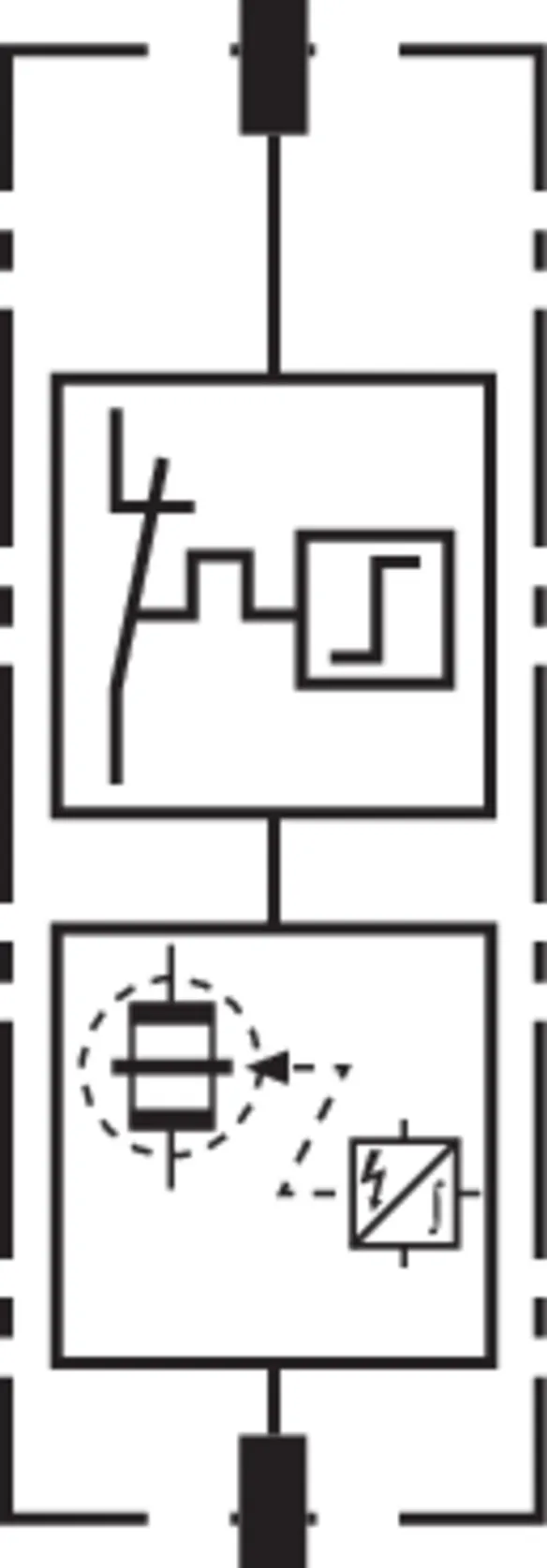

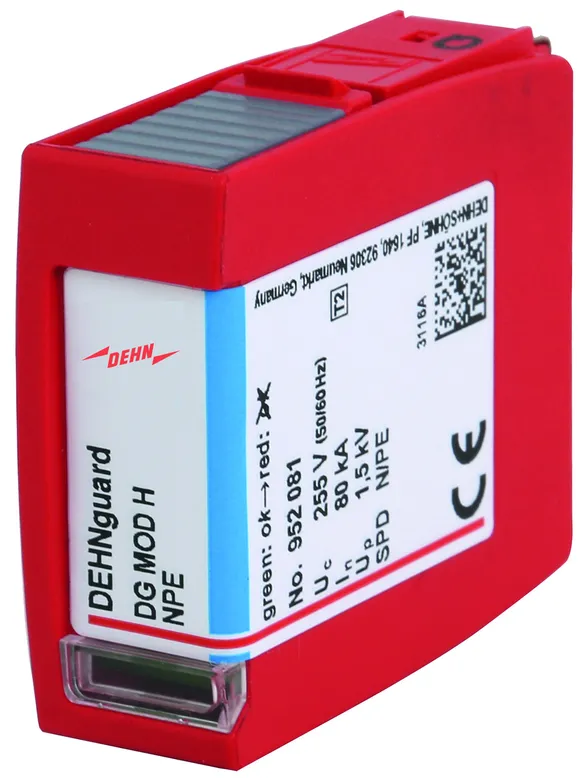

货号 952081 DG MOD H NPE

全球贸易项目代码 4013364318182, 海关HS编码: 85363030, 总重: 44.50 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD H NPE N-PE spark-gap-based protection module
Pluggable N-PE spark-gap-based protection module
for DEHNguard DG M TT ...
For Type 2 N-PE surge arresters
of the Red/Line family according to EN 61643-11
Max. continuous voltage: 255 V a.c.
Nominal discharge current: 80 kA
Max. discharge current: 120 kA
Operating state and fault indication

Brand: DEHN
Type: DG MOD H NPE
Part No.: 952081
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 80 kA
Max. discharge current (8/20 µs) (Imax ) 120 kA
Max. continuous operating voltage (a.c.) (UC ) 255 V

.产品已加入收藏夹。

进入收藏夹

商品952081加入购物车。

进入网上商店

N-PE Spark-Gap-Based Protection Module for DEHNguard M TT ...

1 产品

货号 952050 DG MOD NPE

全球贸易项目代码 4013364108370, 海关HS编码: 85363030, 总重: 44.50 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD NPE N-PE spark-gap-based protection module
Pluggable N-PE spark-gap-based protection module
for DEHNguard DG M TT ...
For type 2 N-PE surge arresters
of the Red/Line series according to EN 61643-11
Max. continuous operating voltage: 255 V a.c.
Nominal discharge current: 20 kA
Max. discharge current: 40 kA
Fault indication

Brand: DEHN
Type: DG MOD NPE
Part No.: 952050
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 255 V

.产品已加入收藏夹。

进入收藏夹

商品952050加入购物车。

进入网上商店

N-PE Spark-Gap-Based Protection Module for DEHNgap C S

1 产品

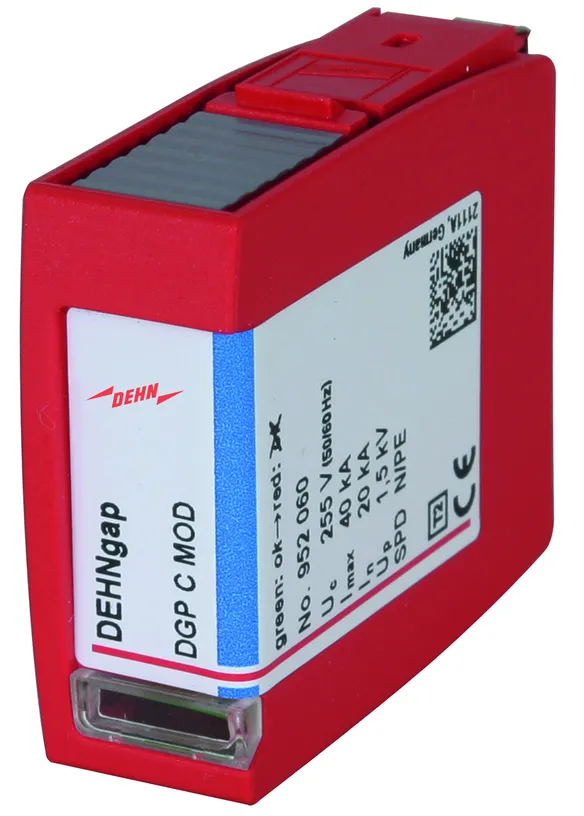

货号 952060 DGP C MOD

全球贸易项目代码 4013364108387, 海关HS编码: 85363030, 总重: 44.00 g, 包装单位: 1.00 pc(s)


附加信息

DGP C MOD N-PE spark-gap-based protection module
Pluggable N-PE spark-gap-based protection module
for single-pole DEHNgap C S ... N-PE surge arresters
For type 2 N-PE surge arresters
of the Red/Line series according to EN 61643-11
Max. continuous operating voltage: 255 V a.c.
Nominal discharge current: 20 kA
Max. discharge current: 40 kA
Fault indication

Brand: DEHN
Type: DGP C MOD
Part No.: 952060
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 255 V

.产品已加入收藏夹。

进入收藏夹

商品952060加入购物车。

进入网上商店

Varistor and Spark-Gap-Based Protection Module for DEHNguard S ... VA

3 产品

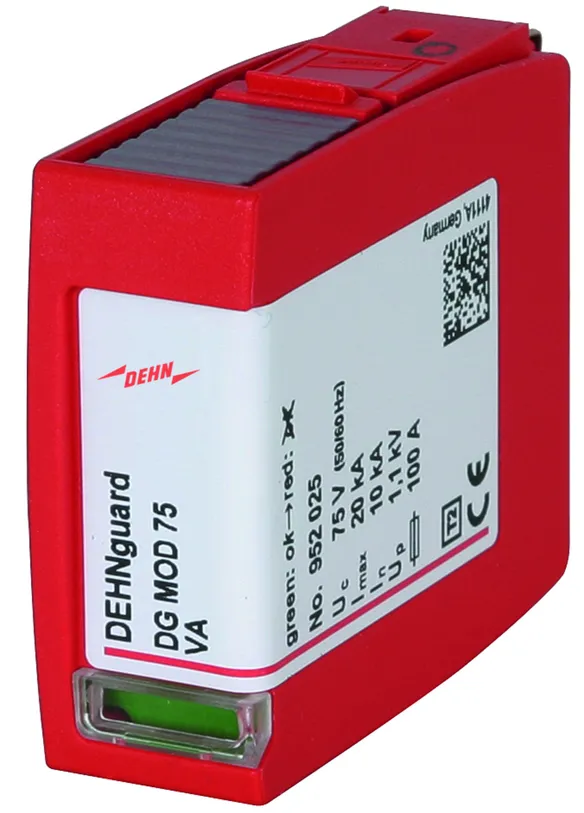

货号 952025 DG MOD 75 VA

全球贸易项目代码 4013364127357, 海关HS编码: 85363030, 总重: 41.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 75 VA varistor-based protection module
Pluggable protection module for DEHNguard S ... VA
Type 2 SPD of the Red/Line series according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Nominal discharge current: 10 kA
Fault indication

Brand: DEHN
Type: DG MOD 75 VA
Part No.: 952025
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 10 kA
Max. discharge current (8/20 µs) (Imax ) 20 kA
Max. continuous operating voltage (a.c.) (UC ) 75 V
Max. continuous operating voltage (d.c.) (UC ) 100 V

.产品已加入收藏夹。

进入收藏夹

商品952025加入购物车。

进入网上商店

货号 952027 DG MOD 275 VA

全球贸易项目代码 4013364127364, 海关HS编码: 85363030, 总重: 47.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 275 VA varistor-based protection module
Pluggable protection module for DEHNguard S ... VA
Type 2 SPD of the Red/Line series according to EN 61643-11
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Nominal discharge current: 10 kA
Fault indication

Brand: DEHN
Type: DG MOD 275 VA
Part No.: 952027
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 10 kA
Max. discharge current (8/20 µs) (Imax ) 20 kA
Max. continuous operating voltage (a.c.) (UC ) 275 V
Max. continuous operating voltage (d.c.) (UC ) 350 V

.产品已加入收藏夹。

进入收藏夹

商品952027加入购物车。

进入网上商店

货号 952029 DG MOD 385 VA

全球贸易项目代码 4013364127371, 海关HS编码: 85363030, 总重: 51.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD 385 VA varistor-based protection module
Pluggable protection module for DEHNguard S ... VA
Type 2 SPD of the Red/Line series according to EN 61643-11
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Nominal discharge current: 10 kA
Fault indication

Brand: DEHN
Type: DG MOD 385 VA
Part No.: 952029
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 10 kA
Max. discharge current (8/20 µs) (Imax ) 20 kA
Max. continuous operating voltage (a.c.) (UC ) 385 V
Max. continuous operating voltage (d.c.) (UC ) 500 V

.产品已加入收藏夹。

进入收藏夹

商品952029加入购物车。

进入网上商店

Varistor-based Protection Module for DEHNguard M YPV

2 产品

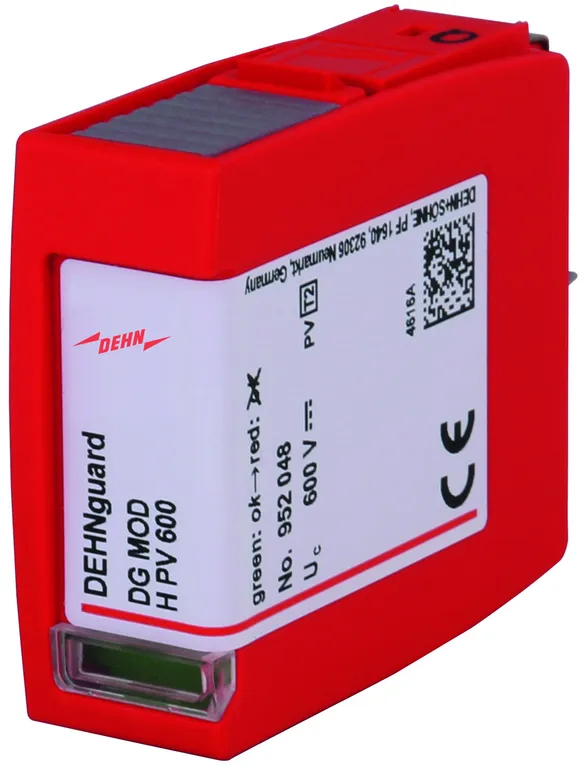

货号 952048 DG MOD H PV 600

全球贸易项目代码 4013364327733, 海关HS编码: 85363030, 总重: 61.20 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD H PV 600 varistor-based protection module
Pluggable protection module for DEHNguard M YPV
Type 2 arrester of the Red/Line product series
according to EN 61643-31
Heavy-duty varistor technology
Max. continuous operating voltage: 585 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD H PV 600
Part No.: 952048
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (d.c.) (UC ) 600 V

.产品已加入收藏夹。

进入收藏夹

商品952048加入购物车。

进入网上商店

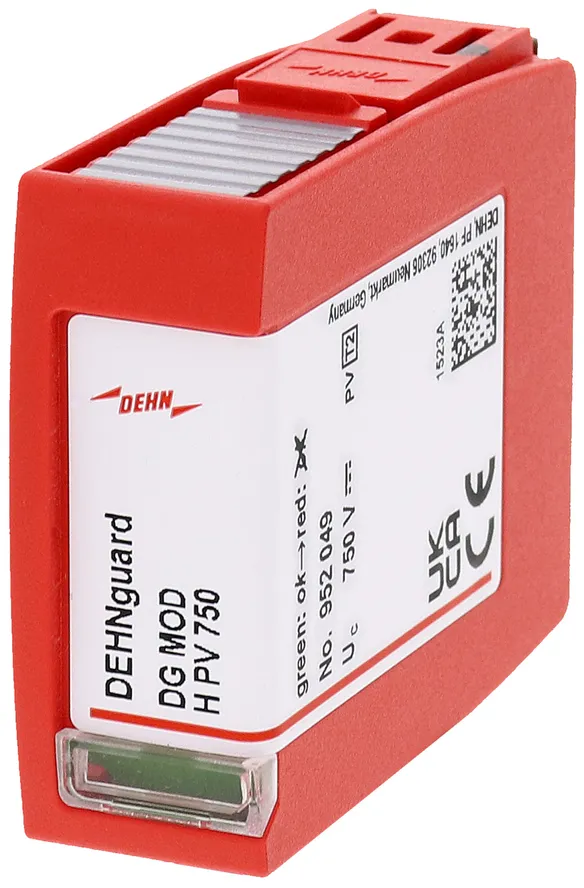

货号 952049 DG MOD H PV 750

全球贸易项目代码 4013364327740, 海关HS编码: 85363030, 总重: 70.60 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD H PV 750 varistor-based protection module
Pluggable protection module for DEHNguard M YPV
Type 2 arrester of the Red/Line product series
according to EN 61643-31
Heavy-duty varistor technology
Max. continuous operating voltage: 750 V d.c.
Nominal discharge current: 15kA
Fault indication

Brand: DEHN
Type: DG MOD H PV 750
Part No.: 952049
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 15 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (d.c.) (UC ) 750 V

.产品已加入收藏夹。

进入收藏夹

商品952049加入购物车。

进入网上商店

Varistor-Based Protection Module for DEHNguard M YPV SCI and DEHNguard S PV SCI

3 产品

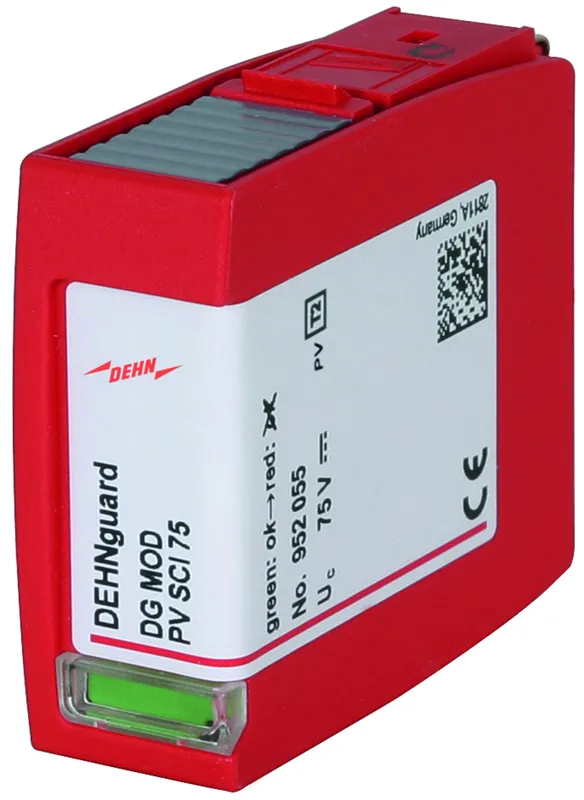

货号 952055 DG MOD PV SCI 75

全球贸易项目代码 4013364136700, 海关HS编码: 85363030, 总重: 43.40 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD PV SCI 75 varistor-based protection module
Pluggable protection module for DEHNguard M (Y)PV SCI
Type 2 SPD classification of the Red/Line series according to EN 50539-11
Heavy-duty varistor technology
Combined disconnection and short-circuiting device
Max. continuous operating voltage: 75 V d.c.
For PV systems up to Ucpv <= 150 V
Total discharge current: 40 kA
Fault indication

Brand: DEHN
Type: DG MOD PV SCI 75
Part No.: 952055
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 10 kA
Max. discharge current (8/20 µs) (Imax ) 20 kA
Max. continuous operating voltage (d.c.) (UC ) 75 V

.产品已加入收藏夹。

进入收藏夹

商品952055加入购物车。

进入网上商店

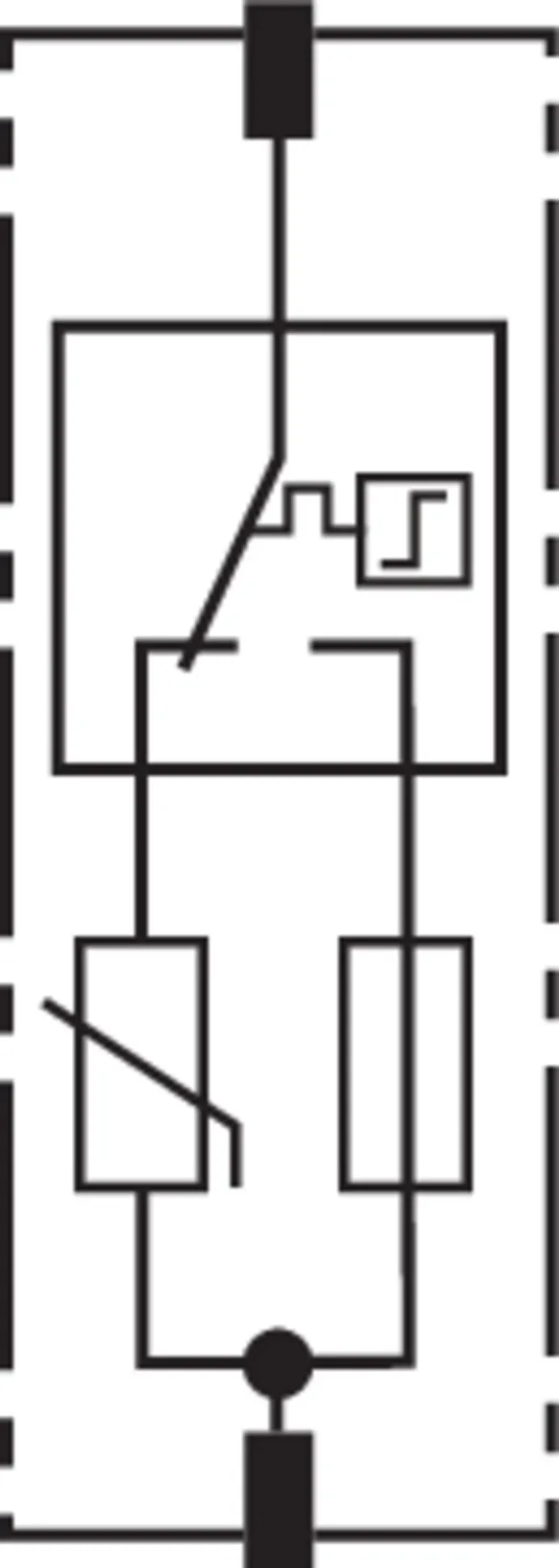

货号 952051 DG MOD PV SCI 500

全球贸易项目代码 4013364126442, 海关HS编码: 85363030, 总重: 56.15 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD PV SCI 500 varistor-based protection module
Pluggable protection module for DEHNguard M (Y)PV SCI
Type 2 SPD classification of the Red/Line series according to EN 61643-31
Heavy-duty varistor technology
Combined disconnection and short-circuiting device
Max. continuous operating voltage: 500 V d.c.
For PV systems up to Ucpv <= 1000 V
Total discharge current: 40 kA
Fault indication

Brand: DEHN
Type: DG MOD PV SCI 500
Part No.: 952051
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. discharge current (8/20 µs) (Imax ) 25 kA
Max. continuous operating voltage (d.c.) (UC ) 500 V

.产品已加入收藏夹。

进入收藏夹

商品952051加入购物车。

进入网上商店

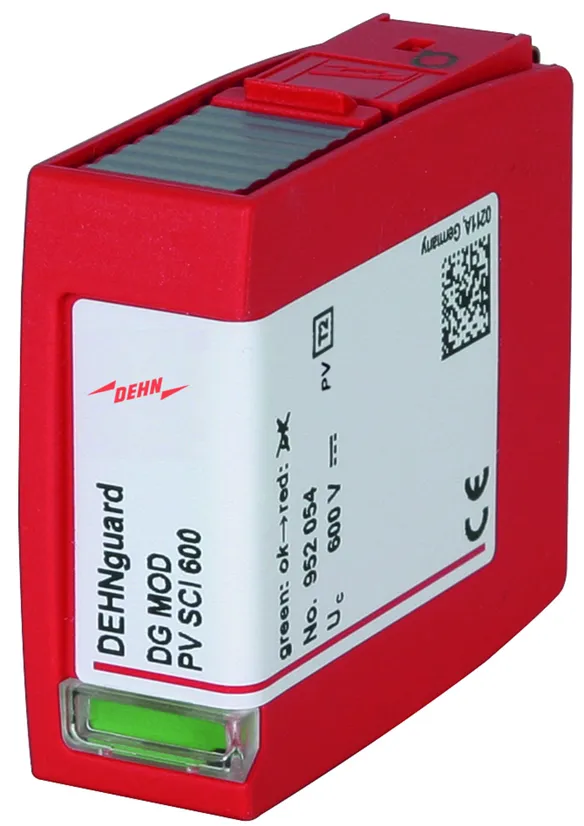

货号 952054 DG MOD PV SCI 600

全球贸易项目代码 4013364127975, 海关HS编码: 85363030, 总重: 58.80 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD PV SCI 600 varistor-based protection module
Pluggable protection module for DEHNguard M (Y)PV SCI
Type 2 SPD classification of the Red/Line series according to EN 61643-31
Heavy-duty varistor technology
Combined disconnection and short-circuiting device
Max. continuous operating voltage: 600 V d.c.
Max. PV voltage: <= 1200 V
Total discharge current: 30 kA
Fault indication

Brand: DEHN
Type: DG MOD PV SCI 600
Part No.: 952054
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. discharge current (8/20 µs) (Imax ) 25 kA
Max. continuous operating voltage (d.c.) (UC ) 600 V

.产品已加入收藏夹。

进入收藏夹

商品952054加入购物车。

进入网上商店

Varistor-based protection module for DEHNguard M YPV and DEHNguard S PV

3 产品

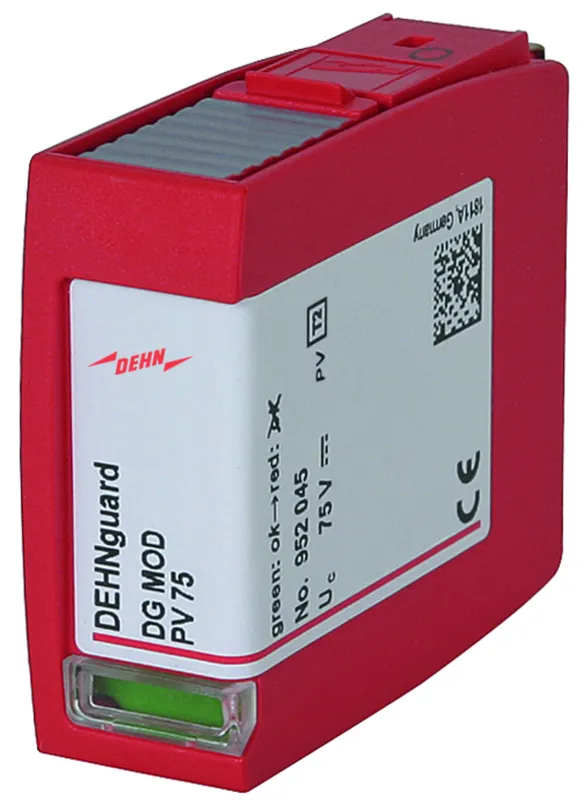

货号 952045 DG MOD PV 75

全球贸易项目代码 4013364141827, 海关HS编码: 85363030, 总重: 40.20 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD PV 75 varistor-based protection module
Pluggable protection module for DEHNguard
M YPV SCI and S PV SCI
Type 2 SPD classification of the Red/Line series according to EN 50539-11
Heavy-duty varistor technology
Max. continuous operating voltage: 75 V d.c.
Nominal discharge current: 10 kA
Fault indication

Brand: DEHN
Type: DG MOD PV 75
Part No.: 952045
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 10 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (d.c.) (UC ) 75 V

.产品已加入收藏夹。

进入收藏夹

商品952045加入购物车。

进入网上商店

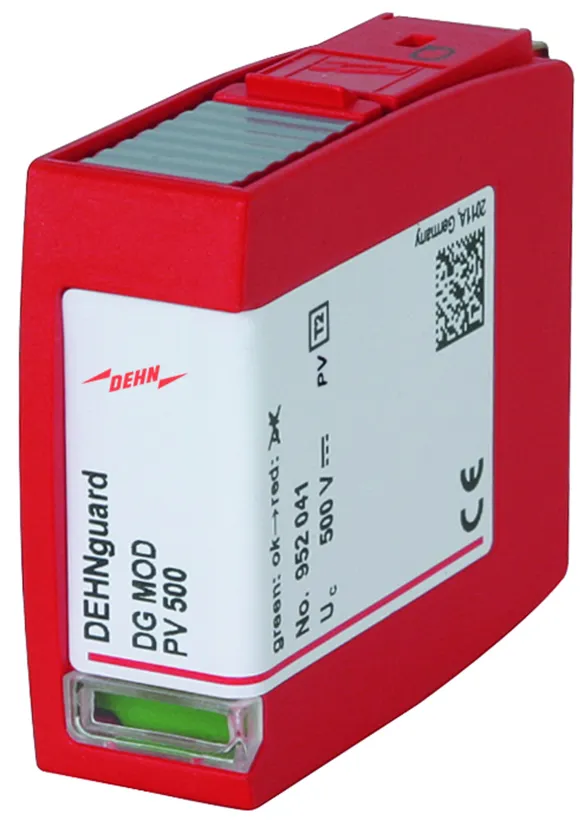

货号 952041 DG MOD PV 500

全球贸易项目代码 4013364141841, 海关HS编码: 85363030, 总重: 60.19 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD PV 500 varistor-based protection module
Pluggable protection module for DEHNguard
M YPV SCI and S PV SCI
Type 2 SPD classification of the Red/Line series according to EN 61643-31
Heavy-duty varistor technology
Max. continuous operating voltage: 500 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD PV 500
Part No.: 952041
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (d.c.) (UC ) 500 V

.产品已加入收藏夹。

进入收藏夹

商品952041加入购物车。

进入网上商店

货号 952044 DG MOD PV 600

全球贸易项目代码 4013364141858, 海关HS编码: 85363030, 总重: 69.49 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD PV 600 varistor-based protection module
Pluggable protection module for DEHNguard
M YPV SCI and S PV SCI
Type 2 SPD classification of the Red/Line series according to EN 61643-31
Heavy-duty varistor technology
Max. continuous operating voltage: 600 V d.c.
Nominal discharge current: 15 kA
Fault indication

Brand: DEHN
Type: DG MOD PV 600
Part No.: 952044
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 15 kA
Max. discharge current (8/20 µs) (Imax ) 30 kA
Max. continuous operating voltage (d.c.) (UC ) 600 V

.产品已加入收藏夹。

进入收藏夹

商品952044加入购物车。

进入网上商店

Varistor-Based Protection Module for DEHNguard ME YPV SCI and DEHNguard SE PV SCI

1 产品

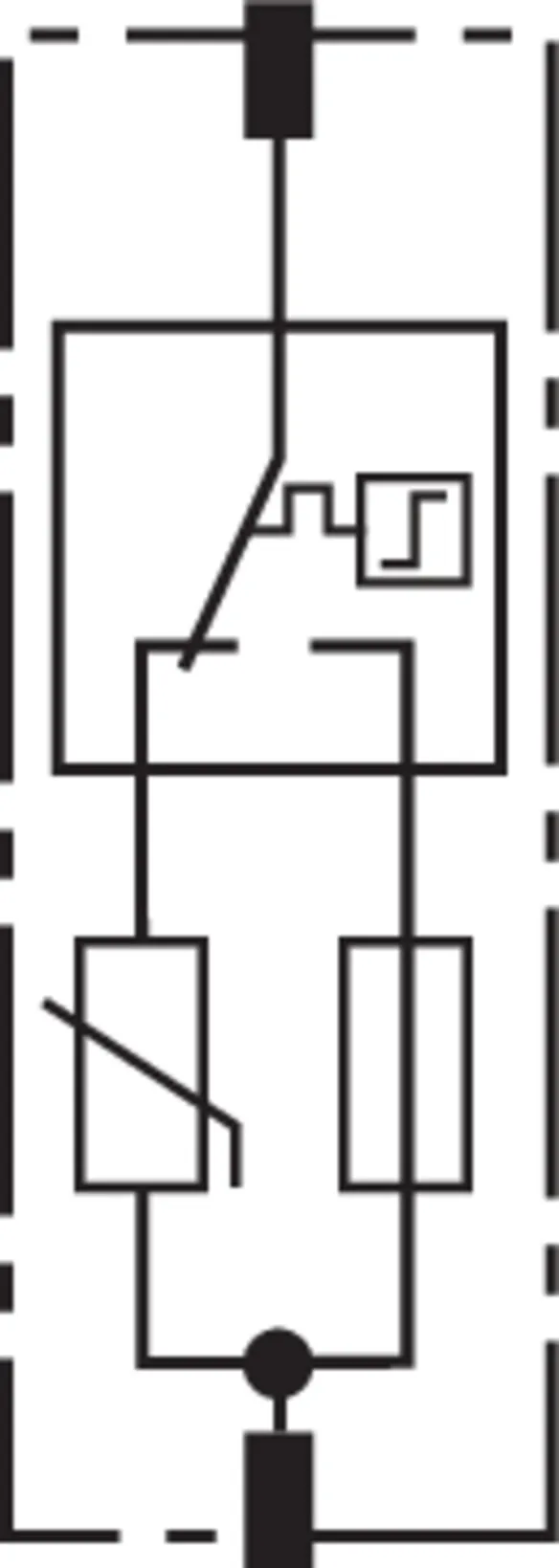

货号 952056 DG MOD E PV SCI 750

全球贸易项目代码 4013364149106, 海关HS编码: 85363030, 总重: 82.70 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD E PV SCI 750 varistor-based protection module
Pluggable protection module for DEHNguard
ME YPV SCI und SE PV SCI
Type 2 SPD classification according to EN 50539-11
of the Red/Line product series
Heavy-duty varistor technology
Max. continuous operating voltage: 750 V d.c.
Nominal discharge current: 12.5 kA
Fault indication

Brand: DEHN
Type: DG MOD E PV SCI 750
Part No.: 952056
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. discharge current (8/20 µs) (Imax ) 25 kA
Max. continuous operating voltage (d.c.) (UC ) 750 V

.产品已加入收藏夹。

进入收藏夹

商品952056加入购物车。

进入网上商店

Varistor-Based Protection Module for DEHNguard SE H ...

4 产品

货号 952900 DG MOD E H LI 275

全球贸易项目代码 4013364158801, 海关HS编码: 85363030, 总重: 90.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD E H LI 275 varistor-based protection module
Pluggable protection module for DEHNguard
SE H LI 275 FM
with three-step early warning system
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 275 V d.c.
Nominal discharge current: 30 kA
Lifetime Indication

Brand: DEHN
Type: DG MOD E H LI 275
Part No.: 952900
or equivalent.



技术参数

Nominal discharge current (8/20 µs) (In ) 30 kA
Max. discharge current (8/20 µs) (Imax ) 65 kA
Max. continuous operating voltage (a.c.) (UC ) 275 V

.产品已加入收藏夹。

进入收藏夹

商品952900加入购物车。

进入网上商店

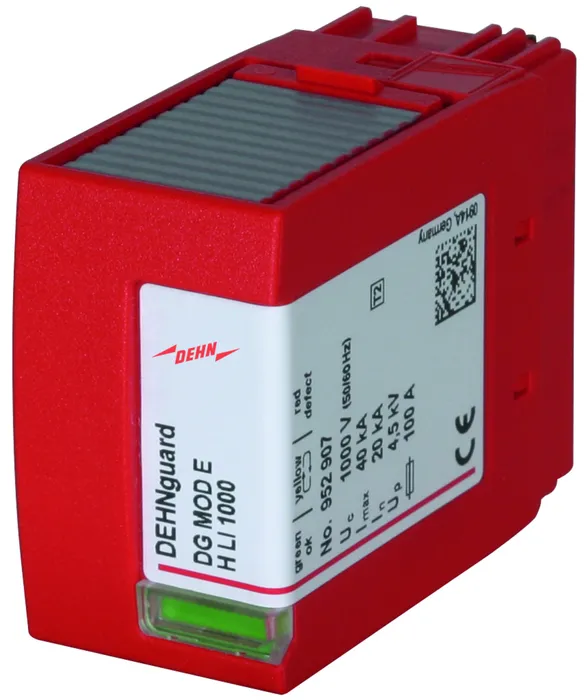

货号 952907 DG MOD E H LI 1000

全球贸易项目代码 4013364158856, 海关HS编码: 85363030, 总重: 130.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD E H LI 1000 varistor-based protection module
Pluggable protection module for DEHNguard
SE H LI 1000 FM
with three-step early warning system
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 1000 V d.c.
Nominal discharge current: 20 kA
Coded protection module

Brand: DEHN
Type: DG MOD E H LI 1000
Part No.: 952907
or equivalent.



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 1000 V

.产品已加入收藏夹。

进入收藏夹

商品952907加入购物车。

进入网上商店

货号 952908 DG MOD E H 1000

全球贸易项目代码 4013364264526, 海关HS编码: 85363030, 总重: 123.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD E H 1000 varistor-based protection module
Pluggable protection module for DEHNguard
SE H LI 1000 FM
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 1000 V d.c.
Nominal discharge current: 20 kA
Fault indication

Brand: DEHN
Type: DG MOD E H 1000
Part No.: 952908
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 1000 V

.产品已加入收藏夹。

进入收藏夹

商品952908加入购物车。

进入网上商店

货号 952918 DG MOD E H 1000 VA

全球贸易项目代码 4013364308336, 海关HS编码: 85363030, 总重: 130.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD E 1000 VA varistor-based protection module
Pluggable protection module for DEHNguard
SE H 1000 VA FM
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
Max. continuous operating voltage: 1000 V d.c.
Nominal discharge current: 15 kA
Fault indication

Brand: DEHN
Type: DG MOD E H 1000 VA
Part No.: 952918
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 15 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Max. continuous operating voltage (a.c.) (UC ) 1000 V

.产品已加入收藏夹。

进入收藏夹

商品952918加入购物车。

进入网上商店

Varistor-based Protection Module for DEHNguard SE DC

4 产品

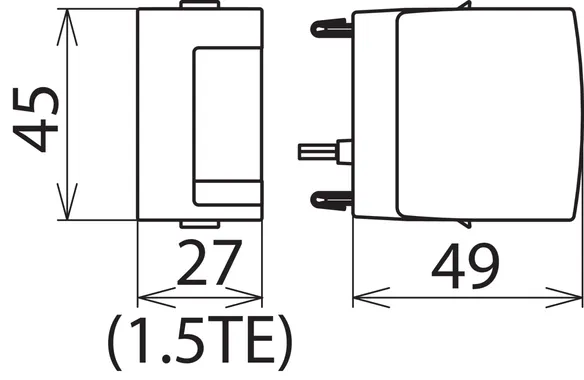

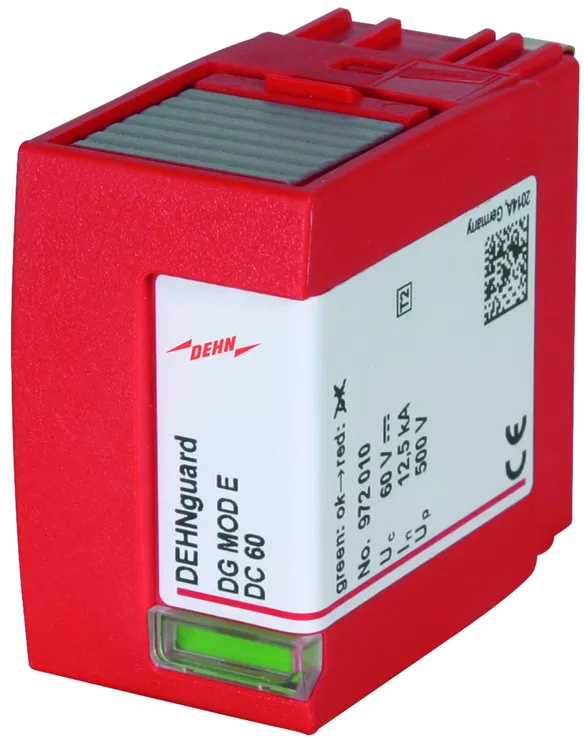

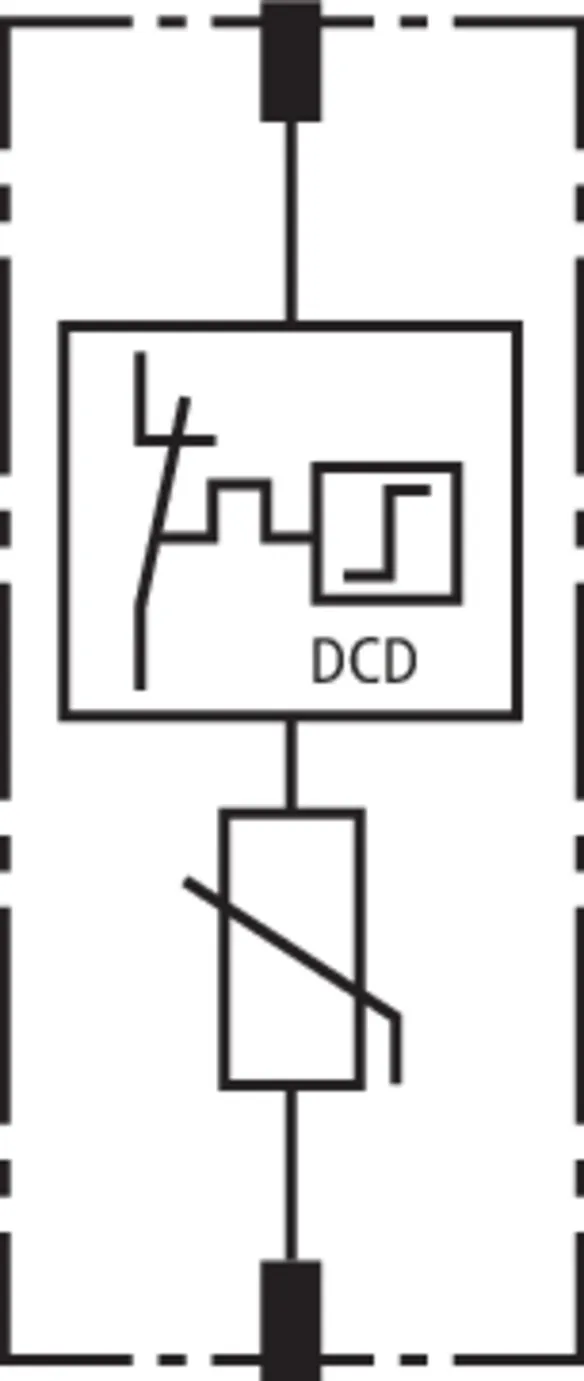

货号 972010 DG MOD E DC 60

全球贸易项目代码 4013364158672, 海关HS编码: 85363030, 总重: 65.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD E DC 60 varistor-based protection module
Pluggable protection module for DEHNguard SE DC ... (FM)
Type 2 arrester of the Red/Line product series
according to EN 61643-11
Heavy-duty varistor technology
Particularly suited for use in d.c. circuits
Max. continuous operating voltage: 60 V d.c.
Nominal discharge current: 12.5 kA
Fault indication

Brand: DEHN
Type: DG MOD E DC 60
Part No.: 972010
or equivalent.



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. continuous operating voltage (d.c.) (UC ) 60 V

.产品已加入收藏夹。

进入收藏夹

商品972010加入购物车。

进入网上商店

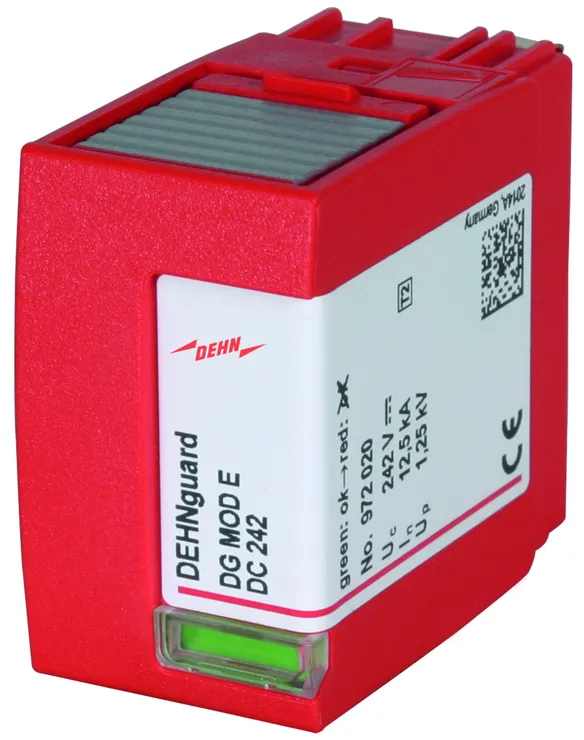

货号 972020 DG MOD E DC 242

全球贸易项目代码 4013364158702, 海关HS编码: 85363030, 总重: 75.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD E DC 242 varistor-based protection module
Pluggable protection module for DEHNguard SE DC ... (FM)
Type 2 arrester of the Red/Line product series
according to EN 61643-11
Heavy-duty varistor technology
Particularly suited for use in d.c. circuits
Max. continuous operating voltage: 242 V d.c.
Nominal discharge current: 12.5 kA
Fault indication

Brand: DEHN
Type: DG MOD E DC 242
Part No.: 972020
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. continuous operating voltage (d.c.) (UC ) 242 V

.产品已加入收藏夹。

进入收藏夹

商品972020加入购物车。

进入网上商店

货号 972030 DG MOD E DC 550

全球贸易项目代码 4013364158719, 海关HS编码: 85363030, 总重: 89.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD E DC 550 varistor-based protection module
Pluggable protection module for DEHNguard SE DC ... (FM)
Type 2 arrester of the Red/Line product series
according to EN 61643-11
Heavy-duty varistor technology
Particularly suited for use in d.c. circuits
Max. continuous operating voltage: 550 V d.c.
Nominal discharge current: 12.5 kA
Fault indication

Brand: DEHN
Type: DG MOD E DC 550
Part No.: 972030
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. continuous operating voltage (d.c.) (UC ) 550 V

.产品已加入收藏夹。

进入收藏夹

商品972030加入购物车。

进入网上商店

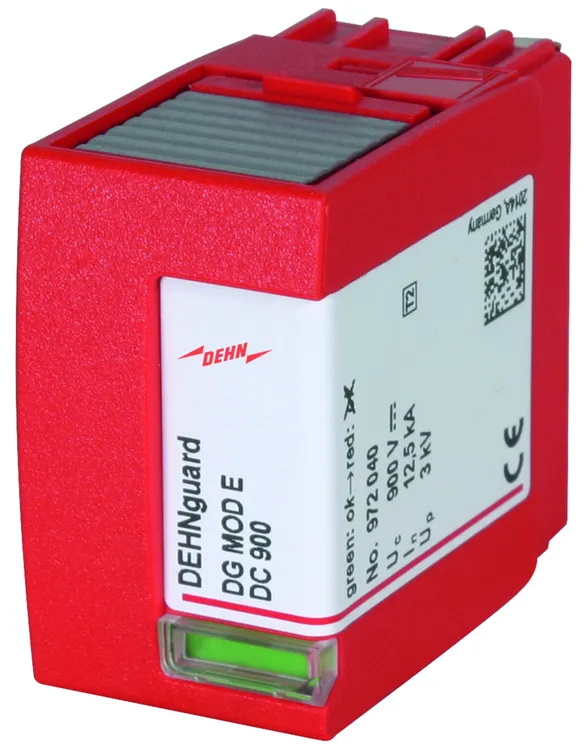

货号 972040 DG MOD E DC 900

全球贸易项目代码 4013364158764, 海关HS编码: 85363030, 总重: 95.00 g, 包装单位: 1.00 pc(s)


附加信息

DG MOD E DC 900 varistor-based protection module
Pluggable protection module for DEHNguard SE DC ... (FM)
Type 2 arrester of the Red/Line product series
according to EN 61643-11
Heavy-duty varistor technology
Particularly suited for use in d.c. circuits
Max. continuous operating voltage: 900 V d.c.
Nominal discharge current: 12.5 kA
Fault indication

Brand: DEHN
Type: DG MOD E DC 900
Part No.: 972040
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) (In ) 12.5 kA
Max. continuous operating voltage (d.c.) (UC ) 900 V

.产品已加入收藏夹。

进入收藏夹

商品972040加入购物车。

进入网上商店
返回顶部
