Protection module for DEHNgap modular

  • High discharge capacity due to powerful creepage discharge spark gap
  • Easy replacement of protection modules without tools due to module locking system with module release button
  • Operating state/fault indication with green-red marking in the inspection window

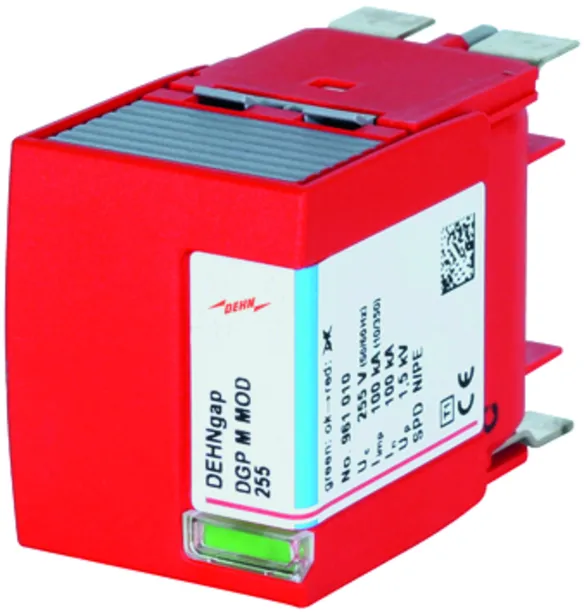

DGP M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap M family.

1 产品

货号 961010 DGP M MOD 255

全球贸易项目代码 4013364118744, 海关HS编码: 85363030, 总重: 182.00 g, 包装单位: 1.00 pc(s)


附加信息

DGP M MOD 255 N-PE spark-gap-based protection module
N-PE spark-gap-based protection module suitable
for all devices of the modular DEHNgap M series
Type 1 N-PE arrester according to EN 61643-11
RADAX Flow spark gap technology
Fault indication
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Follow current extinguishing capability: 100 Arms at 255 V AC

Brand: DEHN
Type: DGP M MOD 255
Part No.: 961010
or equivalent.



技术参数

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

.产品已加入收藏夹。

进入收藏夹

商品961010加入购物车。

进入网上商店

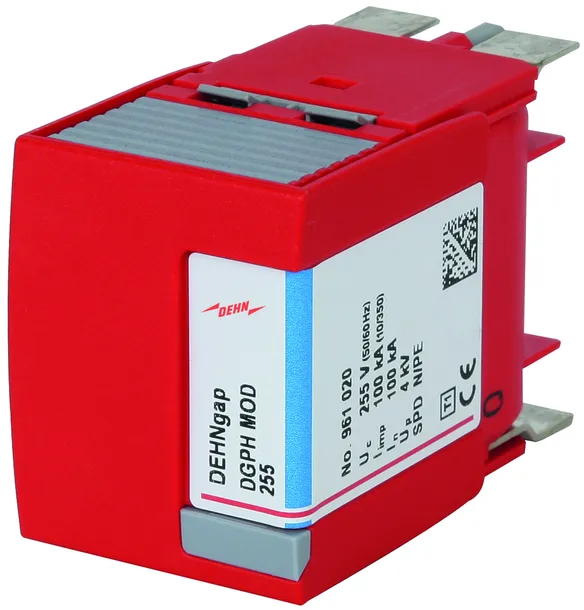

DGPH M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap H M family.

1 产品

货号 961020 DGPH MOD 255

全球贸易项目代码 4013364118706, 海关HS编码: 85363030, 总重: 151.00 g, 包装单位: 1.00 pc(s)


附加信息

DGPH MOD 255 N-PE spark-gap-based protection module
N-PE spark-gap-based protection module suitable
for all devices of the modular DEHNgap M series
Type 1 N-PE arrester according to EN 61643-11
RADAX Flow spark gap technology
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Follow current extinguishing capability: 100 Arms at 255 V AC

Brand: DEHN
Type: DGPH MOD 255
Part No.: 961020
or equivalent.

认证



技术参数

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

.产品已加入收藏夹。

进入收藏夹

商品961020加入购物车。

进入网上商店
