货号 971121 DSE M 1 60

全球贸易项目代码 4013364138582, 海关HS编码: 85363090, 总重: 300.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Coordinated DEHNsecure M 1 60 lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 60
Part No.: 971121
or equivalent.

认证

技术参数

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Approvals	UL
Extended technical data:	when used in safety lighting systems

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Directly coordinated with DEHNguard	DG SE DC 60 (Part No. 972 110)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	no

.产品已加入收藏夹。

进入收藏夹

商品971121加入购物车。

进入网上商店

货号 971120 DSE M 1 220

全球贸易项目代码 4013364133631, 海关HS编码: 85363090, 总重: 268.20 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

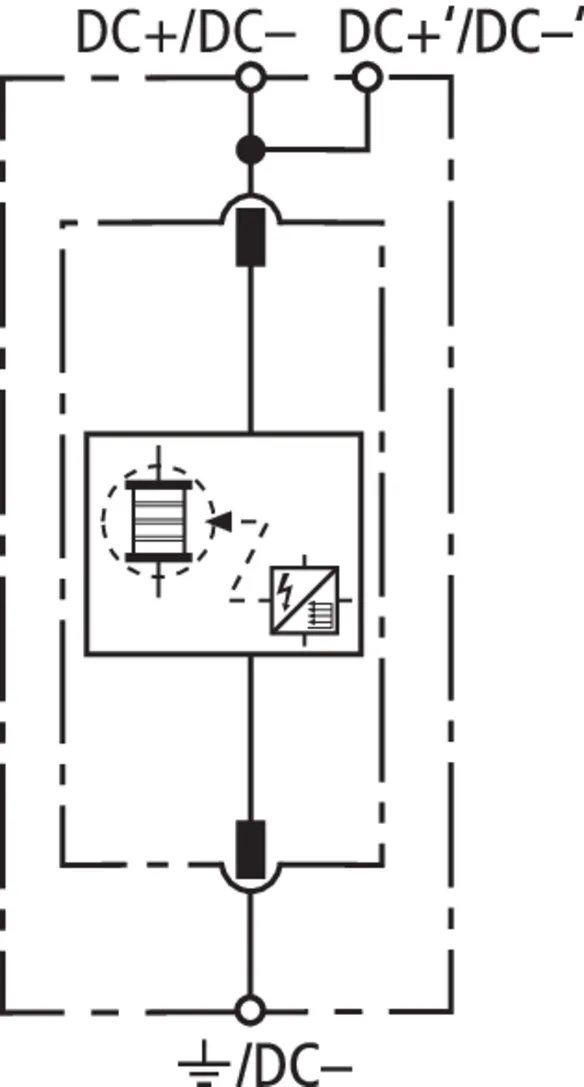

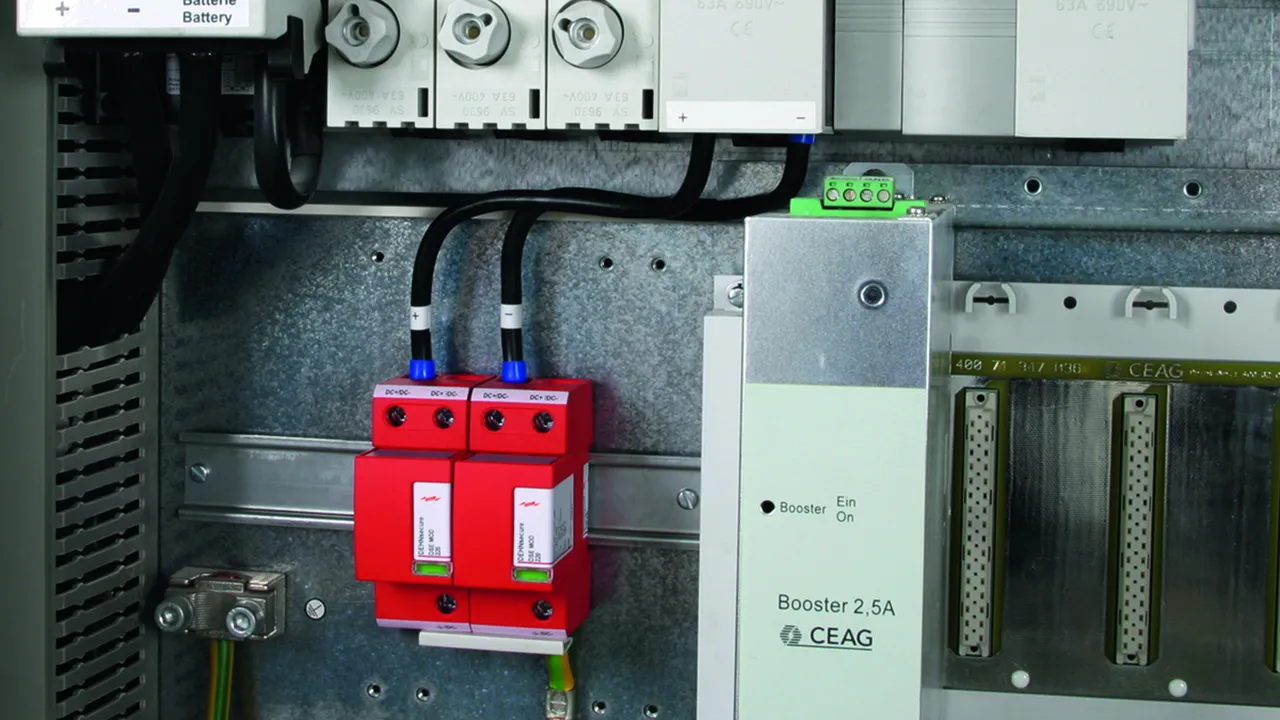

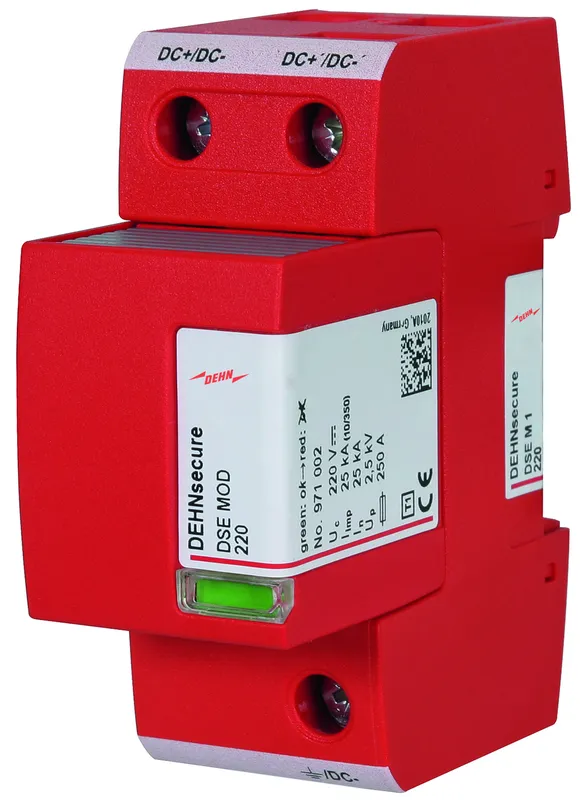

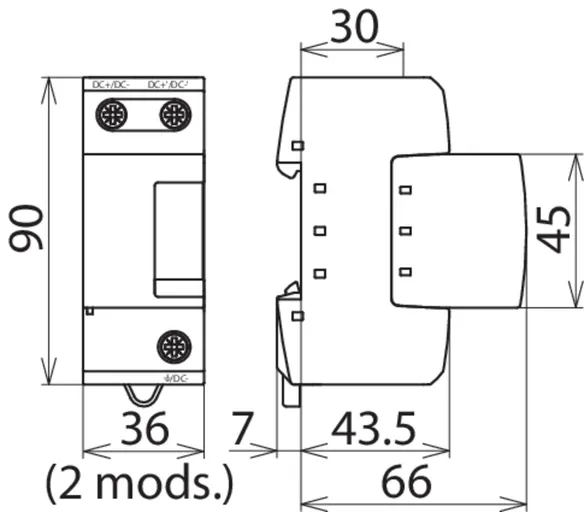

Coordinated DEHNsecure M 1 220 lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 220 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 220
Part No.: 971120
or equivalent.

认证

技术参数

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	220 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	250 A gG
Extended technical data:	when used in safety lighting systems

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	220 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Coordinated with DEHNguard (cable length ≥ 1 m)	DG SE DC 550 (Part No. 972 130)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	no

.产品已加入收藏夹。

进入收藏夹

商品971120加入购物车。

进入网上商店

货号 971122 DSE M 1 242

全球贸易项目代码 4013364144477, 海关HS编码: 85363090, 总重: 273.70 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Coordinated DEHNsecure M 1 242 lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 242 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 242
Part No.: 971122
or equivalent.

认证

技术参数

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	242 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	250 A gG
Extended technical data:	when used in safety lighting systems
– Max. continuous operating voltage (AC) (U_C )	255 V

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	242 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Coordinated with DEHNguard (cable length ≥ 1 m)	DG SE DC 550 (Part No. 972 130)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	yes
– Max. continuous operating voltage (AC) (U_C )	255 V

.产品已加入收藏夹。

进入收藏夹

商品971122加入购物车。

进入网上商店

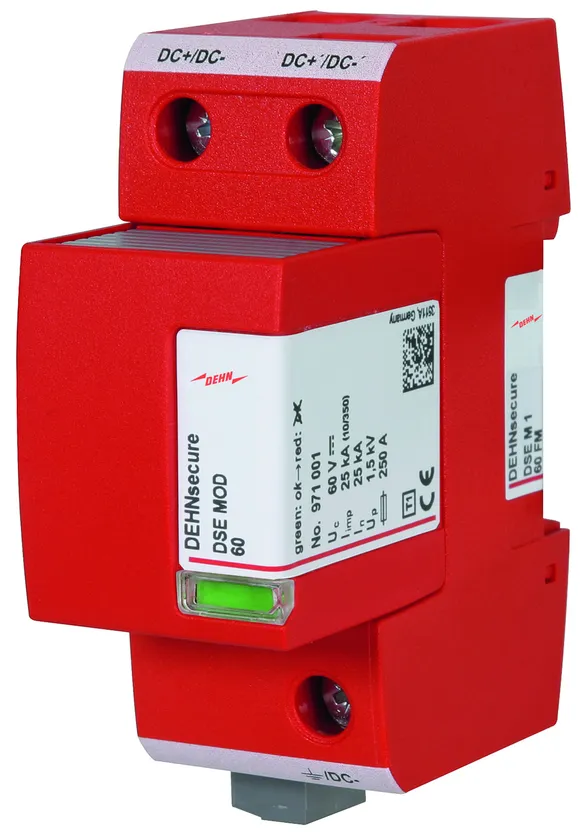

货号 971126 DSE M 1 60 FM

全球贸易项目代码 4013364138599, 海关HS编码: 85363090, 总重: 304.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Coordinated DEHNsecure M 1 60 FM lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
With remote signalling contact
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V a.c.
Voltage protection level: <=1.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 60 FM
Part No.: 971126
or equivalent.

认证

技术参数

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Approvals	UL
Type of remote signalling contact	changeover contact
Extended technical data:	when used in safety lighting systems

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Directly coordinated with DEHNguard	DG SE DC 60 FM (Part No. 972 115)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0,1 A; 125 V / 0,2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	no

.产品已加入收藏夹。

进入收藏夹

商品971126加入购物车。

进入网上商店

货号 971125 DSE M 1 220 FM

全球贸易项目代码 4013364133648, 海关HS编码: 85363090, 总重: 241.90 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

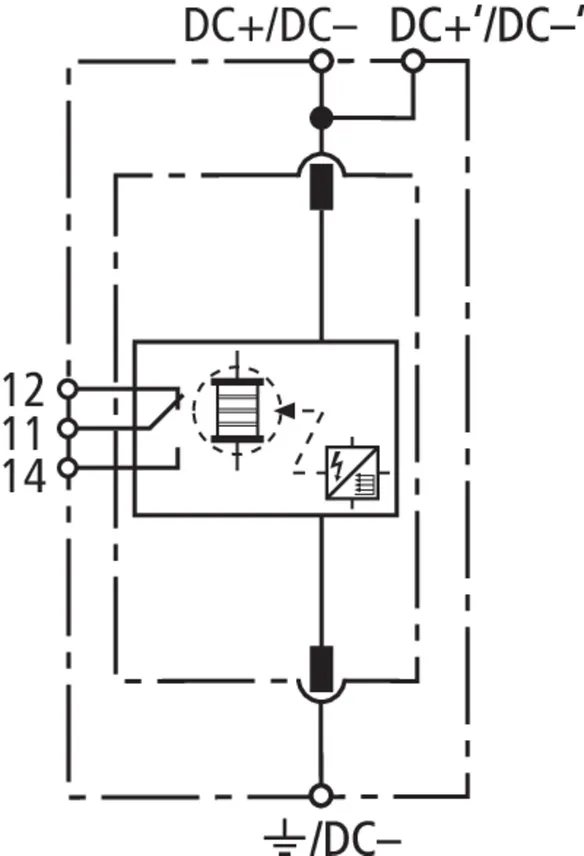

Coordinated DEHNsecure M 1 220 FM lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
With remote signalling contact
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 220 V a.c.
Voltage protection level: <=2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 220 FM
Part No.: 971125
or equivalent.

认证

技术参数

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	220 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	250 A gG
Type of remote signalling contact	changeover contact
Extended technical data:	when used in safety lighting systems

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	220 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Coordinated with DEHNguard (cable length ≥ 1 m)	DG SE DC 500 FM (Part No. 972 135)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	no

.产品已加入收藏夹。

进入收藏夹

商品971125加入购物车。

进入网上商店

货号 971127 DSE M 1 242 FM

全球贸易项目代码 4013364144484, 海关HS编码: 85363090, 总重: 269.50 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Coordinated DEHNsecure M 1 242 FM lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
With remote signalling contact
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 242 V a.c.
Voltage protection level: <=2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 242 FM
Part No.: 971127
or equivalent.

认证

技术参数

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	242 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	250 A gG
Type of remote signalling contact	changeover contact
Extended technical data:	when used in safety lighting systems
– Max. continuous operating voltage (AC) (U_C )	255 V

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	242 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Coordinated with DEHNguard (cable length ≥ 1 m)	DG SE DC 500 FM (Part No. 972 135)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	yes
– Max. continuous operating voltage (AC) (U_C )	255 V

.产品已加入收藏夹。

进入收藏夹

商品971127加入购物车。

进入网上商店

货号 971221 DSE M 2P 60

全球贸易项目代码 4013364138612, 海关HS编码: 85363090, 总重: 638.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

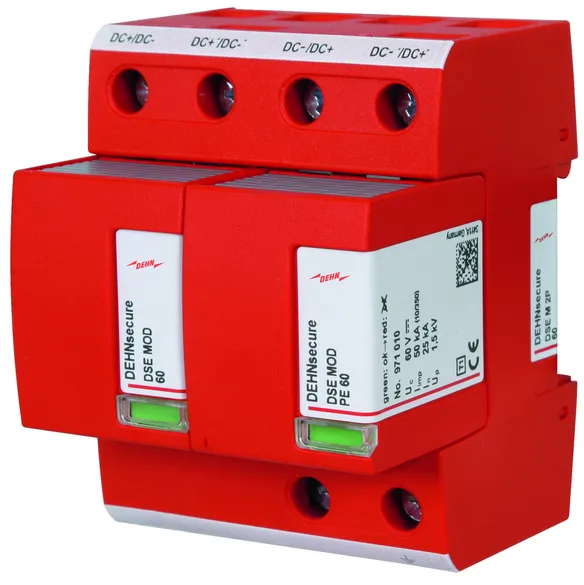

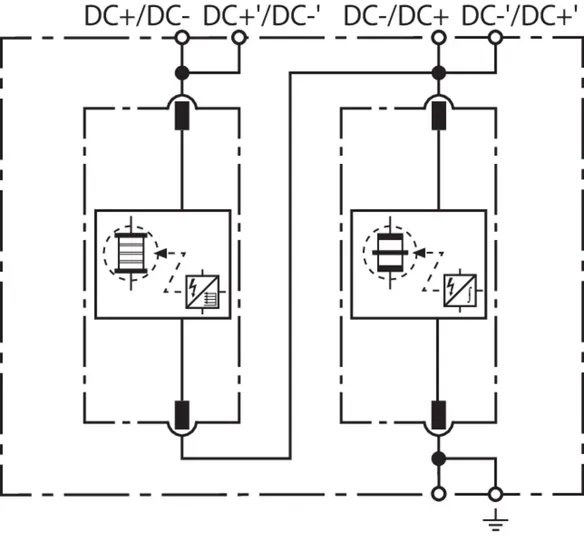

Coordinated DEHNsecure M 2P 60 lightning current arrester
Modular, pluggable and coordinated two-pole
lightning current arrester, width: 4 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V a.c.
Voltage protection level: <=1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 2P 60
Part No.: 971221
or equivalent.

认证

技术参数

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Approvals	UL

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Specific energy (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (W/R)	156.25 / 625.00 kJ/ohms
Directly coordinated with DEHNguard	DG SE DC 60 (Part No. 972 110)
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, DC-/DC+, 9) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+´/DC-´, DC-´/DC+´) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL

.产品已加入收藏夹。

进入收藏夹

商品971221加入购物车。

进入网上商店

货号 971226 DSE M 2P 60 FM

全球贸易项目代码 4013364138629, 海关HS编码: 85363090, 总重: 675.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

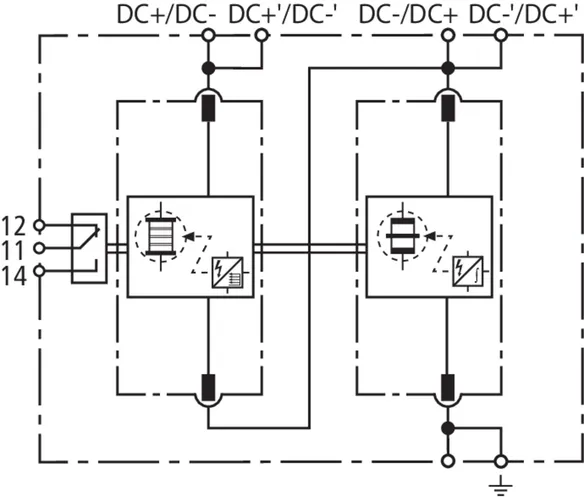

Coordinated DEHNsecure M 2P 60 FM lightning current arrester
Modular, pluggable and coordinated two-pole lightning
current arresters, width: 4 mod.
for d.c. applications
with remote signalling contact
Type 1 SPD in accordance with EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V d.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 2P 60 FM
Part No.: 971226
or equivalent.

认证

技术参数

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Approvals	UL
Type of remote signalling contact	changeover contact

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Specific energy (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (W/R)	156.25 / 625.00 kJ/ohms
Directly coordinated with DEHNguard	DG SE DC 60 FM (Part No. 972 115)
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, DC-/DC+, 9) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+´/DC-´, DC-´/DC+´) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品971226加入购物车。

进入网上商店

货号 971222 DSE NG 2P 60 FM

全球贸易项目代码 4013364489523, 海关HS编码: 85363090, 总重: 507.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

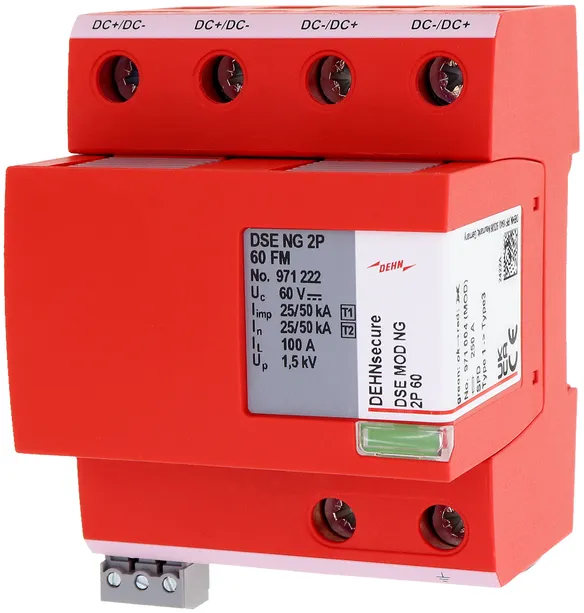

Coordinated lightning current arrester DEHNsecure NG 2P 60 FM
Two-pole, modular, pluggable
and coordinated lightning current arrester
for DC applications, width of 4 DIN modules
with remote signalling contact
Type 1 arrester as per EN 61643-11
Spark gap technology ideally suited for use in DC
circuits
Fault indication
Max. continuous operating voltage: 60 V DC
Voltage protection level: <= 1,5 kV
Lightning impulse current (10/350): 50 kA
DC short-circuit strength: 10 kA
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DSE NG 2P 60 FM
Part No.: 971222
or equivalent.

认证

技术参数

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Type of remote signalling contact	changeover contact

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Specific energy (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (W/R)	156.25 / 625.00 kJ/ohms
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	100 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, DC-/DC+, 9) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+´/DC-´, DC-´/DC+´) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品971222加入购物车。

进入网上商店

Results for products (0)

Results for content (0)

DEHNsecure modular

DEHNsecure M 1 ...

货号 971121 DSE M 1 60

.产品已加入收藏夹。

商品971121加入购物车。

货号 971120 DSE M 1 220

.产品已加入收藏夹。

商品971120加入购物车。

货号 971122 DSE M 1 242

.产品已加入收藏夹。

商品971122加入购物车。

DEHNsecure M 1 ... FM

货号 971126 DSE M 1 60 FM

.产品已加入收藏夹。

商品971126加入购物车。

货号 971125 DSE M 1 220 FM

.产品已加入收藏夹。

商品971125加入购物车。

货号 971127 DSE M 1 242 FM

.产品已加入收藏夹。

商品971127加入购物车。

DEHNsecure M 2P ... (FM)

货号 971221 DSE M 2P 60

.产品已加入收藏夹。

商品971221加入购物车。

货号 971226 DSE M 2P 60 FM

.产品已加入收藏夹。

商品971226加入购物车。

DEHNsecure NG 2P 60 FM

货号 971222 DSE NG 2P 60 FM

.产品已加入收藏夹。

商品971222加入购物车。

DEHNsecure modular

DEHNsecure M 1 ...

货号 971121 DSE M 1 60

961110.stp 您没有下载权限961110.stp

961110.igs 您没有下载权限961110.igs

961110.jt 您没有下载权限961110.jt

961110.dwg 您没有下载权限961110.dwg

971120m_E.dxf 您没有下载权限971120m_E.dxf

DEHN.971121.wspak 您没有下载权限DEHN.971121.wspak

DEHN.971121.edz 您没有下载权限DEHN.971121.edz

.产品已加入收藏夹。

商品971121加入购物车。

货号 971120 DSE M 1 220

961110.stp 您没有下载权限961110.stp

961110.igs 您没有下载权限961110.igs

961110.jt 您没有下载权限961110.jt

961110.dwg 您没有下载权限961110.dwg

971120m_E.dxf 您没有下载权限971120m_E.dxf

DEHN.971120.wspak 您没有下载权限DEHN.971120.wspak

DEHN.971120.edz 您没有下载权限DEHN.971120.edz

.产品已加入收藏夹。

商品971120加入购物车。

货号 971122 DSE M 1 242

961110.stp 您没有下载权限961110.stp

961110.igs 您没有下载权限961110.igs

961110.jt 您没有下载权限961110.jt

961110.dwg 您没有下载权限961110.dwg

971120m_E.dxf 您没有下载权限971120m_E.dxf

DEHN.971122.wspak 您没有下载权限DEHN.971122.wspak

DEHN.971122.edz 您没有下载权限DEHN.971122.edz

.产品已加入收藏夹。

商品971122加入购物车。

DEHNsecure M 1 ... FM

货号 971126 DSE M 1 60 FM

961115.stp 您没有下载权限961115.stp

961115.igs 您没有下载权限961115.igs

961115.jt 您没有下载权限961115.jt

961115.dwg 您没有下载权限961115.dwg

971125m_E.dxf 您没有下载权限971125m_E.dxf

DEHN.971126.wspak 您没有下载权限DEHN.971126.wspak

DEHN.971126.edz 您没有下载权限DEHN.971126.edz

.产品已加入收藏夹。

商品971126加入购物车。

货号 971125 DSE M 1 220 FM

961115.stp 您没有下载权限961115.stp

961115.igs 您没有下载权限961115.igs

961115.jt 您没有下载权限961115.jt

961115.dwg 您没有下载权限961115.dwg

971125m_E.dxf 您没有下载权限971125m_E.dxf

DEHN.971125.wspak 您没有下载权限DEHN.971125.wspak

DEHN.971125.edz 您没有下载权限DEHN.971125.edz

.产品已加入收藏夹。

商品971125加入购物车。

货号 971127 DSE M 1 242 FM

961115.stp 您没有下载权限961115.stp

961115.igs 您没有下载权限961115.igs

961115.jt 您没有下载权限961115.jt

961115.dwg 您没有下载权限961115.dwg

971125m_E.dxf 您没有下载权限971125m_E.dxf

DEHN.971127.wspak 您没有下载权限DEHN.971127.wspak

DEHN.971127.edz 您没有下载权限DEHN.971127.edz

.产品已加入收藏夹。

商品971127加入购物车。

DEHNsecure M 2P ... (FM)

货号 971221 DSE M 2P 60

951200.stp 您没有下载权限951200.stp

951200.igs 您没有下载权限951200.igs

951200.jt 您没有下载权限951200.jt

951200.dwg 您没有下载权限951200.dwg

971221m_E.dxf 您没有下载权限971221m_E.dxf

DEHN.971221.wspak 您没有下载权限DEHN.971221.wspak

DEHN.971221.edz 您没有下载权限DEHN.971221.edz

.产品已加入收藏夹。

商品971221加入购物车。

货号 971226 DSE M 2P 60 FM

951205.stp 您没有下载权限951205.stp

951205.igs 您没有下载权限951205.igs

951205.jt 您没有下载权限951205.jt

951205.dwg 您没有下载权限951205.dwg

971226m_E.dxf 您没有下载权限971226m_E.dxf
