DEHNbloc Maxi 440 / 760

Spark-gap-based lightning current arrester
Extremely high lightning current discharge capacity
High follow current extinguishing capability and limitation due RADAX Flow technology
Directly coordinated with DEHNguard surge protective devices without additional cable length
Operating state / fault indication by green / red indicator flag in the inspection window

详情

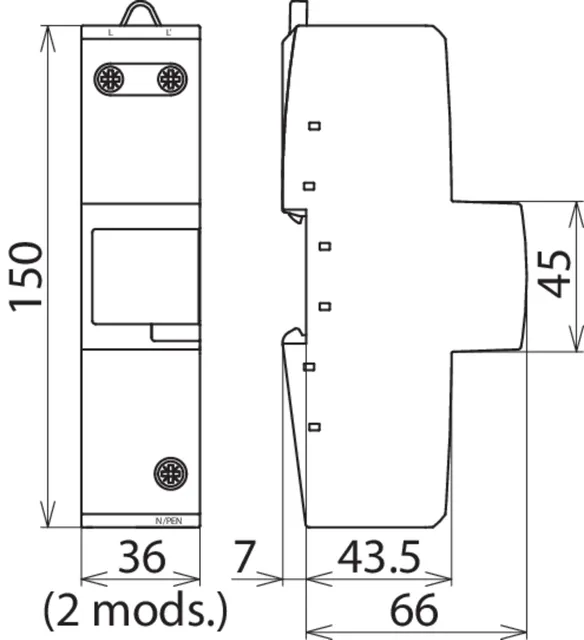

DEHNbloc Maxi 1 440 (FM)

Coordinated single-pole lightning current arrester for use in 400 / 690 V systems; FM version with floating remote signalling contact.

2 产品

货号 961140 DBM 1 440

全球贸易项目代码 4013364116269, 海关HS编码: 85363090, 总重: 592.00 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

Coordinated DEHNbloc Maxi 1 440 lightning current arrester
Coordinated single-pole lightning current arrester,
width: 2 mod.
Type 1 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Fault indication
Max. continuous operating voltage: 440 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350 µs): 35 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DBM 1 440
Part No.: 961140
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	250 A gG
Approvals	UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	400 V
Max. continuous operating voltage (a.c.) (U_C )	440 V
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Specific energy (W/R)	306.25 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	35 kA
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	250 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	760 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, L', N/PEN) (min.)	10 mm²solid / flexible
Cross-sectional area (L, N/PEN) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms (tested by the German VDE)
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limitation / Extinction of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms (t_a ≤ 0.2 s)	500 A gG
– Max. backup fuse (L) up to I_K = 100 kA_rms (t_a ≤ 5 s)	250 A gG

.产品已加入收藏夹。

进入收藏夹

商品961140加入购物车。

进入网上商店

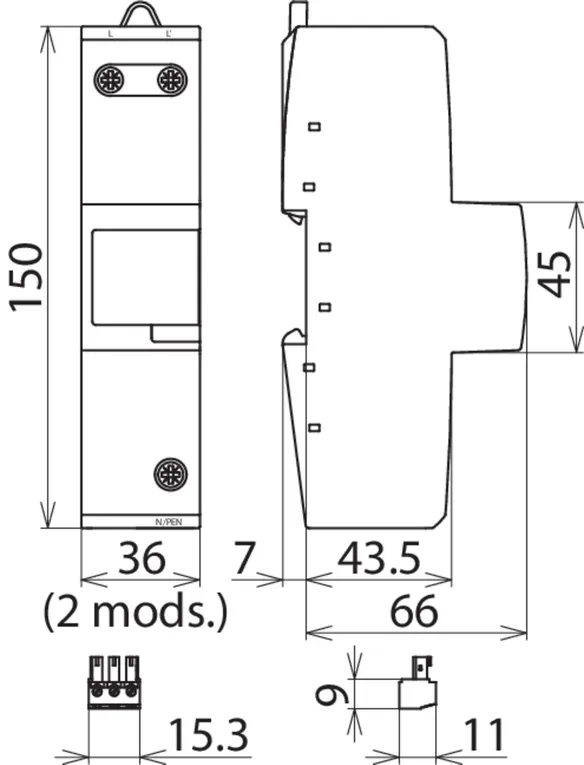

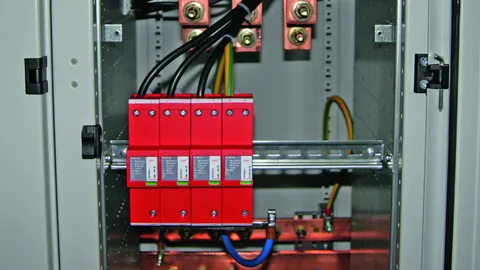

货号 961145 DBM 1 440 FM

全球贸易项目代码 4013364116276, 海关HS编码: 85363090, 总重: 601.60 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

Coordinated DEHNblocMaxi1 440 FM lightning current arrester
Coordinated single-pole lightning current arrester
Width: 2 mod.
Type 1 SPD according to EN 61643-11
with remote signalling contact
RADAX Flow spark gap technology
for follow current limitation
Fault indication
Max. continuous operating voltage: 440 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350 µs): 35 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DBM 1 440 FM
Part No.: 961145
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	250 A gG
Approvals	UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	400 V
Max. continuous operating voltage (a.c.) (U_C )	440 V
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Specific energy (W/R)	306.25 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	35 kA
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	250 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	760 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, L', N/PEN) (min.)	10 mm²solid / flexible
Cross-sectional area (L, N/PEN) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms (tested by the German VDE)
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limitation / Extinction of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms (t_a ≤ 0.2 s)	500 A gG
– Max. backup fuse (L) up to I_K = 100 kA_rms (t_a ≤ 5 s)	250 A gG

.产品已加入收藏夹。

进入收藏夹

商品961145加入购物车。

进入网上商店

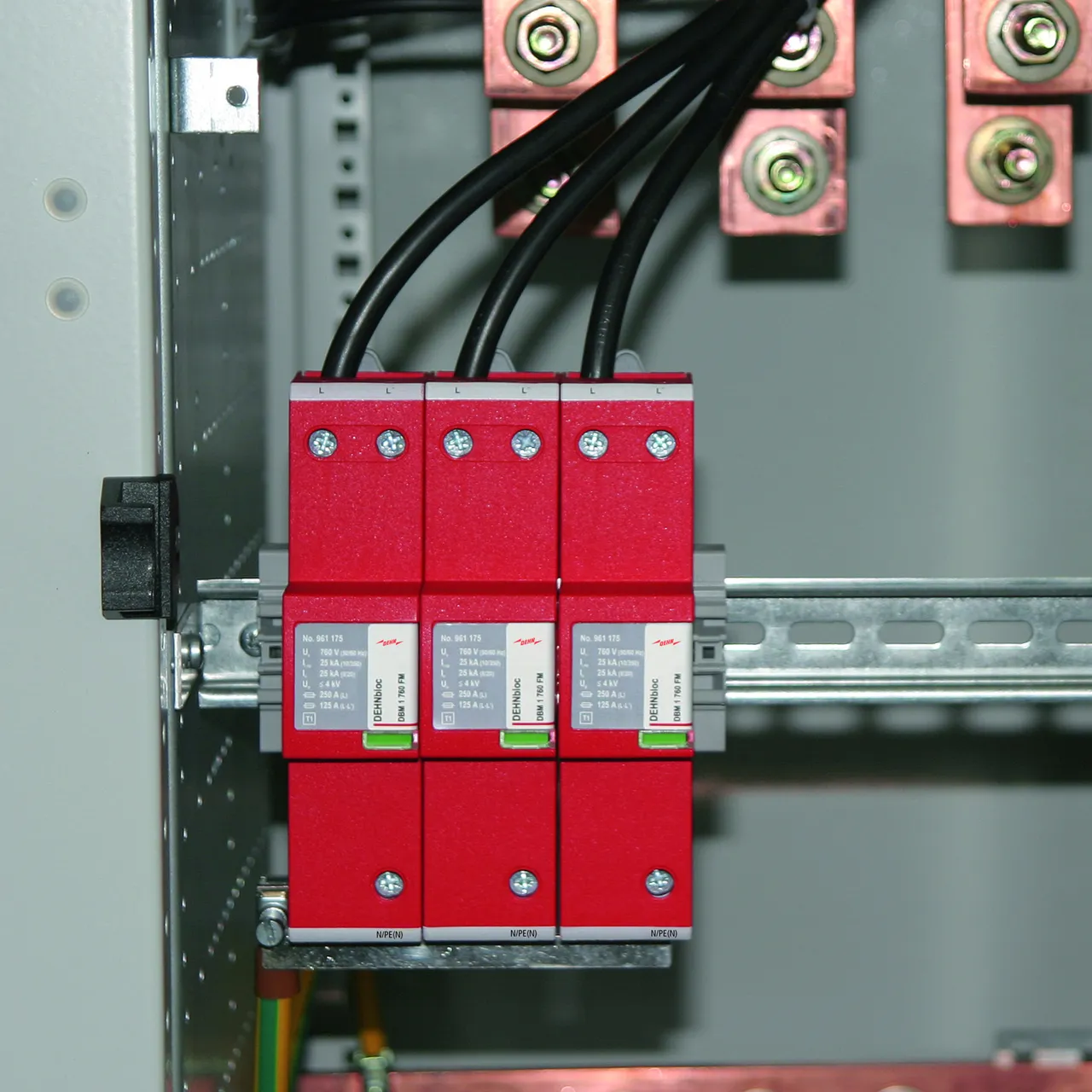

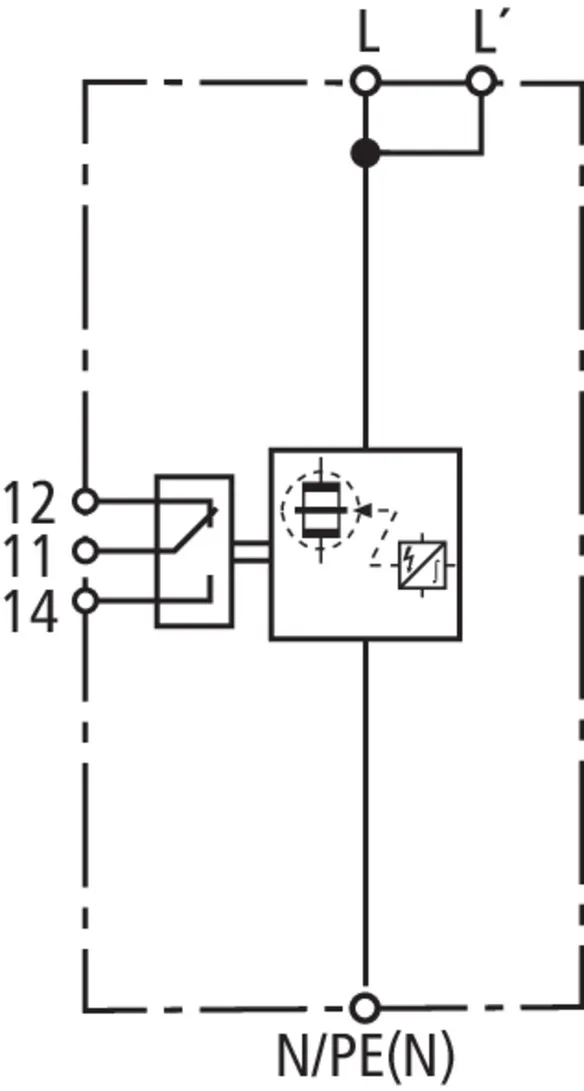

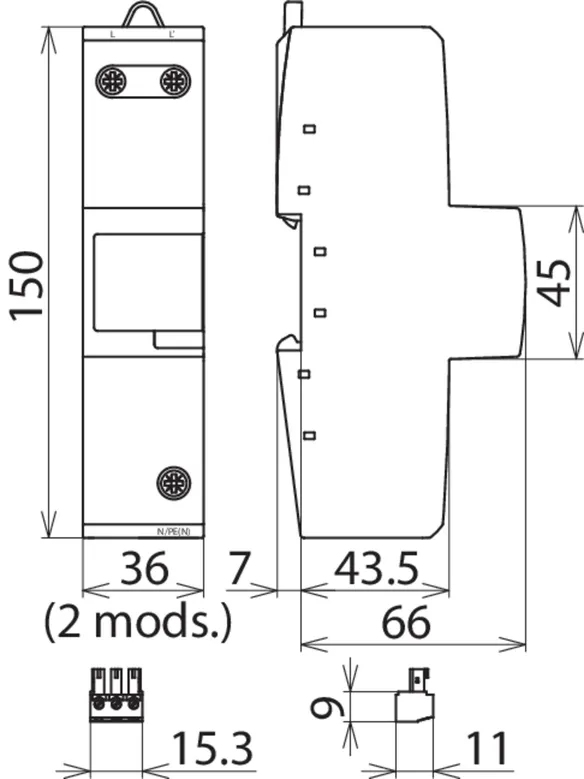

DEHNbloc Maxi 1 760 FM

Coordinated single-pole lightning current arrester for use in 690 V systems; with remote signalling contact for monitoring device (floating changeover contact).

1 产品

货号 961175 DBM 1 760 FM

全球贸易项目代码 4013364116283, 海关HS编码: 85363090, 总重: 589.80 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Coordinated DEHNblocMaxi1 760 FM lightning current arrester
Coordinated single-pole lightning current arrester
Width: 2 mod.
Type 1 SPD according to EN 61643-11
with remote signalling contact
RADAX Flow spark gap technology
for follow current limitation
Fault indication
Max. continuous operating voltage: 760 V a.c.
Voltage protection level: <= 4 kV
Lightning impulse current (10/350 µs): 25 kA
Follow current extinguishing capability: up to 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DBM 1 760 FM
Part No.: 961175
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	760 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Max. backup fuse (L) up to I_K= 25 kA_rms(t_a≤ 5 s)	250 A gG
Approvals	UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	690 V
Max. continuous operating voltage (a.c.) (U_C )	760 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Follow current extinguishing capability (a.c.) (I_fi )	25 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 25 kA_rms(t_a≤ 5 s)	250 A gG
Max. backup fuse (L) at I_K> 25 kA_rms	100 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	1320 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, L', 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L, 9) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品961175加入购物车。

进入网上商店

DEHNbloc Maxi 1 440 SN1885 FM

1 产品

货号 961148 DBM 1 440 SN1885 FM

全球贸易项目代码 4013364475953, 海关HS编码: 85363090, 总重: 601.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

Brand: DEHN
Type: DBM 1 440 SN1885 FM
Part No.: 961148
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	250 A gG
Type of remote signalling contact	changeover contact


SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	400 V
Max. continuous operating voltage (a.c.) (U_C )	440 V
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Specific energy (W/R)	306.25 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	35 kA
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	250 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	760 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, L', N/PEN) (min.)	10 mm²solid / flexible
Cross-sectional area (L, N/PEN) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Non-responsive in combination with BCO ML2 MVG 230	Up to 1500 V AC
DBM 440 FM SN1885 in combination with BCO ML2 MVG 230
Permanent interference voltage as per Ril 819.0804	250 V
Power frequency withstand voltage (as per DIN EN 62561-3) / short-time interference voltage as per Ril 819.0804	1500 V_rms
Galvanic isolation to earth	Yes / leakage-current-free
Insulation resistance	> 1 GOhm @ 1,000 V DC
Protection level (@ I_n = 3 kA) (U_P )	3.25 kV

.产品已加入收藏夹。

进入收藏夹

商品961148加入购物车。

进入网上商店

Results for products (0)

Results for content (0)

DEHNbloc Maxi 440 / 760

详情

DEHNbloc Maxi 1 440 (FM)

货号 961140 DBM 1 440

.产品已加入收藏夹。

商品961140加入购物车。

货号 961145 DBM 1 440 FM

.产品已加入收藏夹。

商品961145加入购物车。

DEHNbloc Maxi 1 760 FM

货号 961175 DBM 1 760 FM

.产品已加入收藏夹。

商品961175加入购物车。

DEHNbloc Maxi 1 440 SN1885 FM

货号 961148 DBM 1 440 SN1885 FM

.产品已加入收藏夹。

商品961148加入购物车。

DEHNbloc Maxi 440 / 760

详情

DEHNbloc Maxi 1 440 (FM)

货号 961140 DBM 1 440

961140.stp 您没有下载权限961140.stp

961140.igs 您没有下载权限961140.igs

961140.jt 您没有下载权限961140.jt

961140.dwg 您没有下载权限961140.dwg

961140m_E.dxf 您没有下载权限961140m_E.dxf

DEHN.961140.wspak 您没有下载权限DEHN.961140.wspak

961175_eplan.zip 您没有下载权限961175_eplan.zip

.产品已加入收藏夹。

商品961140加入购物车。

货号 961145 DBM 1 440 FM

961145.stp 您没有下载权限961145.stp

961145.igs 您没有下载权限961145.igs

961145.jt 您没有下载权限961145.jt

961145.dwg 您没有下载权限961145.dwg

961145m_E.dxf 您没有下载权限961145m_E.dxf

DEHN.961145.wspak 您没有下载权限DEHN.961145.wspak

961175_eplan.zip 您没有下载权限961175_eplan.zip

.产品已加入收藏夹。

商品961145加入购物车。

DEHNbloc Maxi 1 760 FM

货号 961175 DBM 1 760 FM

961145.stp 您没有下载权限961145.stp

961145.igs 您没有下载权限961145.igs

961145.jt 您没有下载权限961145.jt

961145.dwg 您没有下载权限961145.dwg

961145m_E.dxf 您没有下载权限961145m_E.dxf

DEHN.961175.wspak 您没有下载权限DEHN.961175.wspak

961175_eplan.zip 您没有下载权限961175_eplan.zip

.产品已加入收藏夹。

商品961175加入购物车。

DEHNbloc Maxi 1 440 SN1885 FM

货号 961148 DBM 1 440 SN1885 FM

961145.stp 您没有下载权限961145.stp

961145.igs 您没有下载权限961145.igs

961145.jt 您没有下载权限961145.jt

961145.dwg 您没有下载权限961145.dwg

961145m_E.dxf 您没有下载权限961145m_E.dxf

.产品已加入收藏夹。

商品961148加入购物车。
