Protection module for DEHNbloc modular

High discharge capacity due to powerful creepage discharge spark gap
Maximum system availability due to RADAX Flow follow current limitation
Easy replacement of protection modules without tools due to module locking system with module release button
Operating state / fault indication by green / red indicator flag in the inspection window

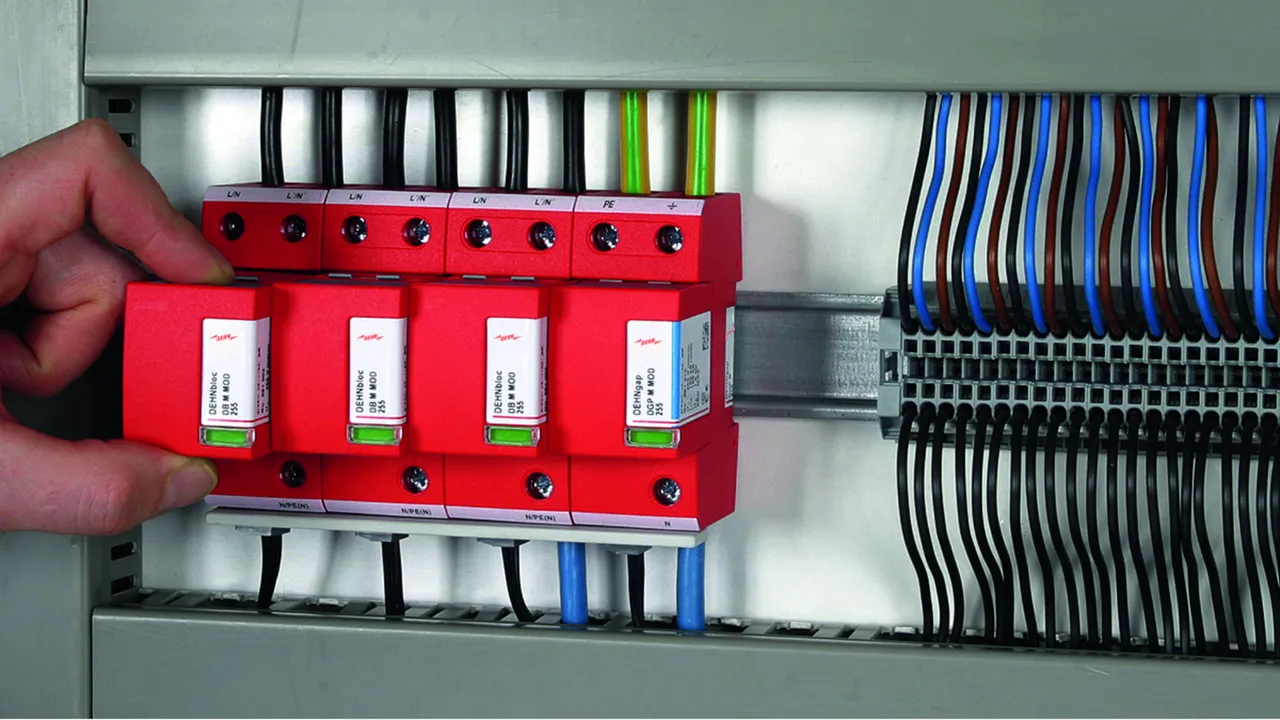

The plug-in protection module can be replaced without switching off the mains voltage or removing the vertical cover

DB M Spark-Gap-Based Protection Module

Spark-gap-based protection module for DEHNbloc M ...

3 产品

货号 961001 DB M MOD 150

全球贸易项目代码 4013364118584, 海关HS编码: 85363090, 总重: 184.90 g, 包装单位: 1.00 pc(s)


附加信息

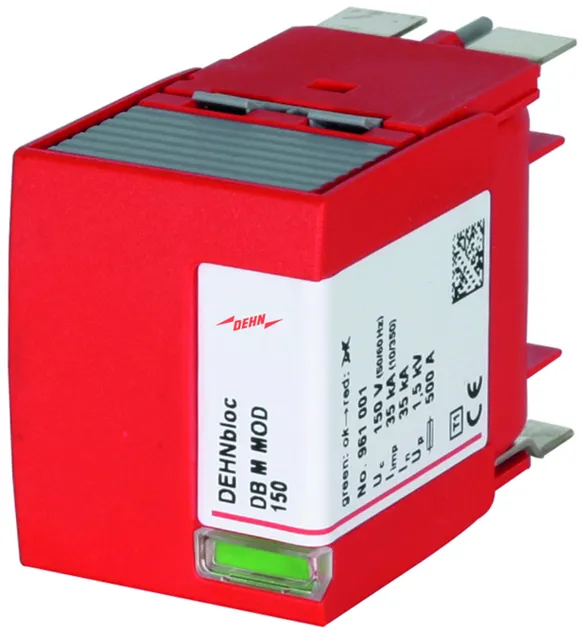

Spark-gap-based protection module DB M MOD 150
Spark-gap-based mains protection module for single-pole,
coordinated, pluggable, Type 1 arresters of the Red/Line
product series according to EN 61643-11
Maximum system availability due to
RADAX Flow follow current limitation.
Max. continuous operating voltage: 150 V AC
Lightning impulse current: 35 kA
Fault indication

Brand: DEHN
Type: DB M MOD 150
Part No.: 961001
or equivalent.

认证

技术参数

Max. continuous operating voltage (a.c.) (U_C )	150 V
Lightning impulse current (10/350 µs) (I_imp )	35 kA

.产品已加入收藏夹。

进入收藏夹

商品961001加入购物车。

进入网上商店

货号 961002 DB M MOD 255

全球贸易项目代码 4013364118591, 海关HS编码: 85363090, 总重: 207.00 g, 包装单位: 1.00 pc(s)


附加信息

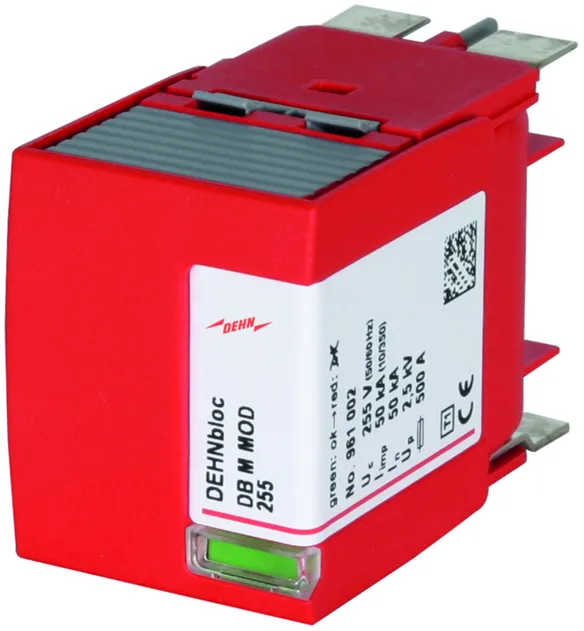

Spark-gap-based protection module DB M MOD 255
Spark-gap-based mains protection module for single-pole,
coordinated, Type 1 arresters of the Red/Line
product series according to EN 61643-11
Maximum system availability due to
RADAX Flow follow current limitation.
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 50 kA
Fault indication

Brand: DEHN
Type: DB M MOD 255
Part No.: 961002
or equivalent.

认证

技术参数

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	50 kA

.产品已加入收藏夹。

进入收藏夹

商品961002加入购物车。

进入网上商店

货号 961003 DB M MOD 320

全球贸易项目代码 4013364118607, 海关HS编码: 85363090, 总重: 192.00 g, 包装单位: 1.00 pc(s)


附加信息

Spark-gap-based protection module DB M MOD 320
Spark-gap-based mains protection module for single-pole,
coordinated, Type 1 arresters of the Red/Line
product series according to EN 61643-11
Maximum system availability due to
RADAX Flow follow current limitation.
Max. continuous operating voltage: 320 V AC
Lightning impulse current: 50 kA
Fault indication

Brand: DEHN
Type: DB M MOD 320
Part No.: 961003
or equivalent.

认证

技术参数

Max. continuous operating voltage (a.c.) (U_C )	320 V
Lightning impulse current (10/350 µs) (I_imp )	50 kA

.产品已加入收藏夹。

进入收藏夹

商品961003加入购物车。

进入网上商店

Max. continuous operating voltage (a.c.) (U_C )	150 V
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Specific energy (W/R)	306.25 kJ/ohms
Follow current extinguishing capability (a.c.) (I_fi )	35 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Specific energy (W/R)	625.00 kJ/ohms
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)

Max. continuous operating voltage (a.c.) (U_C )	320 V
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Specific energy (W/R)	156.25 kJ/ohms
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
