DEHNbloc modular

Coordinated spark-gap-based lightning current arrester consisting of a base part and a plug-in protection module
Maximum system availability due to RADAX Flow follow current limitation
No tripping of 32 A gG fuses up to short-circuit currents of 50 kA_rms
Discharge capacity up to 50 kA (10/350 µs)
Directly coordinated with DEHNguard surge protective devices without additional cable length
Low voltage protection level
Operating state / fault indication by green / red indicator flag in the inspection window
Easy replacement of protection modules without tools due to module locking system with module release button

详情

DEHNbloc M 1 ...

Coordinated and modular single-pole lightning current arrester with a high discharge capacity.

3 产品

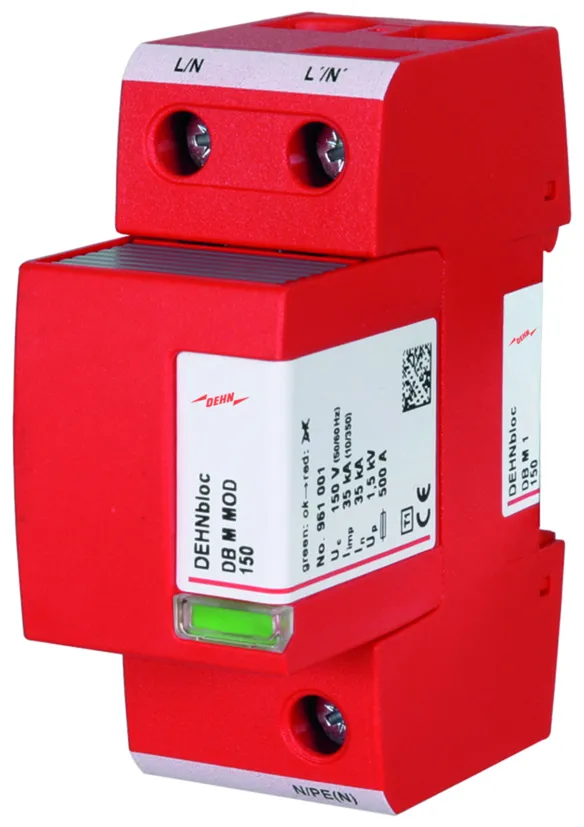

货号 961110 DB M 1 150

全球贸易项目代码 4013364118560, 海关HS编码: 85363090, 总重: 333.40 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

Coordinated DEHNbloc M 1 150 lightning current arrester
Pluggable, coordinated and modular single-pole
lightning current arrester, width: 2 mod.
with high follow current limitation
Type 1 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 35 kA
Follow current extinguishing capability: up to 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DB M 1 150
Part No.: 961110
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. backup fuse (L) up to I_K= 35 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 35 kA_rms(t_a≤ 5 s)	315 A gG
Approvals	UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Specific energy (W/R)	306.25 kJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	35 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 35 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 35 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 35 kA_rms(t_a≤ 5 s)	315 A gG
Max. backup fuse (L) for I_K> 35 kA_rms	200 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L/N, L'/N', N/PE (N)) (min.)	10 mm²solid / flexible
Cross-sectional area (L/N, N/PE(N)) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L'/N') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA

.产品已加入收藏夹。

进入收藏夹

商品961110加入购物车。

进入网上商店

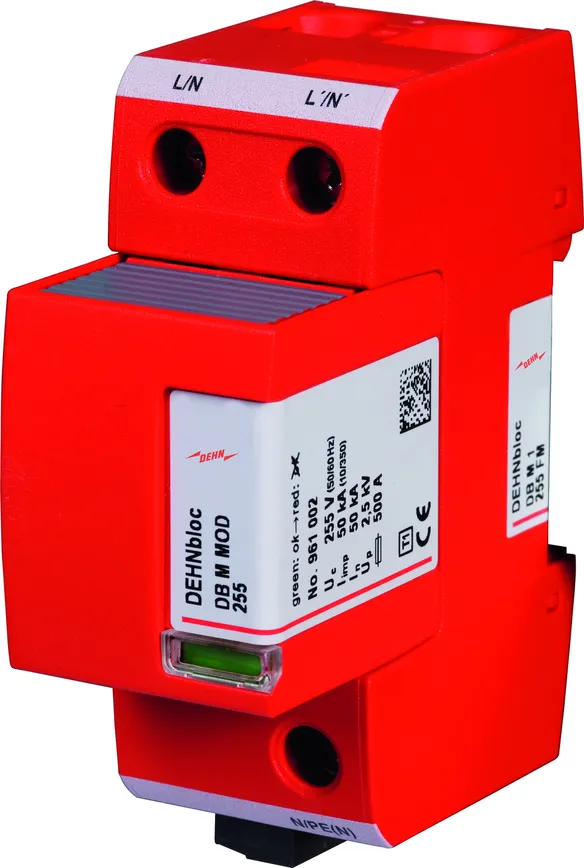

货号 961120 DB M 1 255

全球贸易项目代码 4013364118614, 海关HS编码: 85363090, 总重: 355.80 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

Coordinated DEHNbloc M 1 255 lightning current arrester
Pluggable, coordinated and modular single-pole l
ightning current arrester, width: 2 mod.
with high follow current limitation
Type 1 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350): 50 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DB M 1 255
Part No.: 961120
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	315 A gG
Approvals	VDE, KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Specific energy (W/R)	625.00 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L/N, L'/N', N/PE (N)) (min.)	10 mm²solid / flexible
Cross-sectional area (L/N, N/PE(N)) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L'/N') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	VDE, KEMA, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms (tested by the German VDE)
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limitation / Extinction of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms (t_a ≤ 0.2 s)	500 A gG
– Max. backup fuse (L) up to I_K = 100 kA_rms (t_a ≤ 5 s)	315 A gG
Supplementary data:	---------------------------------
– Nominal discharge current (8/20 µs) (I_n )	50 kA

.产品已加入收藏夹。

进入收藏夹

商品961120加入购物车。

进入网上商店

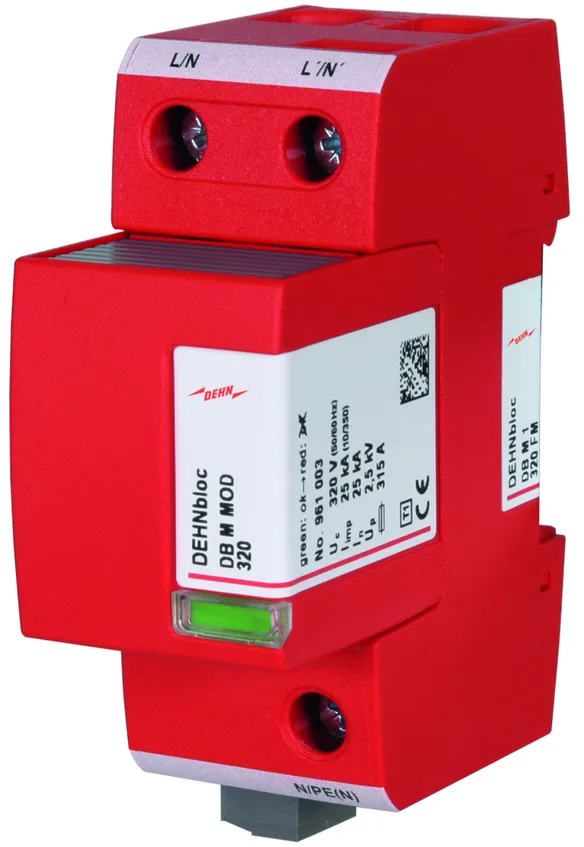

货号 961130 DB M 1 320

全球贸易项目代码 4013364118638, 海关HS编码: 85363090, 总重: 341.00 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

Coordinated DEHNbloc M 1 320 lightning current arrester
Pluggable, coordinated and modular single-pole
lightning current arrester, width: 2 mod.
with high follow current limitation
Type 1 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350): 25 kA
Follow current extinguishing capability: up to 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DB M 1 320
Part No.: 961130
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	315 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	315 A gG
Approvals	UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	277 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	315 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	315 A gG
Max. backup fuse (L) for I_K> 50 kA_rms	200 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	530 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L/N, L'/N', N/PE (N)) (min.)	10 mm²solid / flexible
Cross-sectional area (L/N, N/PE(N)) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L'/N') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL

.产品已加入收藏夹。

进入收藏夹

商品961130加入购物车。

进入网上商店

DEHNbloc M 1 ... FM

Coordinated and modular single-pole lightning current arrester with a high discharge capacity; with remote signalling contact for monitoring system (floating changeover contact).

3 产品

货号 961115 DB M 1 150 FM

全球贸易项目代码 4013364118577, 海关HS编码: 85363090, 总重: 337.30 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

Coordinated DEHNbloc M 1 150 FM lightning current arrester
Pluggable, coordinated and modular single-pole
lightning current arrester, width: 2 mod.
with high follow current limitation and remote signalling contact
Type 1 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Fault indication
Max. continuous operating voltage: 150 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 35 kA
Follow current extinguishing capability: up to 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DB M 1 150 FM
Part No.: 961115
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. backup fuse (L) up to I_K= 35 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 35 kA_rms(t_a≤ 5 s)	315 A gG
Approvals	UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	35 kA
Specific energy (W/R)	306.25 kJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	35 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 35 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 35 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 35 kA_rms(t_a≤ 5 s)	315 A gG
Max. backup fuse (L) for I_K> 35 kA_rms	200 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L/N, L'/N', N/PE (N)) (min.)	10 mm²solid / flexible
Cross-sectional area (L/N, N/PE(N)) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L'/N') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品961115加入购物车。

进入网上商店

货号 961125 DB M 1 255 FM

全球贸易项目代码 4013364118621, 海关HS编码: 85363090, 总重: 359.30 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

Coordinated DEHNbloc M 1 255 FM lightning current arrester
Pluggable, coordinated and modular
single-pole lightning current arrester
with high follow current limitation and remote signalling contact
Type 1 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350): 50 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DB M 1 255 FM
Part No.: 961125
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	315 A gG
Approvals	VDE, KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Specific energy (W/R)	625.00 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	500 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L/N, L'/N', N/PE (N)) (min.)	10 mm²solid / flexible
Cross-sectional area (L/N, N/PE(N)) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L'/N') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	VDE, KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms (tested by the German VDE)
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limitation / Extinction of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms (t_a ≤ 0.2 s)	500 A gG
– Max. backup fuse (L) up to I_K = 100 kA_rms (t_a ≤ 5 s)	315 A gG
Supplementary data:	---------------------------------
– Nominal discharge current (8/20 µs) (I_n )	50 kA

.产品已加入收藏夹。

进入收藏夹

商品961125加入购物车。

进入网上商店

货号 961135 DB M 1 320 FM

全球贸易项目代码 4013364118645, 海关HS编码: 85363090, 总重: 346.00 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

CAD文件

Coordinated DEHNbloc M 1 320 FM lightning current arrester
Pluggable, coordinated and modular
single-pole lightning current arrester
with high follow current limitation and remote signalling contact
Type 1 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350): 25 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DB M 1 320 FM
Part No.: 961135
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	315 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	315 A gG
Approvals	UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Nominal voltage (a.c.) (U_N )	277 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 0.2 s)	315 A gG
Max. backup fuse (L) up to I_K= 50 kA_rms(t_a≤ 5 s)	315 A gG
Max. backup fuse (L) for I_K> 50 kA_rms	200 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	530 V / 120 min. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L/N, L'/N', N/PE (N)) (min.)	10 mm²solid / flexible
Cross-sectional area (L/N, N/PE(N)) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L'/N') (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品961135加入购物车。

进入网上商店

Results for products (0)

Results for content (0)

DEHNbloc modular

详情

DEHNbloc M 1 ...

货号 961110 DB M 1 150

.产品已加入收藏夹。

商品961110加入购物车。

货号 961120 DB M 1 255

.产品已加入收藏夹。

商品961120加入购物车。

货号 961130 DB M 1 320

.产品已加入收藏夹。

商品961130加入购物车。

DEHNbloc M 1 ... FM

货号 961115 DB M 1 150 FM

.产品已加入收藏夹。

商品961115加入购物车。

货号 961125 DB M 1 255 FM

.产品已加入收藏夹。

商品961125加入购物车。

货号 961135 DB M 1 320 FM

.产品已加入收藏夹。

商品961135加入购物车。

DEHNbloc modular

详情

DEHNbloc M 1 ...

货号 961110 DB M 1 150

961110.stp 您没有下载权限961110.stp

961110.igs 您没有下载权限961110.igs

961110.jt 您没有下载权限961110.jt

961110.dwg 您没有下载权限961110.dwg

961110m_E.dxf 您没有下载权限961110m_E.dxf

DEHN.961110.wspak 您没有下载权限DEHN.961110.wspak

DEHN.961110.edz 您没有下载权限DEHN.961110.edz

.产品已加入收藏夹。

商品961110加入购物车。

货号 961120 DB M 1 255

961110.stp 您没有下载权限961110.stp

961110.igs 您没有下载权限961110.igs

961110.jt 您没有下载权限961110.jt

961110.dwg 您没有下载权限961110.dwg

961110m_E.dxf 您没有下载权限961110m_E.dxf

DEHN.961120.wspak 您没有下载权限DEHN.961120.wspak

DEHN.961120.edz 您没有下载权限DEHN.961120.edz

.产品已加入收藏夹。

商品961120加入购物车。

货号 961130 DB M 1 320

961110.stp 您没有下载权限961110.stp

961110.igs 您没有下载权限961110.igs

961110.jt 您没有下载权限961110.jt

961110.dwg 您没有下载权限961110.dwg

961110m_E.dxf 您没有下载权限961110m_E.dxf

DEHN.961130.wspak 您没有下载权限DEHN.961130.wspak

DEHN.961130.edz 您没有下载权限DEHN.961130.edz

.产品已加入收藏夹。

商品961130加入购物车。

DEHNbloc M 1 ... FM

货号 961115 DB M 1 150 FM

961115.stp 您没有下载权限961115.stp

961115.igs 您没有下载权限961115.igs

961115.jt 您没有下载权限961115.jt

961115.dwg 您没有下载权限961115.dwg

961115m_E.dxf 您没有下载权限961115m_E.dxf

DEHN.961115.wspak 您没有下载权限DEHN.961115.wspak

961115_eplan.zip 您没有下载权限961115_eplan.zip

.产品已加入收藏夹。

商品961115加入购物车。

货号 961125 DB M 1 255 FM

961115.stp 您没有下载权限961115.stp

961115.igs 您没有下载权限961115.igs

961115.jt 您没有下载权限961115.jt

961115.dwg 您没有下载权限961115.dwg

961115m_E.dxf 您没有下载权限961115m_E.dxf

DEHN.961125.wspak 您没有下载权限DEHN.961125.wspak

961115_eplan.zip 您没有下载权限961115_eplan.zip

.产品已加入收藏夹。

商品961125加入购物车。

货号 961135 DB M 1 320 FM

961115.stp 您没有下载权限961115.stp

961115.igs 您没有下载权限961115.igs

961115.jt 您没有下载权限961115.jt

961115.dwg 您没有下载权限961115.dwg

961115m_E.dxf 您没有下载权限961115m_E.dxf

DEHN.961135.wspak 您没有下载权限DEHN.961135.wspak

961115_eplan.zip 您没有下载权限961115_eplan.zip

.产品已加入收藏夹。

商品961135加入购物车。
