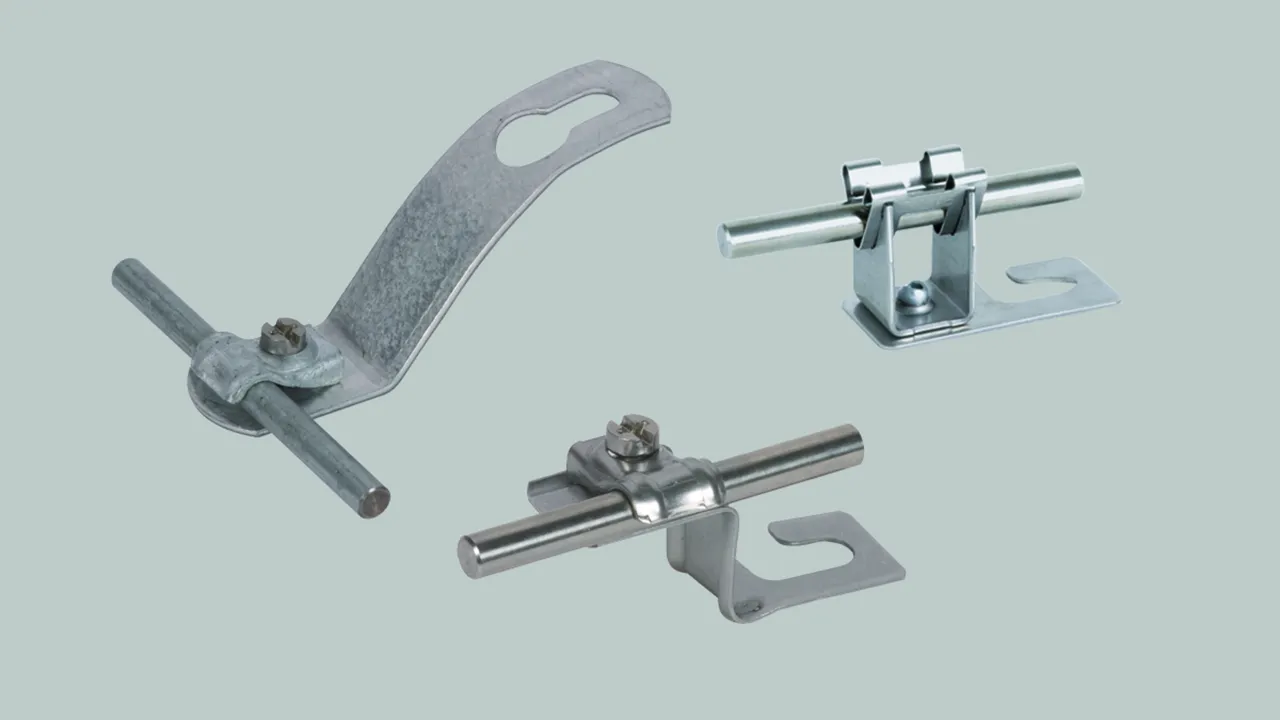

Roof Conductor Holders for Corrugated Sheet Roofs

For installing ridge conductors and conductors on the roof surface. Corrugations 177 mm (profile 5) and 130 mm (profile 8).

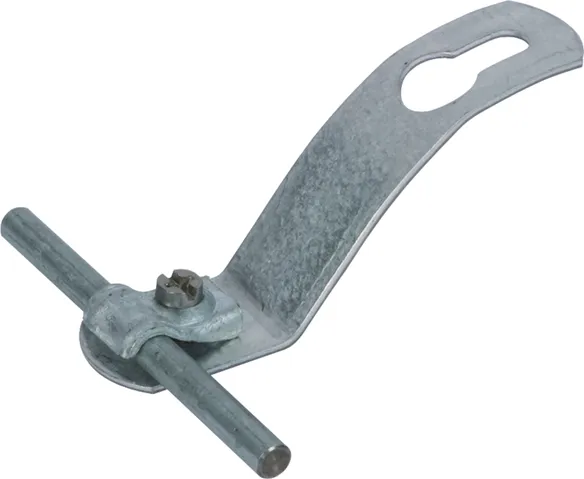

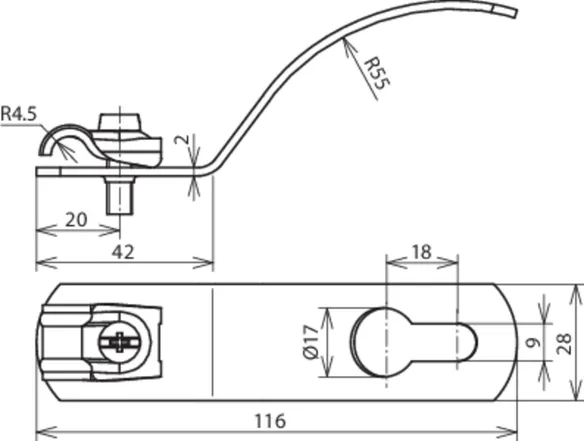

For corrugated sheet roofs (profile 5), with DEHNquick

For installation on the roof surface.

1 产品

货号 202005 DLH DQ 6.10 WPRO5 STTZN

全球贸易项目代码 4013364022041, 海关HS编码: 85389099, 总重: 72.20 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for corrugated sheet roofs (DEHNQUICK), St/tZn
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNquick
Material of conductor holder: St/tZn
Conductor support Rd: 6-10 mm
Conductor routing: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 STTZN
Part No.: 202005
or equivalent.

认证



技术参数

Material of roof conductor holder St/tZn
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Conductor routing fixed

.产品已加入收藏夹。

进入收藏夹

商品202005加入购物车。

进入网上商店

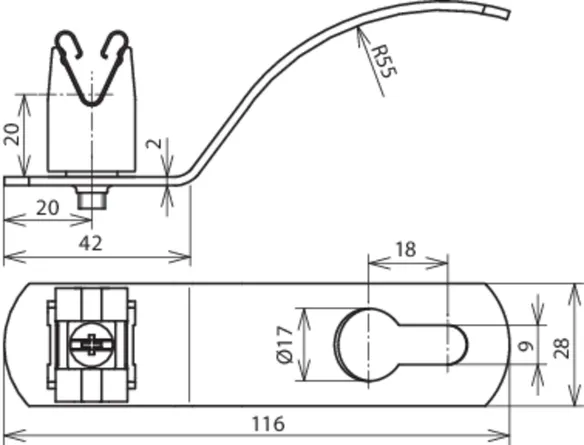

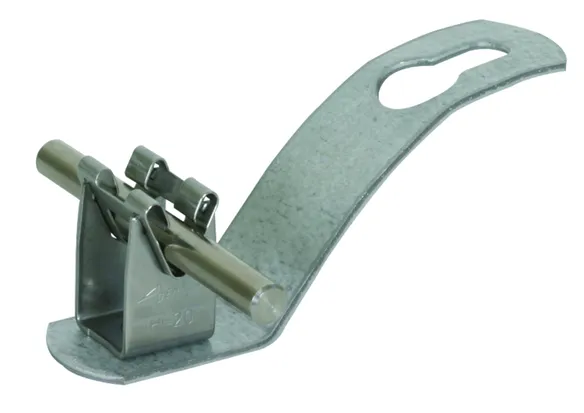

For corrugated sheet roofs (profile 5), with DEHNgrip

For installation on the roof surface.

1 产品

货号 206105 DLH DQ 8 WPRO5 V2A STTZN

全球贸易项目代码 4013364083189, 海关HS编码: 85389099, 总重: 76.30 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for corrugated sheet roofs (DEHNgrip)
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose

Brand: DEHN
Type: DLH DQ 8 WPRO5 V2A STTZN
Part No.: 206105
or equivalent.

认证



技术参数

Material of roof conductor holder St/tZn
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206105加入购物车。

进入网上商店

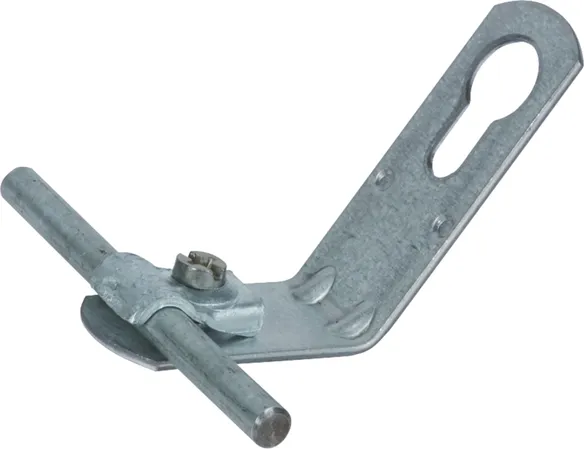

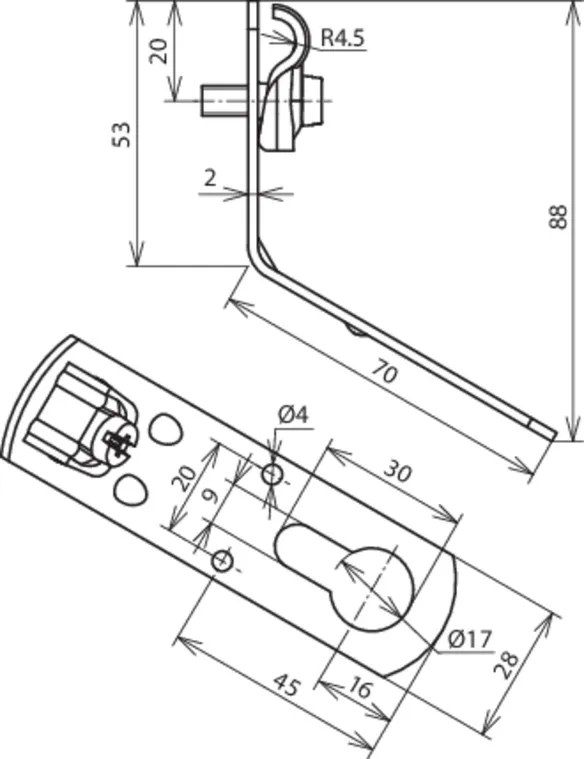

For corrugated sheet roofs (profile 5 and profile 8), with DEHNquick

For installing ridge conductors and conductors on the roof surface, angled design.

1 产品

货号 202015 DLH DQ 6.10 WPRO5 8 STTZN

全球贸易项目代码 4013364022089, 海关HS编码: 85389099, 总重: 61.20 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for corrugated sheet roofs (DEHNquick), St/tZn
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, angled unit
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNquick
Material of conductor holder: St/tZn
Conductor support Rd: 6-10 mm
Conductor routing: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 8 STTZN
Part No.: 202015
or equivalent.

认证



技术参数

Material of roof conductor holder St/tZn
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Conductor routing fixed

.产品已加入收藏夹。

进入收藏夹

商品202015加入购物车。

进入网上商店

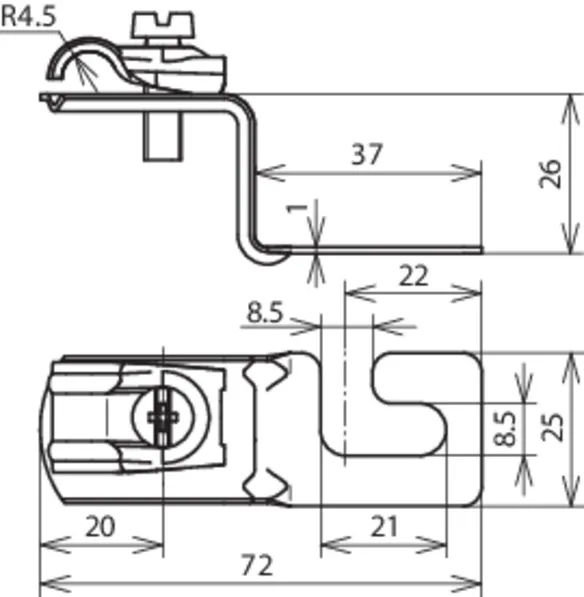

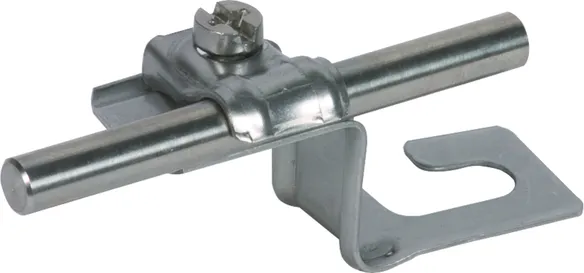

For corrugated sheet roofs (profile 5 and profile 8), with DEHNquick

For installing ridge conductors and conductors on the roof surface, angled design.

1 产品

货号 202906 DLH DQ 6.10 WPRO5 8 V2A

全球贸易项目代码 4013364022102, 海关HS编码: 85389099, 总重: 34.20 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for corrugated sheet roofs (DEHNquick), StSt
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, angled unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNquick
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 8 V2A
Part No.: 202906
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed

.产品已加入收藏夹。

进入收藏夹

商品202906加入购物车。

进入网上商店

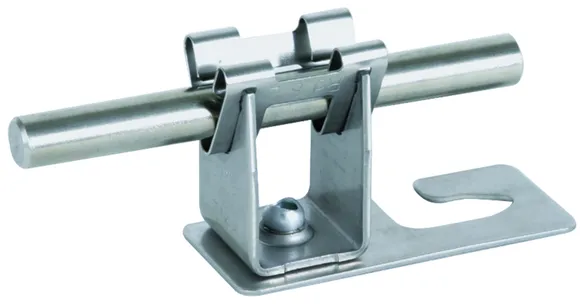

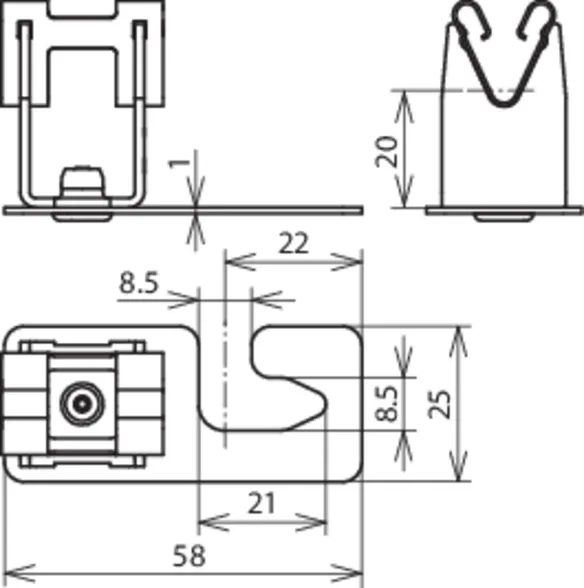

For corrugated sheet roofs (profile 5 and profile 8), with DEHNgrip

For installing ridge conductors and conductors on the roof surface, straight design.

1 产品

货号 206339 DLH DG 8 H20 WPRO5 8 V2A

全球贸易项目代码 4013364047730, 海关HS编码: 85389099, 总重: 29.00 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for corrugated sheet roofs (DEHNgrip), StSt
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose

Brand: DEHN
Type: DLH DG 8 H20 WPRO5 8 V2A
Part No.: 206339
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206339加入购物车。

进入网上商店

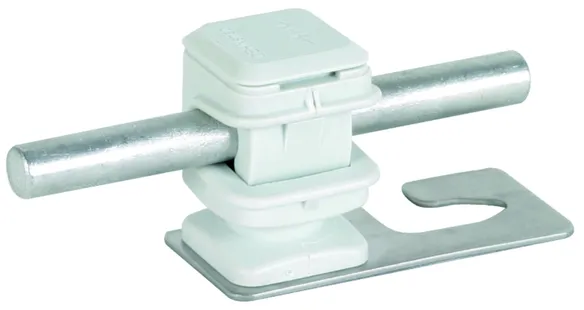

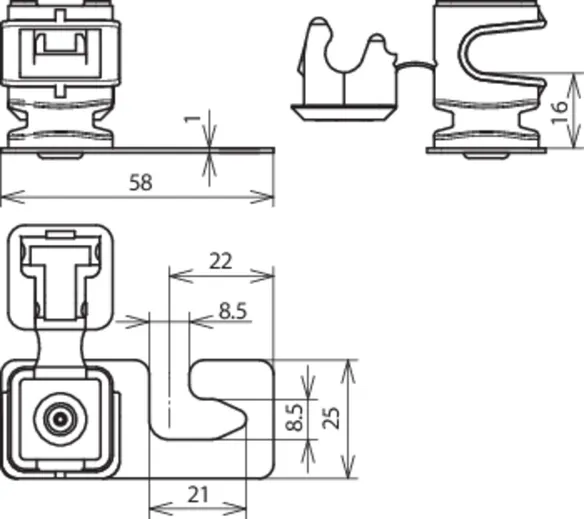

For corrugated sheet roofs (profile 5 and profile 8), with DEHNsnap

For installing ridge conductors and conductors on the roof surface, straight design.

2 产品

货号 204906 DLH DS 8 H16 WPRO5 8 GR V2A

全球贸易项目代码 4013364028456, 海关HS编码: 85389099, 总重: 21.00 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for corrugated sheet roofs (DEHNsnap), grey, StSt
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNsnap
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H16 WPRO5 8 GR V2A
Part No.: 204906
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Conductor routing loose

.产品已加入收藏夹。

进入收藏夹

商品204906加入购物车。

进入网上商店

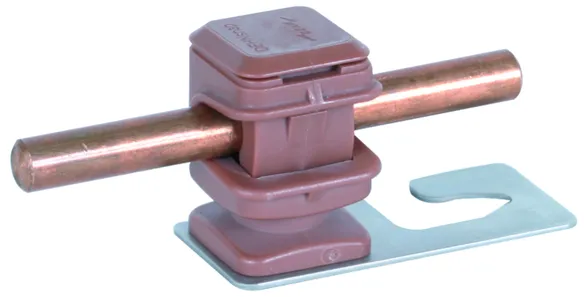

货号 204916 DLH DS 8 H16 WPRO5 8 BR V2A

全球贸易项目代码 4013364030565, 海关HS编码: 85389099, 总重: 20.80 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for corrugated sheet roofs (DEHNsnap), brown, StSt
Roof conductor holder for corrugated sheet roofs for installing ridge conductors and conductors
on the roof surface
For corrugated sheet roofs, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNsnap
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H16 WPRO5 8 BR V2A
Part No.: 204916
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Conductor routing loose

.产品已加入收藏夹。

进入收藏夹

商品204916加入购物车。

进入网上商店
