Roof Conductor Holders for Metal Roofs

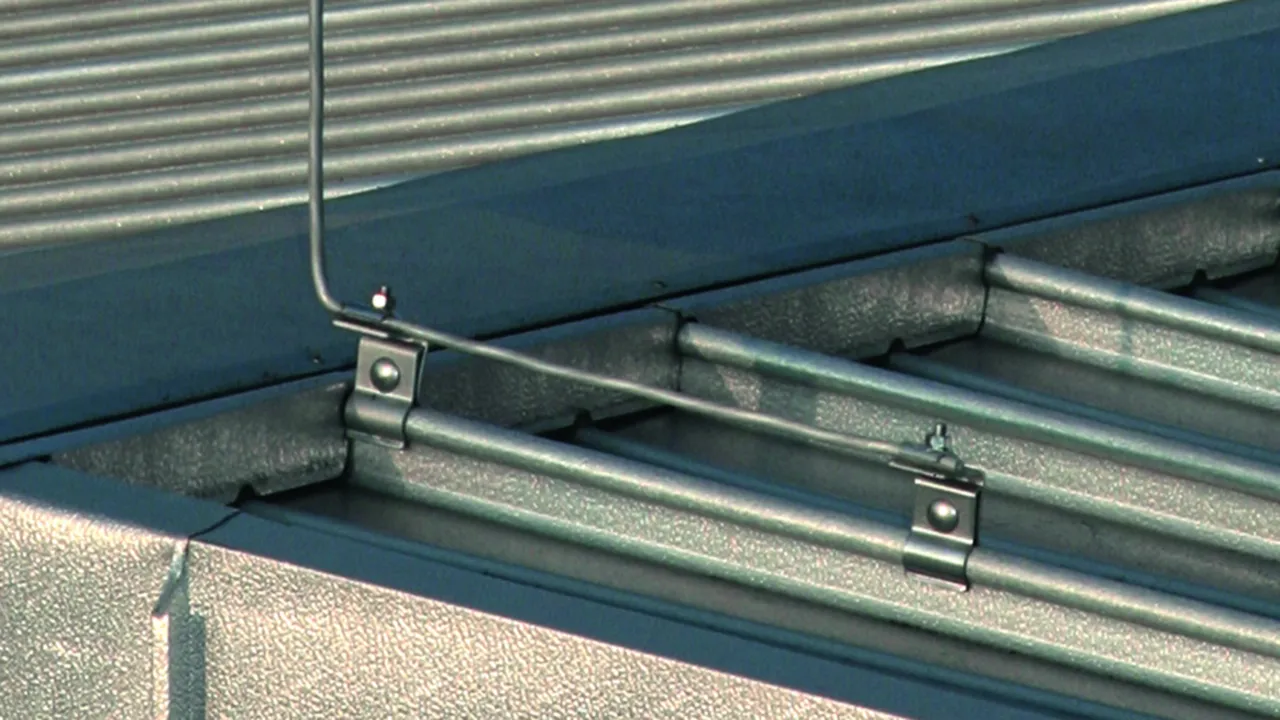

For fixing additional air-termination systems on metal roofs.
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile, a lightning current carrying capability of 100 kA (10/350 µs) is provided.

For roofs with round standing seam, with clamping piece

2 产品

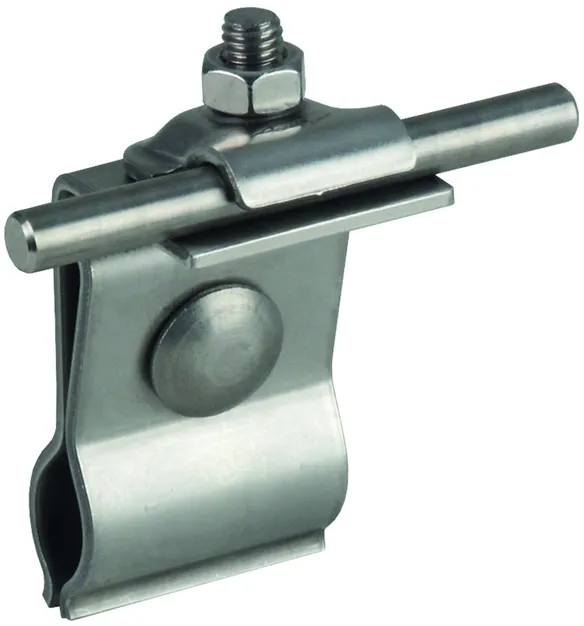

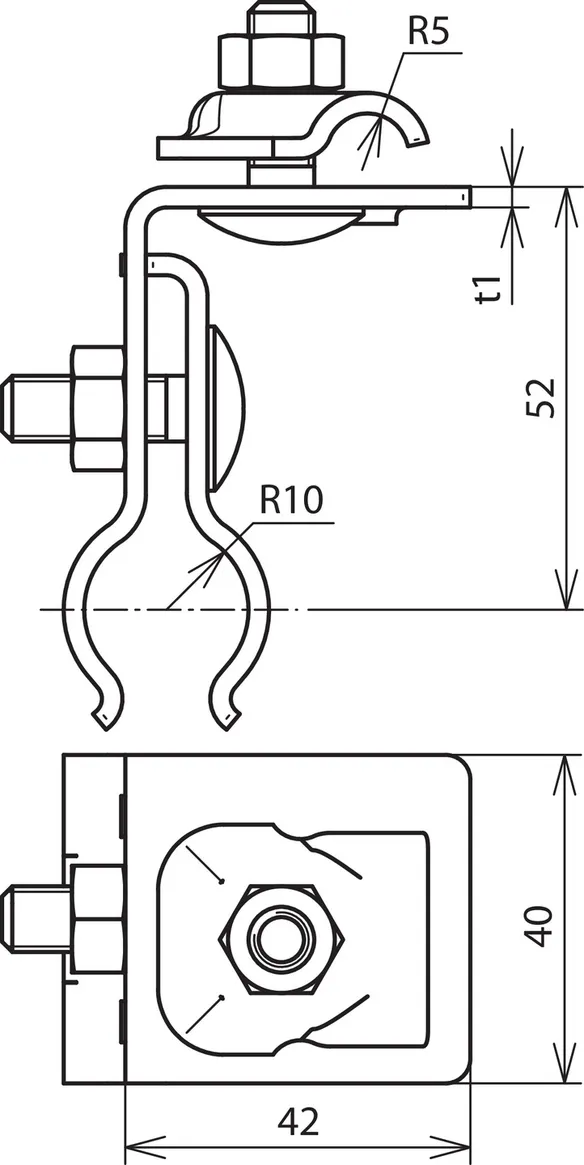

货号 223010 DLH KB 6.10 RSF20.25 V2A

全球贸易项目代码 4013364092778, 海关HS编码: 85389099, 总重: 186.30 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for metal roofs with a StSt clamping piece (round standing seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or air-termination rods on metal
roofs e.g. Part No. 123 021
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: StSt
Clamping range: Ø20-25 mm
Type of conductor holder: clamping piece
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: DLH KB 6.10 RSF20.25 V2A
Part No.: 223010
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range Ø20-25 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品223010加入购物车。

进入网上商店

货号 223040 DLH KB 6.10 RSF20.25 AL

全球贸易项目代码 4013364096752, 海关HS编码: 85389099, 总重: 102.30 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for metal roofs with clamping piece Al (round standing seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or air-termination rods on metal
roofs e.g. Part No. 123 021
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: Al
Clamping range: Ø20-25 mm
Type of conductor holder: clamping piece
Material of conductor holder: Al
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: DLH KB 6.10 RSF20.25 AL
Part No.: 223040
or equivalent.

认证



技术参数

Material of roof conductor holder Al
Clamping range Ø20-25 mm
Material of conductor holder Al
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品223040加入购物车。

进入网上商店

For roofs with round standing seam, with DEHNgrip

2 产品

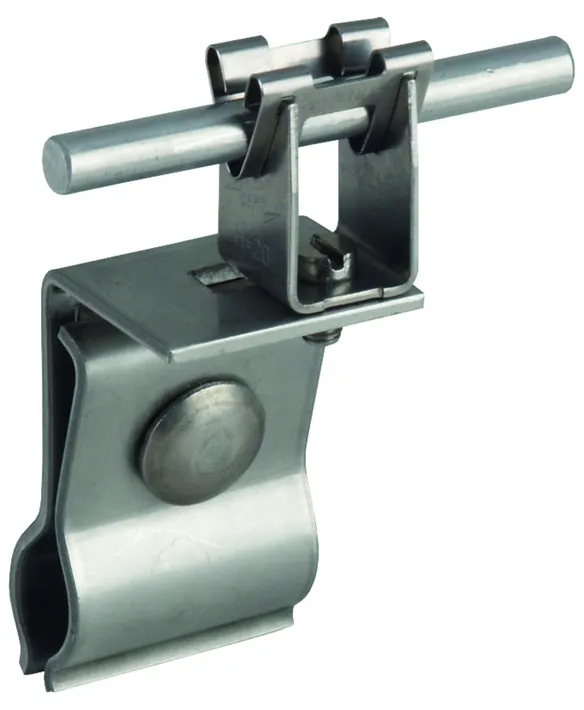

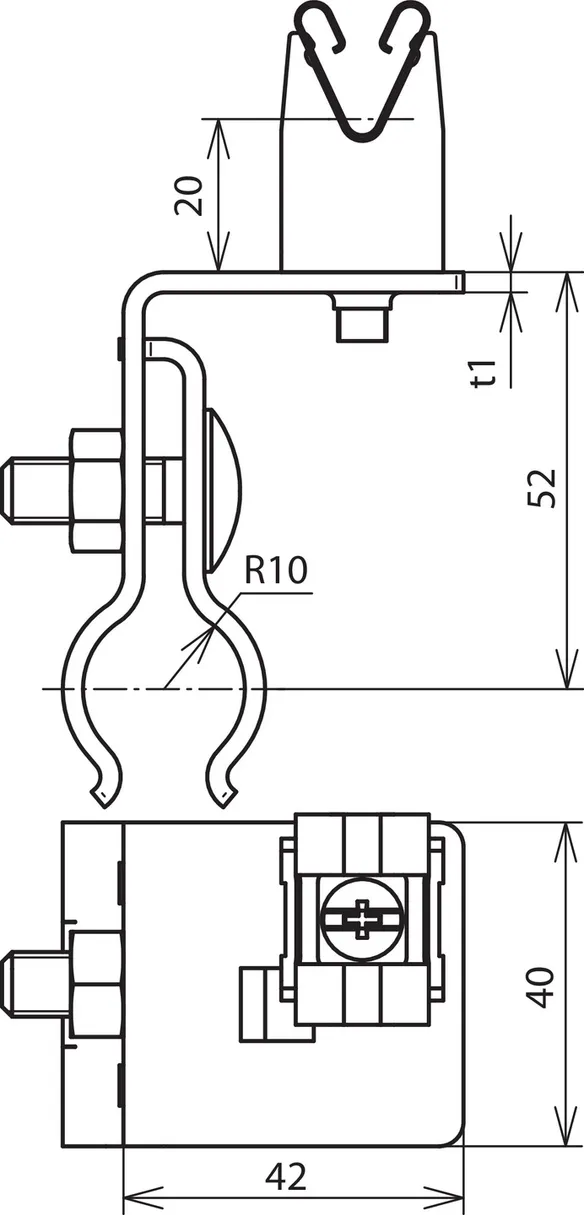

货号 223011 DLH DG 8 RSF20.25 V2A

全球贸易项目代码 4013364092785, 海关HS编码: 85389099, 总重: 170.02 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for metal roofs with DEHNgrip, StSt (round standing seam)
Roof conductor holder for fixing additional air-termination systems such as air-termination conductors on metal roofs.


Material of roof conductor holder: StSt
Clamping range: Ø20-25 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 RSF20.25 V2A
Part No.: 223011
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range Ø20-25 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品223011加入购物车。

进入网上商店

货号 223041 DLH DG 8 RSF20.25 AL

全球贸易项目代码 4013364096769, 海关HS编码: 85389099, 总重: 99.02 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for metal roofs with DEHNgrip, Al (round standing seam)
Roof conductor holder for fixing additional air-termination systems such as air-termination conductors on metal roofs.

Material of roof conductor holder: Al
Clamping range: Ø20-25 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 RSF20.25 AL
Part No.: 223041
or equivalent.

认证



技术参数

Material of roof conductor holder Al
Clamping range Ø20-25 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品223041加入购物车。

进入网上商店

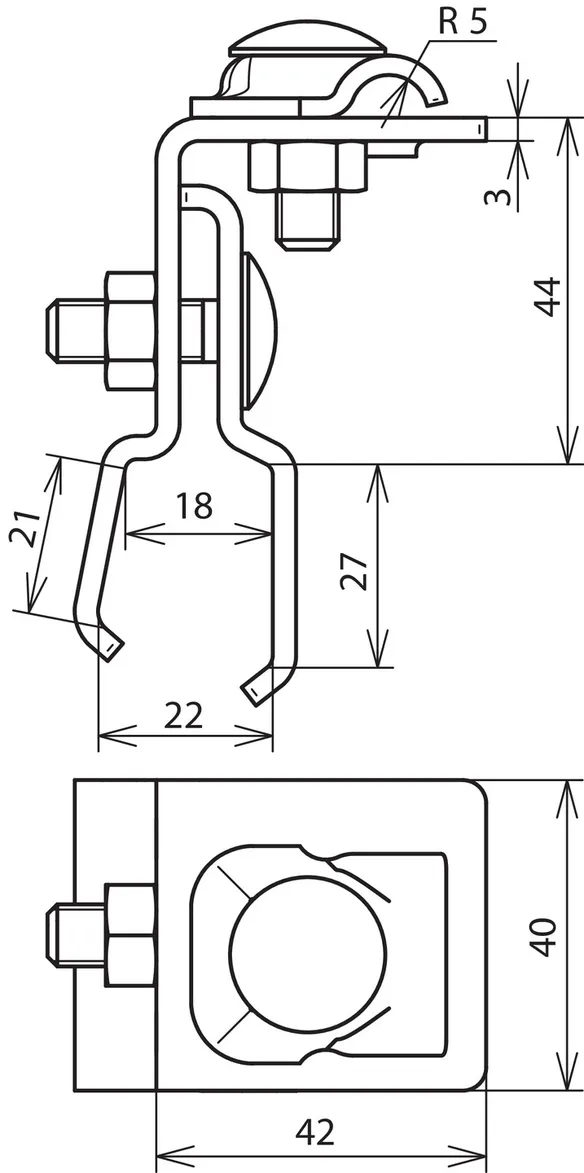

For roofs with clamping seam, with clamping piece (e.g. RIB ROOF Speed 500 by Zambelli)

1 产品

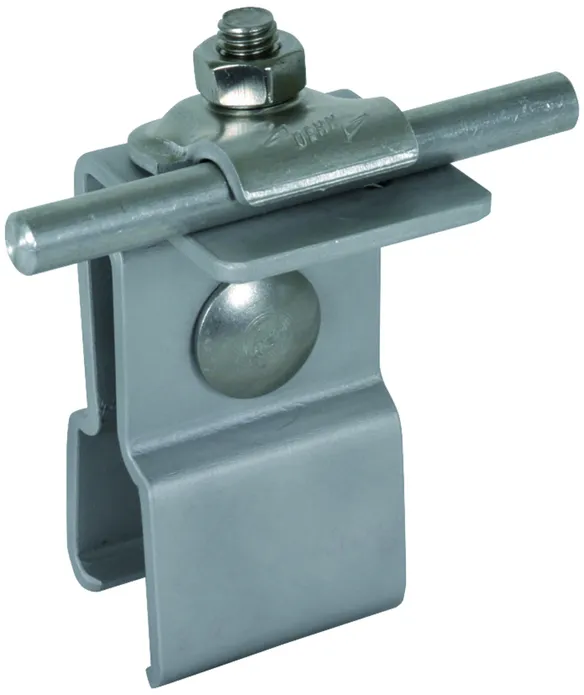

货号 223070 DLH KB 6.10 KF18.22 AL

全球贸易项目代码 4013364108738, 海关HS编码: 85389099, 总重: 105.62 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for metal roofs with clamping piece, Al (clamping seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or conductors on metal roofs (e.g. Part No. 123 021).
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: Al
Clamping range: approx. 18 / 22 mm
Type of conductor holder: clamping piece
Material of conductor holder: Al
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: DLH KB 6.10 KF18.22 AL
Part No.: 223070
or equivalent.

认证



技术参数

Material of roof conductor holder Al
Clamping range approx. 18 / 22 mm
Material of conductor holder Al
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品223070加入购物车。

进入网上商店

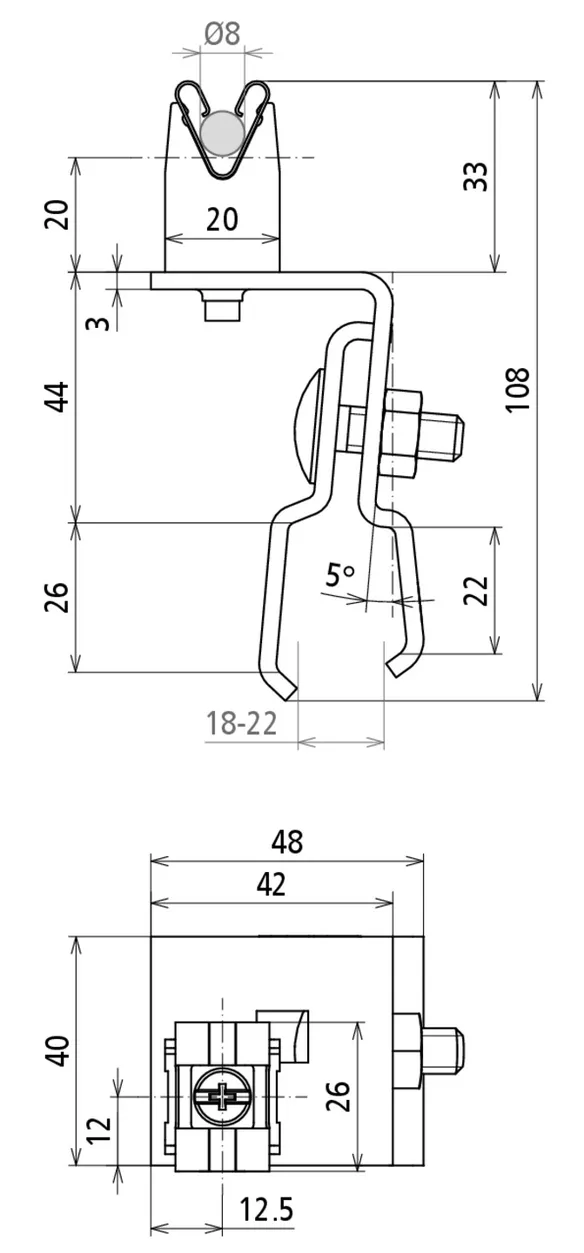

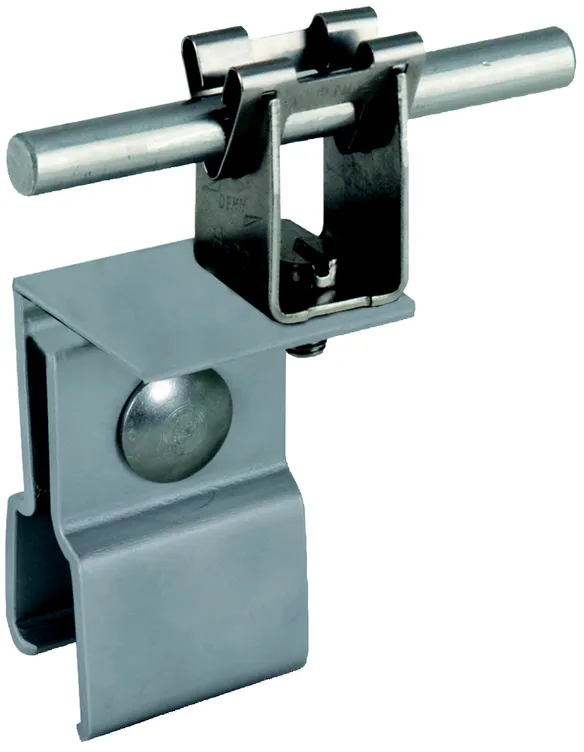

For roofs with clamping seam, with DEHNgrip (e.g. RIB-ROOF Speed 500 by Zambelli)

1 产品

货号 223071 DLH DG 8 KF18.22 AL

全球贸易项目代码 4013364108745, 海关HS编码: 85389099, 总重: 96.80 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for metal roofs with DEHNgrip conductor holder (clamping seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems
Material of roof conductor holder: Al
Clamping range: approx. 18 / 22 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-1

Brand: DEHN
Type: DLH DG 8 KF18.22 AL
Part No.: 223071
or equivalent.



技术参数

Material of roof conductor holder Al
Clamping range approx. 18 / 22 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品223071加入购物车。

进入网上商店

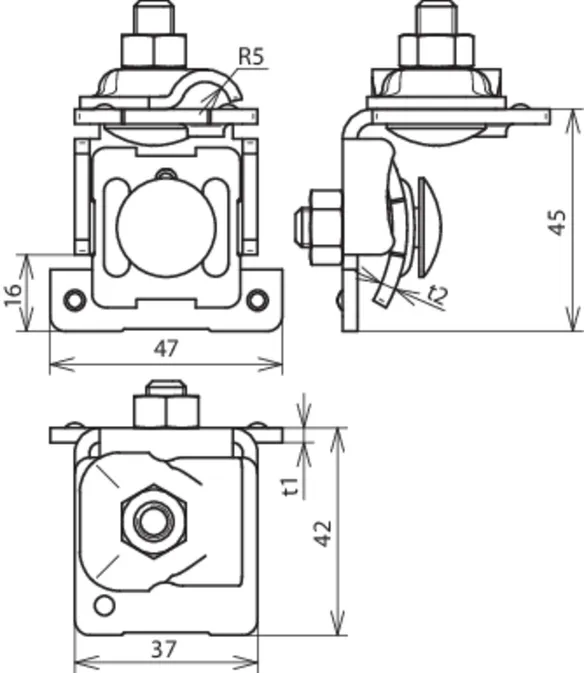

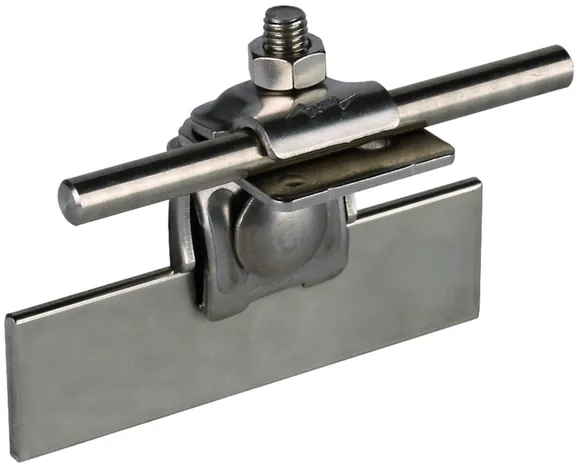

For roofs with standing seam, with clamping piece

1 产品

货号 365059 FK KB 6.10 KBF0.7 8 W V2A

全球贸易项目代码 4013364091856, 海关HS编码: 85359000, 总重: 136.30 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamps with increased connection area (angled), StSt
Seam clamp with enlarged contact surface for fixing additional air-termination systems or air-termination rods on metal roofs (e.g. Part No. 123 021).
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: StSt
Clamping range: 0.7-8 mm
Type of conductor holder: clamping piece
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 W V2A
Part No.: 365059
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 0.7-8 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品365059加入购物车。

进入网上商店

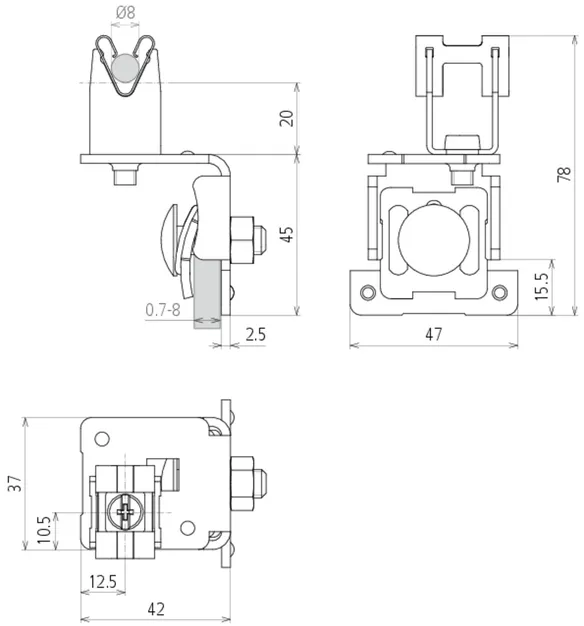

For roofs with standing seam, with DEHNgrip

1 产品

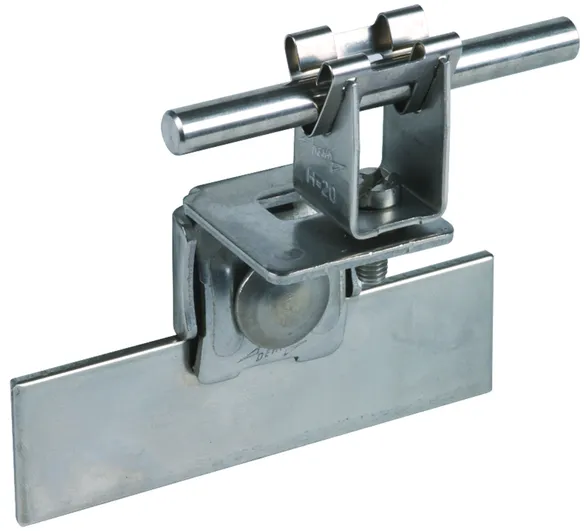

货号 223031 DLH DG 8 SF0.7 8 V2A

全球贸易项目代码 4013364092815, 海关HS编码: 85389099, 总重: 119.30 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for metal roofs with DEHNgrip, StSt (standing seam)
Roof conductor holder for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Clamping range: 0.7-8 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 SF0.7 8 V2A
Part No.: 223031
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 0.7-8 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品223031加入购物车。

进入网上商店

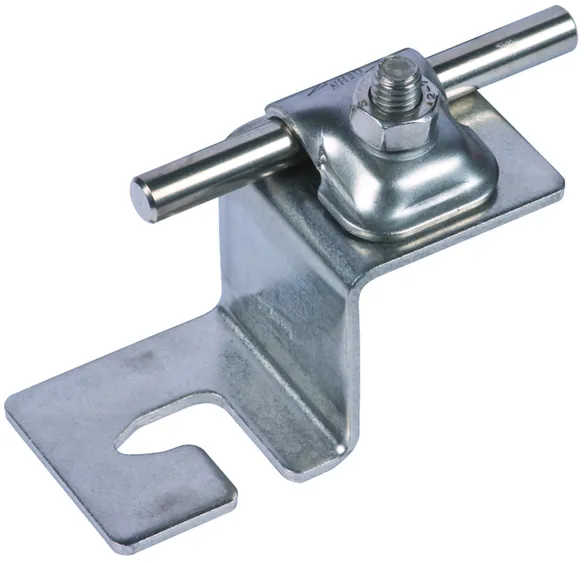

For trapezoidal roofs, with clamping piece

Hung into the fixing screws of the roof.

1 产品

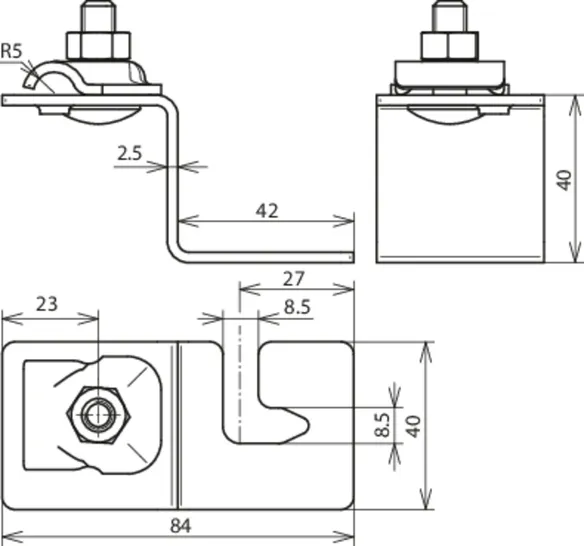

货号 223020 DLH KB 6.10 TD B8.5 V2A

全球贸易项目代码 4013364092792, 海关HS编码: 85389099, 总重: 123.30 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for metal roofs with clamping piece, StSt (trapezoidal)
Roof conductor holder for metal roofs for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Type of conductor holder: clamping piece
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed

Brand: DEHN
Type: DLH KB 6.10 TD B8.5 V2A
Part No.: 223020
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed

.产品已加入收藏夹。

进入收藏夹

商品223020加入购物车。

进入网上商店

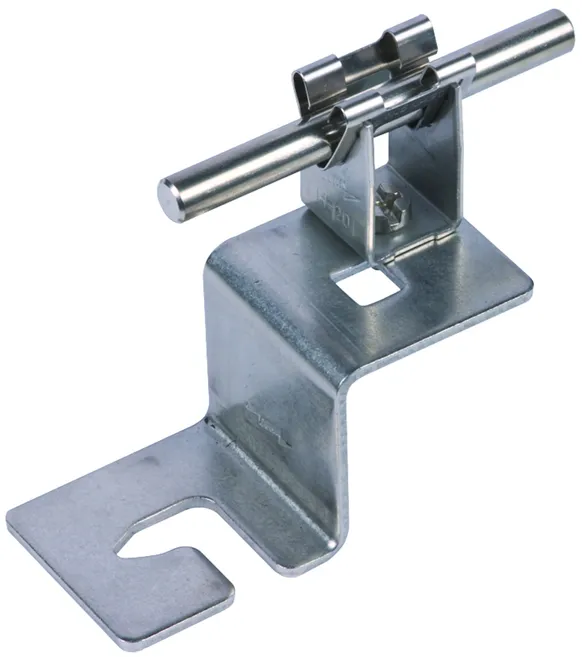

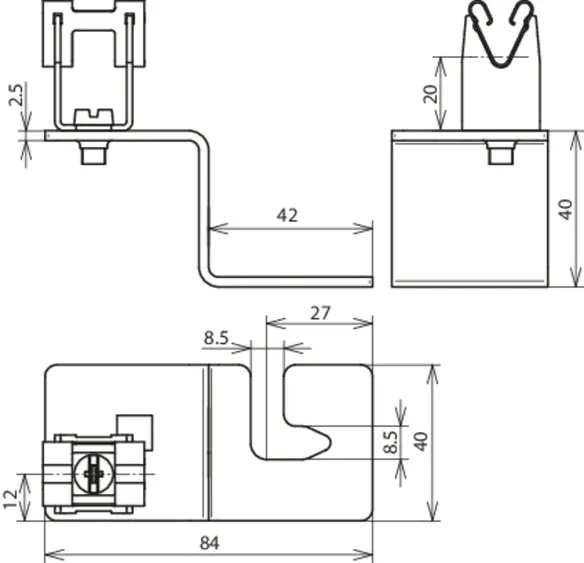

For trapezoidal roofs, with DEHNgrip

Hung into the fixing screws of the roof.

1 产品

货号 223021 DLH DG 8 TD B8.5 V2A

全球贸易项目代码 4013364092808, 海关HS编码: 85389099, 总重: 105.30 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for metal roofs with DEHNgrip, StSt (trapezoidal)
Roof conductor holder for metal roofs for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 TD B8.5 V2A
Part No.: 223021
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品223021加入购物车。

进入网上商店
