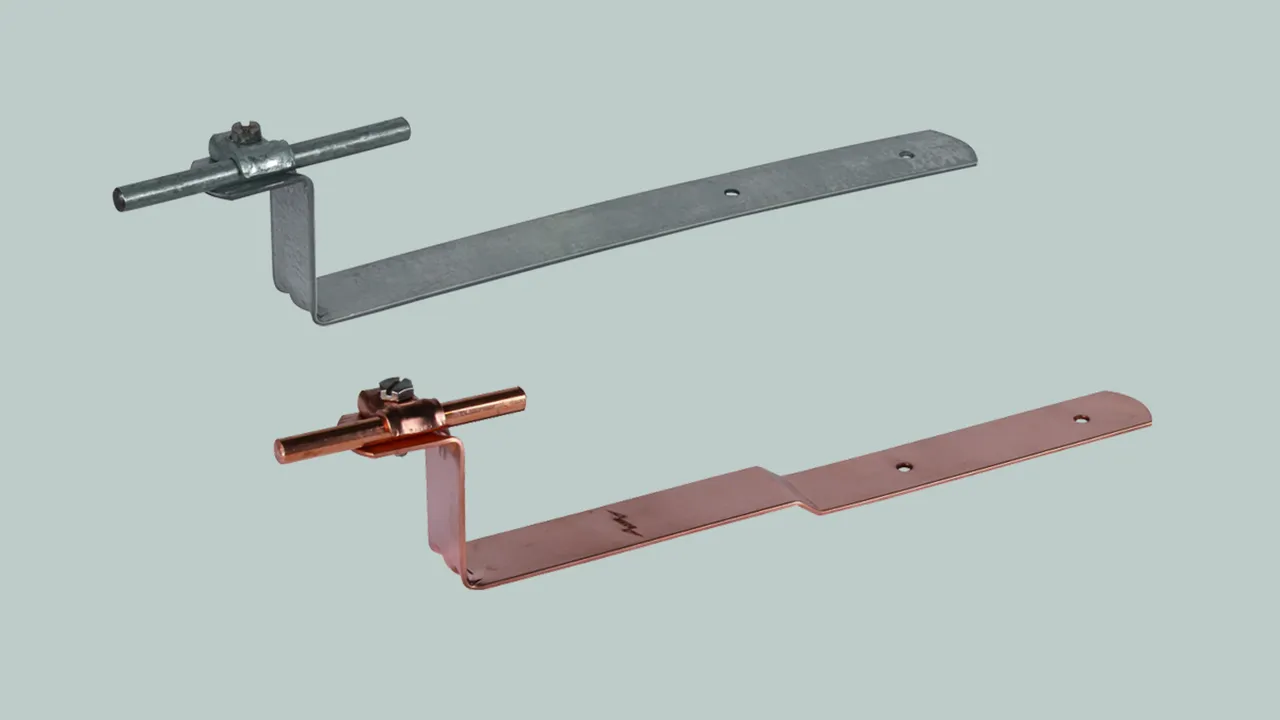

Roof Conductor Holders with Brace for Roof Surfaces

Inserted on tiled, slated and roofing felt roofs.

Straight

Straight, with conductor holder DEHNquick, for conductors Rd 6-10 mm, fixed conductor routing.

3 产品

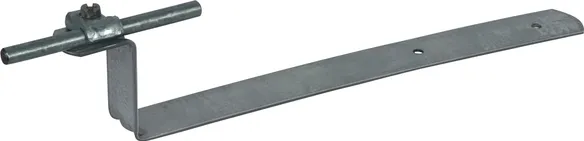

货号 202040 DLH DQ 6.10 H55 L260 STTZN

全球贸易项目代码 4013364019935, 海关HS编码: 85389099, 总重: 175.26 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

Roof conductor holder for gable roofs, straight, St/tZn, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Straight, with DEHNQUICK conductor holder
Material of roof conductor holder: St/tZn
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 STTZN
Part No.: 202040
or equivalent.



技术参数

Material of roof conductor holder St/tZn
Height of brace 55 mm
Length of brace 260 / 2 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm

.产品已加入收藏夹。

进入收藏夹

商品202040加入购物车。

进入网上商店

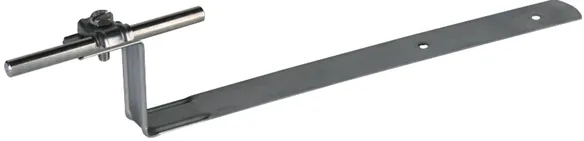

货号 202902 DLH DQ 6.10 H55 L260 V2A

全球贸易项目代码 4013364020467, 海关HS编码: 85389099, 总重: 86.36 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for gable roofs, straight, StSt, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Straight, with DEHNQUICK conductor holder
Material of roof conductor holder: StSt
Height of brace: 55 mm
Length of brace : 260 / 1 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 V2A
Part No.: 202902
or equivalent.



技术参数

Material of roof conductor holder StSt
Height of brace 55 mm
Length of brace 260 / 1 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm

.产品已加入收藏夹。

进入收藏夹

商品202902加入购物车。

进入网上商店

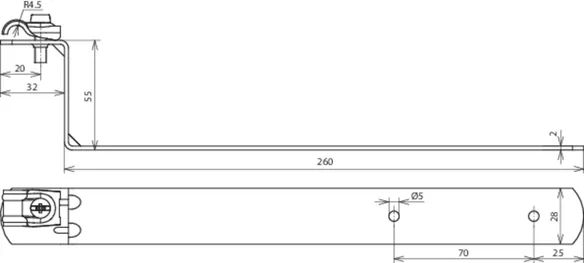

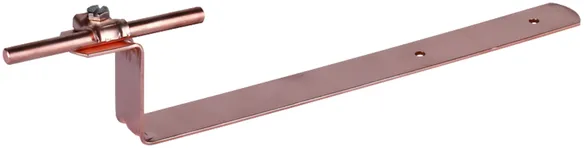

货号 202037 DLH DQ 6.10 H55 L260 CU

全球贸易项目代码 4013364019942, 海关HS编码: 85389099, 总重: 192.16 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for gable roofs, straight, Cu, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Straight, with DEHNQUICK conductor holder
Material of roof conductor holder: Cu
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 CU
Part No.: 202037
or equivalent.



技术参数

Material of roof conductor holder Cu
Height of brace 55 mm
Length of brace 260 / 2 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm

.产品已加入收藏夹。

进入收藏夹

商品202037加入购物车。

进入网上商店

Cranked

With conductor holder DEHNquick, fixed conductor routing.

3 产品

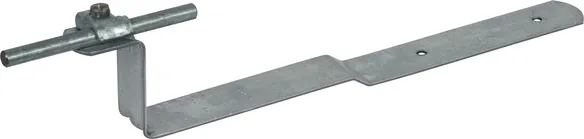

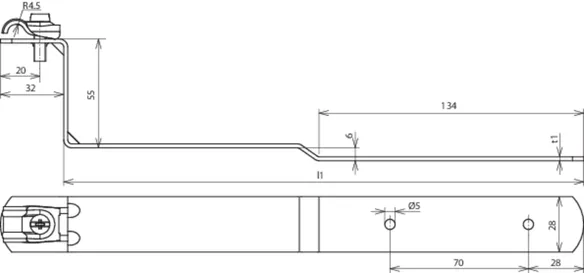

货号 202010 DLH DQ 6.10 H55 L260 GS STTZN

全球贸易项目代码 4013364019874, 海关HS编码: 85389099, 总重: 164.36 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for gable roofs, cranked, St/tZn, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Cranked, with DEHNQUICK conductor holder
Material of roof conductor holder: St/tZn
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 GS STTZN
Part No.: 202010
or equivalent.



技术参数

Material of roof conductor holder St/tZn
Height of brace 55 mm
Length of brace 260 / 2 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm

.产品已加入收藏夹。

进入收藏夹

商品202010加入购物车。

进入网上商店

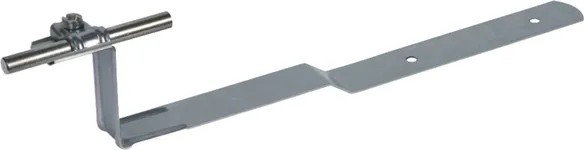

货号 202901 DLH DQ 6.10 H55 L260 GS V2A

全球贸易项目代码 4013364019928, 海关HS编码: 85389099, 总重: 87.56 g, 包装单位: 50.00 pc(s)


附加信息

Roof conductor holder for gable roofs, cranked, StSt, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Cranked, with DEHNQUICK conductor holder
Material of roof conductor holder: StSt
Height of brace: 55 mm
Length of brace : 260 / 1 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 GS V2A
Part No.: 202901
or equivalent.



技术参数

Material of roof conductor holder StSt
Height of brace 55 mm
Length of brace 260 / 1 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm

.产品已加入收藏夹。

进入收藏夹

商品202901加入购物车。

进入网上商店

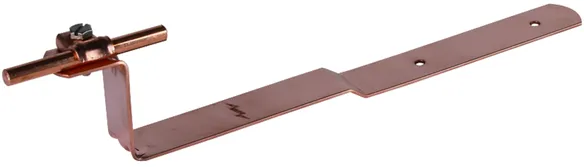

货号 202017 DLH DQ 6.10 H55 L260 GS CU

全球贸易项目代码 4013364019904, 海关HS编码: 85389099, 总重: 194.06 g, 包装单位: 1.00 pc(s)


附加信息

Roof conductor holder for gable roofs, cranked, Cu, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Cranked, with DEHNQUICK conductor holder
Material of roof conductor holder: Cu
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 GS CU
Part No.: 202017
or equivalent.



技术参数

Material of roof conductor holder Cu
Height of brace 55 mm
Length of brace 260 / 2 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm

.产品已加入收藏夹。

进入收藏夹

商品202017加入购物车。

进入网上商店
