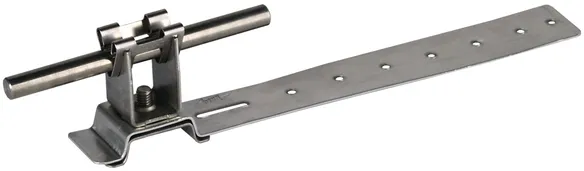

Roof Conductor Holders with Embossed Brace for Roof Surfaces

For fixing air-termination and down conductors.

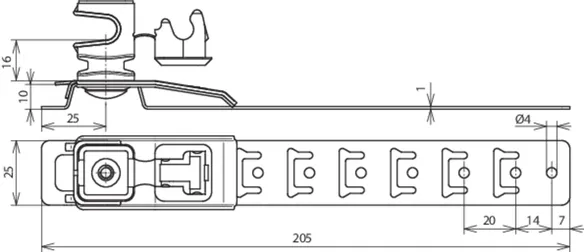

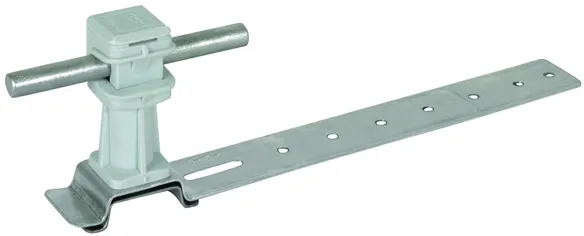

UNIsnap height 16 mm

With prepunched points for bending it and hooking it into roof tiles or battens, with conductor holder DEHNsnap, loose conductor routing.

6 产品

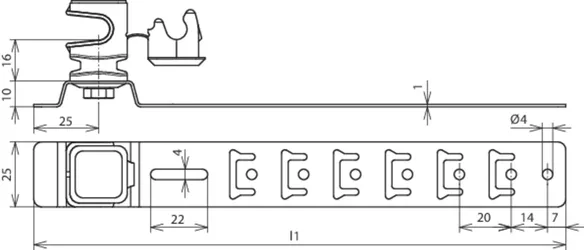

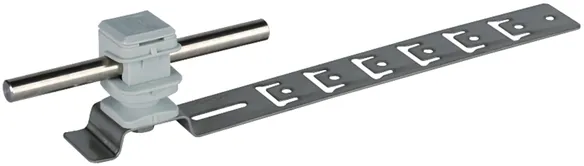

货号 204149 DLH US 8 H16 L205 GR V2A

全球贸易项目代码 4013364042285, 海关HS编码: 85389099, 总重: 55.42 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L205 GR V2A
Part No.: 204149
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204149加入购物车。

进入网上商店

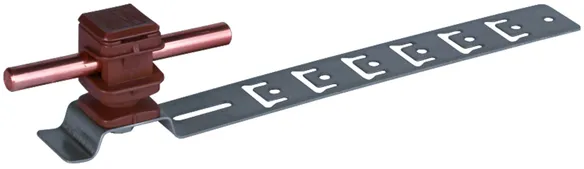

货号 204921 DLH US 8 H16 L205 BR V2A

全球贸易项目代码 4013364030589, 海关HS编码: 85389099, 总重: 53.02 g, 包装单位: 1.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, brown, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L205 BR V2A
Part No.: 204921
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204921加入购物车。

进入网上商店

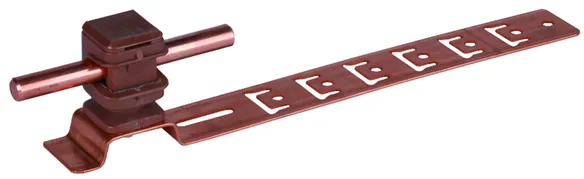

货号 204147 DLH US 8 H16 L205 BR GALCU

全球贸易项目代码 4013364042513, 海关HS编码: 85389099, 总重: 54.02 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L205 BR GALCU
Part No.: 204147
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204147加入购物车。

进入网上商店

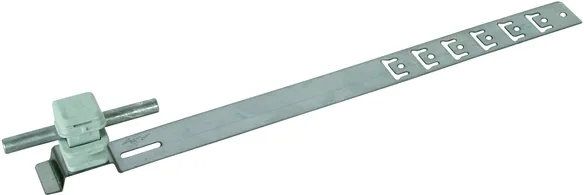

货号 204159 DLH US 8 H16 L335 GR V2A

全球贸易项目代码 4013364042537, 海关HS编码: 85389099, 总重: 82.96 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L335 GR V2A
Part No.: 204159
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204159加入购物车。

进入网上商店

货号 204157 DLH US 8 H16 L335 BR GALCU

全球贸易项目代码 4013364042520, 海关HS编码: 85389099, 总重: 88.16 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 335 mm
Height of conductor holder: 16 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L335 BR GALCU
Part No.: 204157
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Length of brace (l1) 335 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204157加入购物车。

进入网上商店

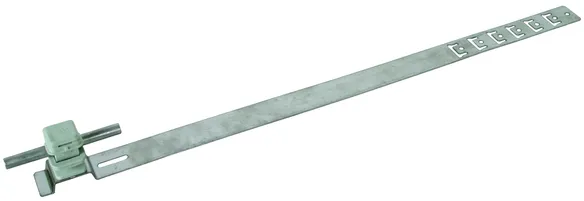

货号 204169 DLH US 8 H16 L475 GR V2A

全球贸易项目代码 4013364042551, 海关HS编码: 85389099, 总重: 106.58 g, 包装单位: 1.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L475 GR V2A
Part No.: 204169
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204169加入购物车。

进入网上商店

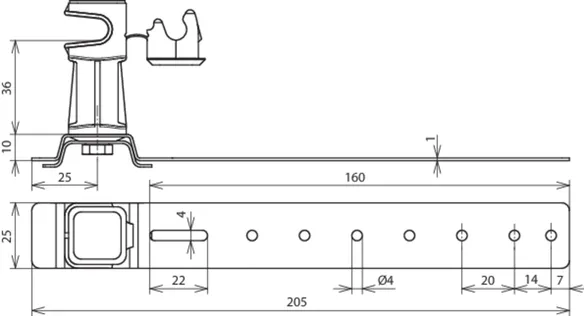

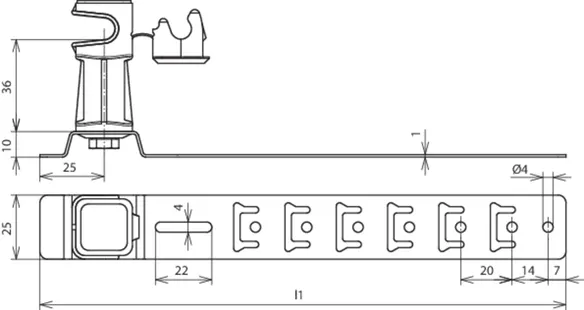

UNIsnap height 36 mm

With prepunched points, for bending it and hooking it into roof tiles or battens, with conductor holder DEHNsnap, loose conductor routing.

8 产品

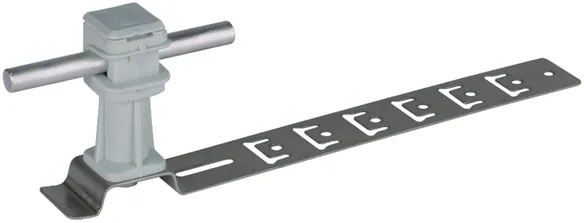

货号 204179 DLH US 8 H36 L205 GR V2A

全球贸易项目代码 4013364042575, 海关HS编码: 85389099, 总重: 63.02 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L205 GR V2A
Part No.: 204179
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204179加入购物车。

进入网上商店

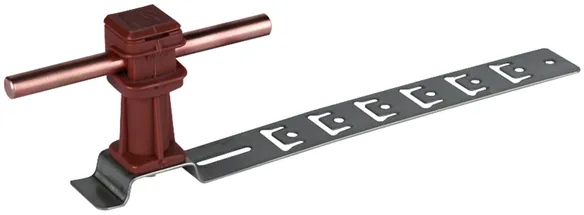

货号 204924 DLH US 8 H36 L205 BR V2A

全球贸易项目代码 4013364030619, 海关HS编码: 85389099, 总重: 67.22 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L205 BR V2A
Part No.: 204924
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204924加入购物车。

进入网上商店

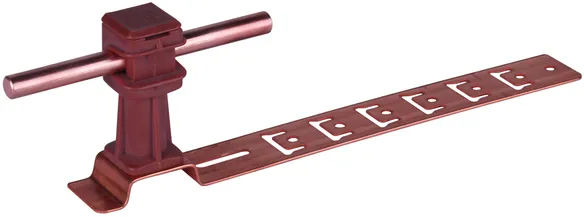

货号 204177 DLH US 8 H36 L205 BR GALCU

全球贸易项目代码 4013364042568, 海关HS编码: 85389099, 总重: 73.02 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 36 mm
Roof conductor holder, with embossed brace for roofss
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L205 BR GALCU
Part No.: 204177
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204177加入购物车。

进入网上商店

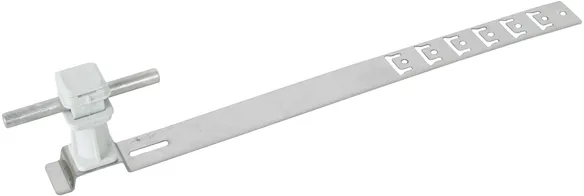

货号 204189 DLH US 8 H36 L335 GR V2A

全球贸易项目代码 4013364042599, 海关HS编码: 85389099, 总重: 88.16 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L335 GR V2A
Part No.: 204189
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204189加入购物车。

进入网上商店

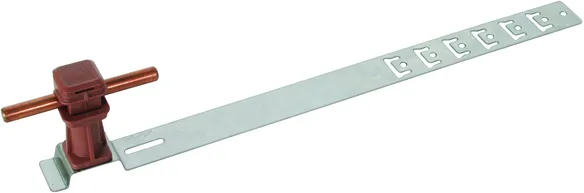

货号 204925 DLH US 8 H36 L335 BR V2A

全球贸易项目代码 4013364030626, 海关HS编码: 85389099, 总重: 94.96 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L335 BR V2A
Part No.: 204925
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204925加入购物车。

进入网上商店

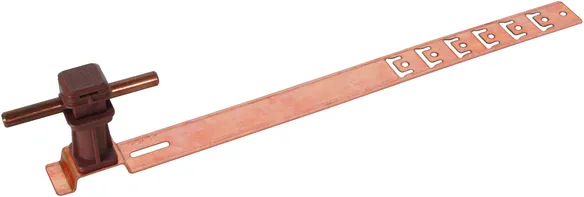

货号 204187 DLH US 8 H36 L335 BR GALCU

全球贸易项目代码 4013364042582, 海关HS编码: 85389099, 总重: 96.36 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 335 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L335 BR GALCU
Part No.: 204187
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Length of brace (l1) 335 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204187加入购物车。

进入网上商店

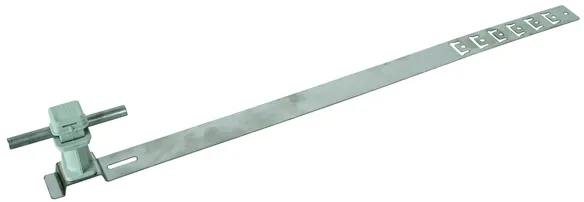

货号 204199 DLH US 8 H36 L475 GR V2A

全球贸易项目代码 4013364042278, 海关HS编码: 85389099, 总重: 117.98 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L475 GR V2A
Part No.: 204199
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204199加入购物车。

进入网上商店

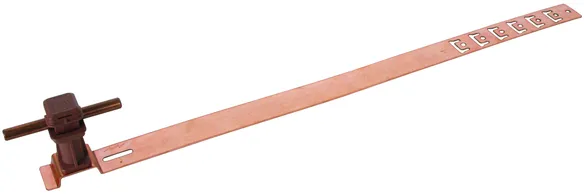

货号 204197 DLH US 8 H36 L475 BR GALCU

全球贸易项目代码 4013364042605, 海关HS编码: 85389099, 总重: 118.88 g, 包装单位: 1.00 pc(s)


附加信息

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 475 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L475 BR GALCU
Part No.: 204197
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Length of brace (l1) 475 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204197加入购物车。

进入网上商店

UNIsnap with clamping part

With prepunched points for bending it and hooking it into roof tiles or battens,with additional clamping part e.g. for slated roofs, with conductor holder DEHNsnap, loose conductor routing.

1 产品

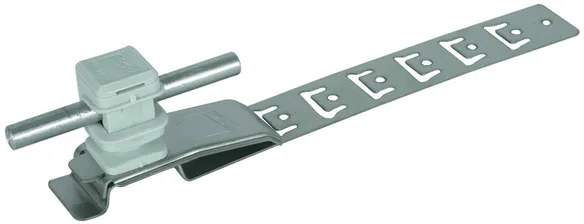

货号 204089 LH US 8 H16 L205 KT GR V2A

全球贸易项目代码 4013364109568, 海关HS编码: 85389099, 总重: 70.32 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

Gable roofs - UNIsnap roof conductor holder, with clamping part, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending it and hooking it into roof battens, with additional clamping part
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH US 8 H16 L205 KT GR V2A
Part No.: 204089
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204089加入购物车。

进入网上商店

DEHNsnap with Al base brace

Moulds itself to the grooves of the tile, with conductor holder DEHNsnap, loose conductor routing.

2 产品

货号 204170 DLH DS 8 H36 L205 GR AL

全球贸易项目代码 4013364072435, 海关HS编码: 85389099, 总重: 42.82 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - DEHNsnap roof conductor holder with Al brace, grey, Al
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNsnap conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L205 GR AL
Part No.: 204170
or equivalent.

认证



技术参数

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204170加入购物车。

进入网上商店

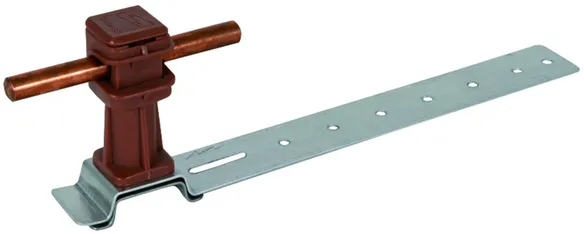

货号 204171 DLH DS 8 H36 L205 BR AL

全球贸易项目代码 4013364073708, 海关HS编码: 85389099, 总重: 41.42 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - DEHNsnap roof conductor holder with Al brace, brown, Al
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNsnap conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L205 BR AL
Part No.: 204171
or equivalent.

认证



技术参数

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204171加入购物车。

进入网上商店

UNIgrip height 20 mm

With prepunched points for bending it and hooking it on roof tiles or battens, with conductor holder DEHNgrip, loose conductor routing.

6 产品

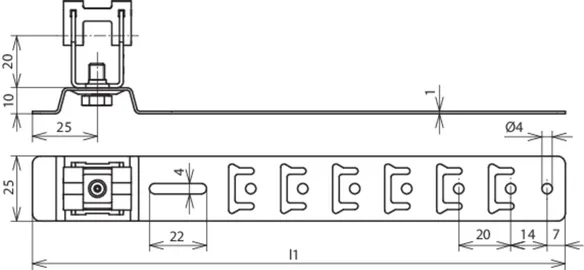

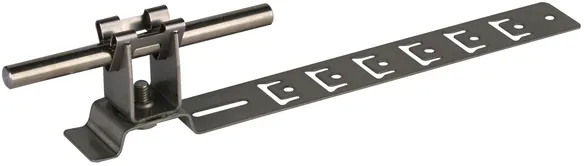

货号 206209 DLH UG 8 H20 L205 V2A

全球贸易项目代码 4013364042759, 海关HS编码: 85389099, 总重: 61.40 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L205 V2A
Part No.: 206209
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206209加入购物车。

进入网上商店

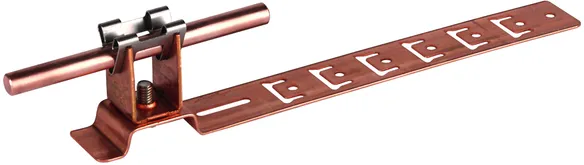

货号 206207 DLH UG 8 H20 L205 CU

全球贸易项目代码 4013364054257, 海关HS编码: 85389099, 总重: 66.90 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L205 CU
Part No.: 206207
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206207加入购物车。

进入网上商店

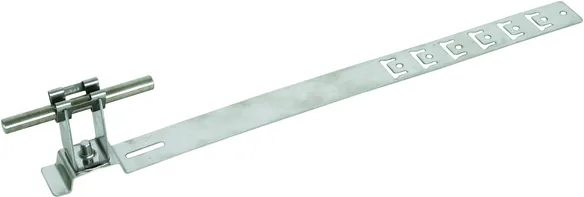

货号 206219 DLH UG 8 H20 L335 V2A

全球贸易项目代码 4013364042766, 海关HS编码: 85389099, 总重: 87.96 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L335 V2A
Part No.: 206219
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206219加入购物车。

进入网上商店

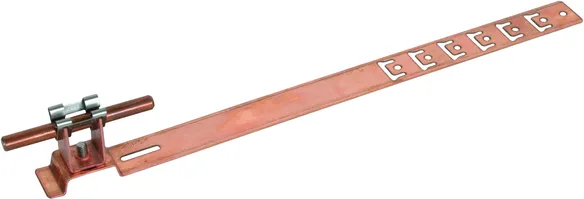

货号 206217 DLH UG 8 H20 L335 CU

全球贸易项目代码 4013364052208, 海关HS编码: 85389099, 总重: 97.56 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 335 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L335 CU
Part No.: 206217
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Length of brace (l1) 335 mm
Height of conductor holder 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206217加入购物车。

进入网上商店

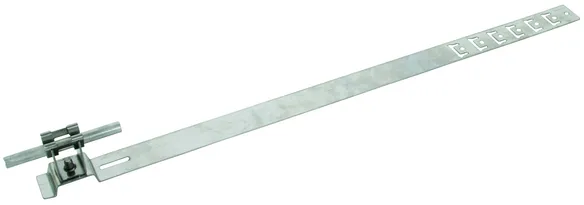

货号 206229 DLH UG 8 H20 L475 V2A

全球贸易项目代码 4013364042773, 海关HS编码: 85389099, 总重: 120.48 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L475 V2A
Part No.: 206229
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206229加入购物车。

进入网上商店

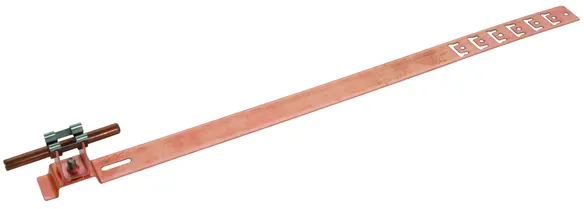

货号 206227 DLH UG 8 H20 L475 CU

全球贸易项目代码 4013364054264, 海关HS编码: 85389099, 总重: 123.78 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 475 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L475 CU
Part No.: 206227
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Length of brace (l1) 475 mm
Height of conductor holder 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206227加入购物车。

进入网上商店

UNIgrip height 32 mm

With prepunched points for bending it and hooking it on roof tiles or battens, with conductor holder DEHNgrip, loose conductor routing.

3 产品

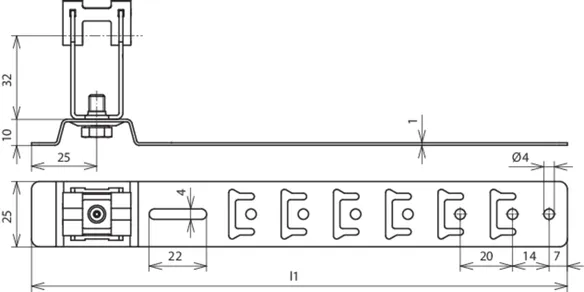

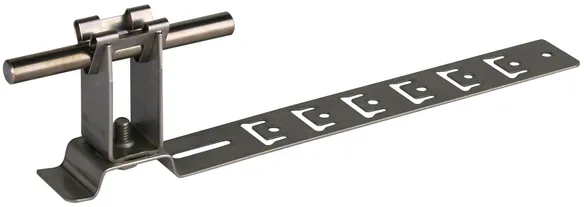

货号 206309 DLH UG 8 H32 L205 V2A

全球贸易项目代码 4013364042780, 海关HS编码: 85389099, 总重: 63.02 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder, height: 32 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H32 L205 V2A
Part No.: 206309
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206309加入购物车。

进入网上商店

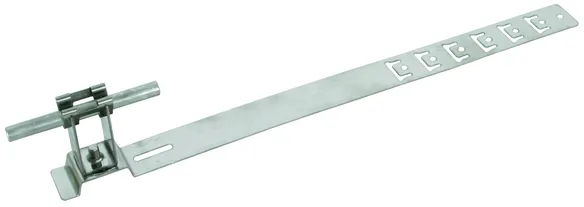

货号 206319 DLH UG 8 H32 L335 V2A

全球贸易项目代码 4013364042667, 海关HS编码: 85389099, 总重: 92.16 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

Gable roofs - UNIgrip roof conductor holder, height: 32 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H32 L335 V2A
Part No.: 206319
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206319加入购物车。

进入网上商店

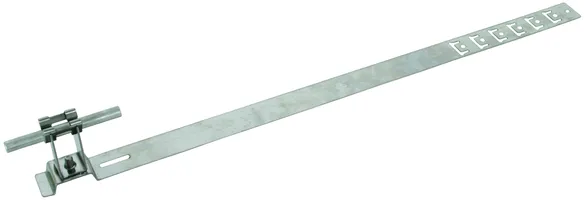

货号 206329 DLH UG 8 H32 L475 V2A

全球贸易项目代码 4013364042797, 海关HS编码: 85389099, 总重: 116.58 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder, height: 32 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H32 L475 V2A
Part No.: 206329
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206329加入购物车。

进入网上商店

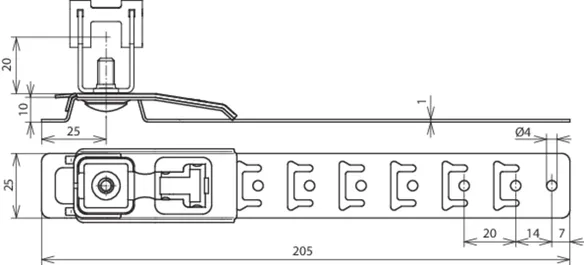

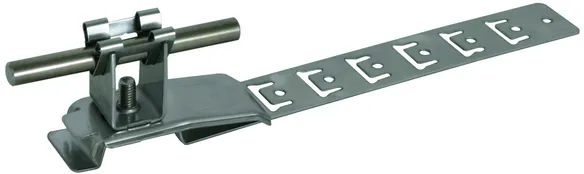

UNIgrip with clamping part, height 20 mm

With prepunched points for bending it and hooking it into roof tiles or battens, with additional clamping part, e.g. for slated roofs, with conductor holder DEHNgrip, loose conductor routing.

1 产品

货号 206289 DLH UG 8 H20 L205 KT V2A

全球贸易项目代码 4013364149427, 海关HS编码: 85389099, 总重: 79.12 g, 包装单位: 50.00 pc(s)


附加信息

Gable roof - UNIgrip roof conductor holder, with clamping part, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens with additional clamping part
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L205 KT V2A
Part No.: 206289
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206289加入购物车。

进入网上商店

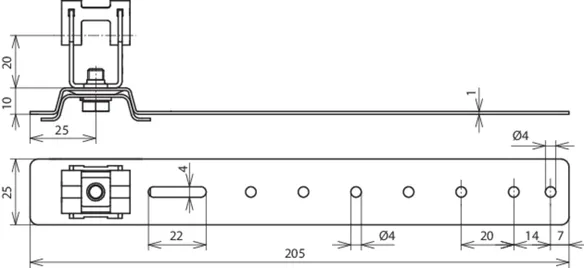

DEHNgrip with Al brace

Moulds itself to the grooves of the tile, with conductor holder DEHNgrip, loose conductor routing.

2 产品

货号 206170 DLH DG 8 H20 L205 V2A AL

全球贸易项目代码 4013364082816, 海关HS编码: 85389099, 总重: 54.02 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder with Al brace, height: 20 mm
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNgrip conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 L205 V2A AL
Part No.: 206170
or equivalent.

认证



技术参数

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206170加入购物车。

进入网上商店

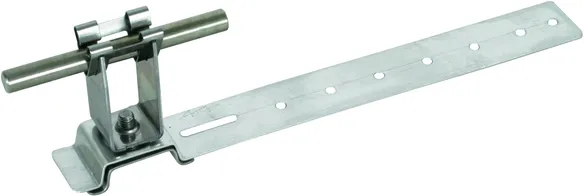

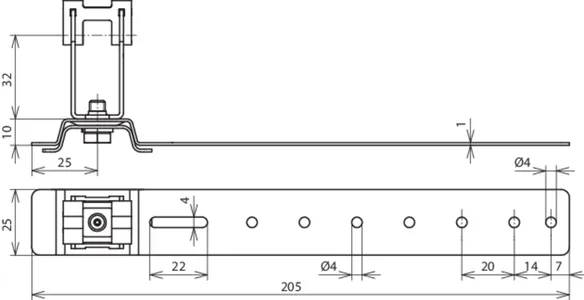

货号 206171 DLH DG 8 H32 L205 V2A AL

全球贸易项目代码 4013364089488, 海关HS编码: 85389099, 总重: 54.02 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - UNIgrip roof conductor holder with Al brace, height: 20 mm
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNgrip conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H32 L205 V2A AL
Part No.: 206171
or equivalent.

认证



技术参数

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206171加入购物车。

进入网上商店
返回顶部
