Roof Conductor Holders for Ridge and Hip Tiles

For fixing air-termination conductors on the ridge.

FIRSTsnap

Attached to the ridge tile clip of dry ridges, with conductor holder DEHNsnap, loose conductor routing.

2 产品

货号 204029 LH FS 8 H16 GR V2A

全球贸易项目代码 4013364032286, 海关HS编码: 85389099, 总重: 37.80 g, 包装单位: 50.00 pc(s)


附加信息

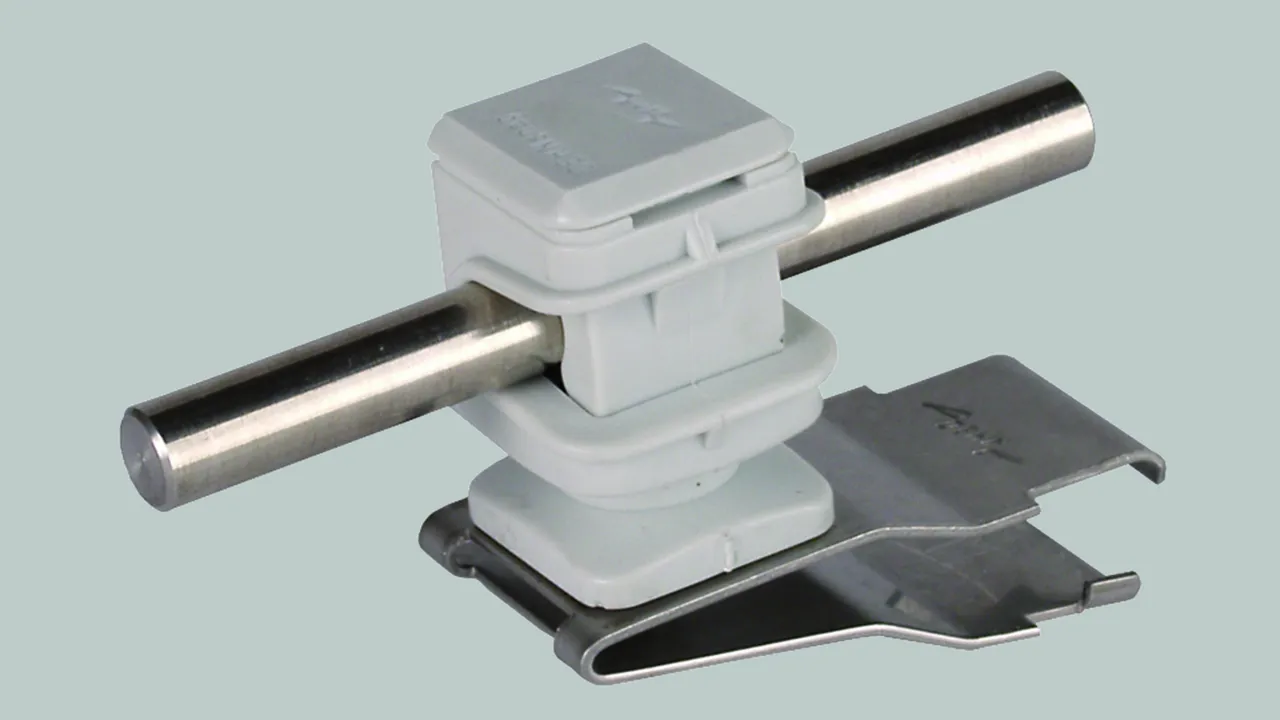

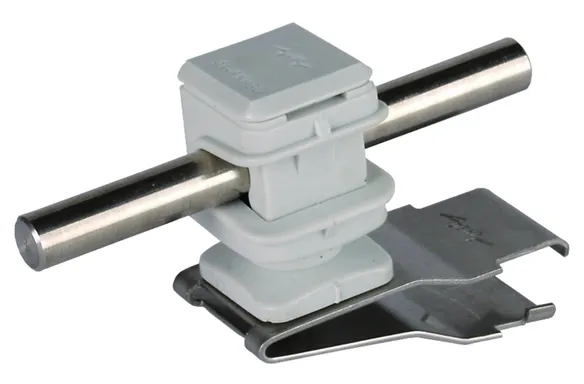

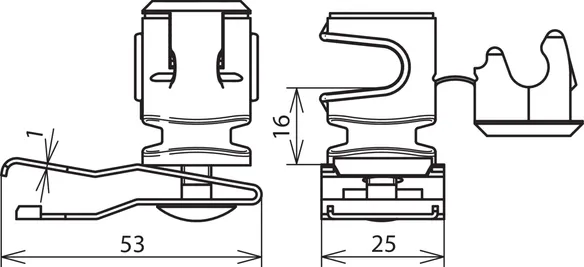

Gable roofs - FIRSTsnap roof conductor holder, height 16 mm
Roof conductor holder for ridge and hip tiles for fixing air-termination conductors on the ridge
FIRSTsnap, to be attached to the ridge tile clip of dry ridges
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: LH FS 8 H16 GR V2A
Part No.: 204029
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204029加入购物车。

进入网上商店

货号 204039 LH FS 8 H16 K BR V2A

全球贸易项目代码 4013364032293, 海关HS编码: 85389099, 总重: 37.60 g, 包装单位: 50.00 pc(s)


附加信息

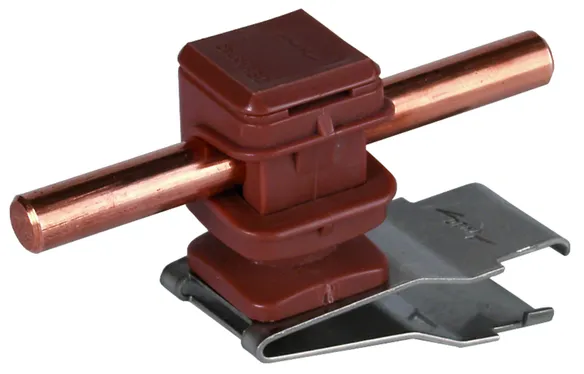

Gable roofs - FIRSTsnap roof conductor holder, height 16 mm
Roof conductor holder for ridge and hip tiles for fixing air-termination conductors on the ridge
FIRSTsnap, to be attached on the ridge tile clip of dry ridges
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: LH FS 8 H16 K BR V2A
Part No.: 204039
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204039加入购物车。

进入网上商店

Two screw clamp with spacer and elastic sealing

For tiled, slated and corrugated sheet roofs, with weather-resistant spacer and elastic sealing, fixed conductor routing.

1 产品

货号 216000 DLH ZS 7.10 FL20 KT12 STTZN

全球贸易项目代码 4013364020054, 海关HS编码: 85389099, 总重: 78.00 g, 包装单位: 25.00 pc(s)


附加信息

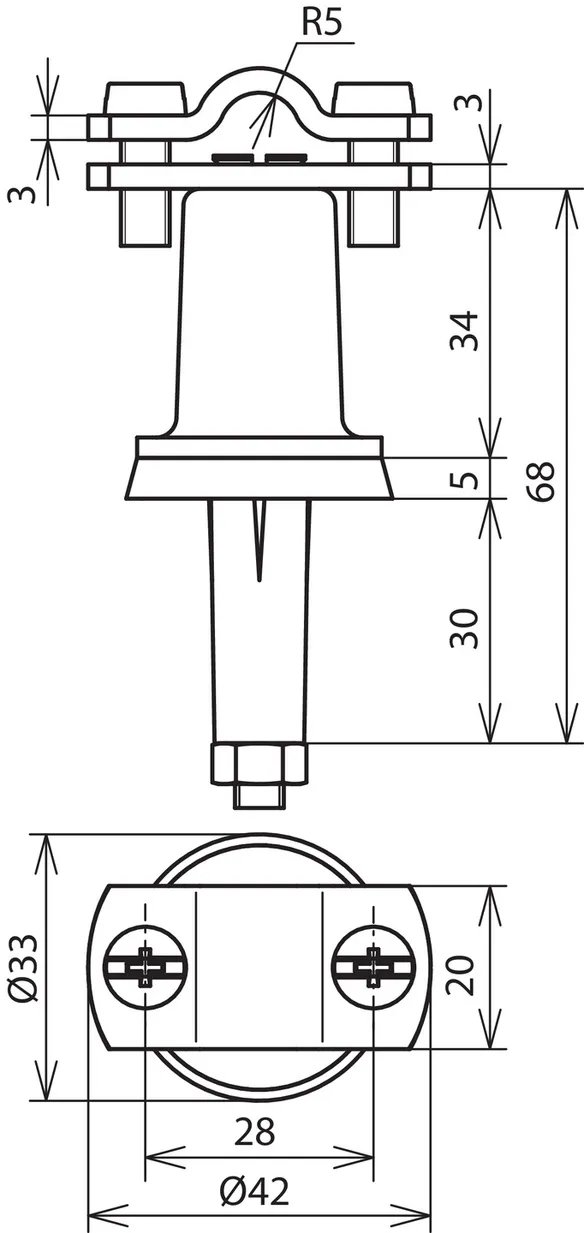

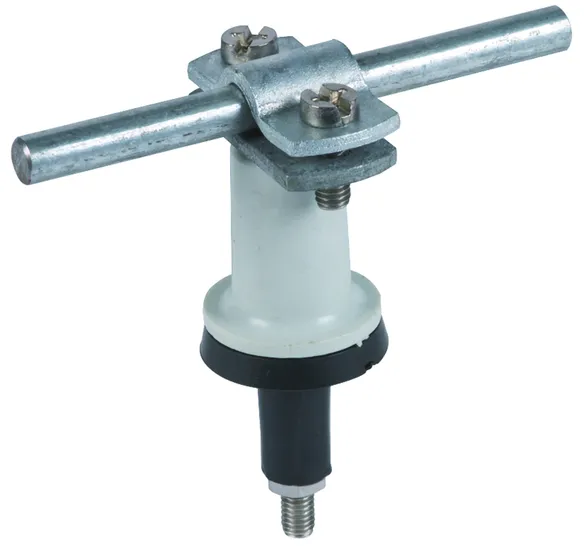

Two-screw clamp with spacer and elastic sealing
Roof conductor holder for ridge and hip tiles for fixing air-termination conductors on the ridge
for tiled, slated and corrugated sheet roofs, with weather-resistant clamp bush
Material of roof conductor holder: plastic
Hole: Ø12 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH ZS 7.10 FL20 KT12 STTZN
Part No.: 216000
or equivalent.



技术参数

Material of roof conductor holder plastic
Hole Ø12 mm
Material of conductor holder St/tZn
Conductor support Rd 7-10 mm
Conductor support Fl 20 mm

.产品已加入收藏夹。

进入收藏夹

商品216000加入购物车。

进入网上商店
