Roof Conductor Holders Adjustable for Ridge and Hip Tiles

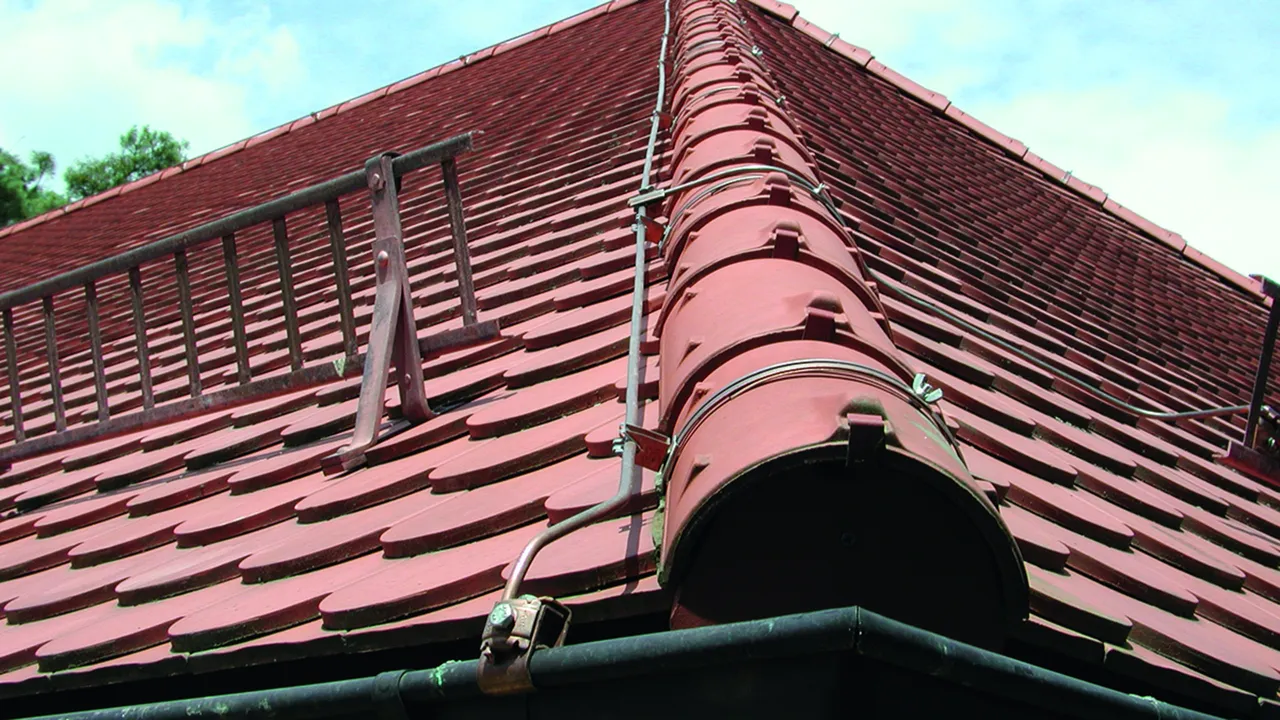

For fixing air-termination conductors on the ridge, e.g. of tile roofs.

Steplessly adjustable with conductor holder DEHNsnap

Loose conductor routing, laterally adjustable (top centre to the bottom).

6 产品

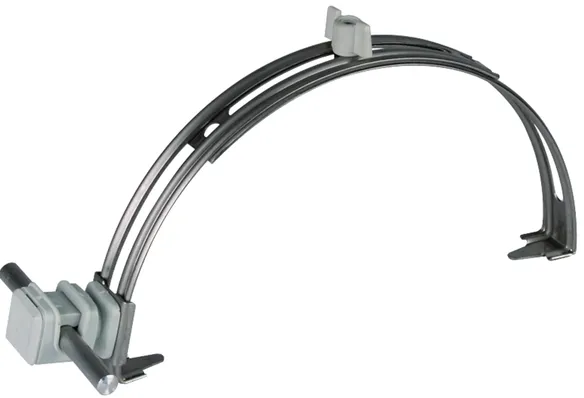

货号 204109 DLH DS 8 H16 FG180.280 GR V2A

全球贸易项目代码 4013364028098, 海关HS编码: 85389099, 总重: 103.64 g, 包装单位: 25.00 pc(s)


附加信息

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, adjustable on the side (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 GR V2A
Part No.: 204109
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

.产品已加入收藏夹。

进入收藏夹

商品204109加入购物车。

进入网上商店

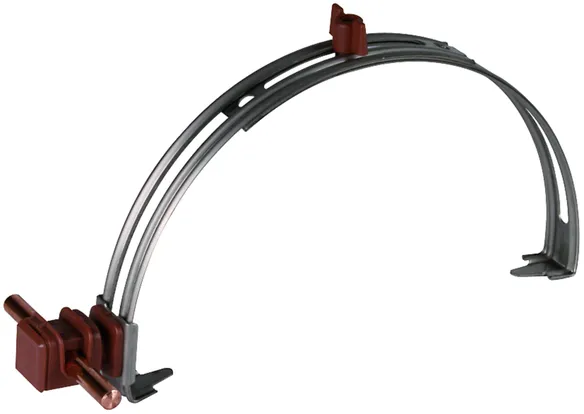

货号 204911 DLH DS 8 H16 FG180.280 BR V2A

全球贸易项目代码 4013364030640, 海关HS编码: 85389099, 总重: 104.04 g, 包装单位: 25.00 pc(s)


附加信息

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge e.g., for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 BR V2A
Part No.: 204911
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

.产品已加入收藏夹。

进入收藏夹

商品204911加入购物车。

进入网上商店

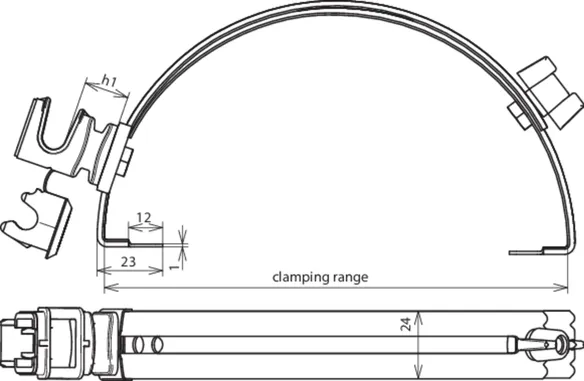

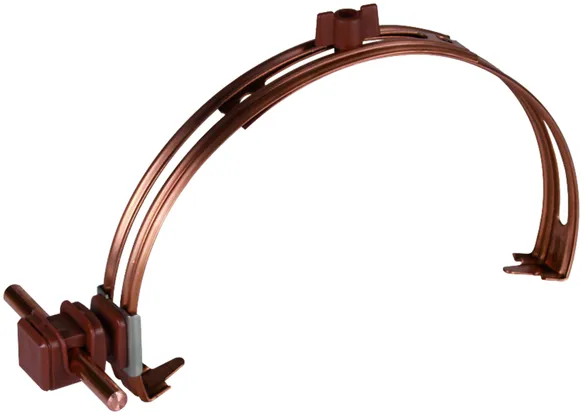

货号 204107 DLH DS 8 H16 FG180.280BR GALCU

全球贸易项目代码 4013364028104, 海关HS编码: 85389099, 总重: 111.04 g, 包装单位: 25.00 pc(s)


附加信息

DEHNsnap conductor holder, brown, Cu, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280BR GALCU
Part No.: 204107
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

.产品已加入收藏夹。

进入收藏夹

商品204107加入购物车。

进入网上商店

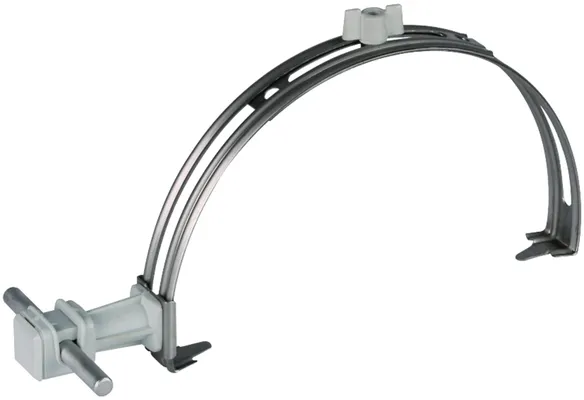

货号 204129 DLH DS 8 H36 FG180.280 GR V2A

全球贸易项目代码 4013364021433, 海关HS编码: 85389099, 总重: 108.04 g, 包装单位: 25.00 pc(s)


附加信息

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 GR V2A
Part No.: 204129
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

.产品已加入收藏夹。

进入收藏夹

商品204129加入购物车。

进入网上商店

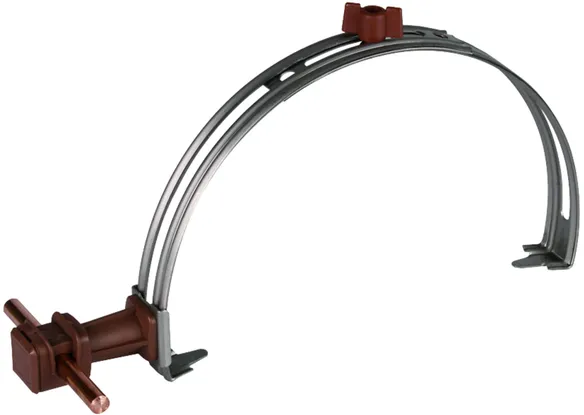

货号 204913 DLH DS 8 H36 FG180.280 BR V2A

全球贸易项目代码 4013364030664, 海关HS编码: 85389099, 总重: 114.04 g, 包装单位: 25.00 pc(s)


附加信息

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 BR V2A
Part No.: 204913
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

.产品已加入收藏夹。

进入收藏夹

商品204913加入购物车。

进入网上商店

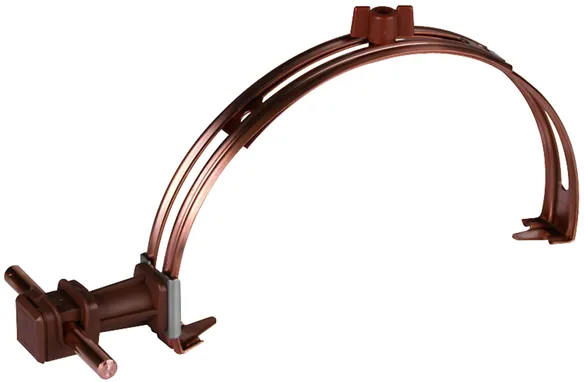

货号 204127 DLH DS 8 H36 FG180.280BR GALCU

全球贸易项目代码 4013364028142, 海关HS编码: 85389099, 总重: 116.24 g, 包装单位: 25.00 pc(s)


附加信息

DEHNsnap conductor holder, Cu, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280BR GALCU
Part No.: 204127
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

.产品已加入收藏夹。

进入收藏夹

商品204127加入购物车。

进入网上商店

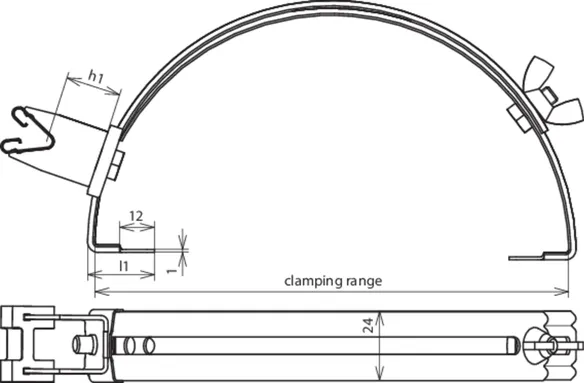

Steplessly adjustable with conductor holder DEHNgrip

Loose conductor routing, laterally adjustable (top centre to the bottom).

5 产品

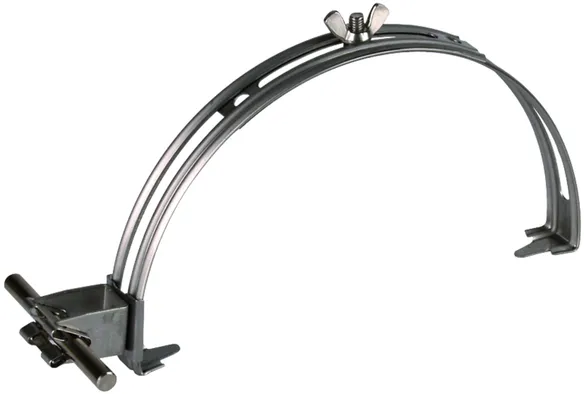

货号 206109 DLH DG 8 H20 FG180.280 V2A

全球贸易项目代码 4013364042810, 海关HS编码: 85389099, 总重: 116.00 g, 包装单位: 25.00 pc(s)


附加信息

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 V2A
Part No.: 206109
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 23 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206109加入购物车。

进入网上商店

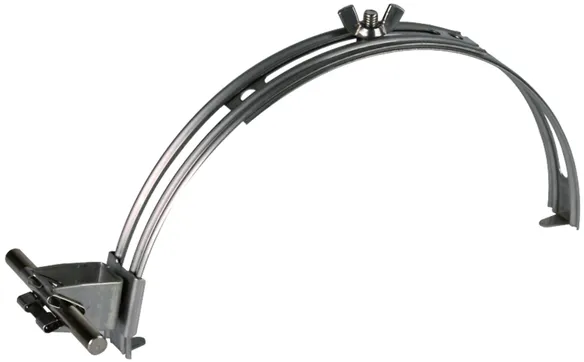

货号 206809 DLH DG 8 H20 FG180.280 KK V2A

全球贸易项目代码 4013364077485, 海关HS编码: 85389099, 总重: 120.34 g, 包装单位: 25.00 pc(s)


附加信息

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK V2A
Part No.: 206809
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206809加入购物车。

进入网上商店

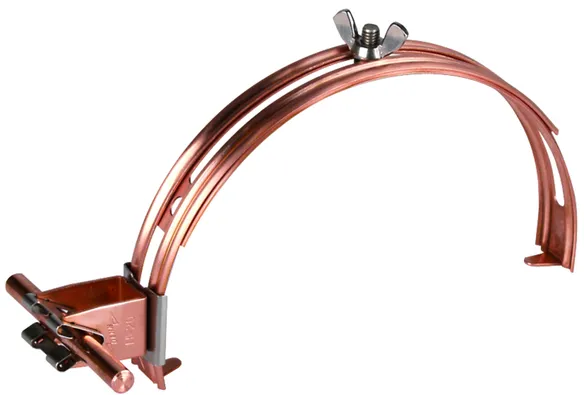

货号 206807 DLH DG 8 H20 FG180.280 KK GALCU

全球贸易项目代码 4013364046306, 海关HS编码: 85389099, 总重: 113.04 g, 包装单位: 25.00 pc(s)


附加信息

DEHNgrip conductor holder, Cu, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK GALCU
Part No.: 206807
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206807加入购物车。

进入网上商店

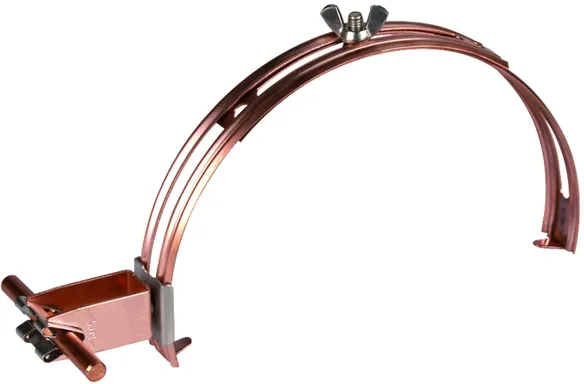

货号 206817 DLH DG 8 H32 FG180.280 KK GALCU

全球贸易项目代码 4013364078581, 海关HS编码: 85389099, 总重: 128.04 g, 包装单位: 25.00 pc(s)


附加信息

DEHNgrip conductor holder, Cu, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally on the side (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK GALCU
Part No.: 206817
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206817加入购物车。

进入网上商店

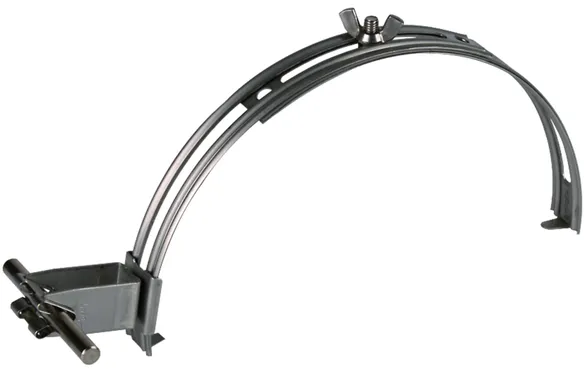

货号 206819 DLH DG 8 H32 FG180.280 KK V2A

全球贸易项目代码 4013364077362, 海关HS编码: 85389099, 总重: 121.04 g, 包装单位: 25.00 pc(s)


附加信息

DEHNgrip conductor holder, StSt, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK V2A
Part No.: 206819
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品206819加入购物车。

进入网上商店

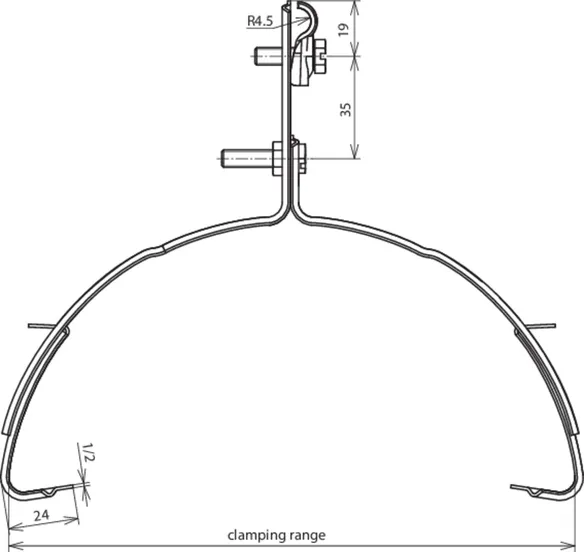

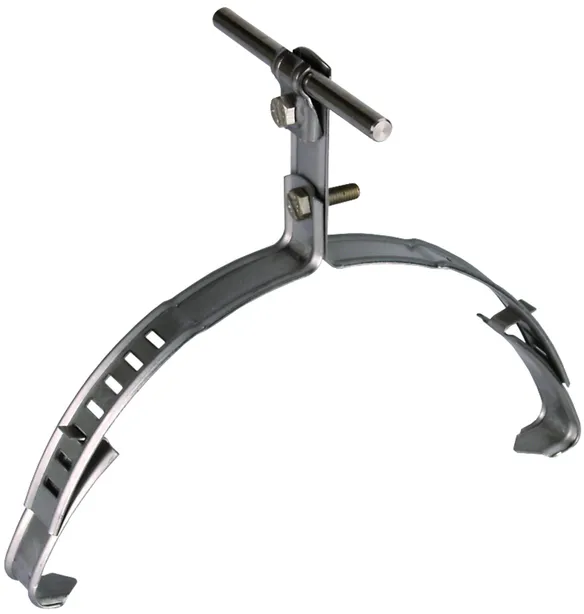

Adjustable in steps with conductor holder DEHNquick

Fixed conductor routing.

5 产品

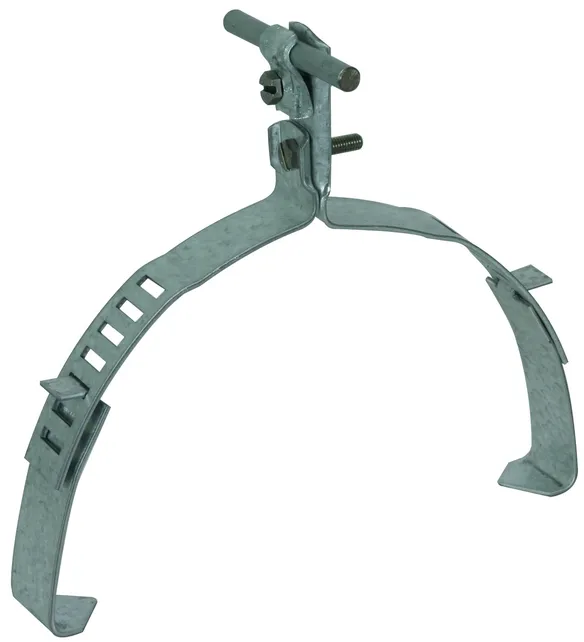

货号 202020 DLH DQ 6.10 FG120.240 STTZN

全球贸易项目代码 4013364020764, 海关HS编码: 85389099, 总重: 259.92 g, 包装单位: 25.00 pc(s)


附加信息

DEHNQUICK conductor holder, St/tZn, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 120-240 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 STTZN
Part No.: 202020
or equivalent.

认证



技术参数

Material of roof conductor holder St/tZn
Clamping range 120-240 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

.产品已加入收藏夹。

进入收藏夹

商品202020加入购物车。

进入网上商店

货号 202021 DLH DQ 6.10 FG200.280 STTZN

全球贸易项目代码 4013364020788, 海关HS编码: 85389099, 总重: 273.92 g, 包装单位: 1.00 pc(s)


附加信息

DEHNQUICK conductor holder, St/tZn, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 200-280 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 STTZN
Part No.: 202021
or equivalent.

认证



技术参数

Material of roof conductor holder St/tZn
Clamping range 200-280 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

.产品已加入收藏夹。

进入收藏夹

商品202021加入购物车。

进入网上商店

货号 202900 DLH DQ 6.10 FG120.240 V2A

全球贸易项目代码 4013364020801, 海关HS编码: 85389099, 总重: 133.24 g, 包装单位: 1.00 pc(s)


附加信息

DEHNQUICK conductor holder, StSt, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: StSt
Clamping range: 120-240 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 V2A
Part No.: 202900
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Clamping range 120-240 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

.产品已加入收藏夹。

进入收藏夹

商品202900加入购物车。

进入网上商店

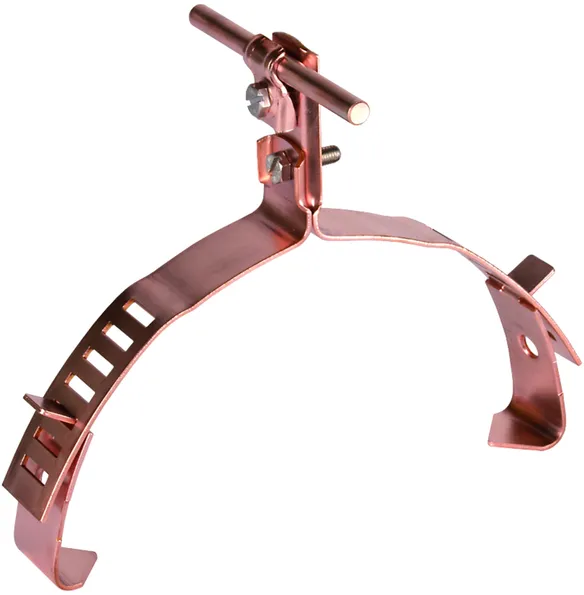

货号 202027 DLH DQ 6.10 FG120.240 CU

全球贸易项目代码 4013364020771, 海关HS编码: 85389099, 总重: 299.92 g, 包装单位: 1.00 pc(s)


附加信息

DEHNQUICK conductor holder, Cu, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 120-240 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 CU
Part No.: 202027
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Clamping range 120-240 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

.产品已加入收藏夹。

进入收藏夹

商品202027加入购物车。

进入网上商店

货号 202227 DLH DQ 6.10 FG200.280 CU

全球贸易项目代码 4013364020795, 海关HS编码: 85389099, 总重: 299.92 g, 包装单位: 25.00 pc(s)


附加信息

DEHNQUICK conductor holder, Cu, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 200-280 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 CU
Part No.: 202227
or equivalent.

认证



技术参数

Material of roof conductor holder Cu
Clamping range 200-280 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

.产品已加入收藏夹。

进入收藏夹

商品202227加入购物车。

进入网上商店
返回顶部
