Protection Module for DEHNguard M UL series

  • High discharge capacity due to heavy-duty zinc oxide varistors (Imax 50 kA 8x20 μs)
  • ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
  • High reliability due to "Thermo Dynamic Control" SPD monitoring device

Varistor-Based Protection Module

Varistor-based protection module for DEHNguard MU ... and DEHNguard SU ... surge arresters.

6 产品

货号 908011 DG PLU 180

全球贸易项目代码 4013364148482, 海关HS编码: 85363030, 总重: 43.80 g, 包装单位: 1.00 pc(s)


附加信息

DG PLU 180 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 180 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 180
Part No.: 908011
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

.产品已加入收藏夹。

进入收藏夹

商品908011加入购物车。

进入网上商店

货号 908012 DG PLU 230

全球贸易项目代码 4013364148505, 海关HS编码: 85363030, 总重: 46.70 g, 包装单位: 1.00 pc(s)


附加信息

DG PLU 230 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 230 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 230
Part No.: 908012
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

.产品已加入收藏夹。

进入收藏夹

商品908012加入购物车。

进入网上商店

货号 908010 DG PLU 275

全球贸易项目代码 4013364148512, 海关HS编码: 85363030, 总重: 49.40 g, 包装单位: 1.00 pc(s)


附加信息

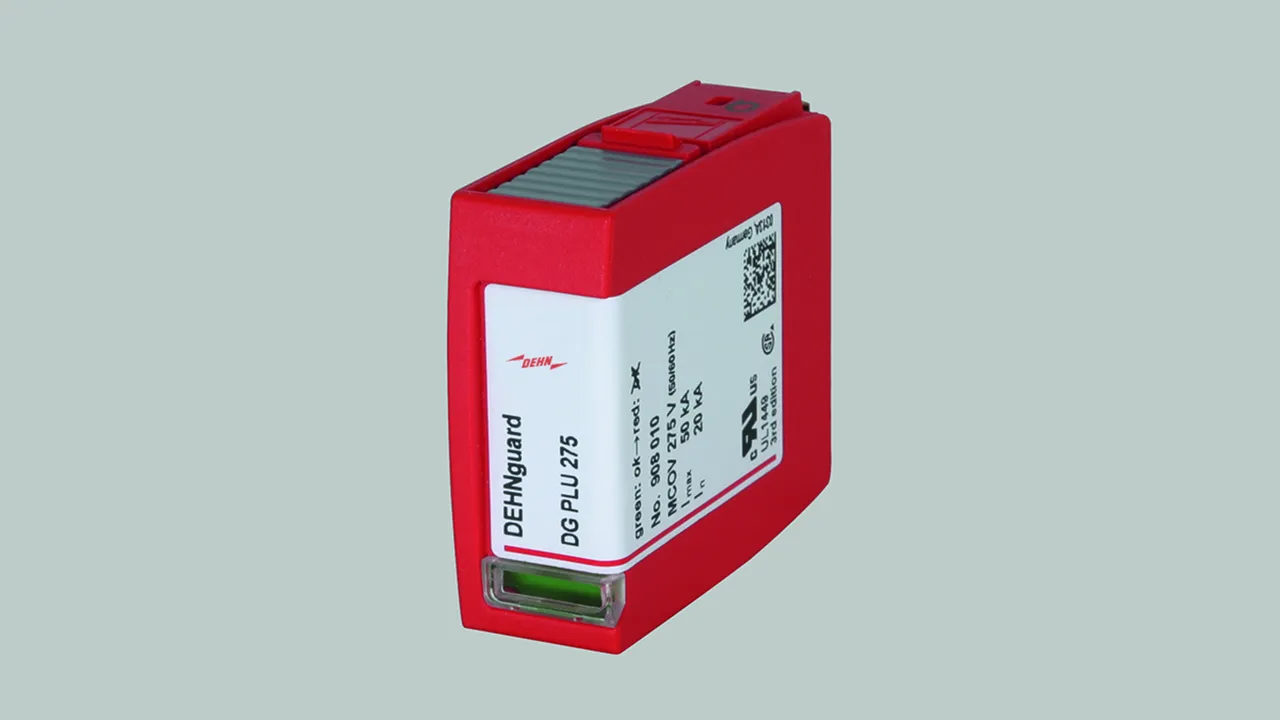

DG PLU 275 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 275 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 275
Part No.: 908010
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

.产品已加入收藏夹。

进入收藏夹

商品908010加入购物车。

进入网上商店

货号 908014 DG PLU 385

全球贸易项目代码 4013364148529, 海关HS编码: 85363030, 总重: 55.70 g, 包装单位: 1.00 pc(s)


附加信息

DG PLU 385 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 385 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 385
Part No.: 908014
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

.产品已加入收藏夹。

进入收藏夹

商品908014加入购物车。

进入网上商店

货号 908013 DG PLU 510

全球贸易项目代码 4013364148536, 海关HS编码: 85363030, 总重: 63.90 g, 包装单位: 1.00 pc(s)


附加信息

DG PLU 510 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 510 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 510
Part No.: 908013
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

.产品已加入收藏夹。

进入收藏夹

商品908013加入购物车。

进入网上商店

货号 908015 DG PLU 550

全球贸易项目代码 4013364148543, 海关HS编码: 85363030, 总重: 66.90 g, 包装单位: 1.00 pc(s)


附加信息

DG PLU 550 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 550 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 550
Part No.: 908015
or equivalent.

认证



技术参数

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

.产品已加入收藏夹。

进入收藏夹

商品908015加入购物车。

进入网上商店
