Mounting Bracket for Air-Termination Systems on Metal Roofs
:quality(98)/www.dehn.cn/store/f/57101753/HDVORSCHAU/105241_16-9.jpg)
:quality(98)/www.dehn.cn/store/f/57101753/HDVORSCHAU/105241_16-9.jpg)

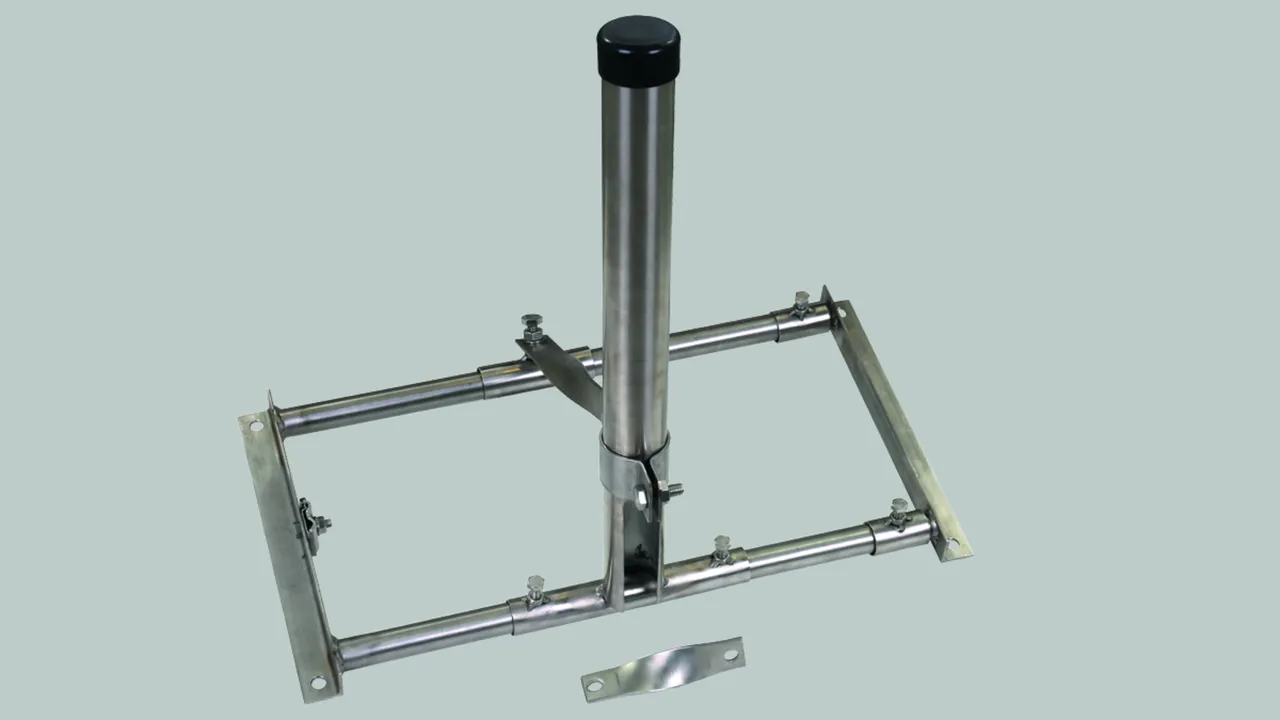

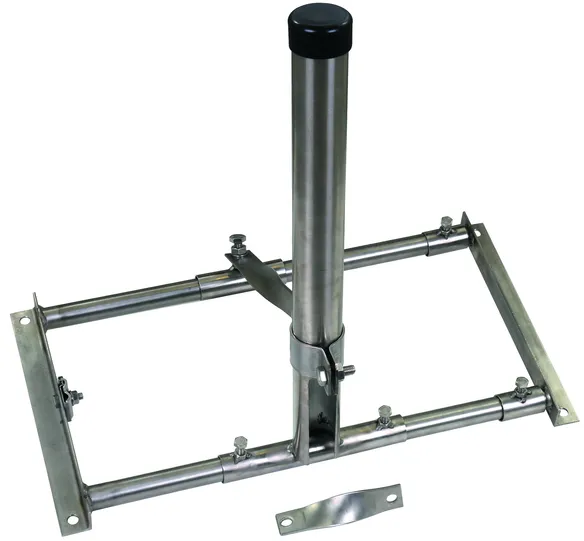

Stainless steel mounting bracket for installing HVI air-termination systems or air-termination rods on metal roofs:
Mounting bracket suitable for vertical mounting of air-termination systems on metal roofs with a max. roof slope of up to 53°.
The mounting bracket for air-termination systems on metal roofs can be mounted on suitable, stable substructures. The mounting bracket for air-termination systems on metal roofs is designed for up to 320 Nm initial torque.
For fixing Ø40/50 air-termination rods and for top-mounting HVI light plus and HVI supporting tubes with inside conductor routing.
Note: Mounting conditions on site must be clarified with the builder.
Mounting bracket suitable for vertical mounting of air-termination systems on metal roofs with a max. roof slope of up to 53°.
The mounting bracket for air-termination systems on metal roofs can be mounted on suitable, stable substructures. The mounting bracket for air-termination systems on metal roofs is designed for up to 320 Nm initial torque.
For fixing Ø40/50 air-termination rods and for top-mounting HVI light plus and HVI supporting tubes with inside conductor routing.
Note: Mounting conditions on site must be clarified with the builder.
