SV Clamps for Underground Connections
:quality(98)/www.dehn.cn/store/f/57094448/HDVORSCHAU/308062_16-9.jpg)
:quality(98)/www.dehn.cn/store/f/57094448/HDVORSCHAU/308062_16-9.jpg)

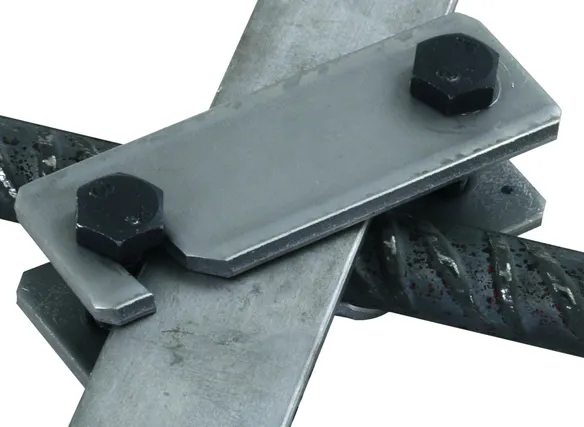

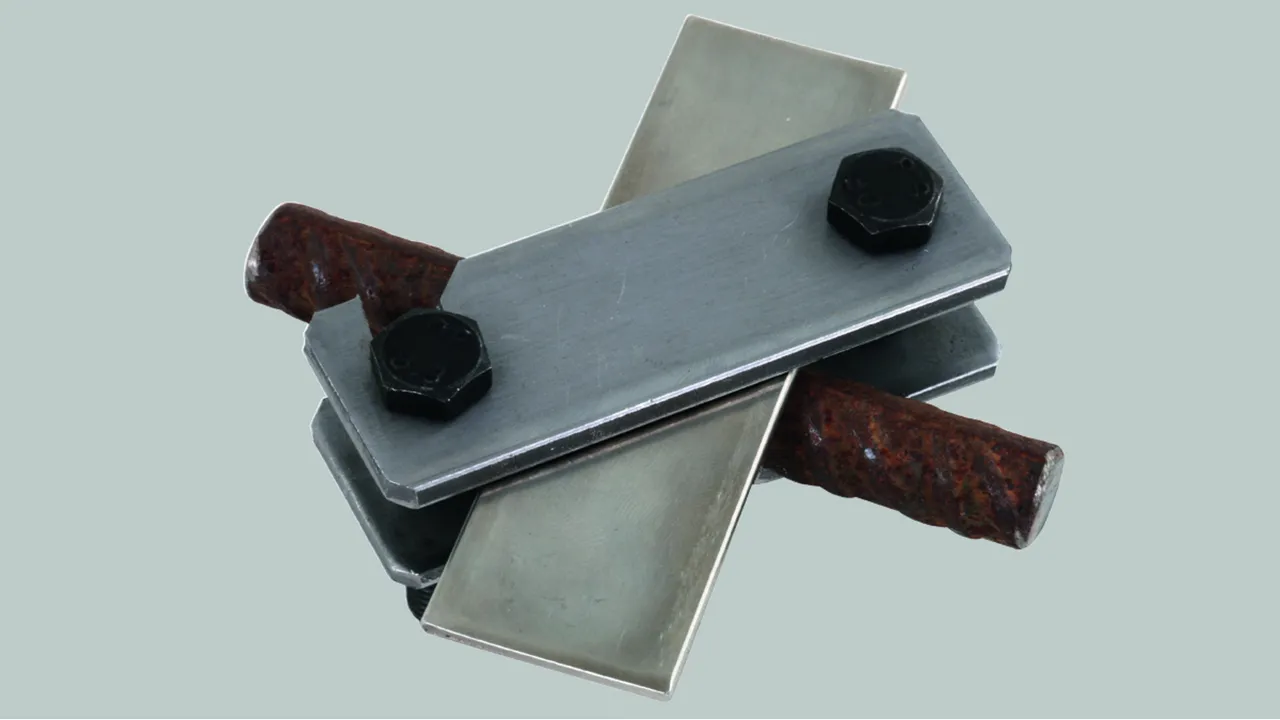

SV (angled connector) clamps for cross, parallel and T connections.
货号 308062 SVK 6.28 FL30 STBL
全球贸易项目代码 4013364344051, 海关HS编码: 85359000, 总重: 158.00 g, 包装单位: 50.00 pc(s)
:quality(98)/www.dehn.cn/store/f/57094460/HDVORSCHAU/308061_1.jpg)
:quality(98)/www.dehn.cn/store/f/57094460/HDVORSCHAU/308061_1.jpg)
:quality(98)/www.dehn.cn/store/f/57094461/HDVORSCHAU/308062m_D.jpg)
:quality(98)/www.dehn.cn/store/f/57094461/HDVORSCHAU/308062m_D.jpg)
技术参数
| Material of clamp | St/bare |

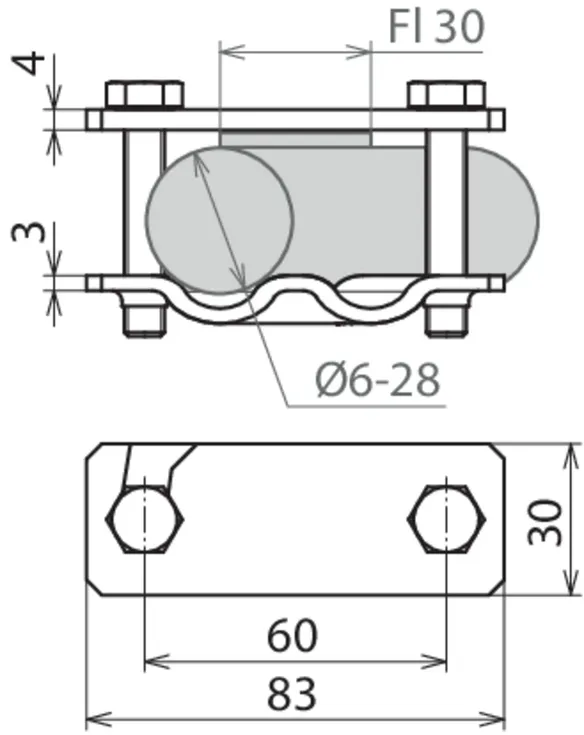

| Clamping range Rd / Fl | 6-28 / 30 mm |
| Standard | EN 62561-1 |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 7.3 kA |
| *) For exact assignment see test certificate. | |
