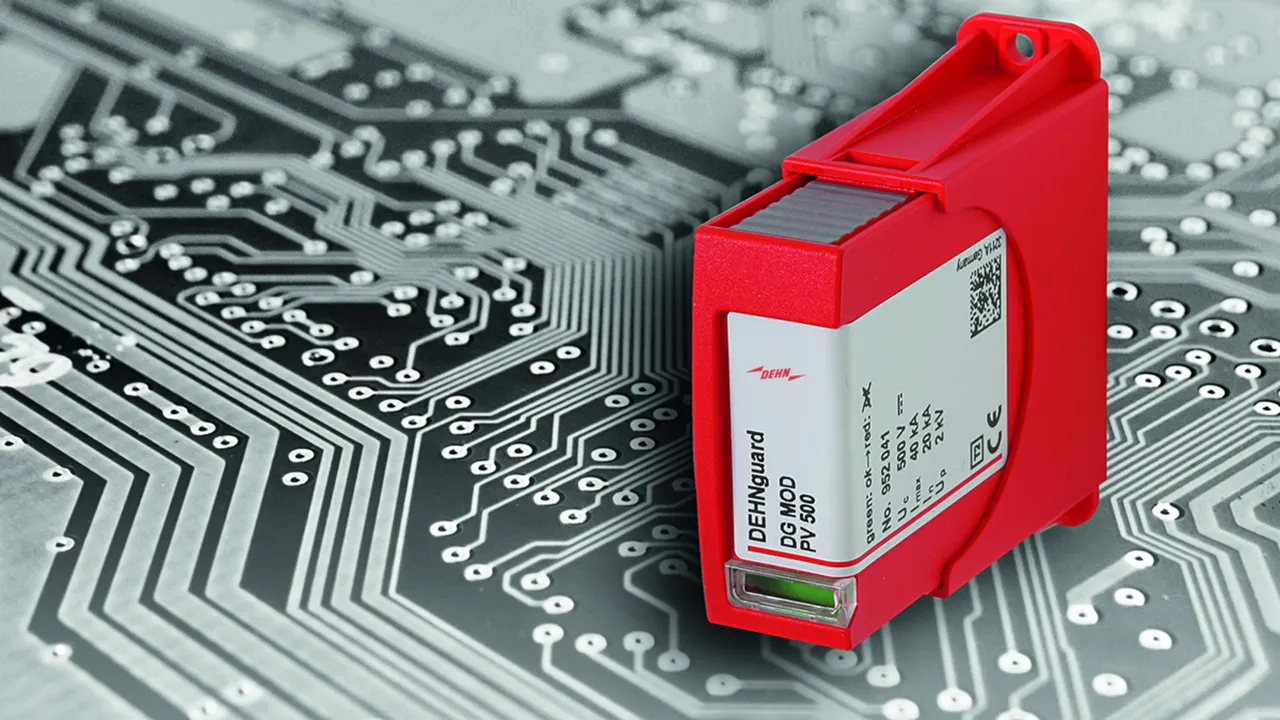

DEHNguard PCB

  • Base for DEHNguard protection modules to be mounted on and integrated in PCBs
  • Optimal integration of a type 2 arrester in devices
  • Easy and flexible use for all circuit configurations
  • Proven DEHNguard modules ensure high performance
  • Coded base and protection module guard against installing an incorrect module
  • Version with and without remote signalling contact for the monitoring device
  • Versions for maximum requirements on clearances and creepage distances
  • Versions for other DEHNguard protection modules available on request

DEHNguard PCB PV SCI ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 产品

货号 952653 DG PCB PV SCI 300

全球贸易项目代码 4013364150713, 海关HS编码: 85366930, 总重: 19.89 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV SCI 300 single-pole base
Single-pole base for DEHNguard protection modules
for integration on PCBs
Coded base part and protection module
Mounting via screw and soldered connection on PCBs
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 500 V

Brand: DEHN
Type: DG PCB PV SCI 300
Part No.: 952653
or equivalent.

认证



技术参数

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

.产品已加入收藏夹。

进入收藏夹

商品952653加入购物车。

进入网上商店

货号 952651 DG PCB PV SCI 500

全球贸易项目代码 4013364146310, 海关HS编码: 85366930, 总重: 19.89 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV SCI 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500
Part No.: 952651
or equivalent.

认证



技术参数

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

.产品已加入收藏夹。

进入收藏夹

商品952651加入购物车。

进入网上商店

货号 952654 DG PCB PV SCI 600

全球贸易项目代码 4013364149878, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV SCI 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600
Part No.: 952654
or equivalent.

认证



技术参数

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

.产品已加入收藏夹。

进入收藏夹

商品952654加入购物车。

进入网上商店

DEHNguard PCB PV SCI ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 产品

货号 952753 DG PCB PV SCI 300 FM

全球贸易项目代码 4013364150720, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV SCI 300 FM single-pole base
Single-pole base for DEHNguard protection modules
is mounted and integrated on PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 300 FM
Part No.: 952753
or equivalent.

认证



技术参数

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952753加入购物车。

进入网上商店

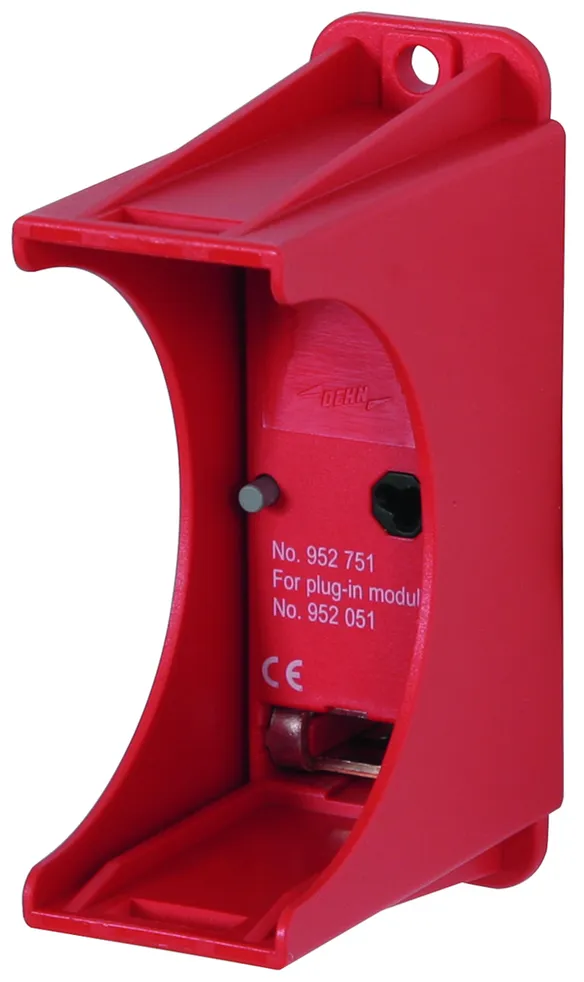

货号 952751 DG PCB PV SCI 500 FM

全球贸易项目代码 4013364146327, 海关HS编码: 85366930, 总重: 20.49 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV SCI 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500 FM
Part No.: 952751
or equivalent.

认证



技术参数

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952751加入购物车。

进入网上商店

货号 952754 DG PCB PV SCI 600 FM

全球贸易项目代码 4013364149885, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV SCI 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600 FM
Part No.: 952754
or equivalent.

认证



技术参数

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952754加入购物车。

进入网上商店

DEHNguard PCB PV ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 产品

货号 952643 DG PCB PV 300

全球贸易项目代码 4013364150737, 海关HS编码: 85366930, 总重: 19.89 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV 300 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300
Part No.: 952643
or equivalent.

认证



技术参数

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

.产品已加入收藏夹。

进入收藏夹

商品952643加入购物车。

进入网上商店

货号 952641 DG PCB PV 500

全球贸易项目代码 4013364146334, 海关HS编码: 85366930, 总重: 19.89 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500
Part No.: 952641
or equivalent.

认证



技术参数

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

.产品已加入收藏夹。

进入收藏夹

商品952641加入购物车。

进入网上商店

货号 952644 DG PCB PV 600

全球贸易项目代码 4013364149892, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600
Part No.: 952644
or equivalent.

认证



技术参数

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

.产品已加入收藏夹。

进入收藏夹

商品952644加入购物车。

进入网上商店

DEHNguard PCB PV ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 产品

货号 952743 DG PCB PV 300 FM

全球贸易项目代码 4013364150744, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV 300 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300 FM
Part No.: 952743
or equivalent.

认证



技术参数

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952743加入购物车。

进入网上商店

货号 952741 DG PCB PV 500 FM

全球贸易项目代码 4013364146341, 海关HS编码: 85366930, 总重: 20.49 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500 FM
Part No.: 952741
or equivalent.

认证



技术参数

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952741加入购物车。

进入网上商店

货号 952744 DG PCB PV 600 FM

全球贸易项目代码 4013364149908, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600 FM
Part No.: 952744
or equivalent.

认证



技术参数

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952744加入购物车。

进入网上商店

DEHNguard PCB ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

2 产品

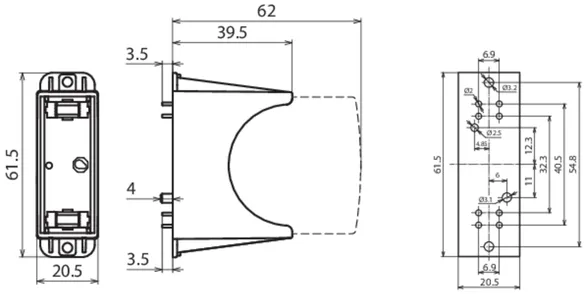

货号 952610 DG PCB 275

全球贸易项目代码 4013364149816, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB 275 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (d.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275
Part No.: 952610
or equivalent.

认证



技术参数

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

.产品已加入收藏夹。

进入收藏夹

商品952610加入购物车。

进入网上商店

货号 952614 DG PCB 385

全球贸易项目代码 4013364149847, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB 385 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (d.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385
Part No.: 952614
or equivalent.

认证



技术参数

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

.产品已加入收藏夹。

进入收藏夹

商品952614加入购物车。

进入网上商店

DEHNguard PCB ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 产品

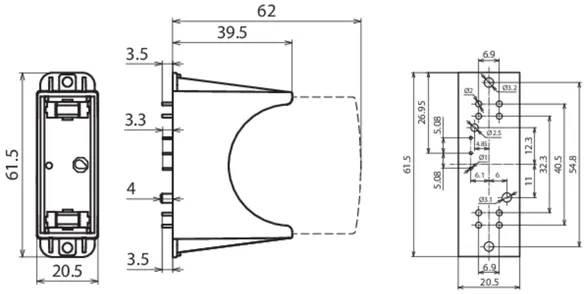

货号 952710 DG PCB 275 FM

全球贸易项目代码 4013364149830, 海关HS编码: 85366930, 总重: 20.59 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275 FM
Part No.: 952710
or equivalent.

认证



技术参数

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952710加入购物车。

进入网上商店

货号 952714 DG PCB 385 FM

全球贸易项目代码 4013364149854, 海关HS编码: 85366930, 总重: 20.59 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB 385 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 FM
Part No.: 952714
or equivalent.

认证



技术参数

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952714加入购物车。

进入网上商店

DEHNguard PCB NPE (FM)

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 产品

货号 952650 DG PCB NPE

全球贸易项目代码 4013364149823, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB NPE single-pole base
Single-pole base for DEHNguard protection modules
to be integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (d.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE
Part No.: 952650
or equivalent.

认证



技术参数

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

.产品已加入收藏夹。

进入收藏夹

商品952650加入购物车。

进入网上商店

货号 952750 DG PCB NPE FM

全球贸易项目代码 4013364149861, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB NPE FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE FM
Part No.: 952750
or equivalent.

认证



技术参数

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952750加入购物车。

进入网上商店

DEHNguard PCB PV I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

3 产品

货号 952941 DG PCB PV I 500 FM

全球贸易项目代码 4013364228177, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV I 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 500 FM
Part No.: 952941
or equivalent.

认证



技术参数

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952941加入购物车。

进入网上商店

货号 952948 DG PCB PV I 600 FM

全球贸易项目代码 4013364323919, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV I 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 600 FM
Part No.: 952948
or equivalent.

认证



技术参数

Associated protection module DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952948加入购物车。

进入网上商店

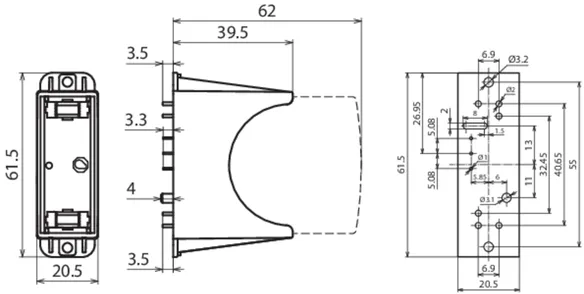

货号 952949 DG PCB PV I 750 FM

全球贸易项目代码 4013364323926, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PV I 750 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module): 750 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 750 FM
Part No.: 952949
or equivalent.



技术参数

Associated protection module DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module) 750 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952949加入购物车。

进入网上商店

DEHNguard PCB PVSCI I ...FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 产品

货号 952951 DG PCB PVSCI I 500FM

全球贸易项目代码 4013364228184, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB PVSCI I 500FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PVSCI I 500FM
Part No.: 952951
or equivalent.

认证



技术参数

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952951加入购物车。

进入网上商店

DEHNguard PCB I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 产品

货号 952910 DG PCB I 275 FM

全球贸易项目代码 4013364266865, 海关HS编码: 85366930, 总重: 19.79 g, 包装单位: 72.00 pc(s)


附加信息

DEHNguard PCB I 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB I 275 FM
Part No.: 952910
or equivalent.

认证



技术参数

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952910加入购物车。

进入网上商店

DG PCB ... UL

2 产品

货号 952615 DG PCB 385 UL FM

全球贸易项目代码 4013364535794, 海关HS编码: 85366930, 总重: 20.49 g, 包装单位: 72.00 pc(s)


附加信息

Single-pole base DEHNguard DG PCB 385 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 385 (Part No. 908 014)
Max. continuous AC operating voltage (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 UL FM
Part No.: 952615
or equivalent.



技术参数

Associated protection module DG PLU 385 (Part No. 908 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952615加入购物车。

进入网上商店

货号 952616 DG PCB 510 UL FM

全球贸易项目代码 4013364535800, 海关HS编码: 85366930, 总重: 20.49 g, 包装单位: 72.00 pc(s)


附加信息

Single-pole base DEHNguard DG PCB 510 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 510 (Part No. 908 013)
Max. continuous AC operating voltage (module): 510 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 510 UL FM
Part No.: 952616
or equivalent.



技术参数

Associated protection module DG PLU 510 (Part No. 908 013)
Max. continuous operating voltage (a.c.) (module) 510 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

.产品已加入收藏夹。

进入收藏夹

商品952616加入购物车。

进入网上商店
返回顶部
